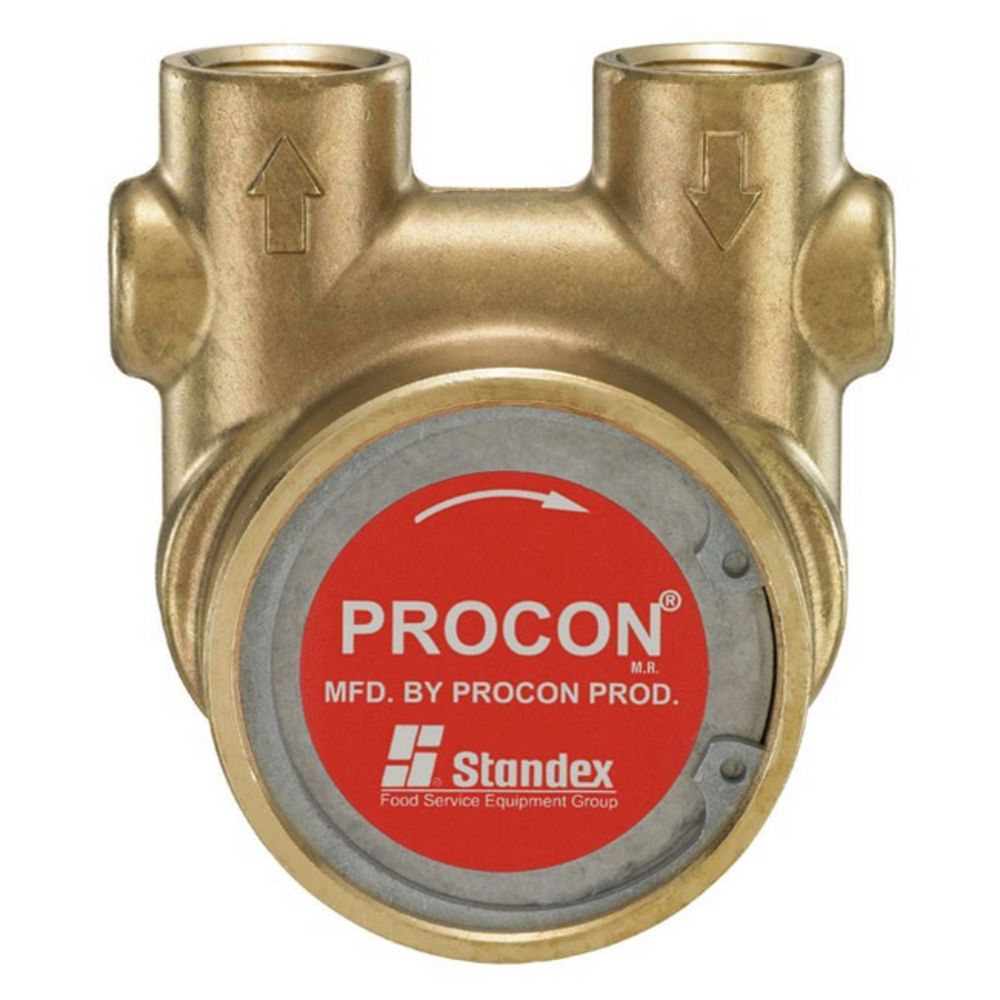

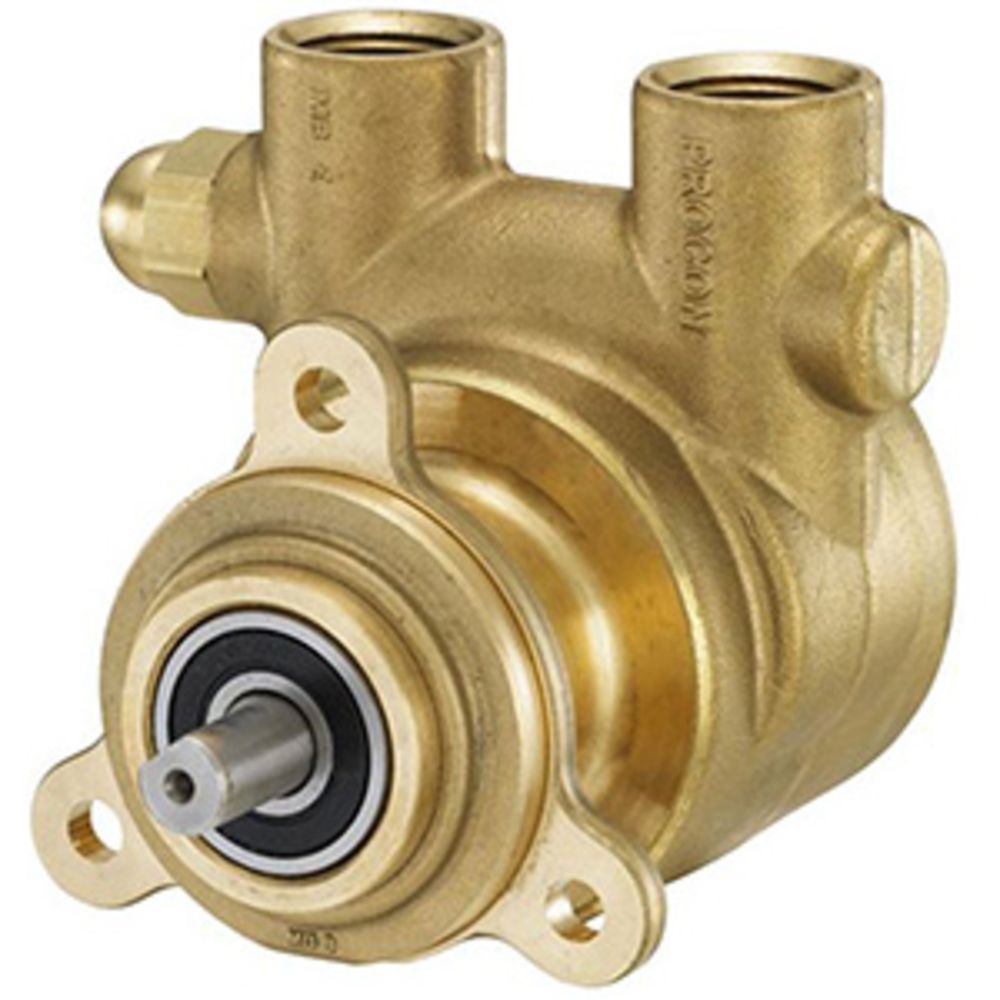

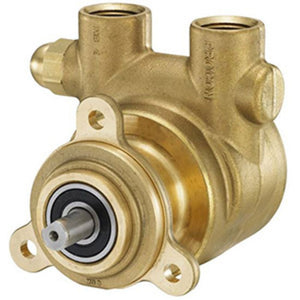

Procon Pump Brass w/ Single Flat Drive 240 GPH 1/2" NPT Slinger
This item is discontinued. We recommend the Procon Pump Brass NSF w/ Single Flat Drive 240 GPH 1/2" NPT as a...
Procon 104E330F11XX rotary vane pump is a positive displacement pump. This Series 4 Procon pump is brass with a single flat drive. The inlet and outlet ports are 1/2" NPT and the pump has a flow-rate of 240 gallons per hour. The seal configuration for the 104E330F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 104E330F11XX pump is designed to be bolted directly to the motor.
Additional Specifications:
- Capacity: 240 GPH
- Nominal Speed: 1725 RPM
- Maximum Discharge Pressure: 250 PSI
- Rotation: Clockwise
- Weight: 2.5 lbs
- Port Size: 1/2" NPT Inlet and Outlet
- Single Flat Drive
Weight & Dimensions
Weight (lbs) | 3.7 |
Details
Direction | Clockwise |
Elastomer Type | Buna-N |
Inlet/Outlet Connection | 1/2" MPT |
Max Outlet Pressure | 250 PSI |
Mounting Options | Bolt-On |
Nominal Speed - Rpm | 1725 |
Rotation / Slinger / Passivation / Strainer | Clockwise / Slinger |
Self-Priming (Water) | 6 ft max. lift |
Series | 4 |
Size | 1/2" |
Connection Type | Male (MPT) |
Flow Rate | 240 GPH |
Type | Rotary Vane Pumps |
Procon 104E330F11XX rotary vane pump is a positive displacement pump. This Series 4 Procon pump is brass with a single flat drive. The inlet and outlet ports are 1/2" NPT and the pump has a flow-rate of 240 gallons per hour. The seal configuration for the 104E330F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 104E330F11XX pump is designed to be bolted directly to the motor.
Additional Specifications:
- Capacity: 240 GPH
- Nominal Speed: 1725 RPM
- Maximum Discharge Pressure: 250 PSI
- Rotation: Clockwise
- Weight: 2.5 lbs
- Port Size: 1/2" NPT Inlet and Outlet
- Single Flat Drive

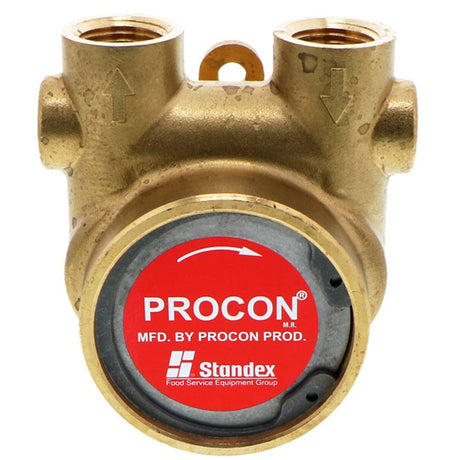

NOTE: This item is discontinued. We recommend the Procon Pump Brass NSF w/ Single Flat Drive 240 GPH 1/2" NPT as a substitute.
Weight & Dimensions
Weight (lbs) | 3.7 |
Details
Direction | Clockwise |
Elastomer Type | Buna-N |
Inlet/Outlet Connection | 1/2" MPT |
Max Outlet Pressure | 250 PSI |
Mounting Options | Bolt-On |
Nominal Speed - Rpm | 1725 |
Rotation / Slinger / Passivation / Strainer | Clockwise / Slinger |
Self-Priming (Water) | 6 ft max. lift |
Series | 4 |
Size | 1/2" |
Connection Type | Male (MPT) |
Flow Rate | 240 GPH |
Type | Rotary Vane Pumps |
