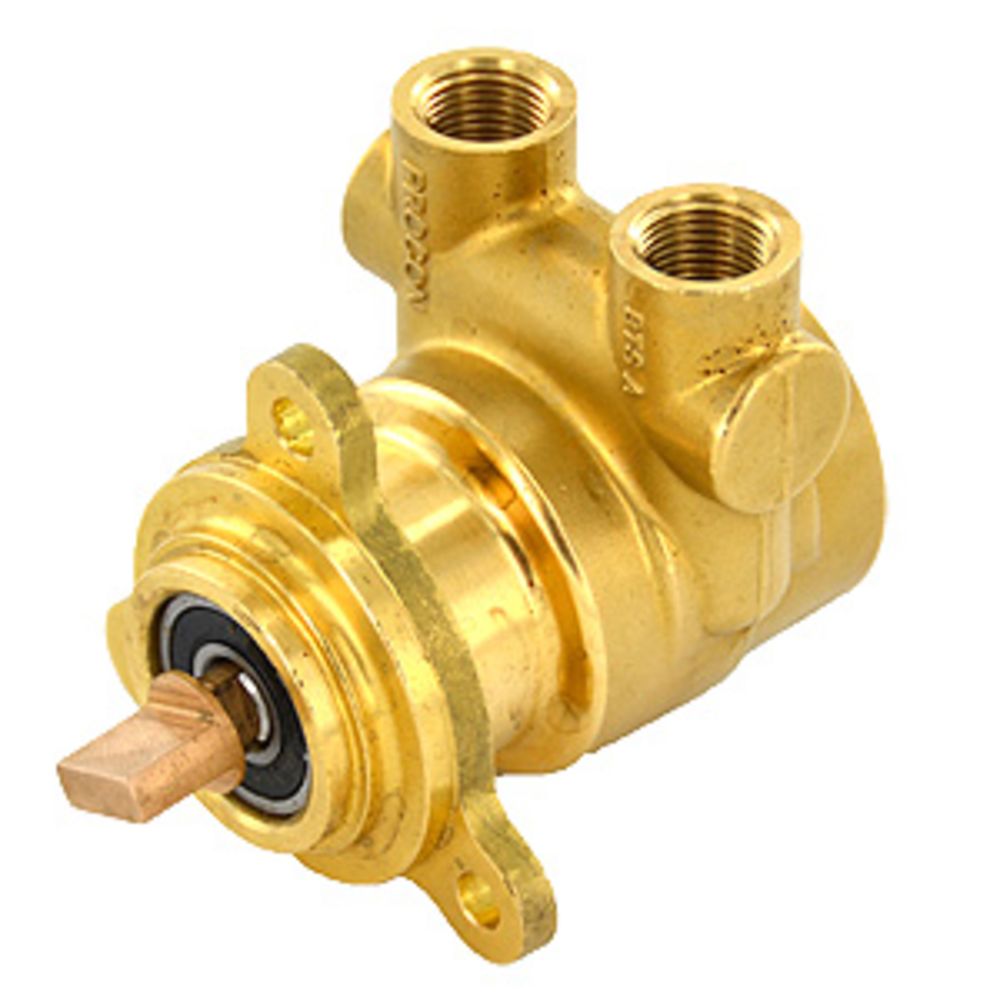

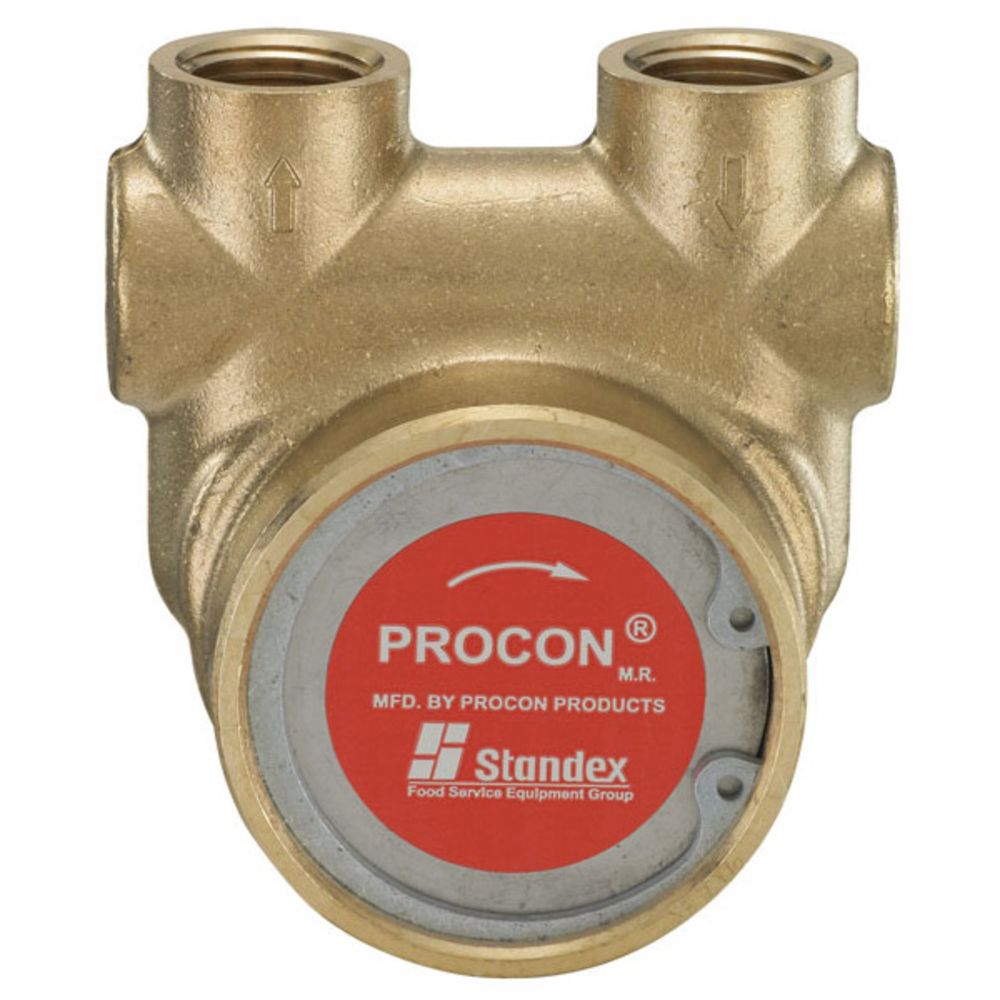

Procon Pump Brass w/ Oversize Coupling 100 GPH 3/8" NPT

Part Number: 102L100F11XX

In Stock

out of stock

In Stock

This item is discontinued. We recommend the NSF Procon Pump Brass w/ Oversize Coupling 100 GPH 3/8" NPT as a substitute....


Procon 102L100F11XX rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a single flat drive with an oversized coupler. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 102L100F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute.
Features:
 The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 102L100F11XX pump is designed to be bolted directly to the motor.

Additional Specifications:
  • Capacity: 100 GPH
  • Nominal Speed: 1725 RPM
  • Maximum Discharge Pressure: 250 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 3/8" NPT Inlet and Outlet
  • Oversize Coupler




Weight & Dimensions

Weight (lbs)

2.55

Details

Series

2

Flow Rate

100 GPH

Mounting Options

Bolt-On

Size

3/8"

Direction

Clockwise

Elastomer Type

Buna-N

Max Outlet Pressure

250 PSI

Nominal Speed - Rpm

1725

Rotation / Slinger / Passivation / Strainer

Clockwise

Self-Priming (Water)

6 Ft. Max. Lift

Inlet/Outlet Connection

3/8" MPT


Procon

Procon

Procon

Procon





Procon 102L100F11XX rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass with a single flat drive with an oversized coupler. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 100 gallons per hour. The seal configuration for the 102L100F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute.
Features:
 The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 102L100F11XX pump is designed to be bolted directly to the motor.

Additional Specifications:
  • Capacity: 100 GPH
  • Nominal Speed: 1725 RPM
  • Maximum Discharge Pressure: 250 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 3/8" NPT Inlet and Outlet
  • Oversize Coupler



NOTE: This item is discontinued. We recommend the NSF Procon Pump Brass w/ Oversize Coupling 100 GPH 3/8" NPT as a substitute.

Weight & Dimensions

Weight (lbs)

2.55

Details

Series

2

Flow Rate

100 GPH

Mounting Options

Bolt-On

Size

3/8"

Direction

Clockwise

Elastomer Type

Buna-N

Max Outlet Pressure

250 PSI

Nominal Speed - Rpm

1725

Rotation / Slinger / Passivation / Strainer

Clockwise

Self-Priming (Water)

6 Ft. Max. Lift

Inlet/Outlet Connection

3/8" MPT
