Procon

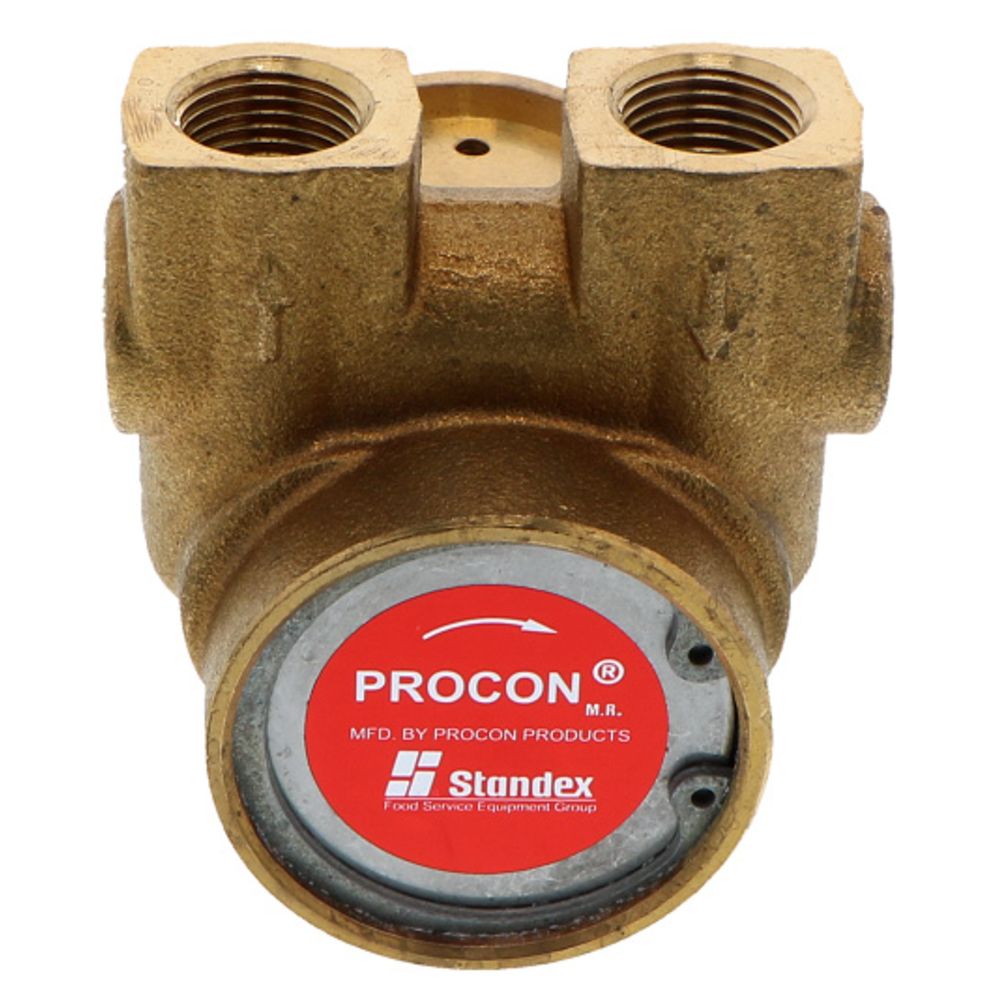

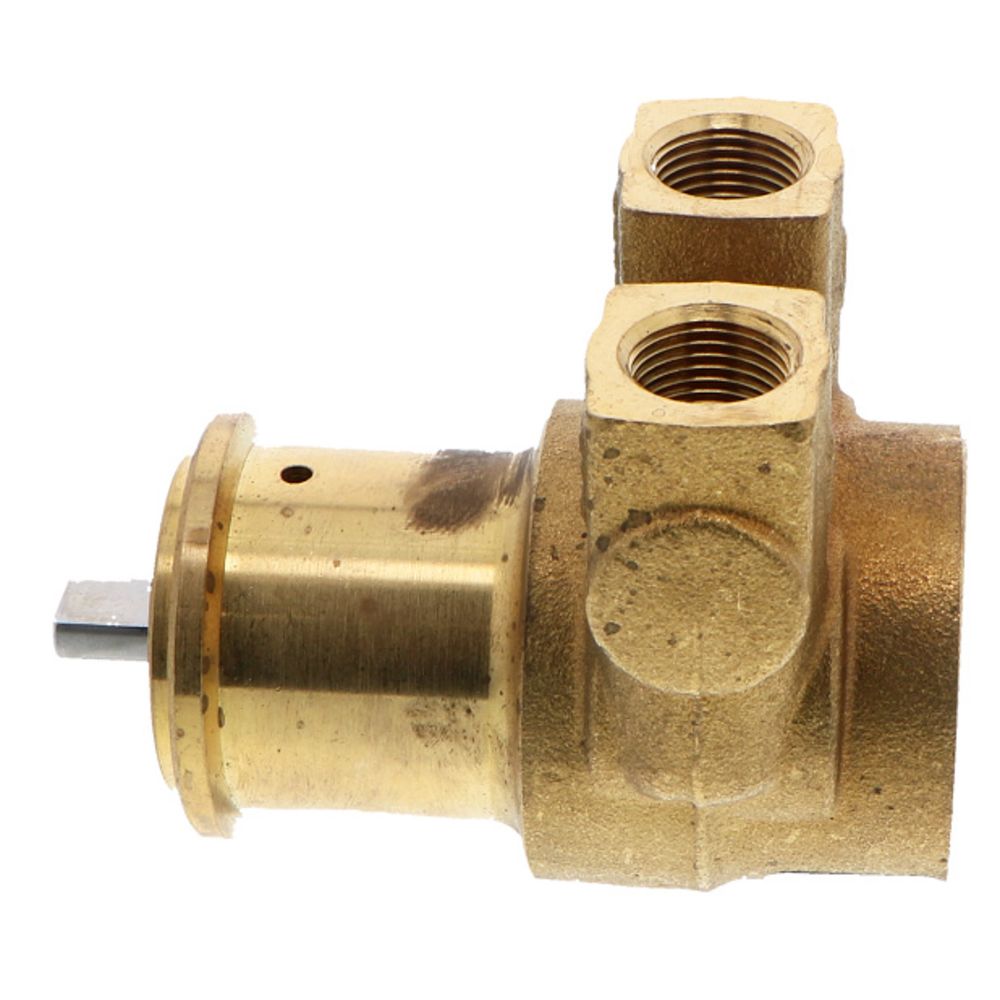

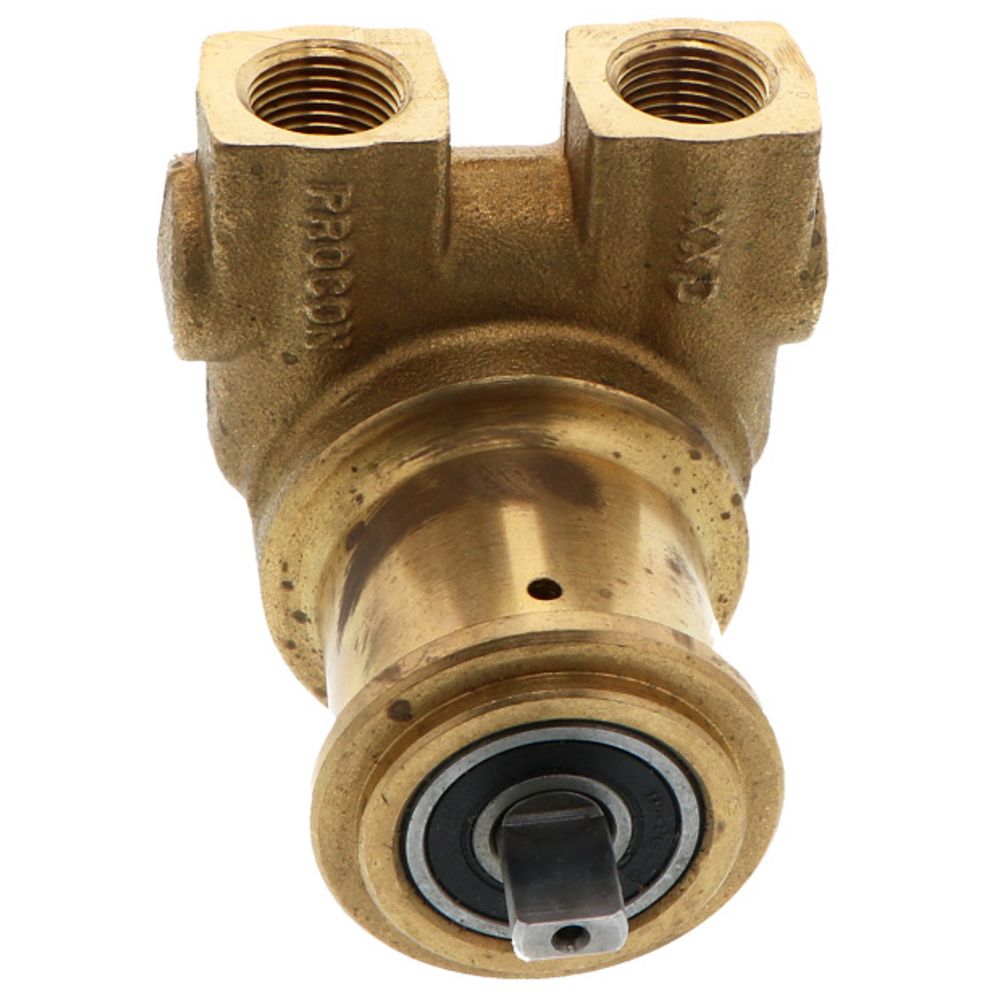

Procon Pump Brass w/ .188" Double Flat Drive 35 GPH 3/8" NPT

Part Number: 102A035F11XX

In Stock

out of stock

In Stock

$108.39


Procon 102A035F11XX rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass and has a .188" double flat drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 35 gallons per hour. The seal configuration for the 102A035F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 102A035F11XX pump is designed to be directly connected to the motor with a stainless steel clamp.

Additional Specifications:
  • Capacity: 35 GPH
  • Nominal Speed: 1725 RPM
  • Typical Horsepower Required: .25 to .50 HP
  • Maximum Discharge Pressure: 250 PSI
  • Relief Valve: 250 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 3/8" NPT Inlet and Outlet
  • Double Flat Drive: .188"


Weight & Dimensions

Dimensions

Standard Clearance

Details

Body Material

Brass

Flow Rate

35 - Gallons Per Hour

Mounting Options

CLAMP ON WITH .188" DOUBLE FLAT DRIVE

Power

1/4-1/2

Valve Type

NO RELIEF VALVE

Elastomer Type

Nitrile (Buna-N)/ Type 21

Port Size

Brass - 3/8" NPT

Max Outlet Pressure

250 PSI

Nominal Speed Rpm

1725

Rotation / Slinger / Passivation / Strainer

Clockwise

Self Priming (Water)

6ft. Maximum Lift

Warranty & Certifications

Certifications

0: Non-Food Grade


Procon

Procon

Procon

Procon





Procon 102A035F11XX rotary vane pump is a positive displacement pump. This Series 2 Procon pump is brass and has a .188" double flat drive. The inlet and outlet ports are 3/8" NPT and the pump has a flow-rate of 35 gallons per hour. The seal configuration for the 102A035F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 2 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 102A035F11XX pump is designed to be directly connected to the motor with a stainless steel clamp.

Additional Specifications:
  • Capacity: 35 GPH
  • Nominal Speed: 1725 RPM
  • Typical Horsepower Required: .25 to .50 HP
  • Maximum Discharge Pressure: 250 PSI
  • Relief Valve: 250 PSI
  • Rotation: Clockwise
  • Weight: 2.5 lbs
  • Port Size: 3/8" NPT Inlet and Outlet
  • Double Flat Drive: .188"

Weight & Dimensions

Dimensions

Standard Clearance

Details

Body Material

Brass

Flow Rate

35 - Gallons Per Hour

Mounting Options

CLAMP ON WITH .188" DOUBLE FLAT DRIVE

Power

1/4-1/2

Valve Type

NO RELIEF VALVE

Elastomer Type

Nitrile (Buna-N)/ Type 21

Port Size

Brass - 3/8" NPT

Max Outlet Pressure

250 PSI

Nominal Speed Rpm

1725

Rotation / Slinger / Passivation / Strainer

Clockwise

Self Priming (Water)

6ft. Maximum Lift

Warranty & Certifications

Certifications

0: Non-Food Grade
