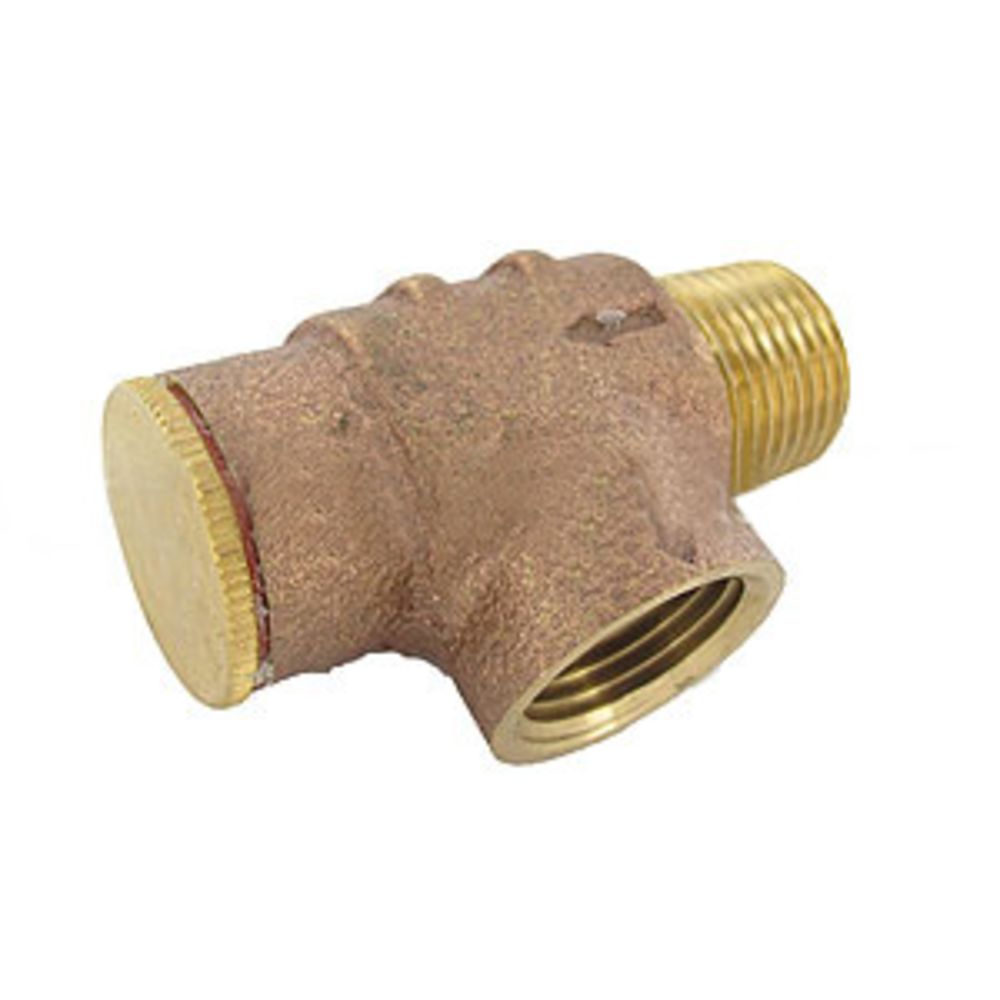

Pressure Relief Valve 1/2" MIPT

Part Number: PRV05

In Stock

out of stock

In Stock

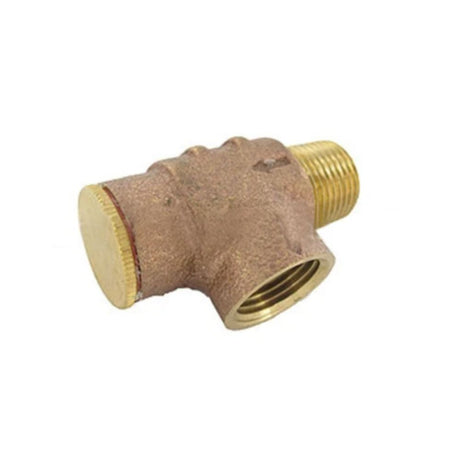

This item is discontinued. We recommend the Pressure Relief Valve 75 psi Lead-Free 1/2" MIPT as a substitute.

The Pressure Relief Valve prevents a pressure build-up from occurring in systems with water, air, or oil.
Features:
  • Brass Construction
  • 1/2" MIPT Run
  • 1/2" FIPT Branch
  • Preset to 75 psi
  • Adjustable +/- 25 pounds
Instructions: To adjust the pressure relief valve, unscrew the dust cap. Then you will find a slot for a screw driver. One full turn clockwise will increase the PSI by 25psi. One full turn counter-clockwise will reduce the PSI by 25psi. Once the adjustment is completed, replace the dust cap.




Weight & Dimensions

Weight (lbs)

1

Details

Max Pressure (Psi)

75



The Pressure Relief Valve prevents a pressure build-up from occurring in systems with water, air, or oil.
Features:
  • Brass Construction
  • 1/2" MIPT Run
  • 1/2" FIPT Branch
  • Preset to 75 psi
  • Adjustable +/- 25 pounds
Instructions: To adjust the pressure relief valve, unscrew the dust cap. Then you will find a slot for a screw driver. One full turn clockwise will increase the PSI by 25psi. One full turn counter-clockwise will reduce the PSI by 25psi. Once the adjustment is completed, replace the dust cap.



NOTE: This item is discontinued. We recommend the Pressure Relief Valve 75 psi Lead-Free 1/2" MIPT as a substitute.

Weight & Dimensions

Weight (lbs)

1

Details

Max Pressure (Psi)

75
