Applications:
- Commercial RO Systems
- Food Industry
- Medical Facility Water
- Cosmetic Proceses
- Recirculation Loops
- Water Vending Machines
- Laboratory
- Pharmaceutical
- Final Electronic Rinsing
- Polished 304 stainless steel UVA chamber
- No toxic chemicals or by-products such as trihalomethanes (THM)

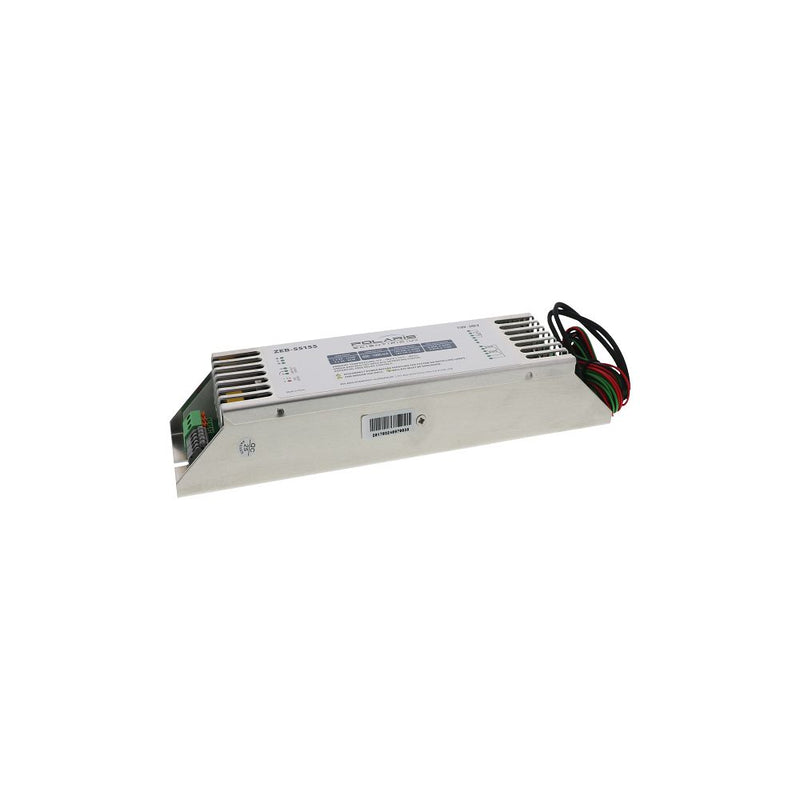

- Audible lamp failure alarm on ballast
- Inlet/Outlet: 4" Flange
- Flow Rate: 200 gpm
Weight & Dimensions
Approx Length (Inches) | 36.93" |
Approx Width (Inches) | 8.62" |
Weight (lbs) | 25 |
Details
Ambient Temperature Range | 35-104 °F |
Body Material | 304 Stainless Steel |
Features | Audible Lamp Failure |
Frequency | 50/60 Hz |
Inlet/Outlet Connection | 4" Flange |
Max Pressure (Psi) | 125 |
Number Of Lamps | 8 |
Power | 87 W |
Size | 4" |
System Class | Commercial Systems |
Connection Type | Flange |
Contaminants Reduced | Bacteria |
Flow Rate | 200 GPM (30mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 110 V |
Warranty & Certifications
Warranty | UV Chamber: 5 years - Other components: 1 year |

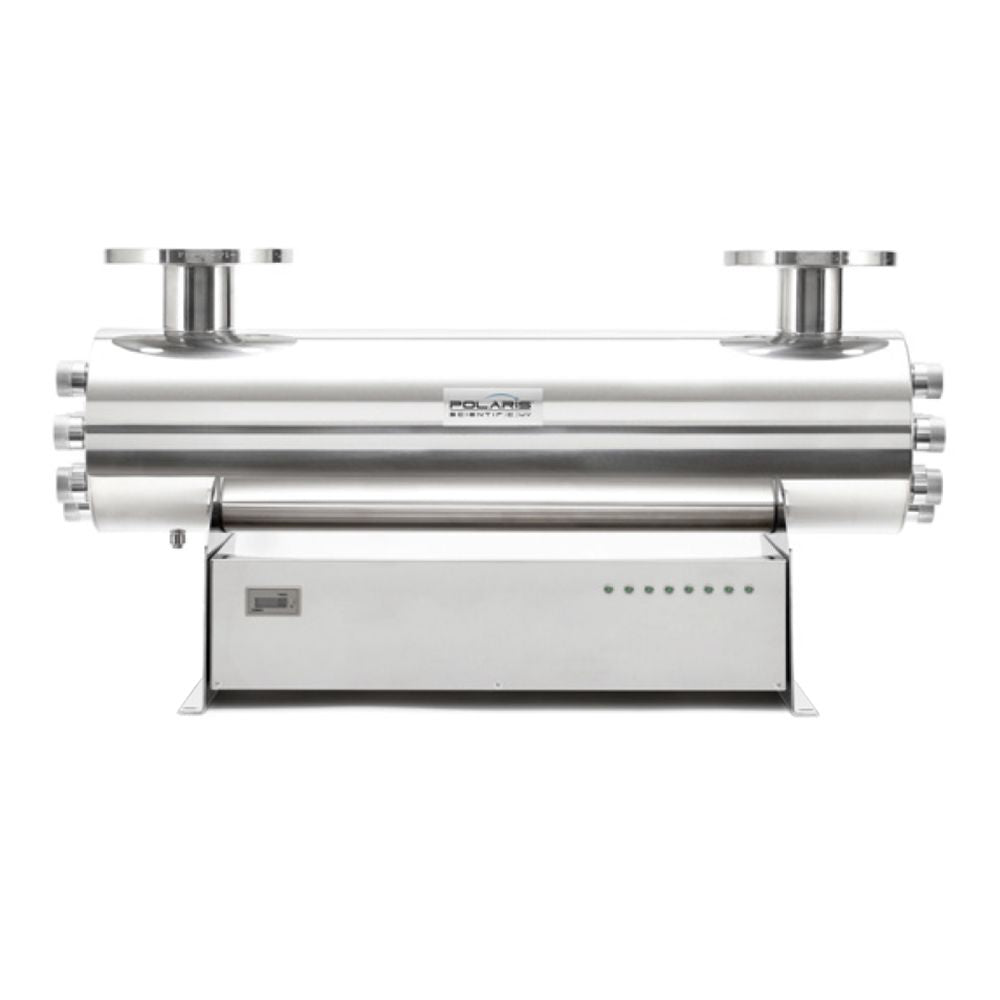

The Polaris UVA-200B Ultraviolet Disinfection System features a polished 304 stainless steel reactor chamber making it suitable laboratory or medical use as well as other commercial applications. Installation is quick and easy, requiring only two water connections and one electrical connection. The UVA-200B has an audible alarm to alert you if the lamp has failed.
Applications:
- Commercial RO Systems
- Food Industry
- Medical Facility Water
- Cosmetic Proceses
- Recirculation Loops
- Water Vending Machines
- Laboratory
- Pharmaceutical
- Final Electronic Rinsing
- Polished 304 stainless steel UVA chamber
- No toxic chemicals or by-products such as trihalomethanes (THM)
- Audible lamp failure alarm on ballast
- Inlet/Outlet: 4" Flange
- Flow Rate: 200 gpm
Weight & Dimensions
Approx Length (Inches) | 36.93" |
Approx Width (Inches) | 8.62" |
Weight (lbs) | 25 |
Details
Ambient Temperature Range | 35-104 °F |
Body Material | 304 Stainless Steel |
Features | Audible Lamp Failure |
Frequency | 50/60 Hz |
Inlet/Outlet Connection | 4" Flange |
Max Pressure (Psi) | 125 |
Number Of Lamps | 8 |
Power | 87 W |
Size | 4" |
System Class | Commercial Systems |
Connection Type | Flange |
Contaminants Reduced | Bacteria |
Flow Rate | 200 GPM (30mJ/cm2 Dose) |
Type | Single UV System |
Voltage | 110 V |
Warranty & Certifications
Warranty | UV Chamber: 5 years - Other components: 1 year |
Documentation
