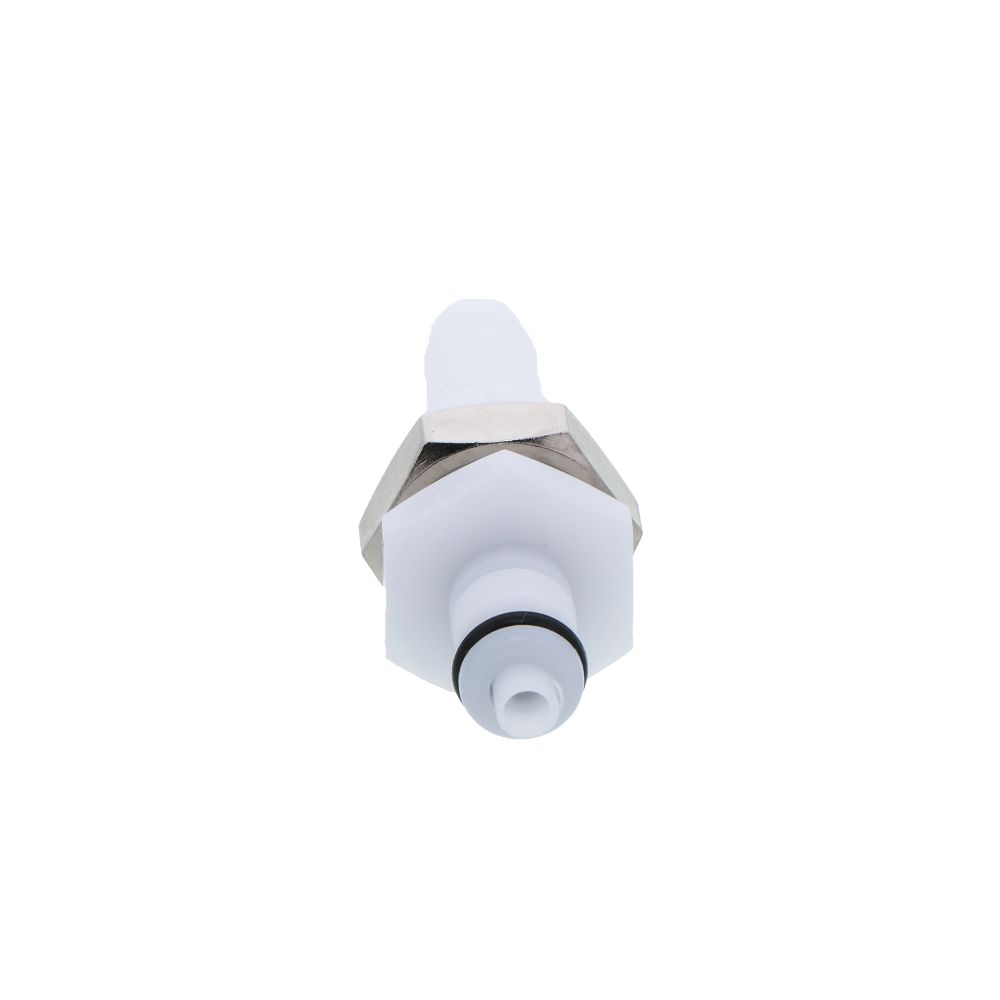

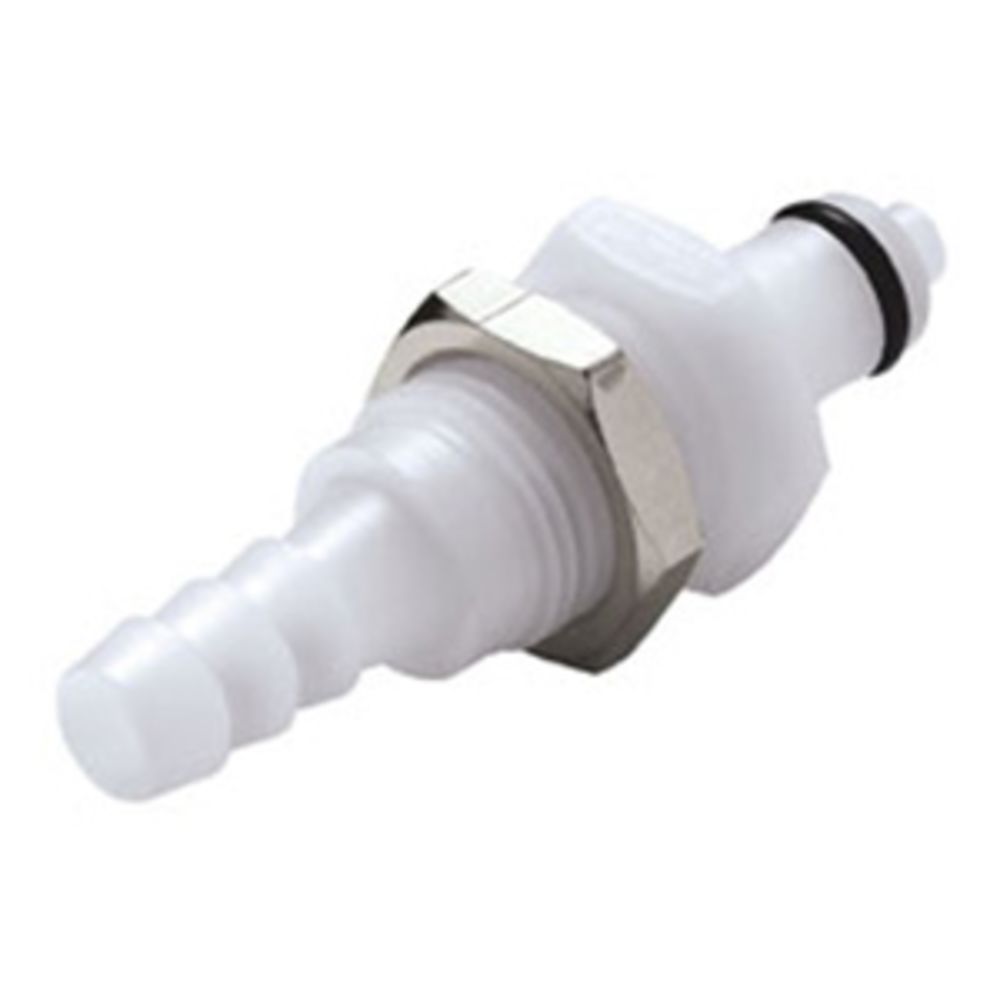

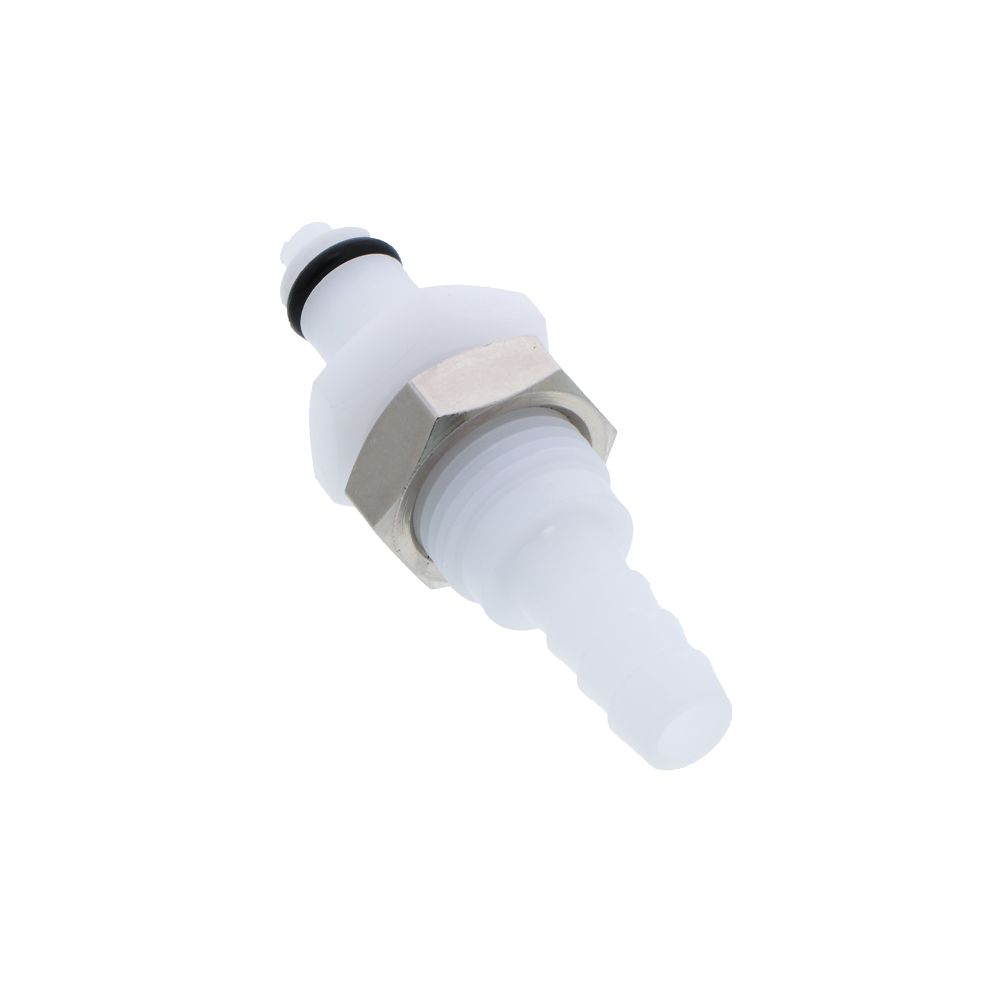

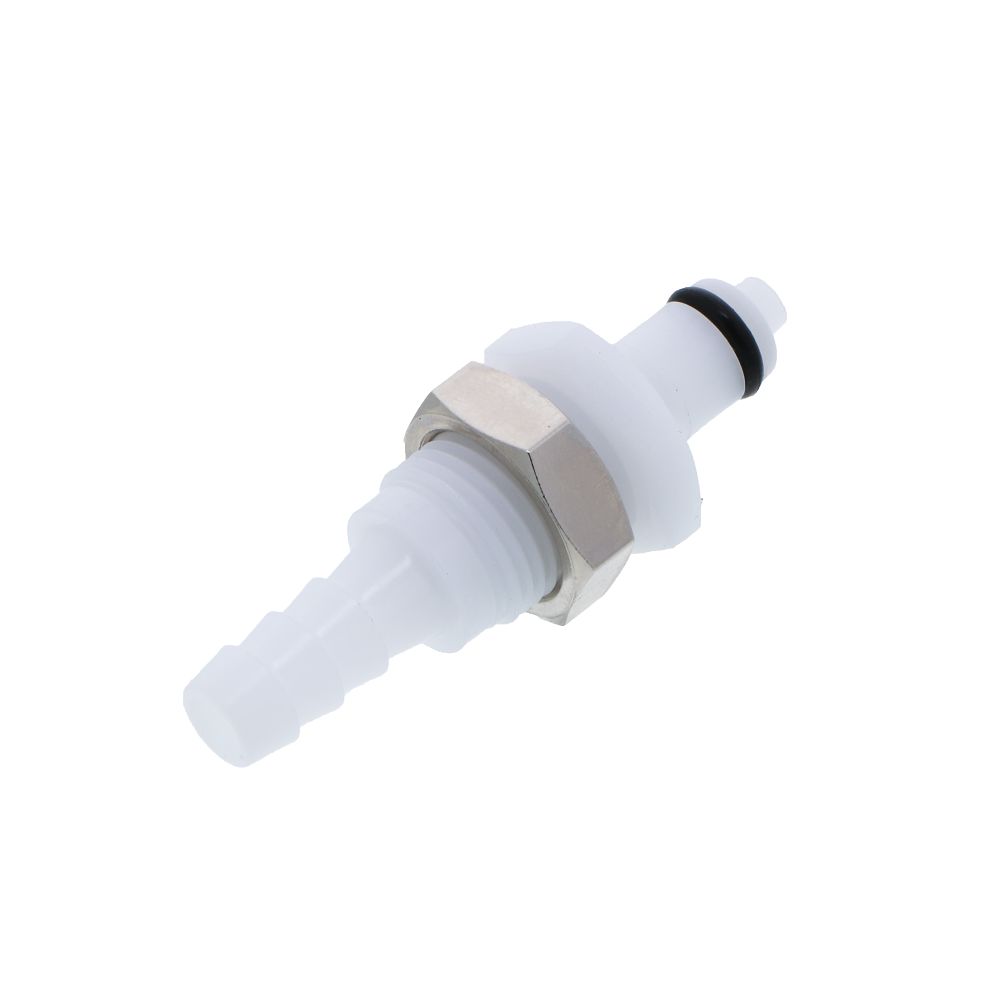

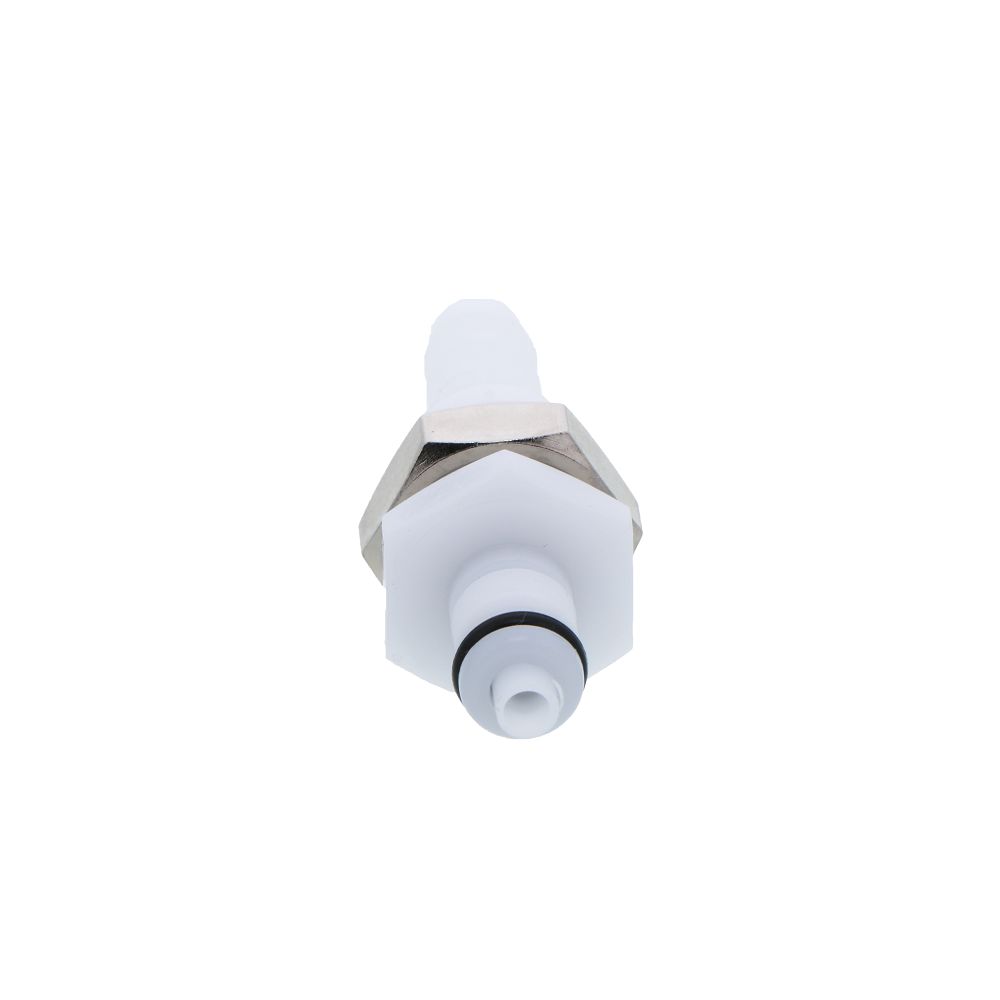

PMCD4204 Valved Panel Mount Hose Barb Coupling Insert 1/4 ID Barb

PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:

Material: Acetal
Color: White
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Panel Mount
Valve Option: Valved
Temperature Range: -40ºF to 180ºF
Valve Spring: 316 Stainless Steel
Seal Options: Buna-N
Available in Bags of 25 units

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/4" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Panel Mount
Nsf Version	No
Seal Material	Buna-N
Series	PMC
Shape	Straight
Spring	316 stainless steel
Valve Type	Valved
Color / Finish	white
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	9 in.
Shipping Width	7 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Weight (lbs)	0.05

Product Details
Application	Water
Barb Size	1/4" ID
Body Material	Acetal Copolymer
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Panel Mount
Nsf Version	No
Seal Material	Buna-N
Series	PMC
Shape	Straight
Spring	316 stainless steel
Valve Type	Valved
Color / Finish	white
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	1

PMCD4204 Valved Panel Mount Hose Barb Coupling Insert 1/4 ID Barb Manual
