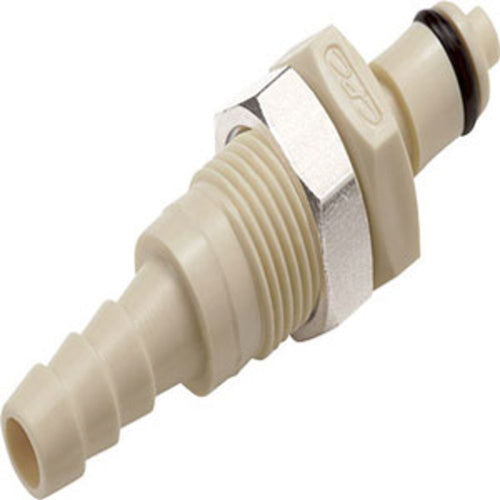

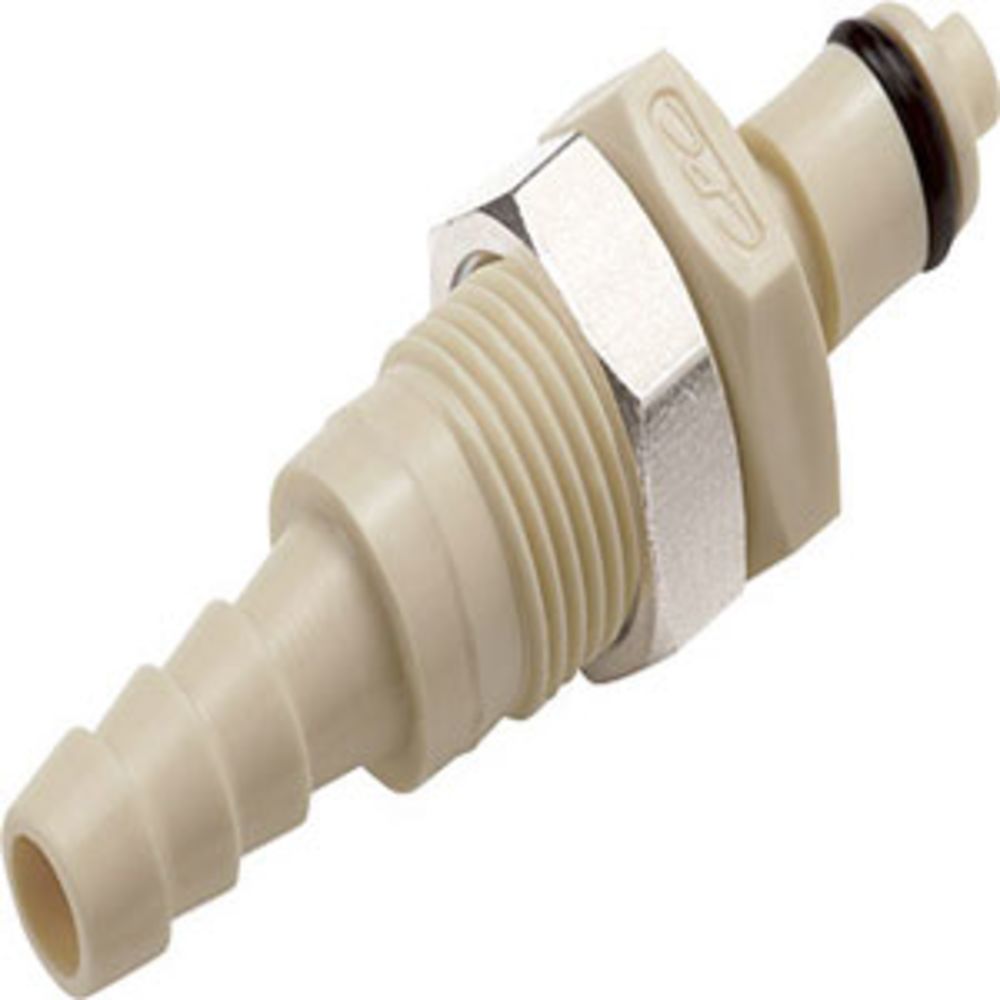

PMCD420212 Valved Panel Mount Hose Barb Coupling Insert 1/8 ID Barb

Colder PMC Series Couplings are injection molded from acetal thermoplastic. This makes them resistant to most mild chemicals and durable enough to give many years of trouble free service. The PMC Series features the Colder thumb latch making them easier to use than ball-and-sleeve connector designs.

Specifications:

Material: Polypropylene
Material Finish: Almond
Valve Option: Valved
Mounting Option: Panel Mount
Pressure Range: Vacuum to 120 psi, 8.3 bar
Temperature Range: 32°F to 160°F
Sterilization: Gamma Up to 50 kGy irradiation
Seal Options: EPDM
Valve Spring: 316 Stainless Steel

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/8" ID
Body Material	Polypropylene
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Panel Mount
Nsf Version	No
Seal Material	EPDM
Series	PMC12
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Almond
Type	Coupling Insert

Product Details
Application	Water
Barb Size	1/8" ID
Body Material	Polypropylene
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Panel Mount
Nsf Version	No
Seal Material	EPDM
Series	PMC12
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Almond
Type	Coupling Insert

Product Details
Application	Water
Barb Size	1/8" ID
Body Material	Polypropylene
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Panel Mount
Nsf Version	No
Seal Material	EPDM
Series	PMC12
Shape	Straight
Spring	316 Stainless Steel
Valve Type	Valved
Color / Finish	Almond
Type	Coupling Insert

PMCD420212 Valved Panel Mount Hose Barb Coupling Insert 1/8 ID Barb Manual
