Colder Products

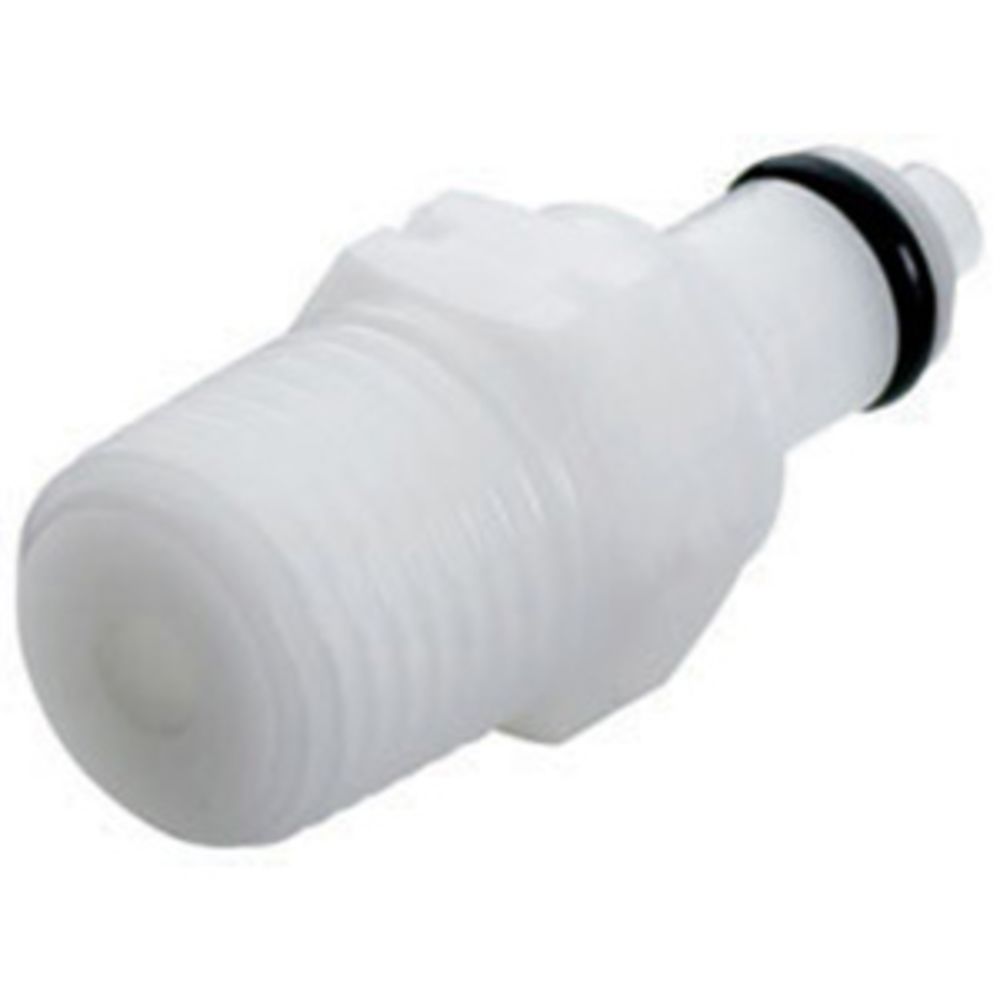

PMCD2404BSPT Valved Male Thread Coupling Insert 1/4 BSPT

Part Number: PMCD2404BSPT

In Stock

out of stock

In Stock

$7.15


PMC Series couplings have a 1/4" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: 1/4" BSPT Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units


Details

Series

PMC

Bag Quantity

25

Body Material

Acetal

Color / Finish

White, Natural

Max Operating Pressure

Vacuum to 120 PSI, 8.3 bar

Mounting Options

Thread

O Rings

Buna-N

Operating Temperature Range

-40-180 °F

Seal Material

Buna-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Inlet/Outlet Connection

1/4" | BSP


PMCD2404BSPT





PMC Series couplings have a 1/4" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: 1/4" BSPT Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units

Details

Series

PMC

Bag Quantity

25

Body Material

Acetal

Color / Finish

White, Natural

Max Operating Pressure

Vacuum to 120 PSI, 8.3 bar

Mounting Options

Thread

O Rings

Buna-N

Operating Temperature Range

-40-180 °F

Seal Material

Buna-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel

Inlet/Outlet Connection

1/4" | BSP

Documentation
PMCD2404BSPT
