Colder Products

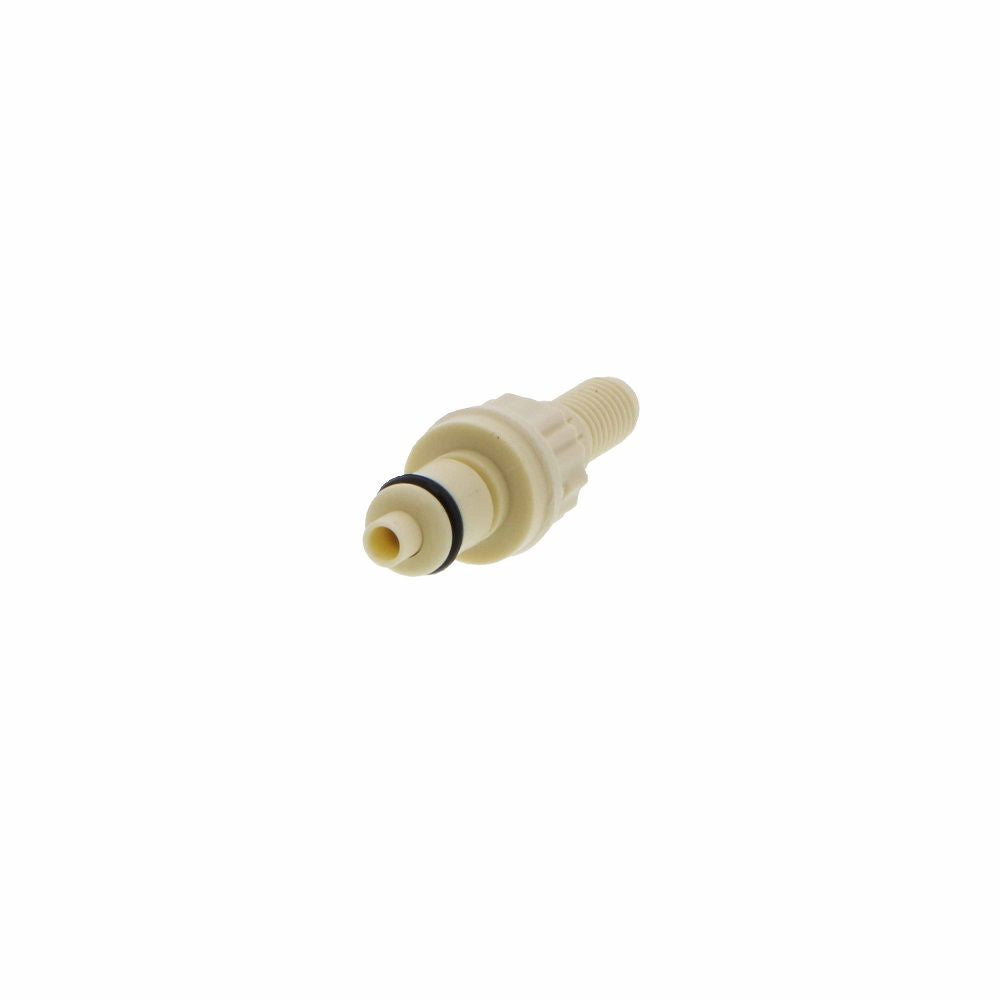

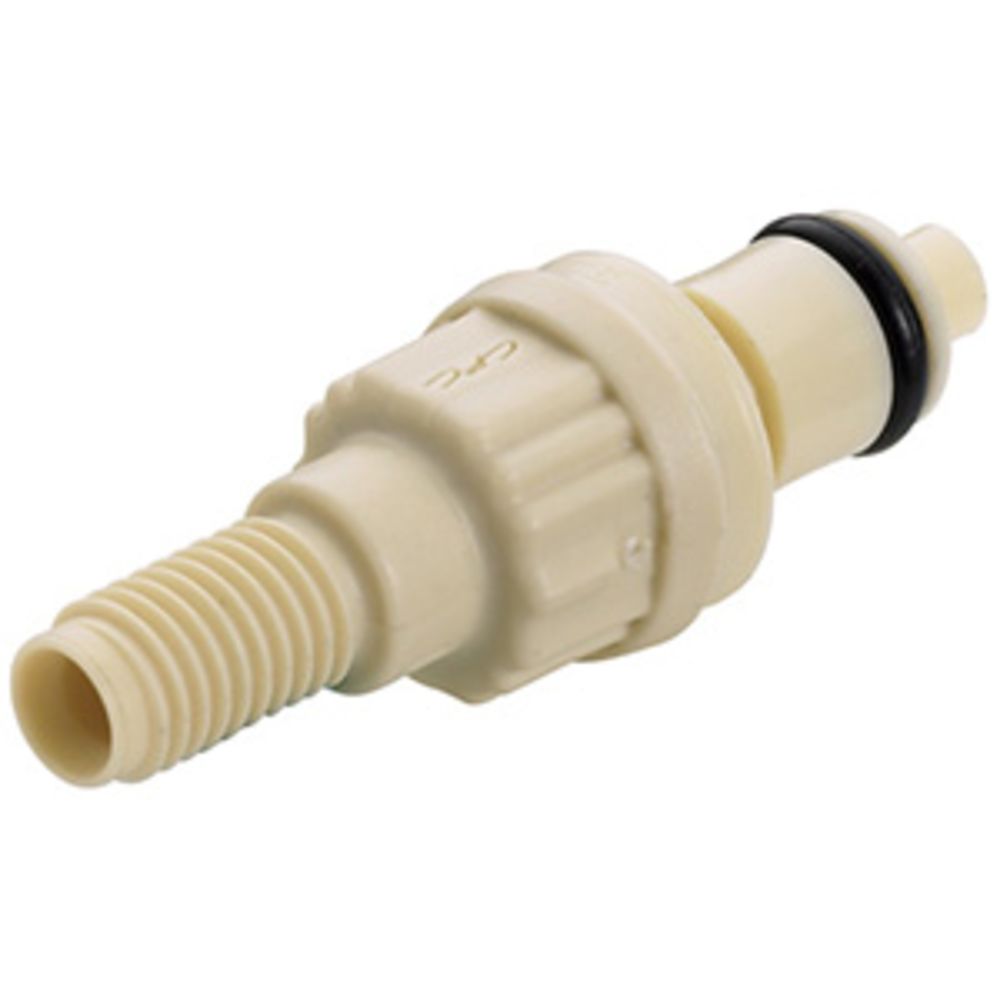

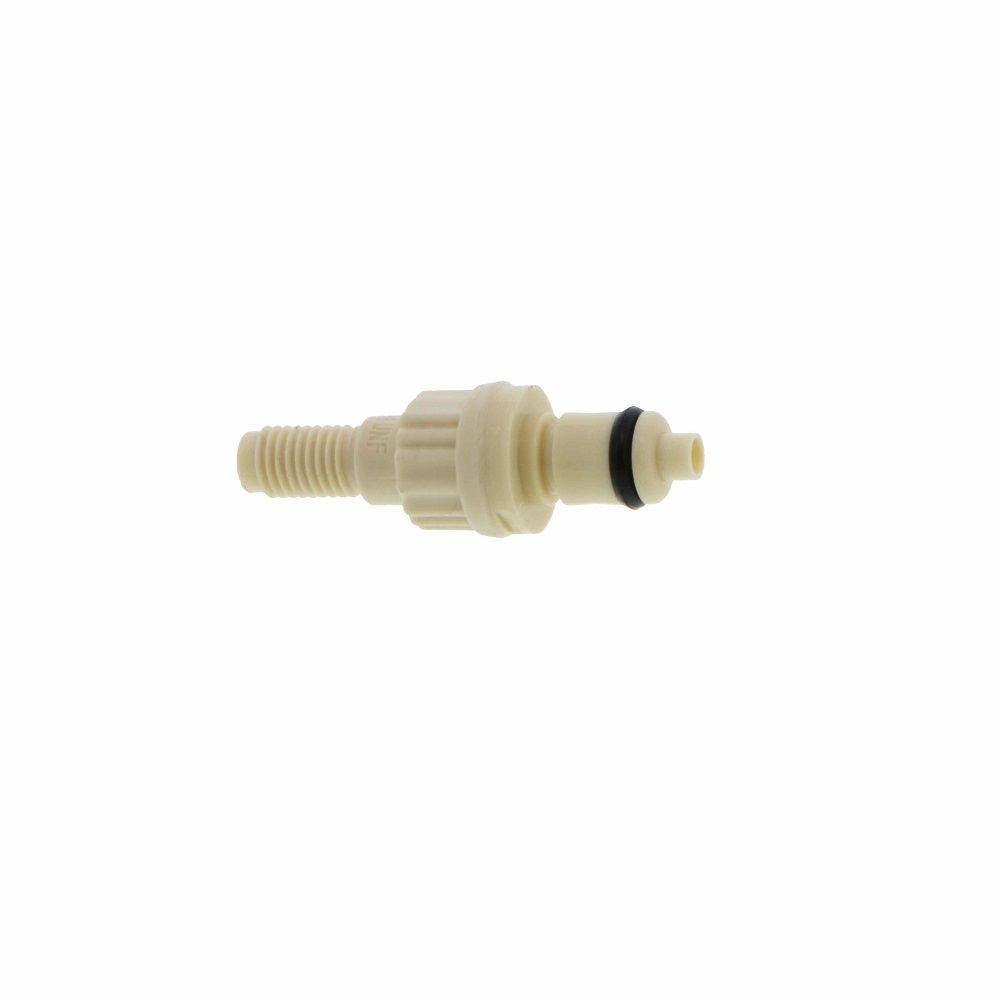

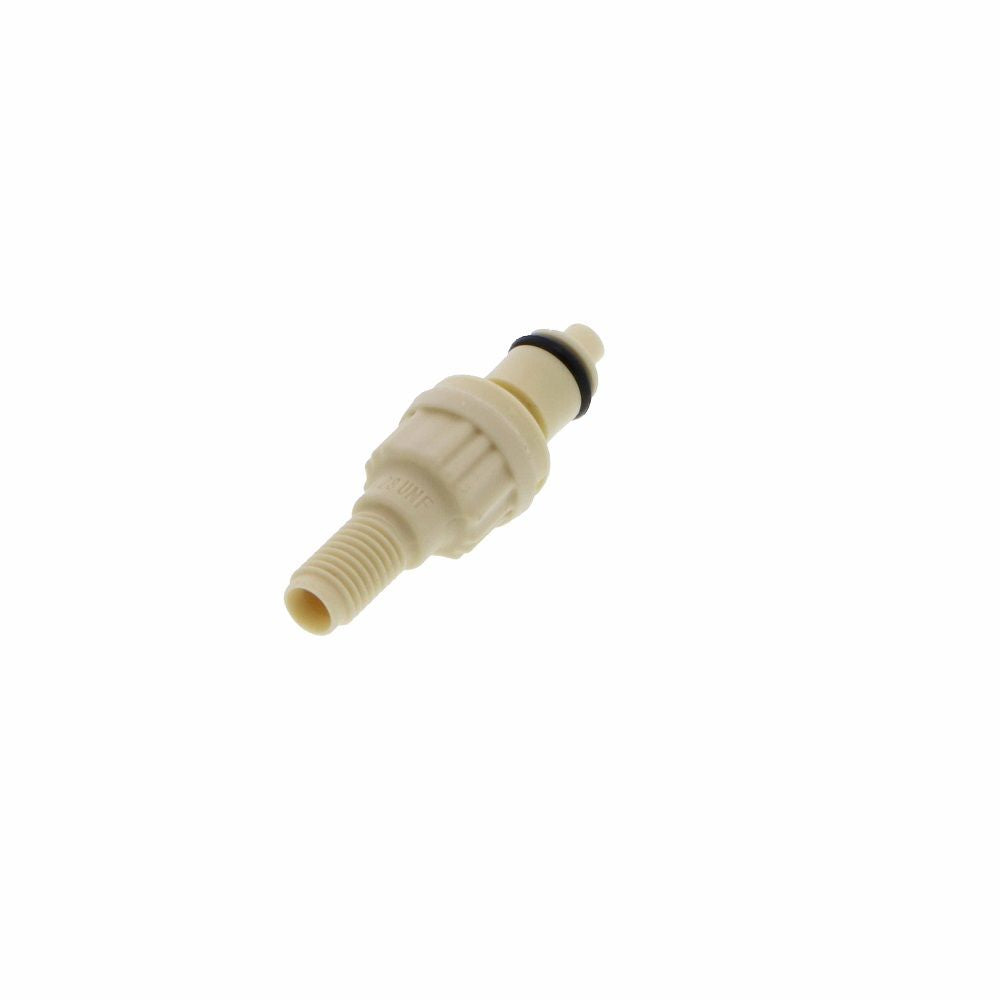

PMCD24042812 Valved Male Thread Coupling Insert 1/4-28 UNF

Part Number: PMCD24042812

In Stock

out of stock

In Stock

$8.38

The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Available in Bags of 25 units




Weight & Dimensions

Weight (lbs)

0.01

Details

Application

Water

Body Material

Polypropylene

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

1/4-28 UNF

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Thread

Seal Material

EPDM

Series

PMC12

Size

1/4-28

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Valved

Color / Finish

Almond

Origin

USA

Type

Coupling Insert


PMCD24042812




The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Available in Bags of 25 units



Weight & Dimensions

Weight (lbs)

0.01

Details

Application

Water

Body Material

Polypropylene

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

1/4-28 UNF

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Thread

Seal Material

EPDM

Series

PMC12

Size

1/4-28

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Valved

Color / Finish

Almond

Origin

USA

Type

Coupling Insert

Documentation
PMCD24042812
