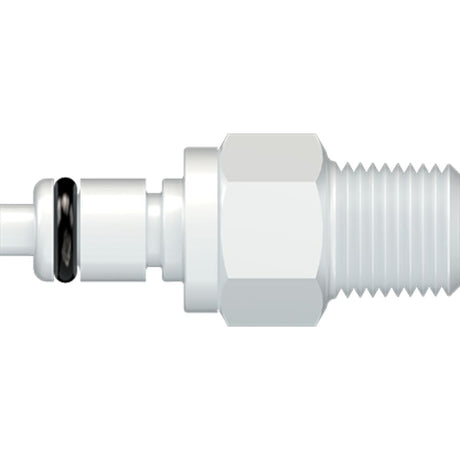

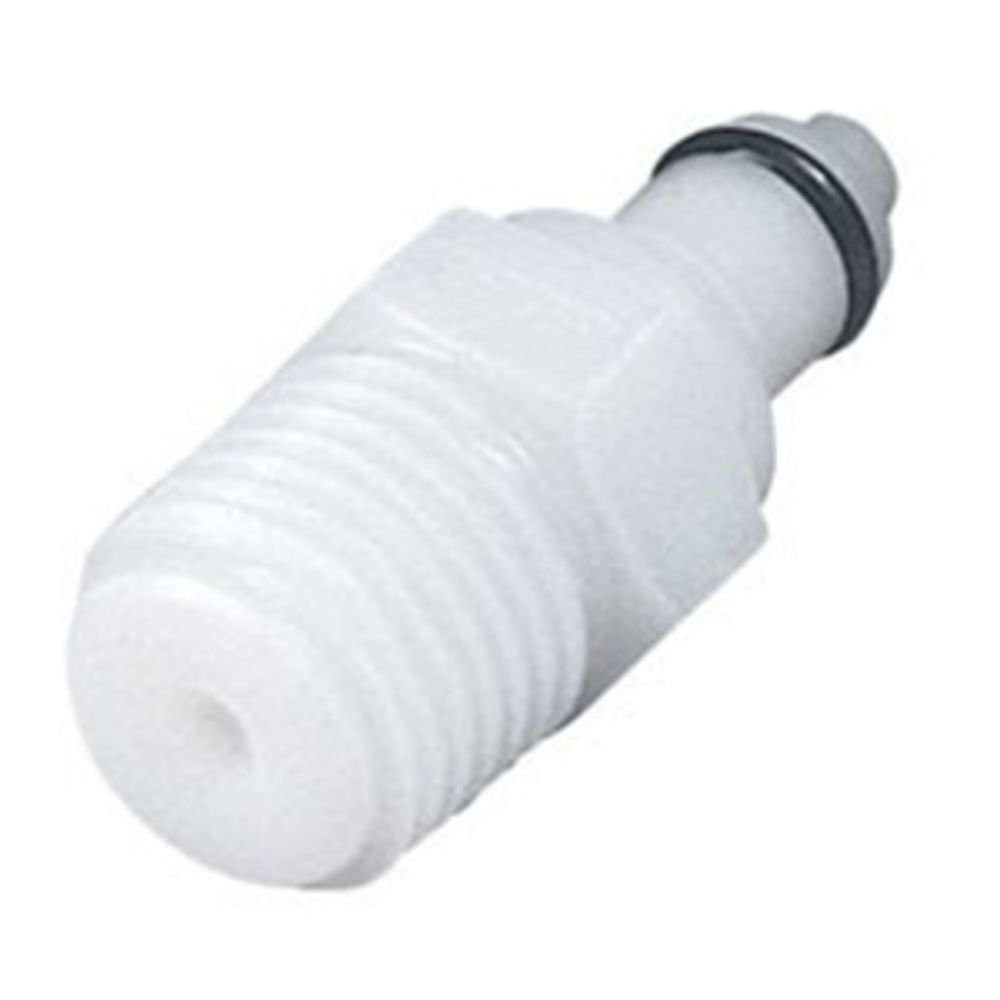

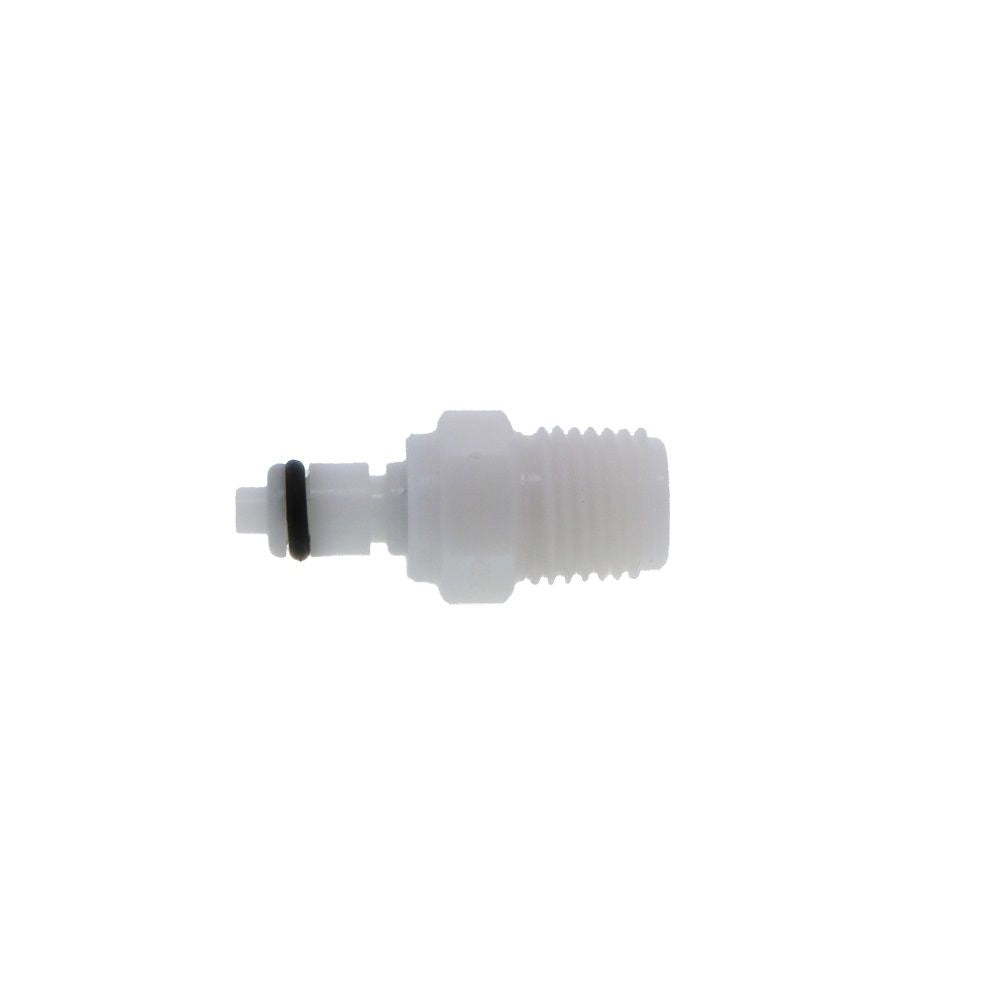

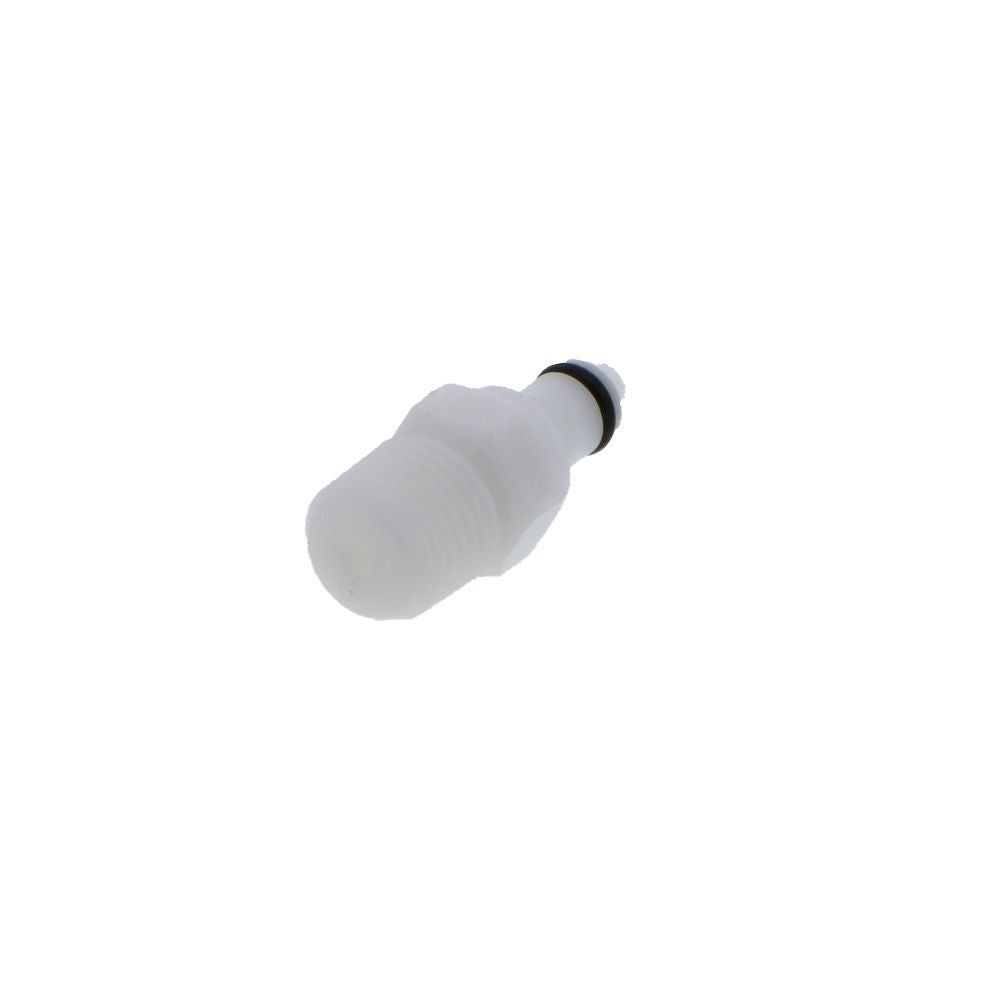

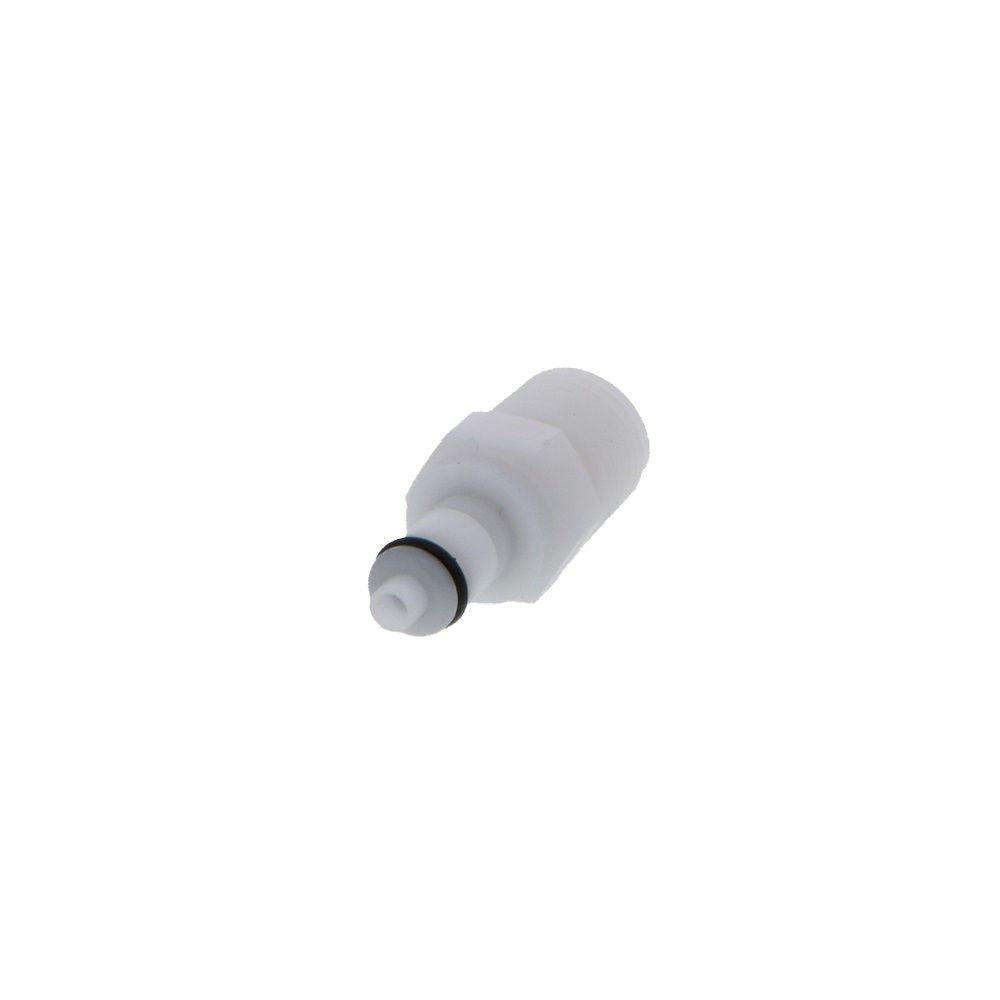

PMCD2404 Valved Male Thread Coupling Insert 1/4 NPT

Part Number: PMCD2404

In Stock

out of stock

In Stock

$6.31

PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 13700) Available Upon Request




Weight & Dimensions

Weight (lbs)

0.01

Details

Series

PMC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

white

Mounting Options

Thread

Origin

USA

Seal Material

Buna-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Inlet/Outlet Connection

1/4" MPT


PMCD2404




PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 13700) Available Upon Request



Weight & Dimensions

Weight (lbs)

0.01

Details

Series

PMC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Application

Water

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

white

Mounting Options

Thread

Origin

USA

Seal Material

Buna-N

Size

1/4"

Spring

316 Stainless Steel

Valve Type

Valved

Inlet/Outlet Connection

1/4" MPT
