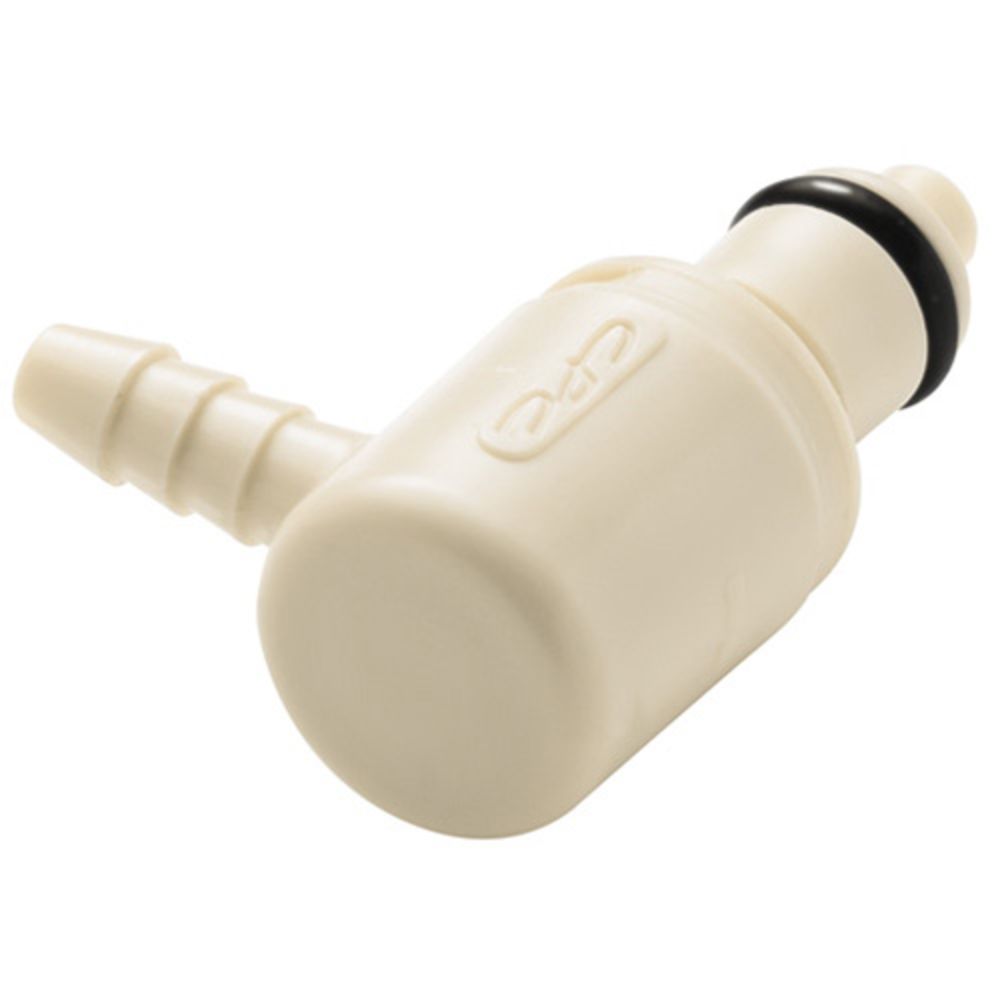

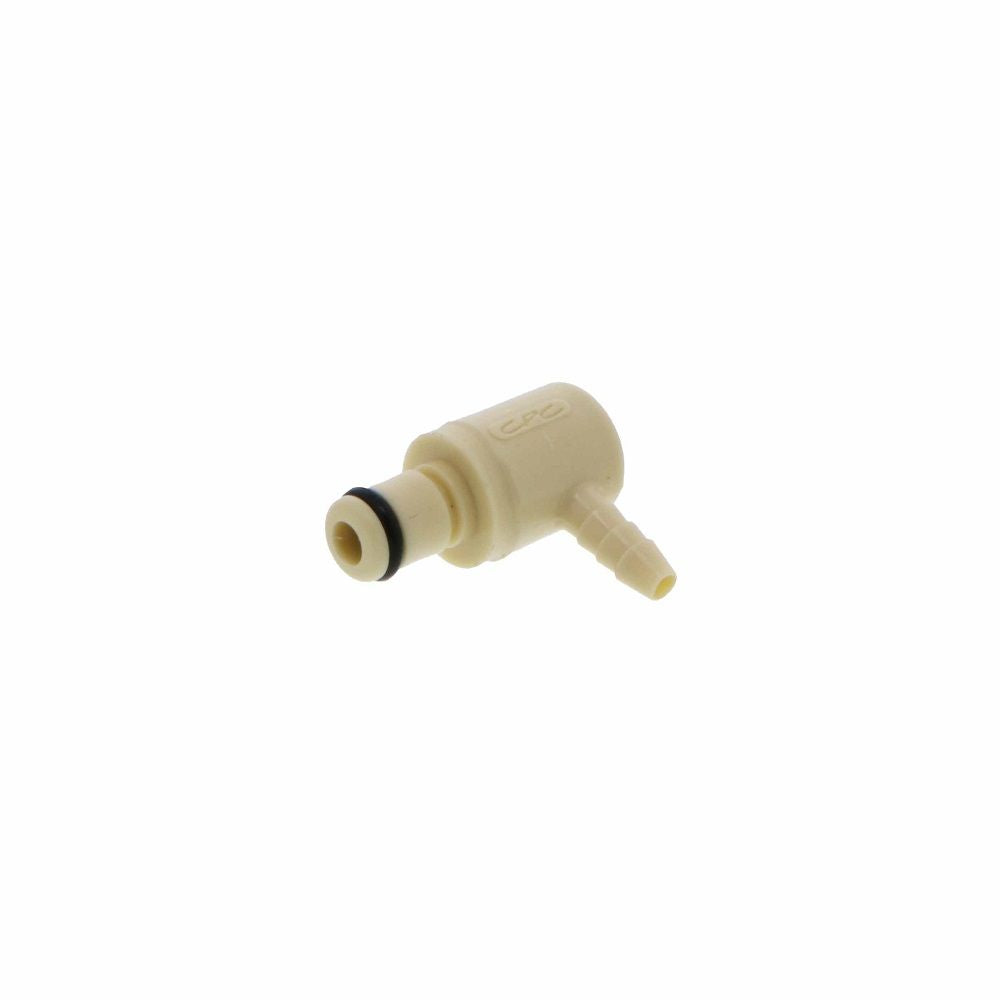

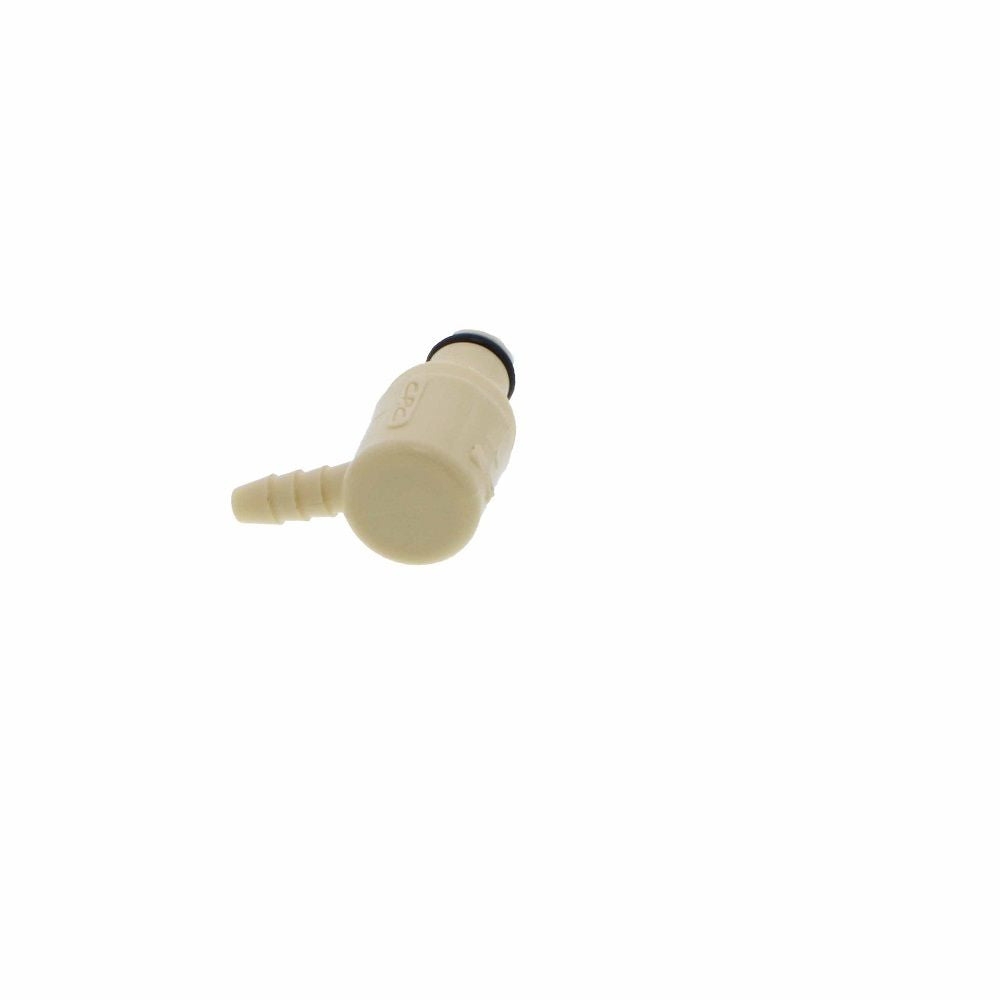

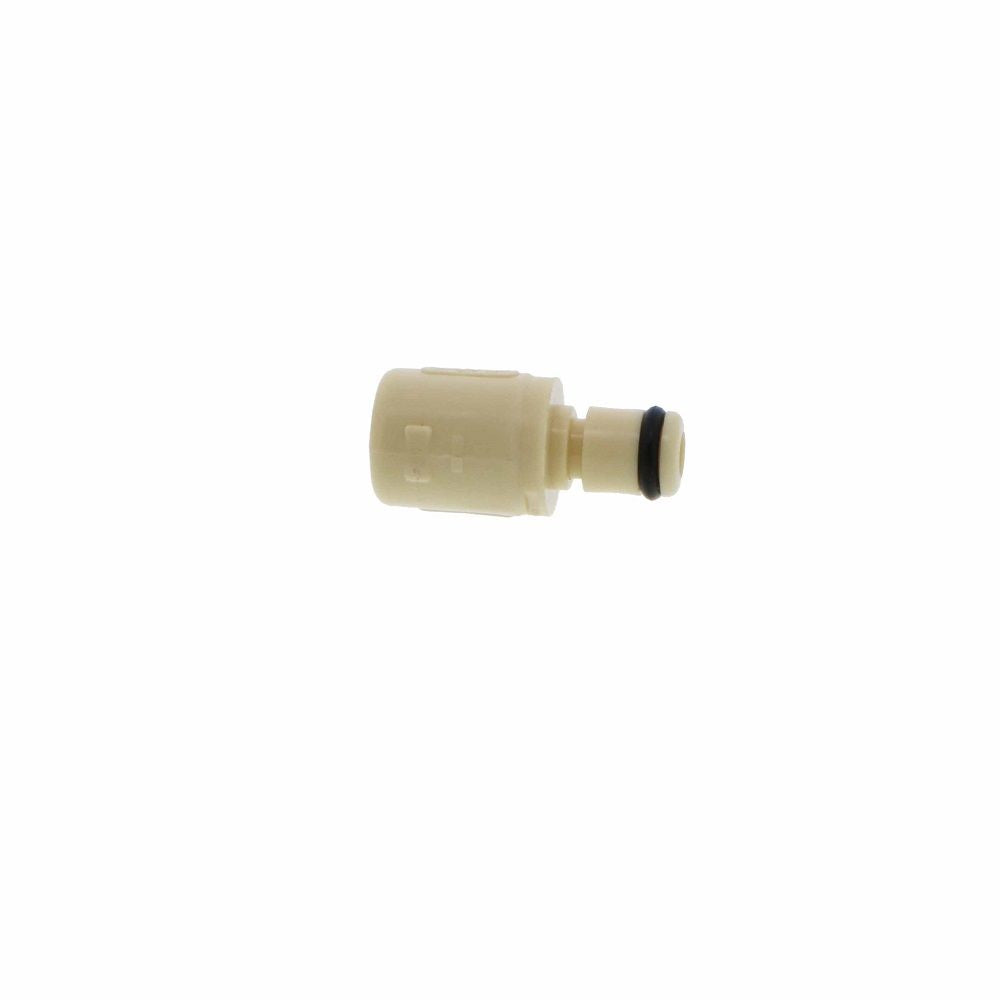

The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.
Specifications:
Specifications:
- Material: Polypropylene
- Color: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: 32ºF to 160ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: EPDM
- Available in Bags of 25 units
Weight & Dimensions
Weight (lbs) | 0.01 |
Details
Series | PMC12 |
Max Temp (°F) | 160 |
Max Pressure (Psi) | 120 |
Min Temp (°F) | 32 |
Min Pressure (Psi) | Vacuum |
Barb Size | 1/8" ID |
Application | Water |
Bag Quantity | 25 |
Body Material | Polypropylene |
Color / Finish | Almond |
Mounting Options | Free Floating |
Origin | USA |
Seal Material | EPDM |
Spring | 316 Stainless Steel |
Valve Type | Valved |
External Springs And Pin | Stainless Steel |
Thumb Latch | Stainless Steel |
The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.
Specifications:
- Material: Polypropylene
- Color: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: 32ºF to 160ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: EPDM
- Available in Bags of 25 units
Weight & Dimensions
Weight (lbs) | 0.01 |
Details
Series | PMC12 |
Max Temp (°F) | 160 |
Max Pressure (Psi) | 120 |
Min Temp (°F) | 32 |
Min Pressure (Psi) | Vacuum |
Barb Size | 1/8" ID |
Application | Water |
Bag Quantity | 25 |
Body Material | Polypropylene |
Color / Finish | Almond |
Mounting Options | Free Floating |
Origin | USA |
Seal Material | EPDM |
Spring | 316 Stainless Steel |
Valve Type | Valved |
External Springs And Pin | Stainless Steel |
Thumb Latch | Stainless Steel |
