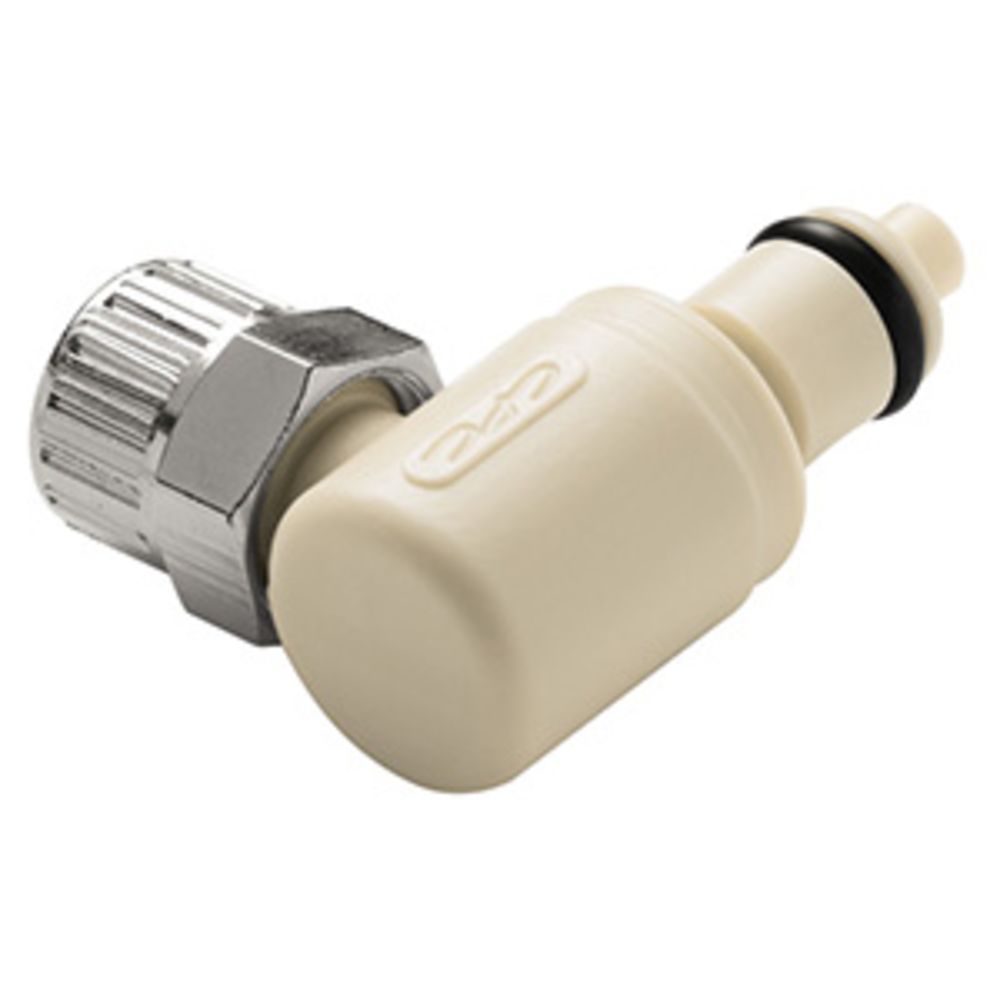

PMCD210412 Valved Elbow PTF Coupling Insert 1/4 PTF
Part Number: PMCD210412
Alt. Part Number: 20PPV-PE10-04
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- Material: Polypropylene
- Color: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: 32ºF to 160ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: EPDM
- Tubing Size: .17" ID, 1/4" OD
- Available in Bags of 25 units
WARNING!
| Product Details | |
|---|---|
Application | Water |
Body Material | Polypropylene |
External Springs And Pin | Stainless Steel |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Nsf Version | No |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | EPDM |
Series | PMC12 |
Shape | 90 |
Size | 1/4" |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless Steel |
Valve Type | Valved |
Color / Finish | Almond |
Connection Type | Female (FPT) |
Type | Coupling Insert |
| Product Details | |
|---|---|
Application | Water |
Body Material | Polypropylene |
External Springs And Pin | Stainless Steel |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Nsf Version | No |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | EPDM |
Series | PMC12 |
Shape | 90 |
Size | 1/4" |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless Steel |
Valve Type | Valved |
Color / Finish | Almond |
Connection Type | Female (FPT) |
Type | Coupling Insert |
| Product Details | |
|---|---|
Application | Water |
Body Material | Polypropylene |
External Springs And Pin | Stainless Steel |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Nsf Version | No |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | EPDM |
Series | PMC12 |
Shape | 90 |
Size | 1/4" |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless Steel |
Valve Type | Valved |
Color / Finish | Almond |
Connection Type | Female (FPT) |
Type | Coupling Insert |
Specifications:
- Material: Polypropylene
- Color: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: 32ºF to 160ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: EPDM
- Tubing Size: .17" ID, 1/4" OD
- Available in Bags of 25 units
WARNING!
| Product Details | |
|---|---|
Application | Water |
Body Material | Polypropylene |
External Springs And Pin | Stainless Steel |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Nsf Version | No |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | EPDM |
Series | PMC12 |
Shape | 90 |
Size | 1/4" |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless Steel |
Valve Type | Valved |
Color / Finish | Almond |
Connection Type | Female (FPT) |
Type | Coupling Insert |
| Product Details | |
|---|---|
Application | Water |
Body Material | Polypropylene |
External Springs And Pin | Stainless Steel |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Nsf Version | No |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | EPDM |
Series | PMC12 |
Shape | 90 |
Size | 1/4" |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless Steel |
Valve Type | Valved |
Color / Finish | Almond |
Connection Type | Female (FPT) |
Type | Coupling Insert |
| Product Details | |
|---|---|
Application | Water |
Body Material | Polypropylene |
External Springs And Pin | Stainless Steel |
Inlet Connection | 1/4" FPT |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Nsf Version | No |
Outlet Connection | 1/4" FPT |
Push-In Size | 1/4" OD |
Seal Material | EPDM |
Series | PMC12 |
Shape | 90 |
Size | 1/4" |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless Steel |
Valve Type | Valved |
Color / Finish | Almond |
Connection Type | Female (FPT) |
Type | Coupling Insert |
