Colder Products

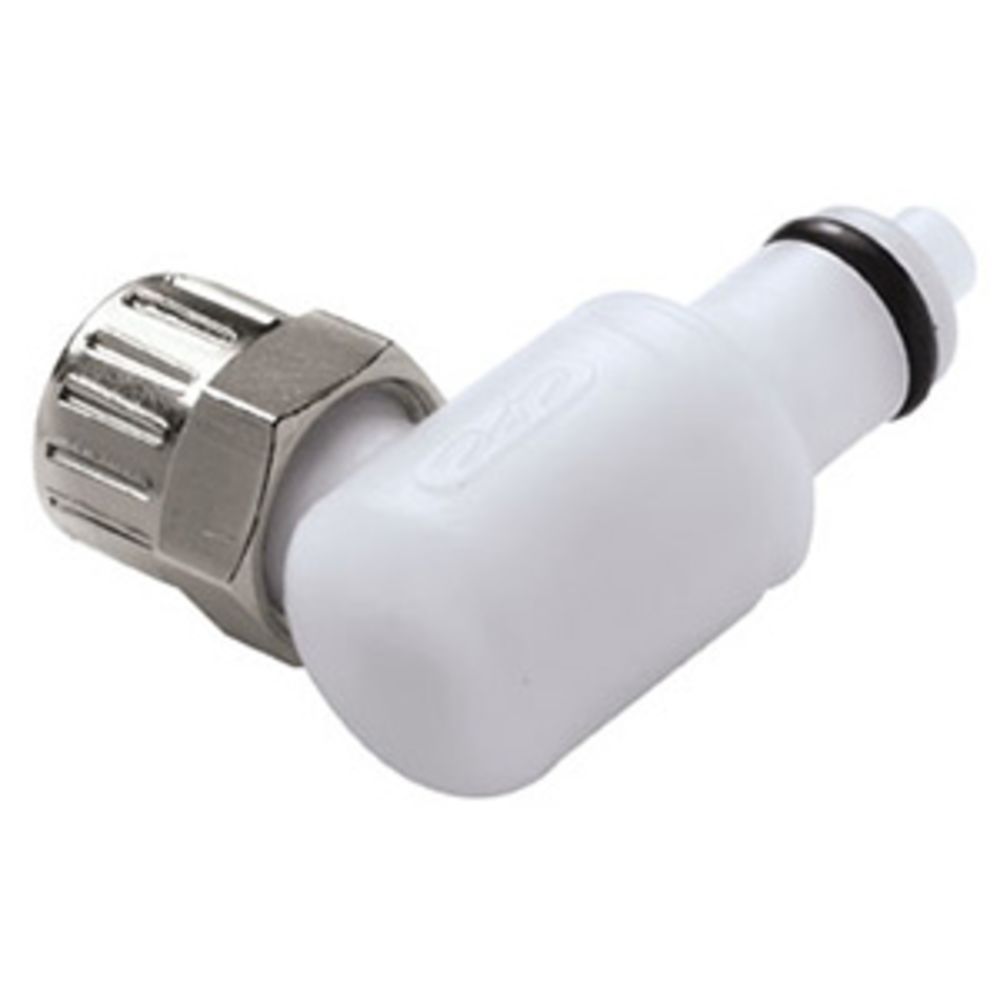

PMCD2102512 Valved Elbow PTF Coupling Insert 5/32 PTF

Part Number: PMCD2102512

In Stock

out of stock

In Stock

$10.06


PMC Series couplings have a 5/32" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.
Specifications:
  • Material:Polypropylene
  • Material Finish:White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Color:White
  • Temperature Range:32°F to 160°F (0°C to 71°C)
  • Mounting Option:Free Floating
  • Sterilization:Gamma: Up to 50 kGy irradiation
  • Seal Options:EPDM
  • Valve Spring:316 Stainless Steel
  • Valve Option:Valved
  • Available in Bags of 25 units


Details

Bag Quantity

25 units

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Free Floating

O Rings

EPDM

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Outer Diameter

5/32 Inches

Seal Material

EPDM

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Valved


PMCD2102512





PMC Series couplings have a 5/32" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.
Specifications:
  • Material:Polypropylene
  • Material Finish:White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Color:White
  • Temperature Range:32°F to 160°F (0°C to 71°C)
  • Mounting Option:Free Floating
  • Sterilization:Gamma: Up to 50 kGy irradiation
  • Seal Options:EPDM
  • Valve Spring:316 Stainless Steel
  • Valve Option:Valved
  • Available in Bags of 25 units

Details

Bag Quantity

25 units

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Free Floating

O Rings

EPDM

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Outer Diameter

5/32 Inches

Seal Material

EPDM

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Valved

Documentation
PMCD2102512

Reviews
