Colder Products

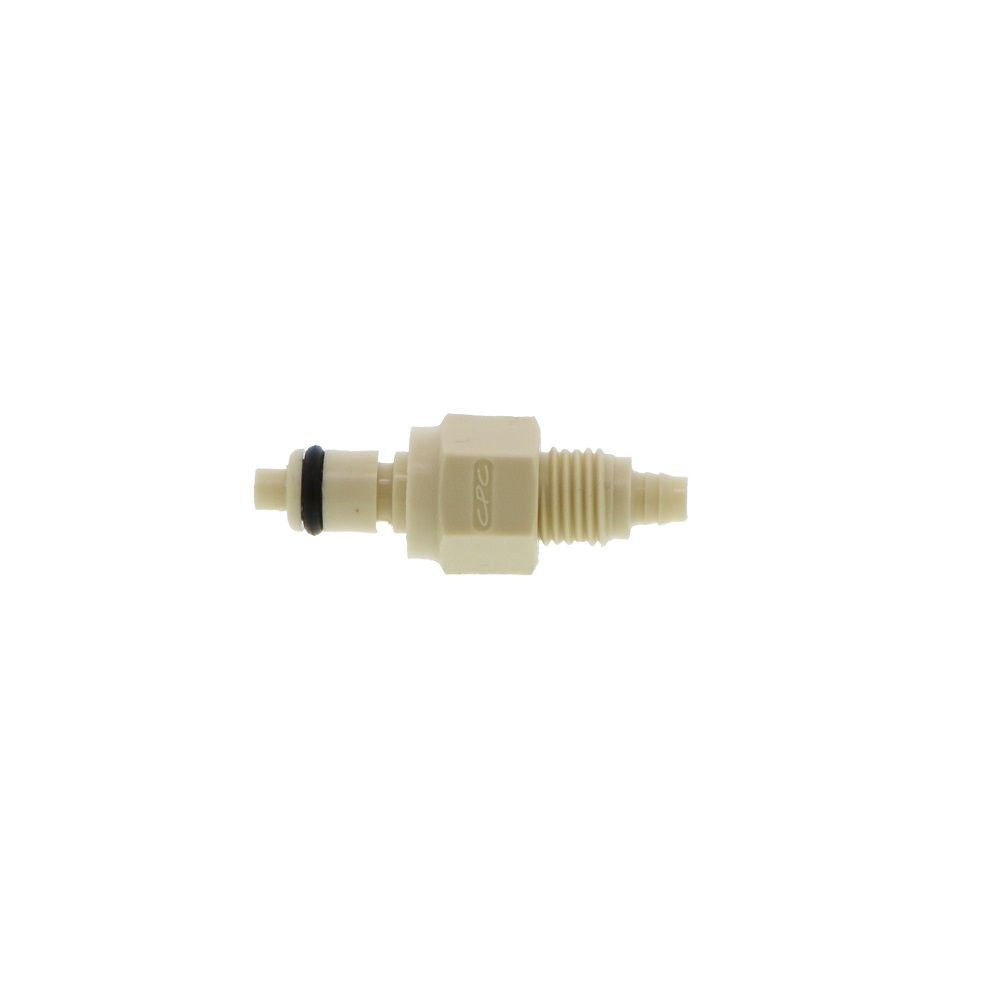

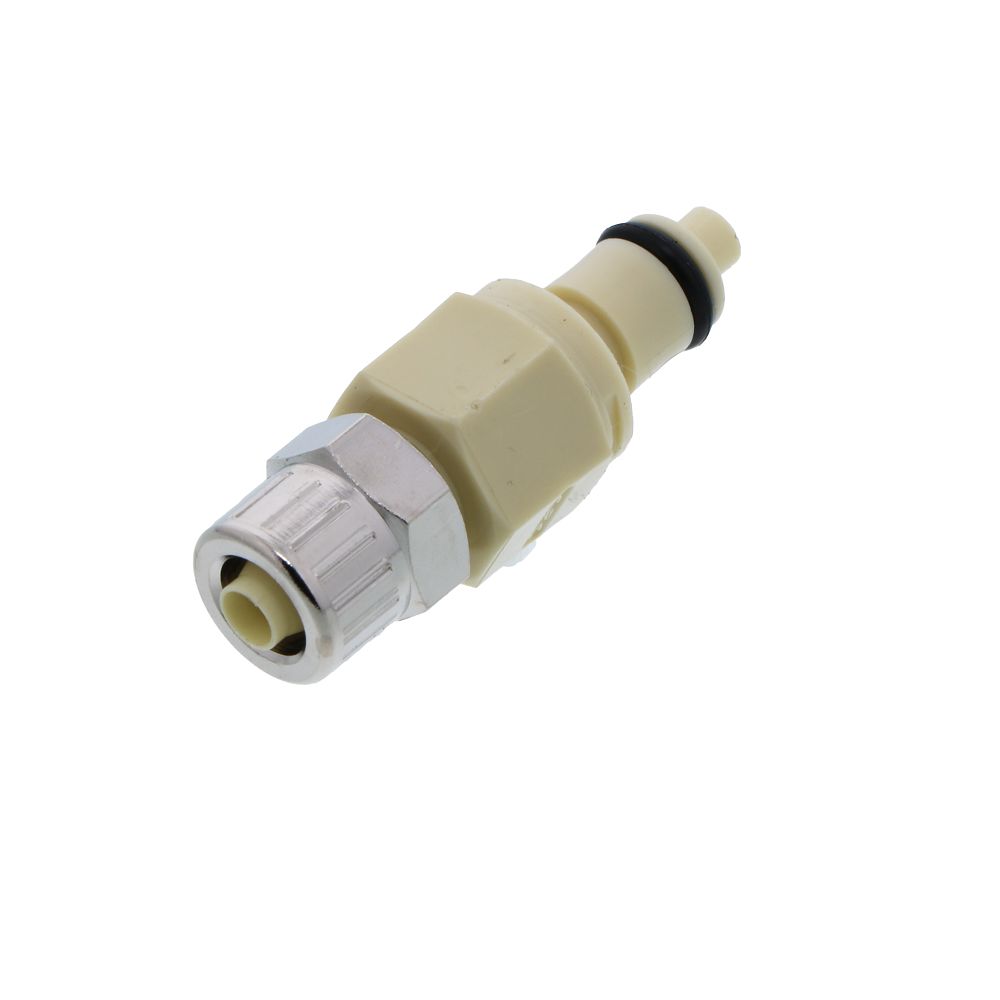

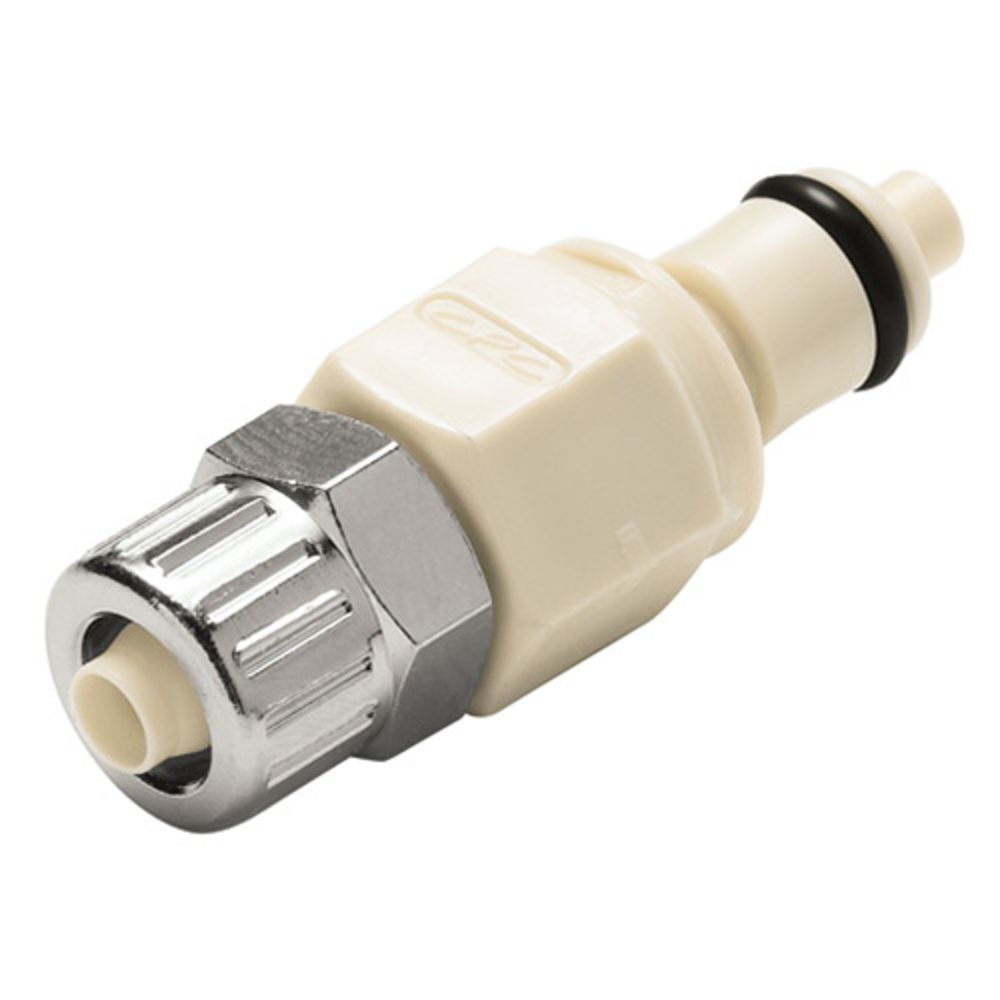

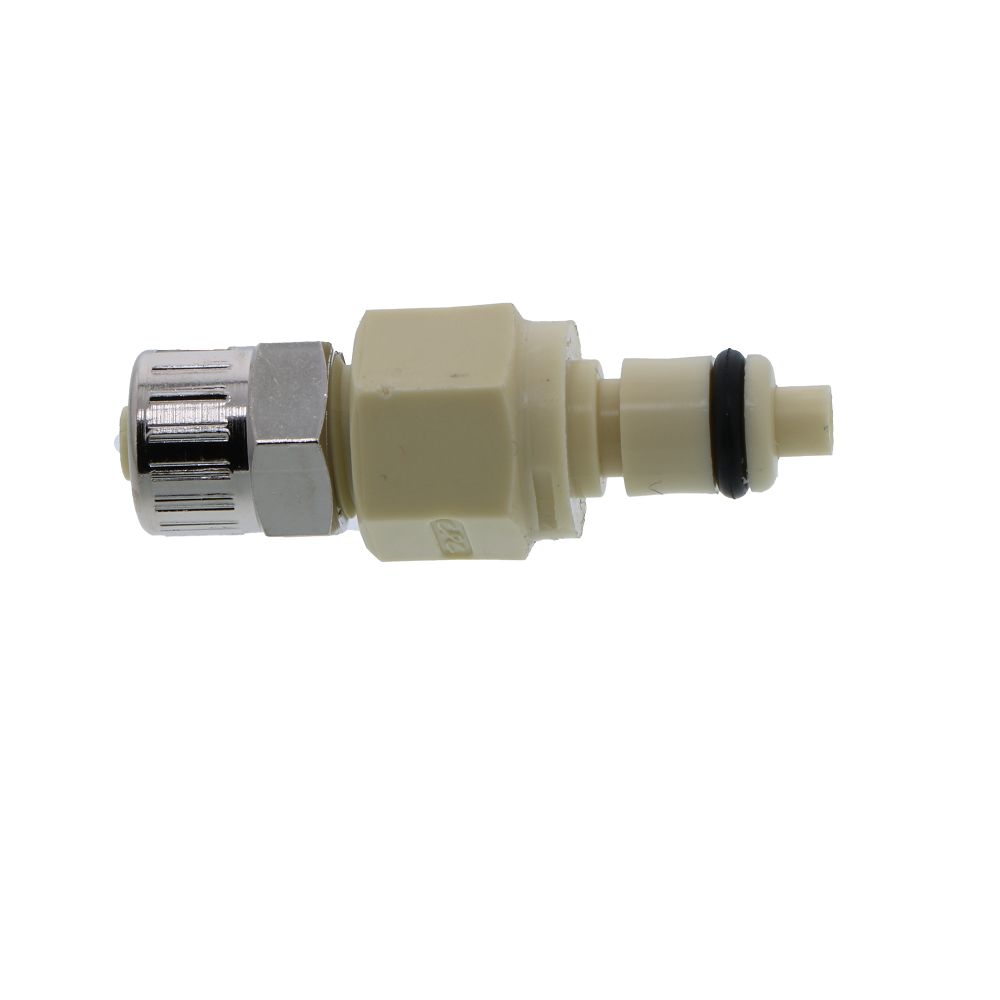

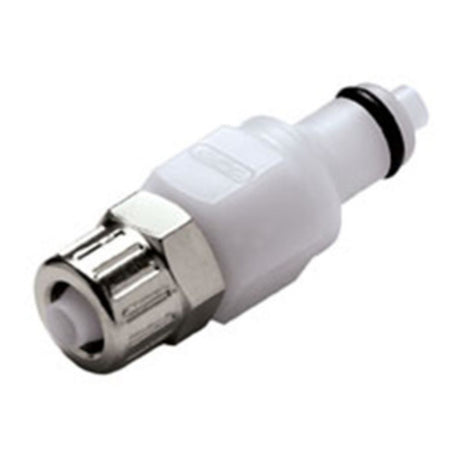

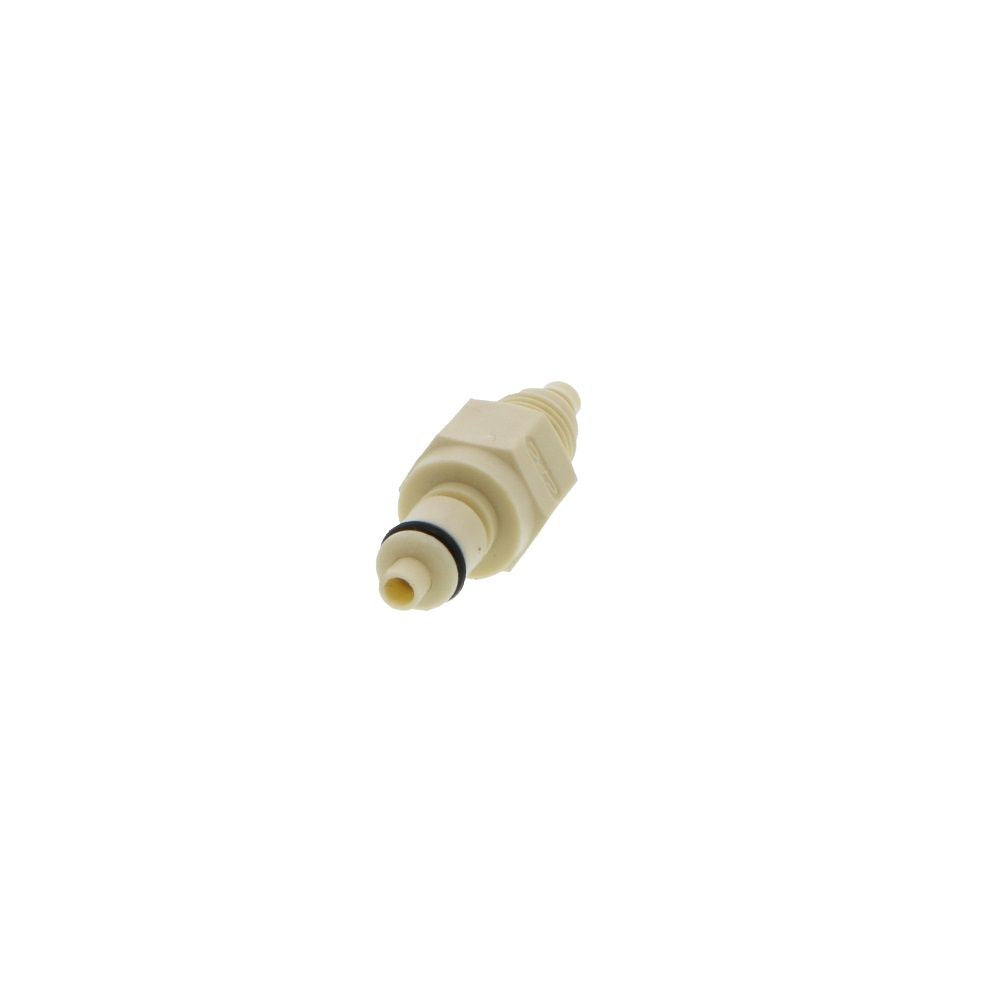

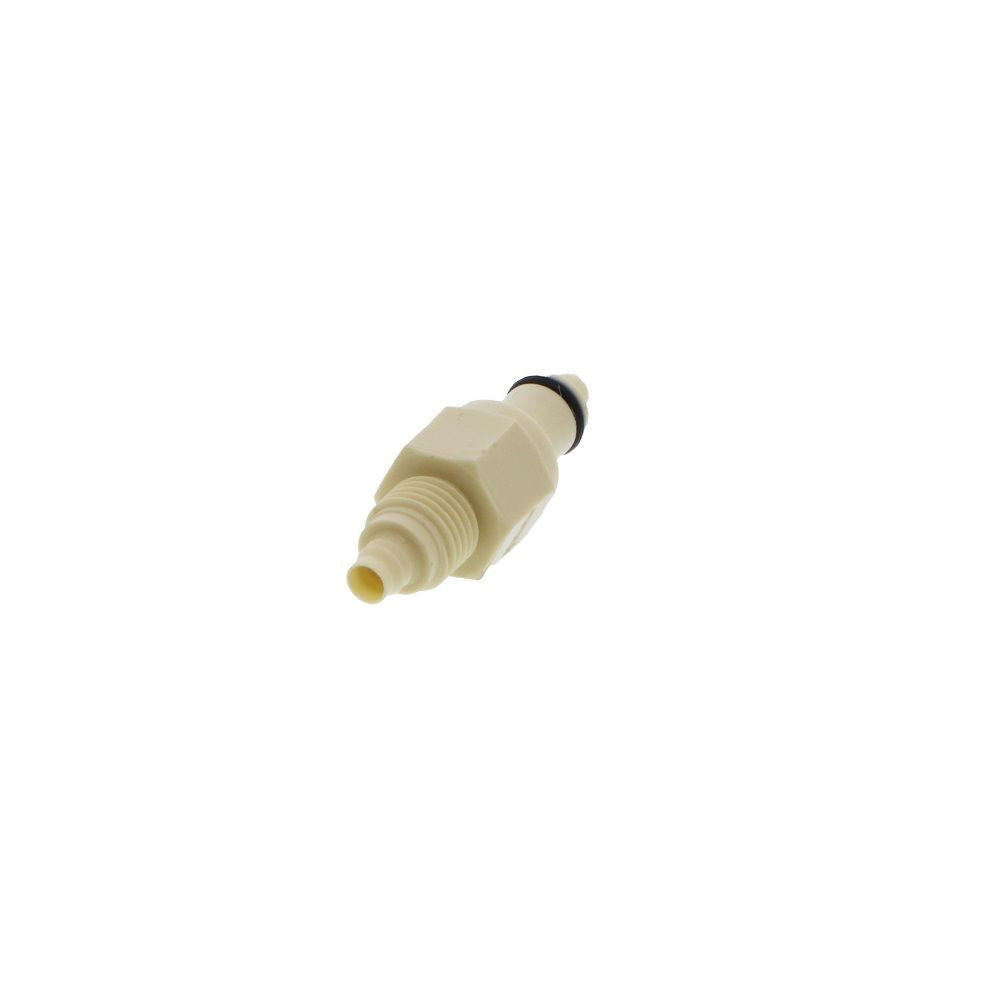

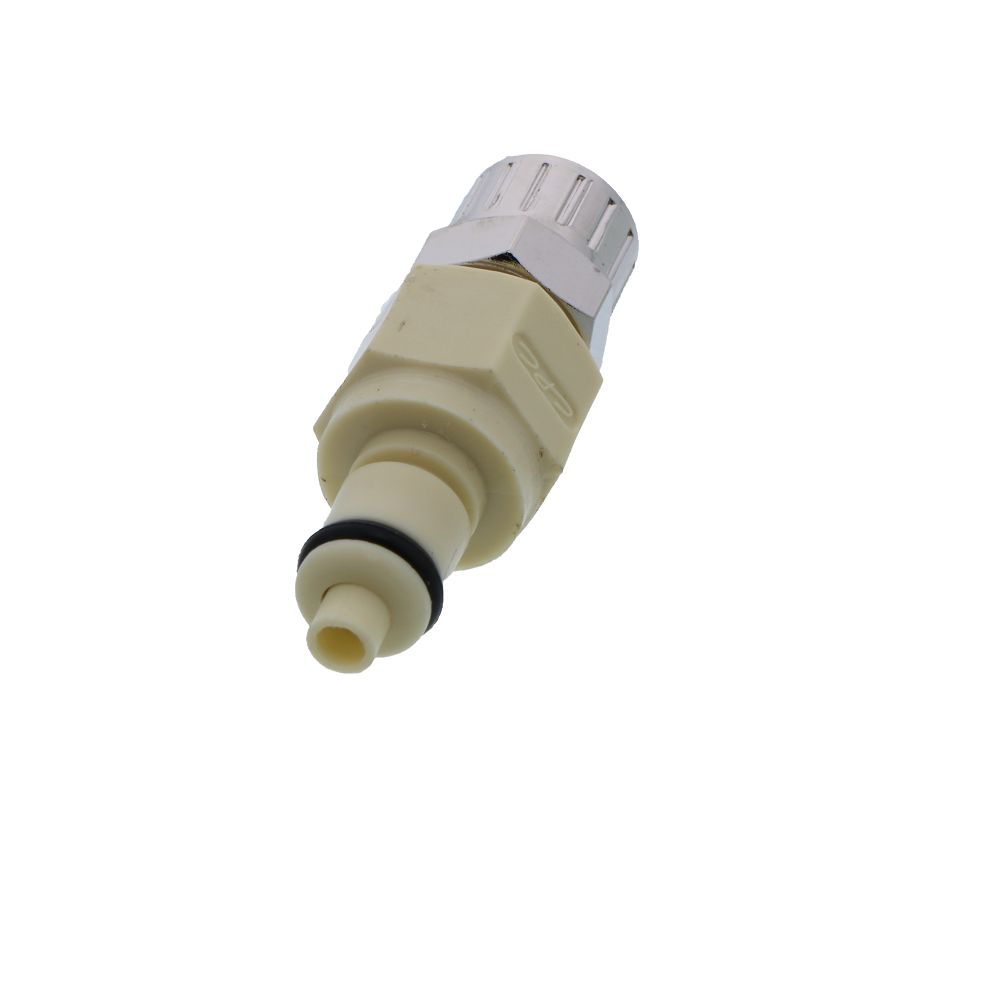

PMCD200412 Valved In-Line PTF Coupling Insert 1/4 PTF

Part Number: PMCD200412

In Stock

out of stock

In Stock

$8.36

The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Tubing Size: .17" ID, 1/4" OD
  • Available in Bags of 25 units




Weight & Dimensions

Weight (lbs)

0.01

Details

Application

Water

Body Material

Polypropylene

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

1/4" FPT

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Free Floating

Push-In Size

1/4" OD

Seal Material

EPDM

Series

PMC12

Size

1/4"

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Valved

Color / Finish

Almond

Connection Type

Female (FPT)

Origin

USA

Type

Coupling Insert


PMCD200412




The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Tubing Size: .17" ID, 1/4" OD
  • Available in Bags of 25 units



Weight & Dimensions

Weight (lbs)

0.01

Details

Application

Water

Body Material

Polypropylene

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

1/4" FPT

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Free Floating

Push-In Size

1/4" OD

Seal Material

EPDM

Series

PMC12

Size

1/4"

Spring

316 Stainless Steel

Thumb Latch

Stainless Steel

Valve Type

Valved

Color / Finish

Almond

Connection Type

Female (FPT)

Origin

USA

Type

Coupling Insert

Documentation
PMCD200412
