Specifications:
- Material: Polypropylene
- Color: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: 32ºF to 160ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: EPDM
- Available in Bags of 25 units
Weight & Dimensions
Height (inches) | 0.5 |
Length (inches) | 1.63 |
Weight (lbs) | 0.000625 |
Width (inches) | 0.5 |
Details
Application | Water |
Barb Size | 1/8" ID |
Body Material | Polypropylene |
External Springs And Pin | Stainless Steel |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Seal Material | EPDM |
Series | PMC12 |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless Steel |
Valve Type | Valved |
Color / Finish | Almond |
Origin | USA |
Type | Coupling Body |

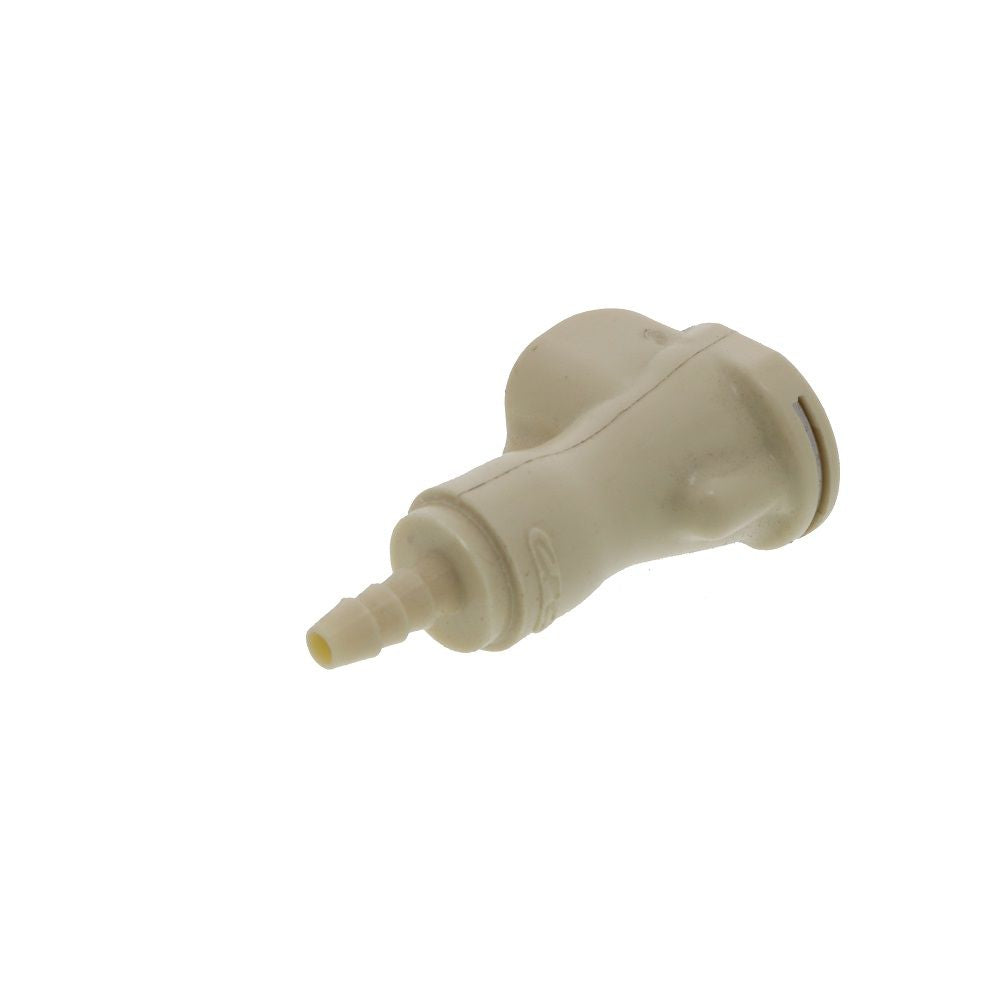

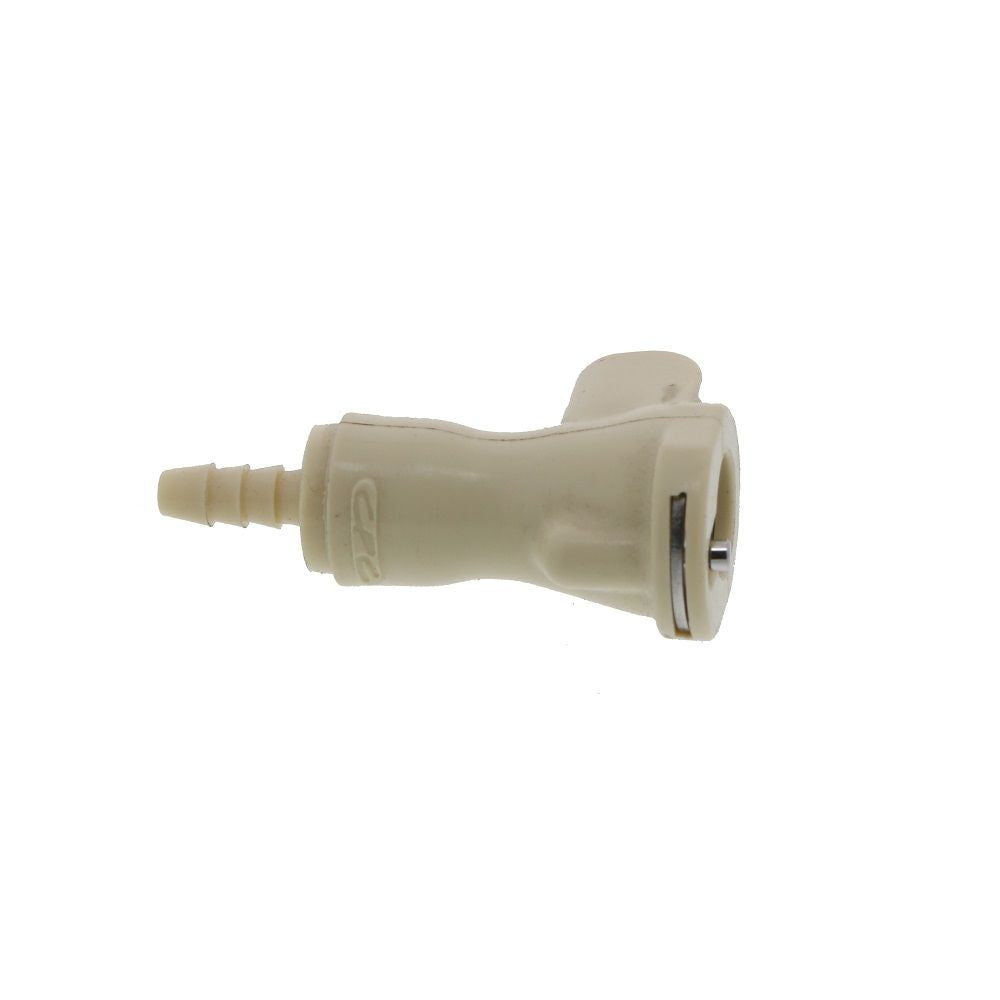

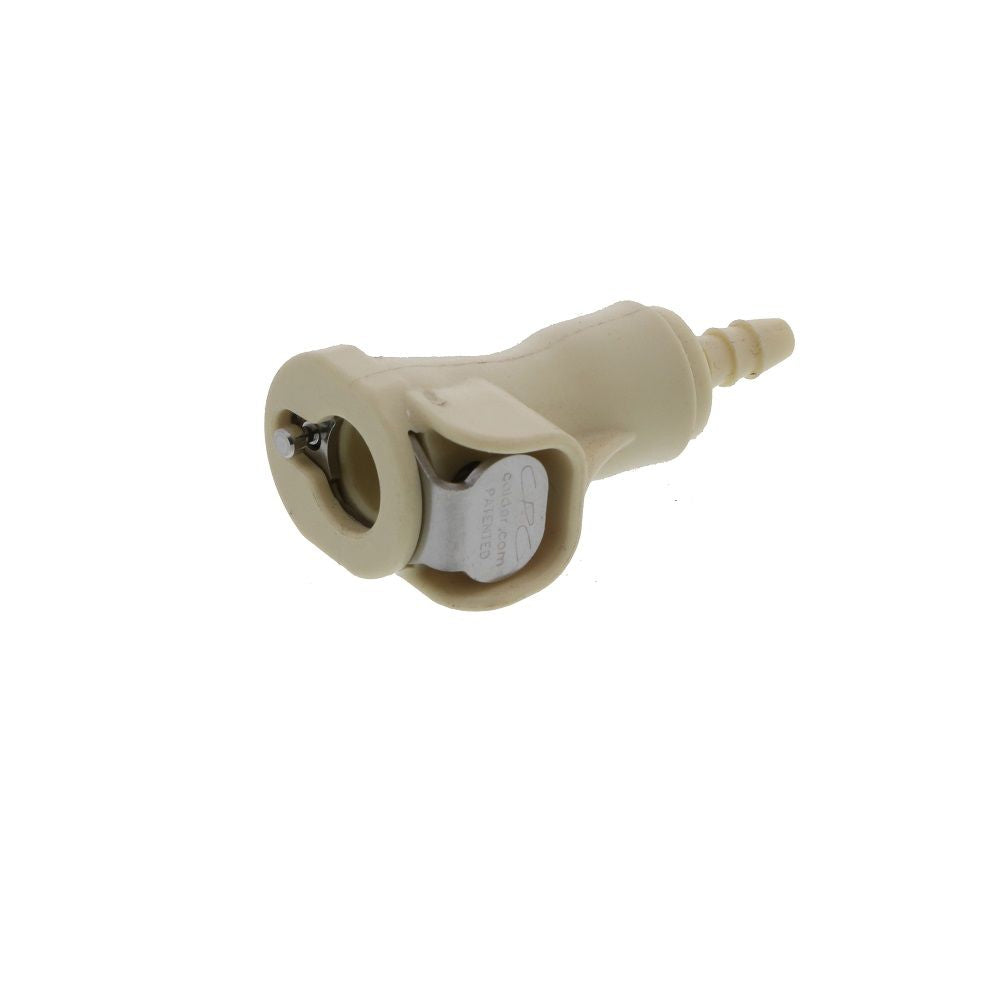

The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.
Specifications:
- Material: Polypropylene
- Color: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: 32ºF to 160ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: EPDM
- Available in Bags of 25 units
Weight & Dimensions
Height (inches) | 0.5 |
Length (inches) | 1.63 |
Weight (lbs) | 0.000625 |
Width (inches) | 0.5 |
Details
Application | Water |
Barb Size | 1/8" ID |
Body Material | Polypropylene |
External Springs And Pin | Stainless Steel |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | 32 |
Mounting Options | Free Floating |
Seal Material | EPDM |
Series | PMC12 |
Spring | 316 Stainless Steel |
Thumb Latch | Stainless Steel |
Valve Type | Valved |
Color / Finish | Almond |
Origin | USA |
Type | Coupling Body |
Documentation
