Colder Products

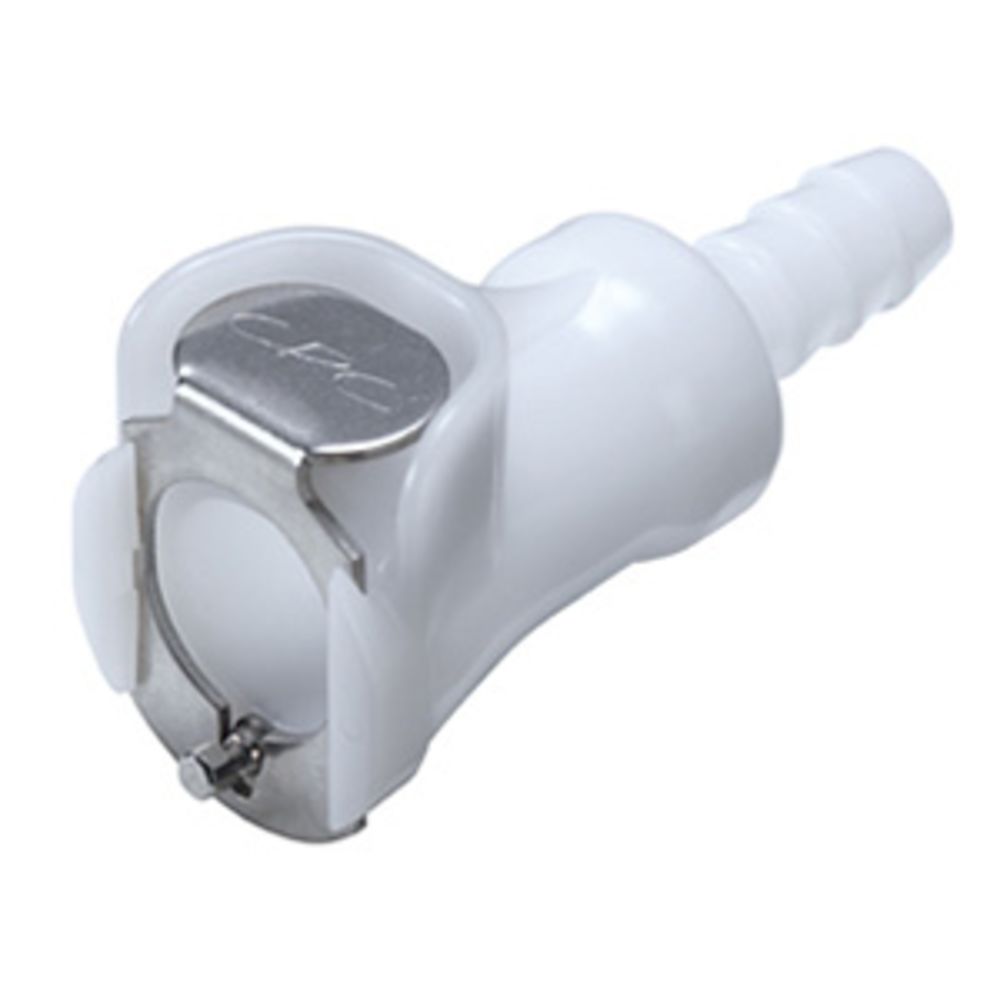

PMCD1701 Valved In-Line Hose Barb Coupling Body 1/16 ID Barb

Part Number: PMCD1701

In Stock

out of stock

In Stock

$7.01

PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Tubing Size: 1/16" barb
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units




Weight & Dimensions

Length (inches)

1.38

Height (inches)

0.5

Width (inches)

0.75

Weight (lbs)

0.000625

Details

Series

PMC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

1/16" ID

Application

Water

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White

Mounting Options

Free Floating

Origin

USA

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel


PMCD1701




PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Tubing Size: 1/16" barb
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units



Weight & Dimensions

Length (inches)

1.38

Height (inches)

0.5

Width (inches)

0.75

Weight (lbs)

0.000625

Details

Series

PMC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Barb Size

1/16" ID

Application

Water

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White

Mounting Options

Free Floating

Origin

USA

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel
