Colder Products

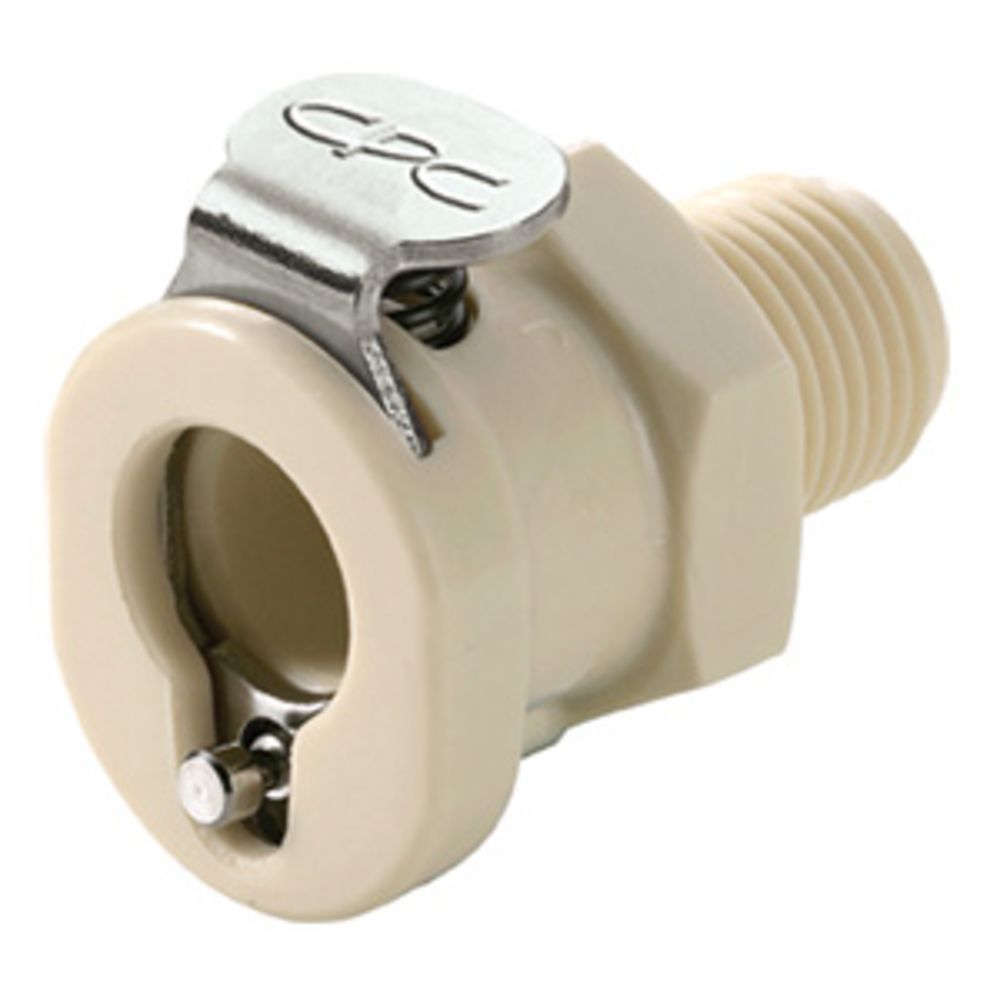

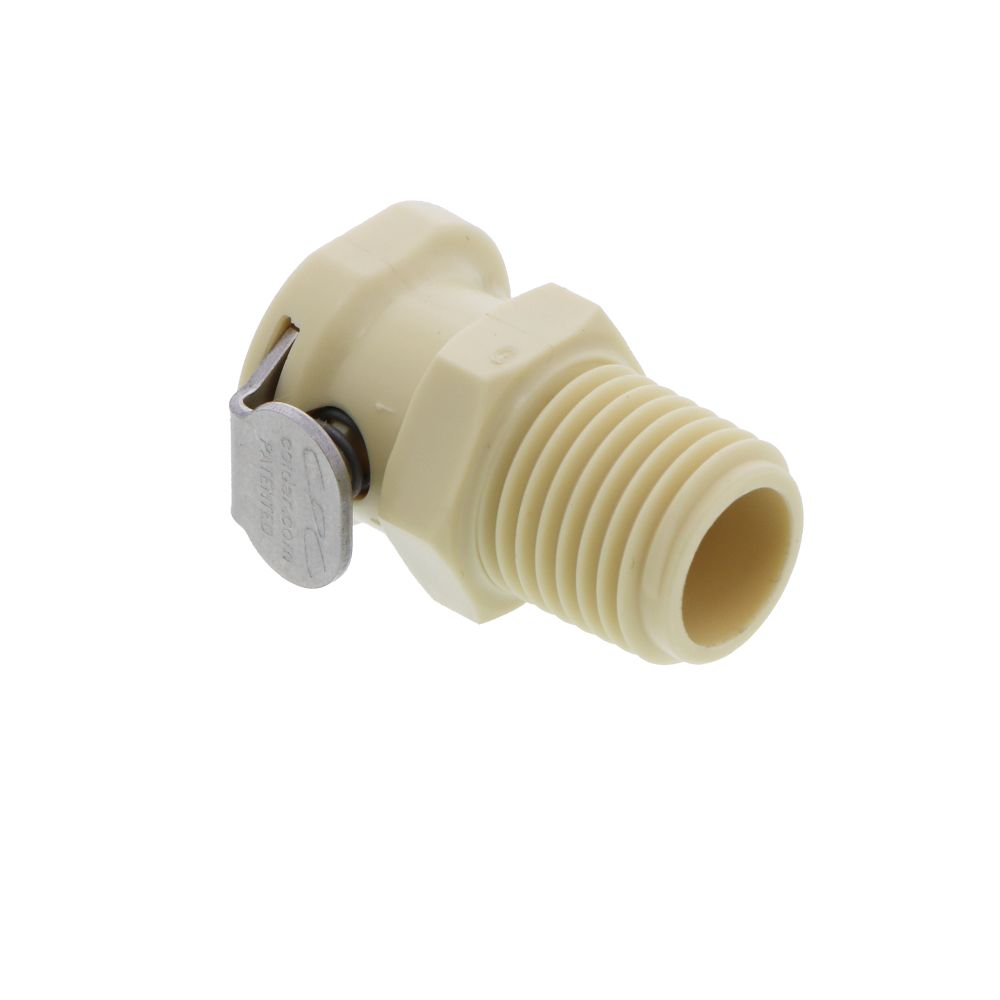

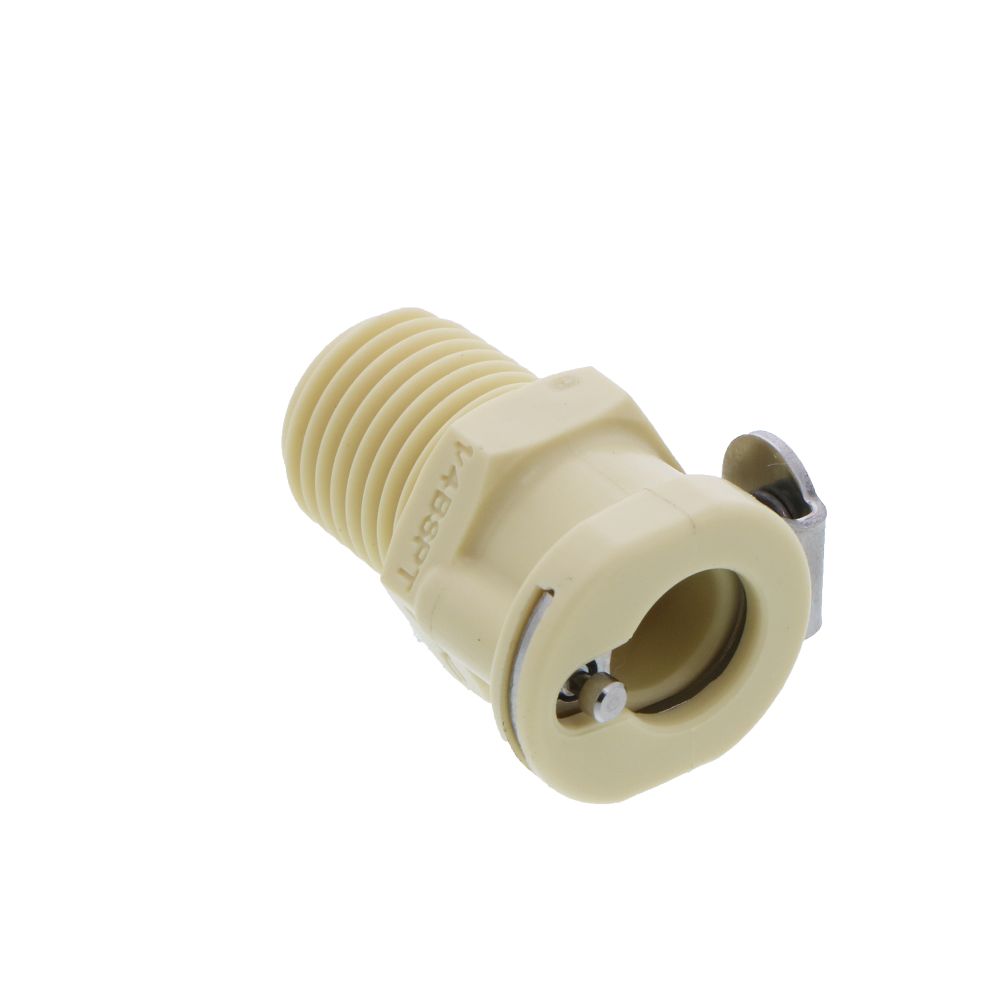

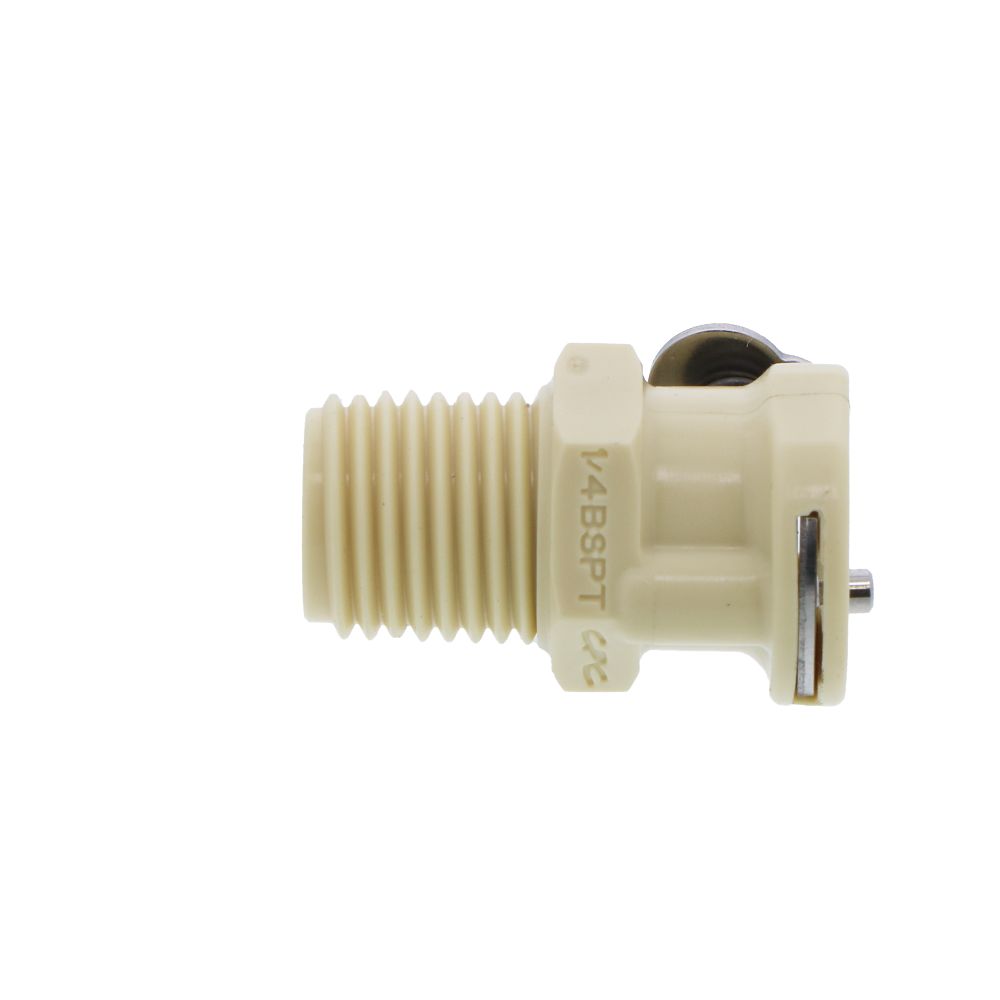

PMCD100412BSPT Valved Male Thread Coupling Body 1/4 BSPT

Part Number: PMCD100412BSPT

In Stock

out of stock

In Stock

$7.69

The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Available in Bags of 25 units




Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Polypropylene

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

1/4" BSP

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Thread

Seal Material

EPDM

Series

PMC12

Size

1/4"

Spring

316 Stainless Steel

Thumb Latch

Stainless steel

Valve Type

Valved

Color / Finish

Almond

Connection Type

BSP

Origin

USA

Type

Coupling Body


PMCD100412BSPT




The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Available in Bags of 25 units



Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Polypropylene

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

1/4" BSP

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Thread

Seal Material

EPDM

Series

PMC12

Size

1/4"

Spring

316 Stainless Steel

Thumb Latch

Stainless steel

Valve Type

Valved

Color / Finish

Almond

Connection Type

BSP

Origin

USA

Type

Coupling Body

Documentation
PMCD100412BSPT
Reviews
