Colder Products

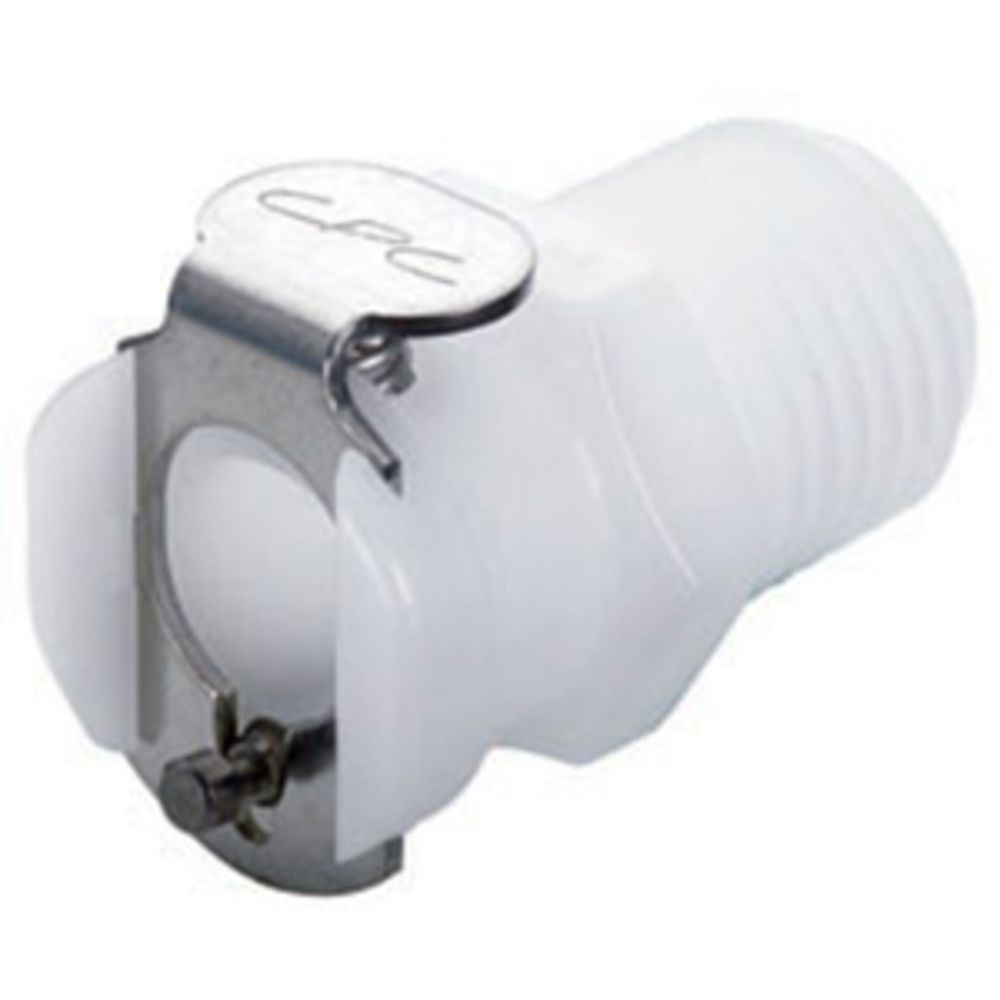

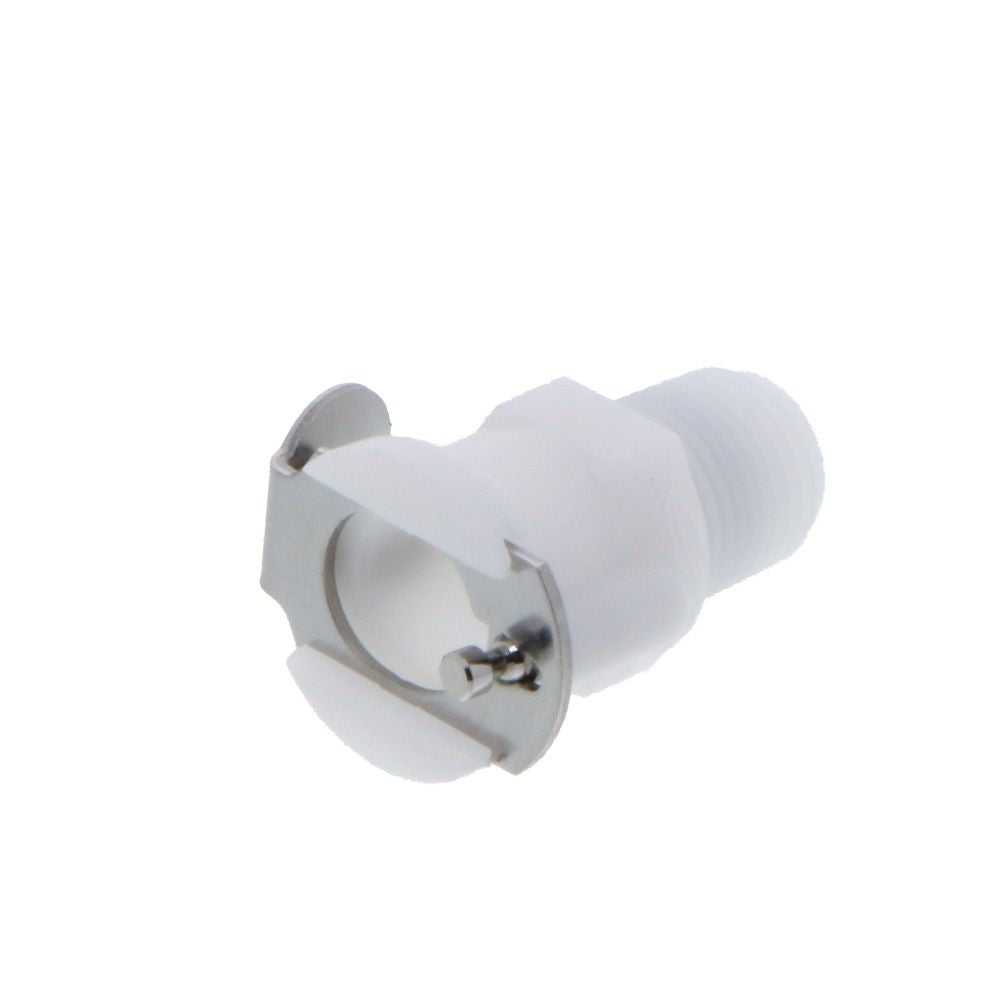

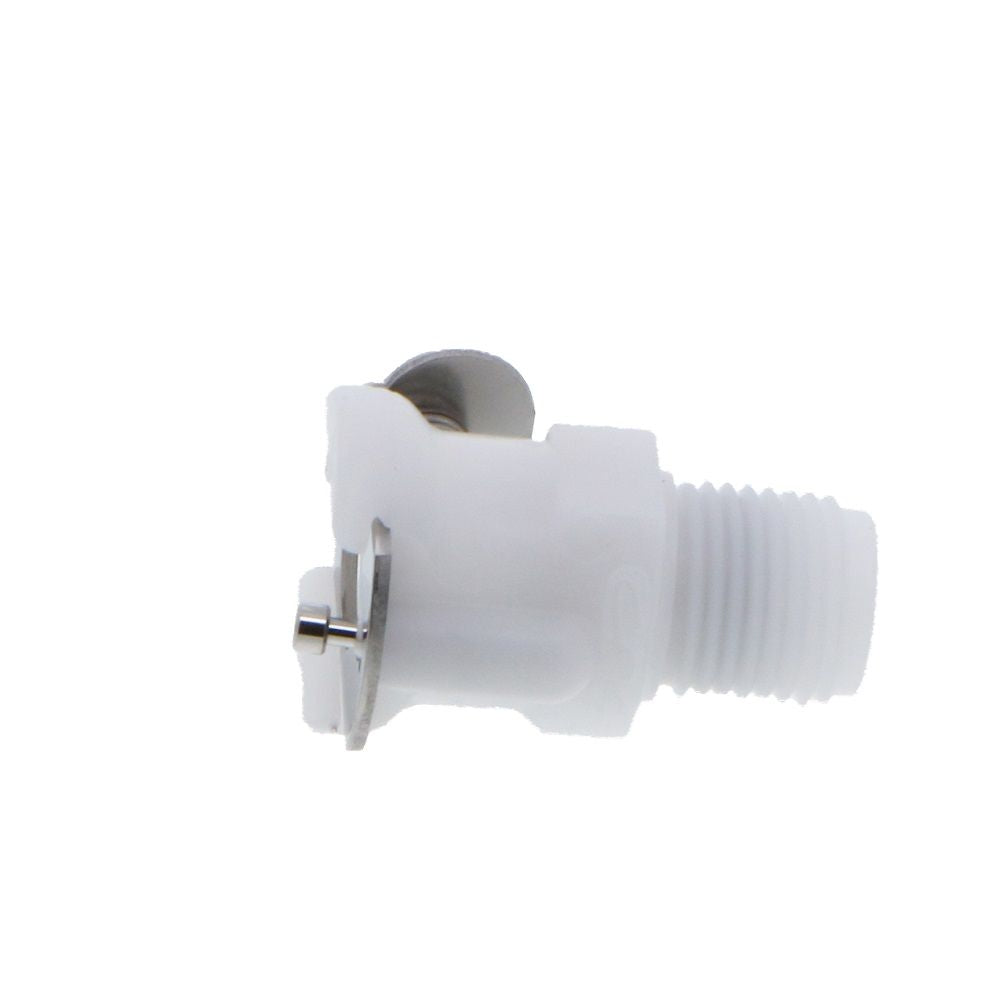

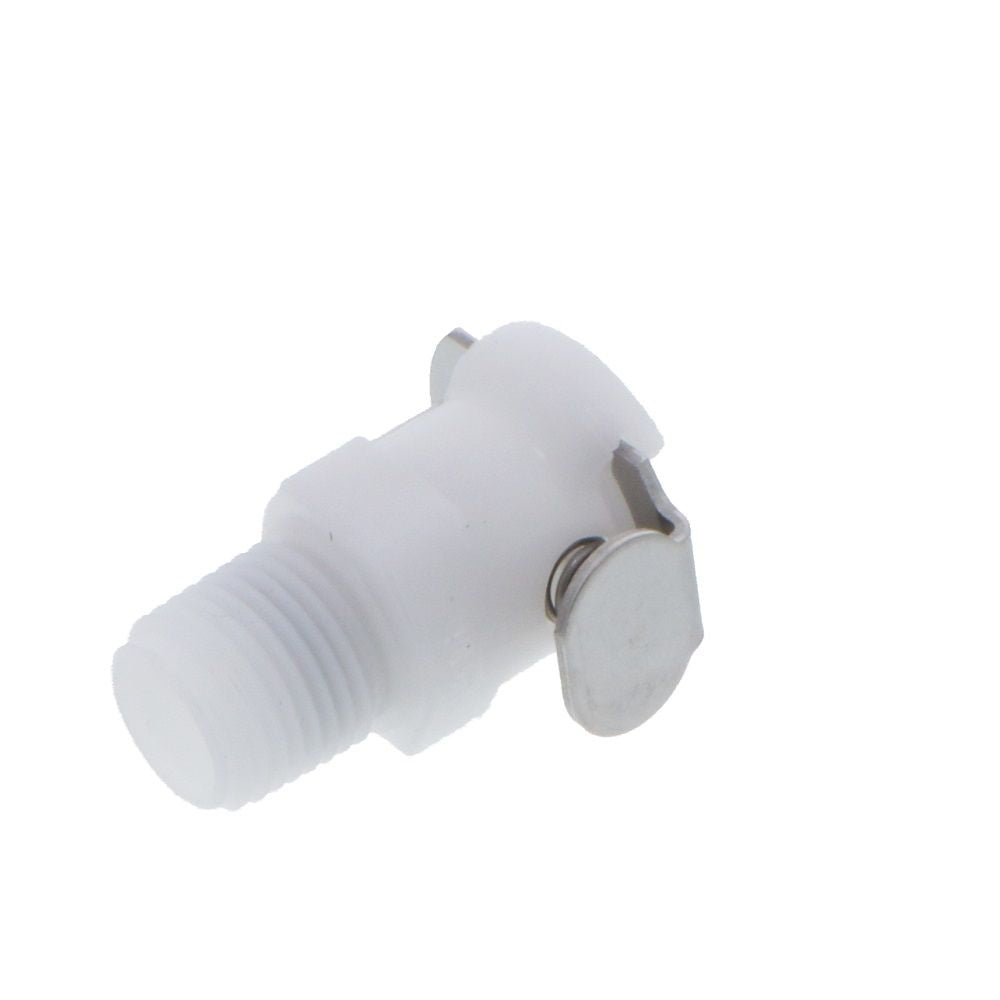

PMCD1002 Valved Male Thread Coupling Body 1/8 NPT

Part Number: PMCD1002

In Stock

out of stock

In Stock

$20.88

PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: 1/8" NPT Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 11800) Available Upon Request




Weight & Dimensions

Bag Quantity

25

Height (inches)

0.625

Length (inches)

1

Weight (lbs)

0.006

Width (inches)

0.75

Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

1/8" MPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

Buna-N

Series

PMC

Size

1/8"

Spring

316 stainless steel

Valve Type

Valved

Color / Finish

white

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Body


PMCD1002




PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: 1/8" NPT Thread
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 11800) Available Upon Request



Weight & Dimensions

Bag Quantity

25

Height (inches)

0.625

Length (inches)

1

Weight (lbs)

0.006

Width (inches)

0.75

Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

1/8" MPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Thread

Seal Material

Buna-N

Series

PMC

Size

1/8"

Spring

316 stainless steel

Valve Type

Valved

Color / Finish

white

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Body

Documentation
PMCD1002
Reviews
