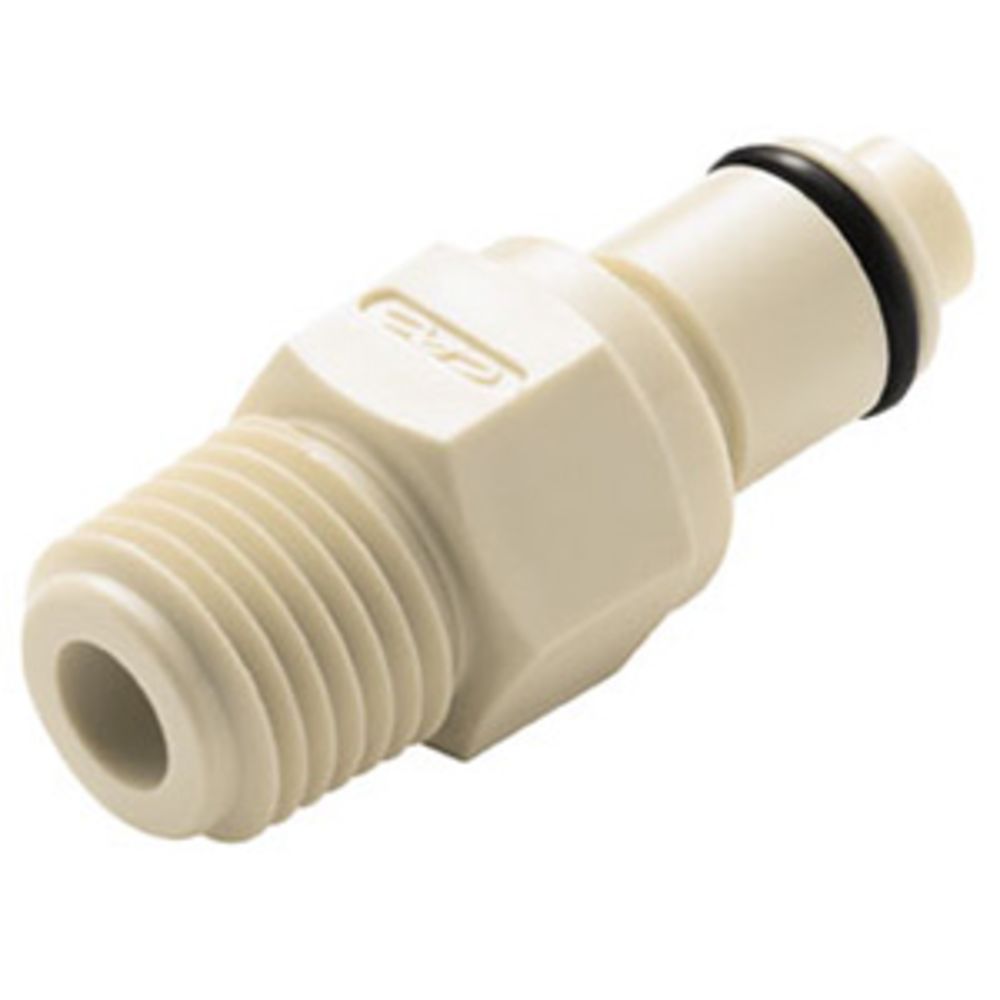

PMC24082012 Male Thread Coupling Insert 5/16 SAE-5

The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:

Material: Polypropylene
Color: Almond
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Thread
Valve Option: Non-Valved
Temperature Range: 32ºF to 160ºF
Seal Options: EPDM
Sterilization: Gamma (up to 50 kGy irradiation)
Available in Bags of 25 units

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Polypropylene
Inlet Connection	5/16" SAE
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Thread
Nsf Version	No
Outlet Connection	5/16" SAE
Seal Material	EPDM
Series	PMC12
Shape	Straight
Size	5/16"
Valve Type	Non-Valved
Color / Finish	Almond
Connection Type	SAE
Origin	U.S.A.
Type	Coupling Insert
