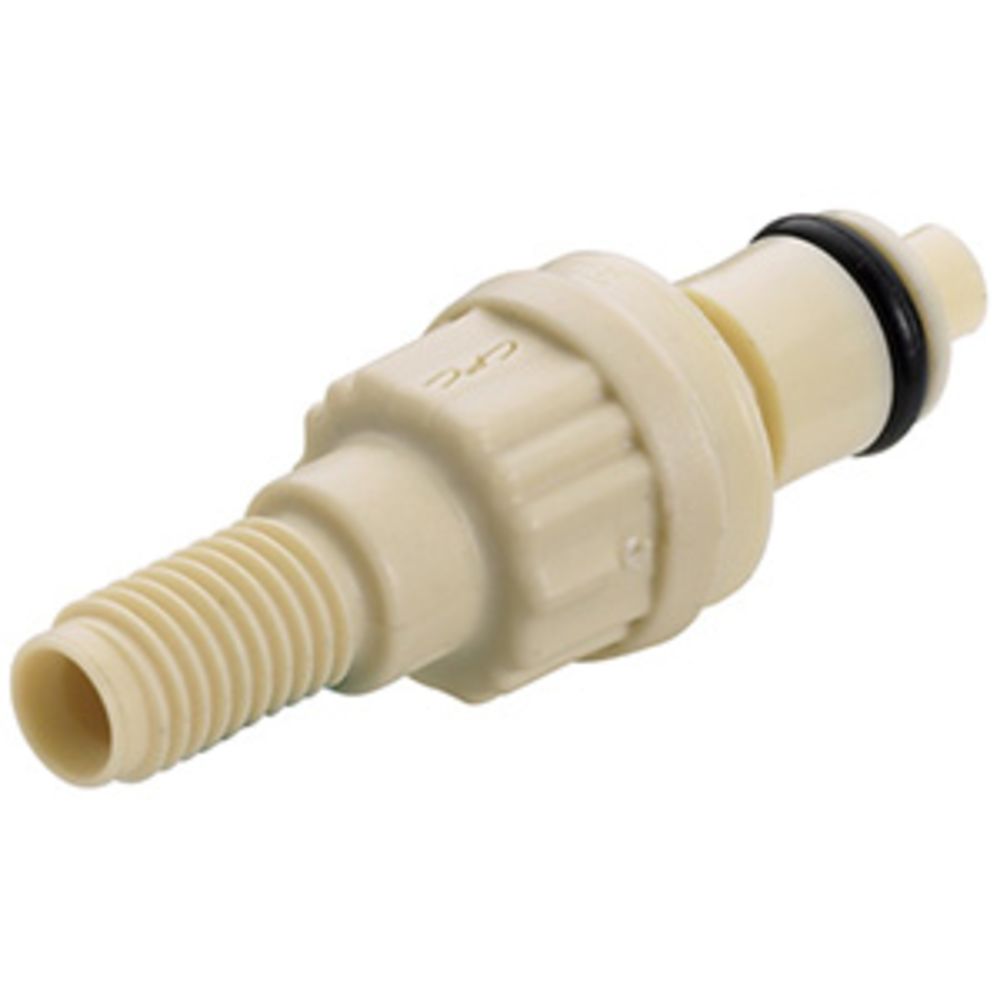

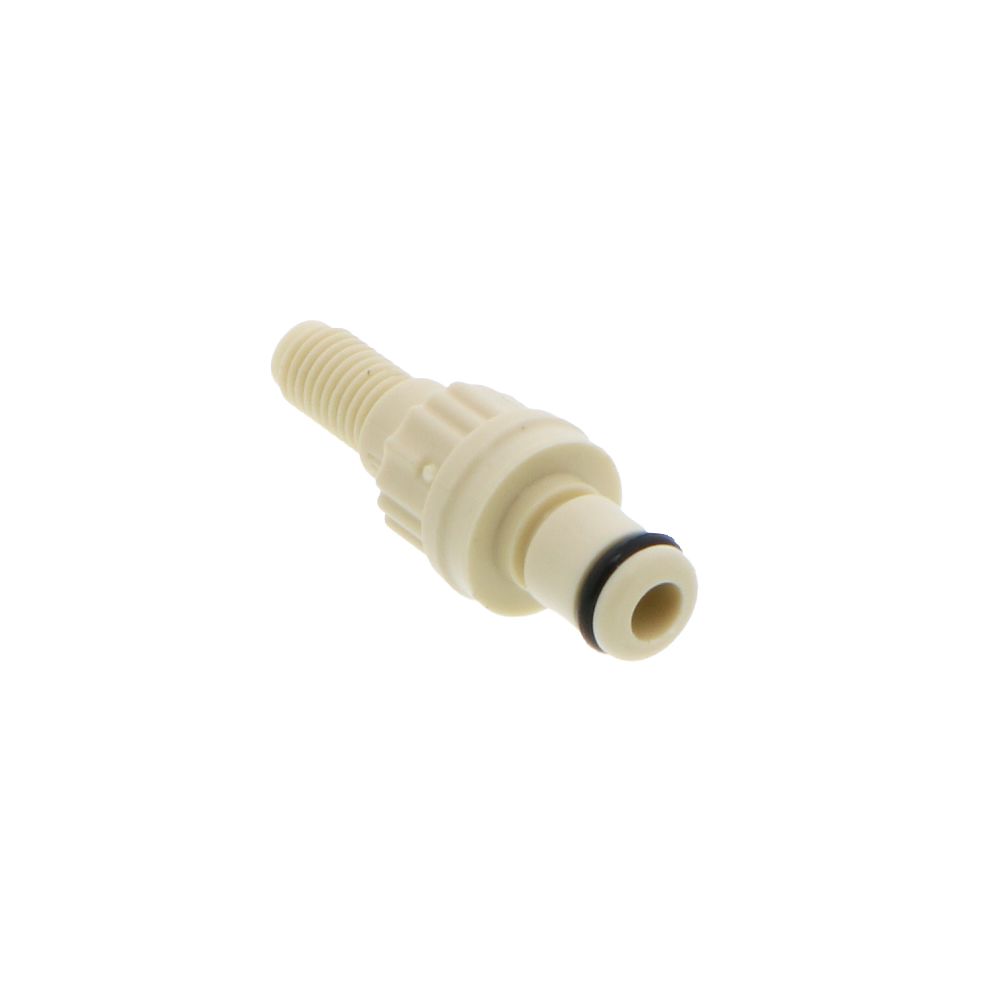

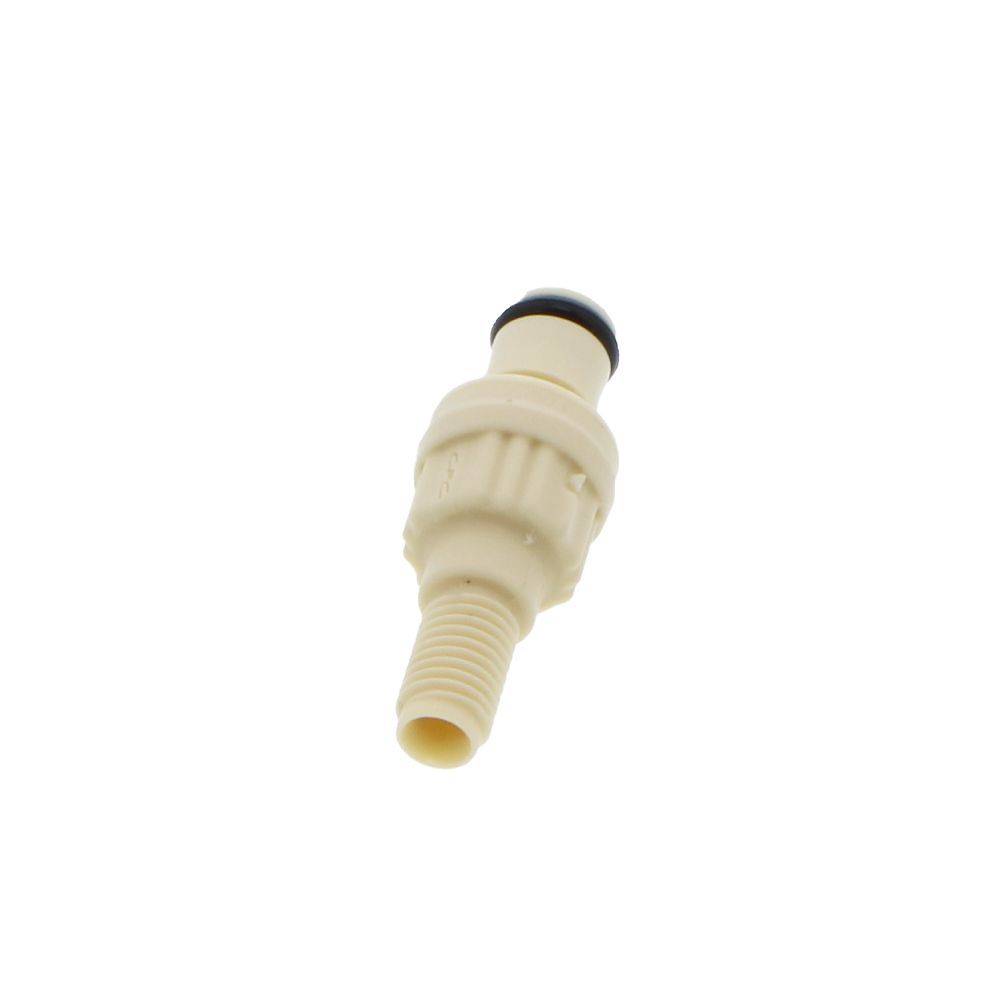

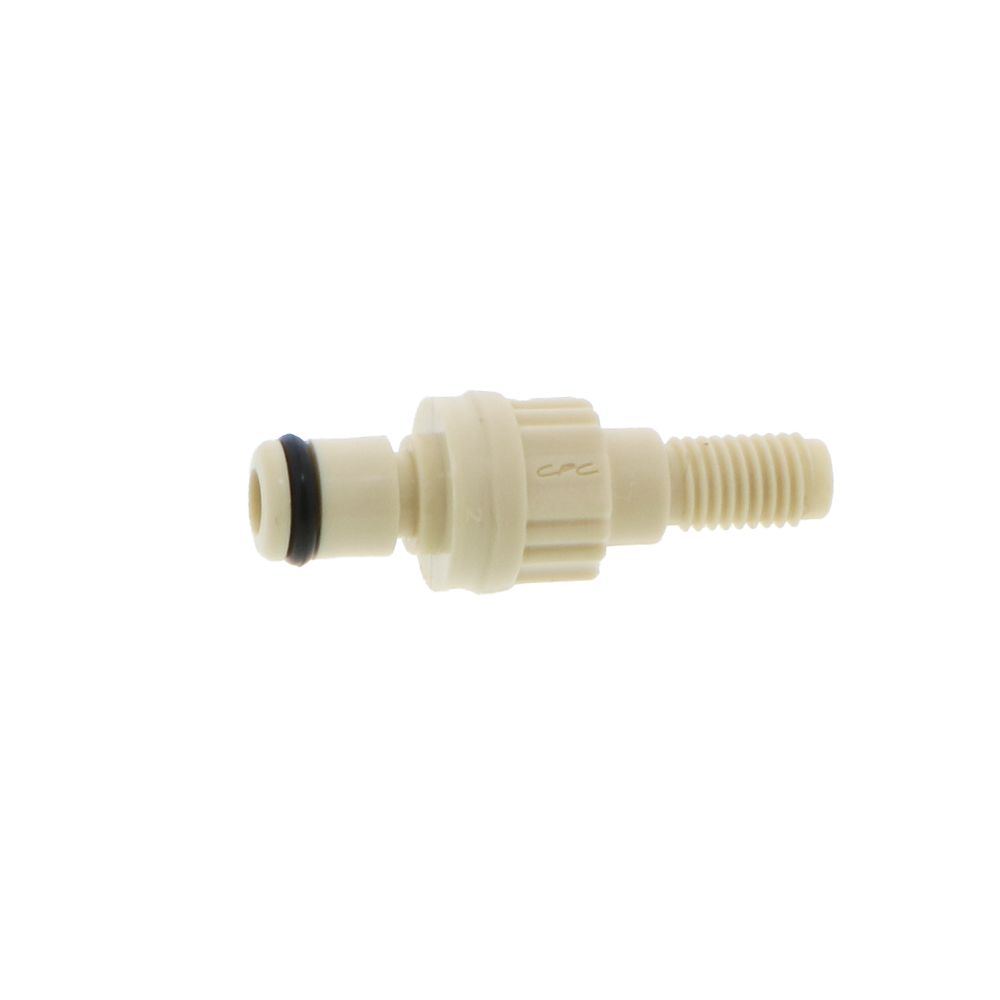

PMC24042812 Male Thread Coupling Insert 1/4-28 UNF

Part Number: PMC24042812

1 4

Colder Products

PMC24042812 Male Thread Coupling Insert 1/4-28 UNF

Part Number: PMC24042812

MSRP: $9.34

$9.34

Quantity

Unit Price

Price

Savings

$9.34

—

$9.10

$227.66

250

$8.87

$2,218.25

Product variants

Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:

Material: Polypropylene
Color: Almond
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Thread
Valve Option: Non-Valved
Temperature Range: 32ºF to 160ºF
Seal Options: EPDM
Sterilization: Gamma (up to 50 kGy irradiation)
Available in Bags of 25 units

Specifications

Product Details
Inlet Connection	1/4-28 UNF
Max Pressure (Psi)	120
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Outlet Connection	1/4-28 UNF
Series	PMC12
Shape	Straight
Size	1/4-28
Valve Type	Non-Valved
Color / Finish	Almond
Type	Coupling
Shipping Dimensions
Shipping Length	0.2125 in.
Shipping Width	0.25 in.
Shipping Height	0.25 in.
Product Weight & Dimensions
Product Height	0.25
Product Length	0.2125
Product Width	0.25
Product Weight (lbs)	0.03

Product Details
Inlet Connection	1/4-28 UNF
Max Pressure (Psi)	120
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Outlet Connection	1/4-28 UNF
Series	PMC12
Shape	Straight
Size	1/4-28
Valve Type	Non-Valved
Color / Finish	Almond
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	1.25

Product Details
Inlet Connection	1/4-28 UNF
Max Pressure (Psi)	120
Max Temp (°F)	160°F
Min Temp (°F)	32°F
Nsf Version	No
Outlet Connection	1/4-28 UNF
Series	PMC12
Shape	Straight
Size	1/4-28
Valve Type	Non-Valved
Color / Finish	Almond
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	15

Downloads

PMC24042812 Male Thread Coupling Insert 1/4-28 UNF Manual
