Colder Products

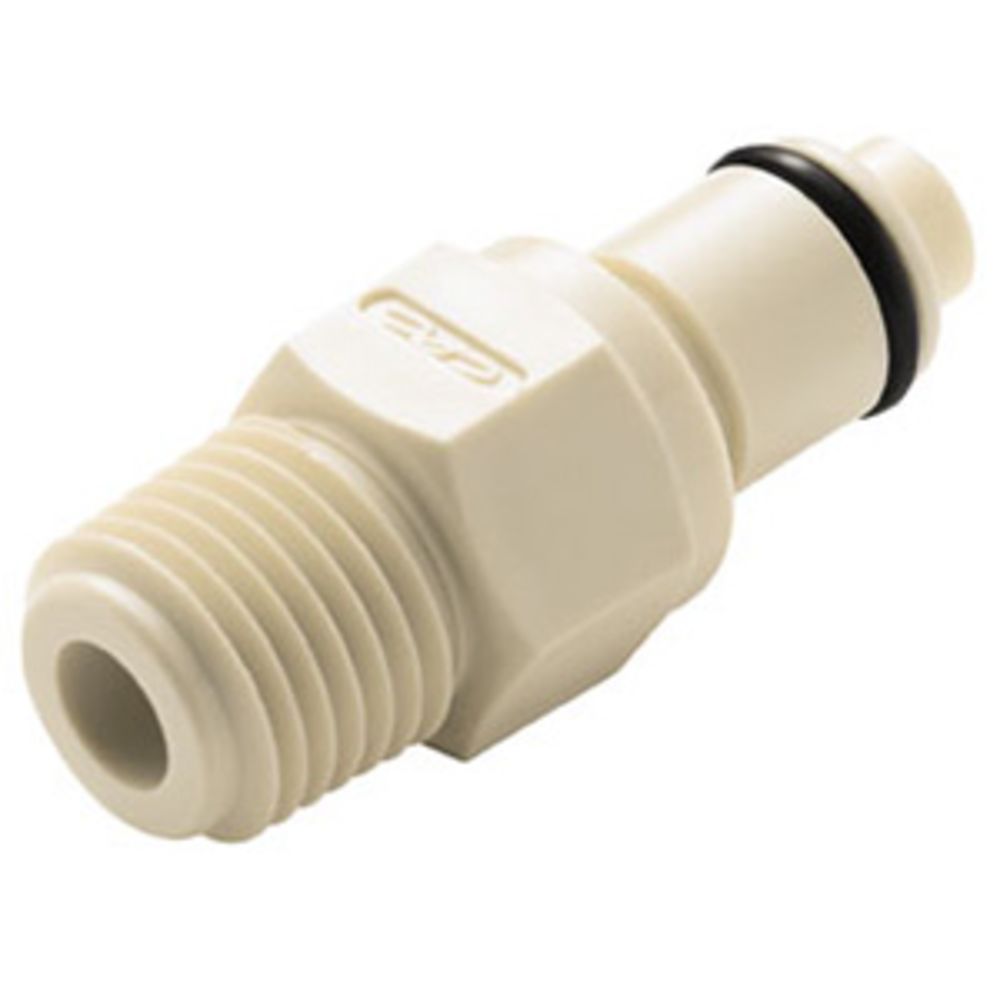

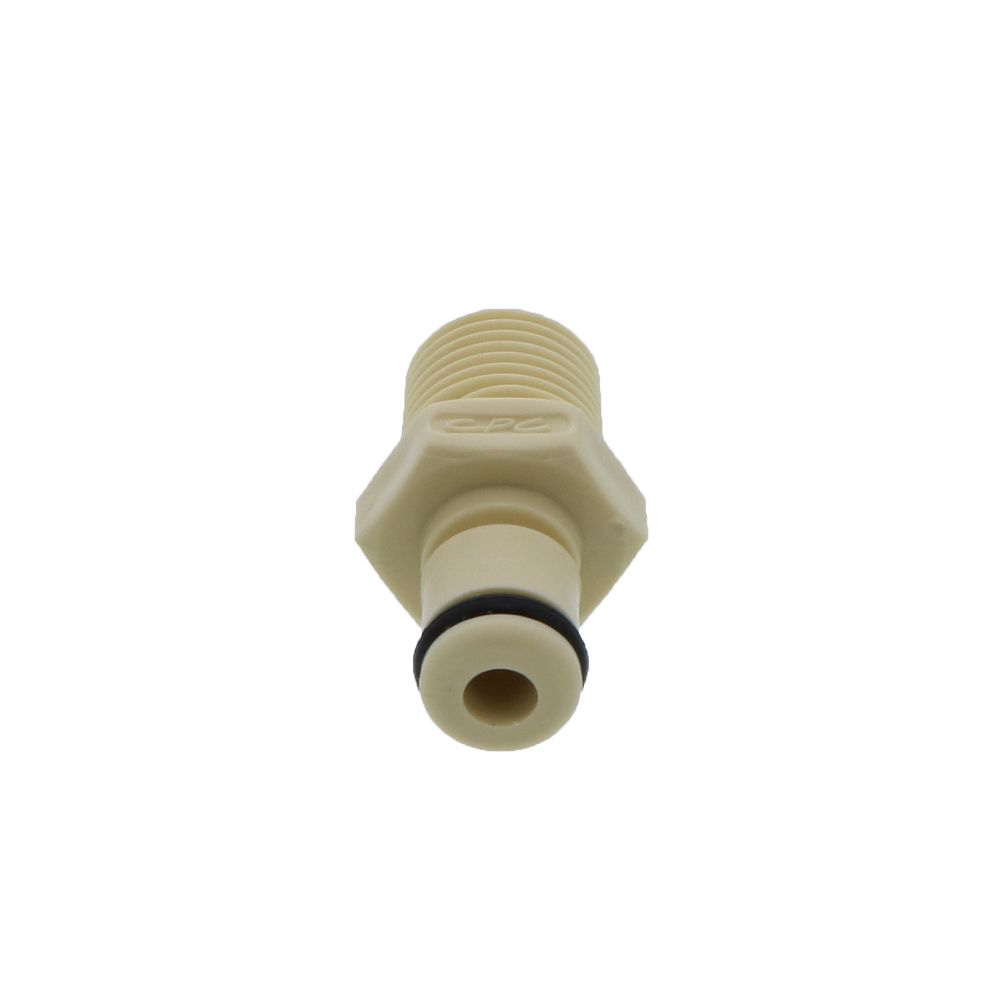

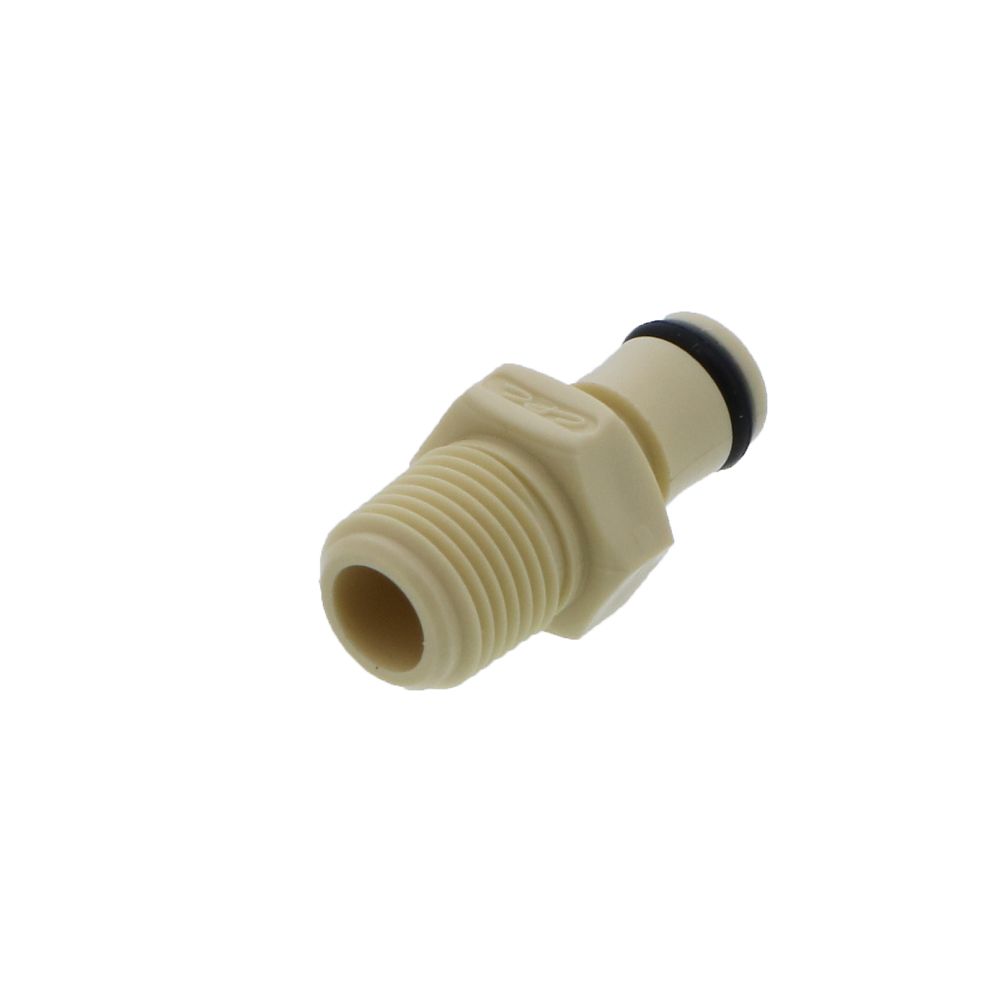

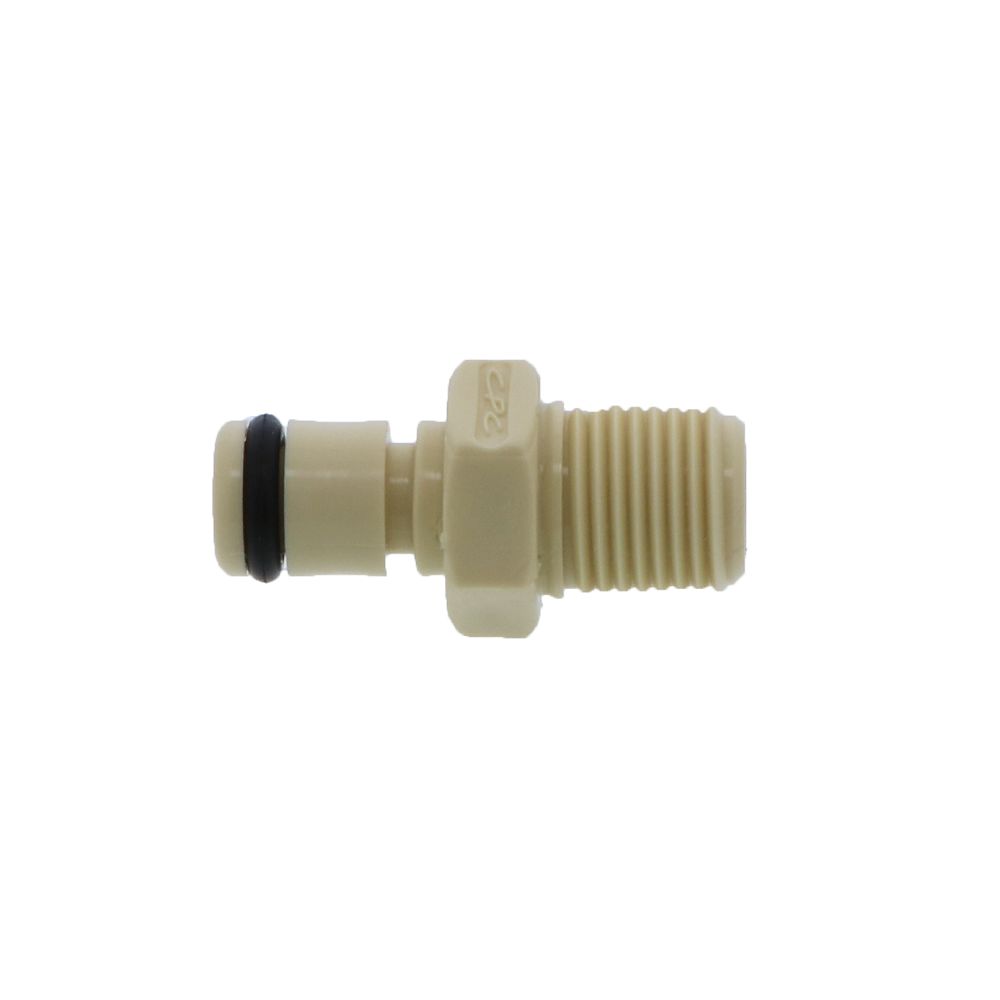

PMC240212 Male Thread Coupling Insert 1/8 NPT

Part Number: PMC240212

In Stock

out of stock

In Stock

$3.39

The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options:EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units




Weight & Dimensions

Weight (lbs)

0.004

Details

Application

Water

Body Material

Polypropylene

Inlet/Outlet Connection

1/8" MPT

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Thread

Seal Material

EPDM

Series

PMC12

Size

1/8"

Spring

316 stainless steel

Valve Type

Non-Valved

Color / Finish

Almond

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Insert


PMC240212




The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Thread
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options:EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units



Weight & Dimensions

Weight (lbs)

0.004

Details

Application

Water

Body Material

Polypropylene

Inlet/Outlet Connection

1/8" MPT

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Thread

Seal Material

EPDM

Series

PMC12

Size

1/8"

Spring

316 stainless steel

Valve Type

Non-Valved

Color / Finish

Almond

Connection Type

Male (MPT)

Origin

USA

Type

Coupling Insert
