Colder Products

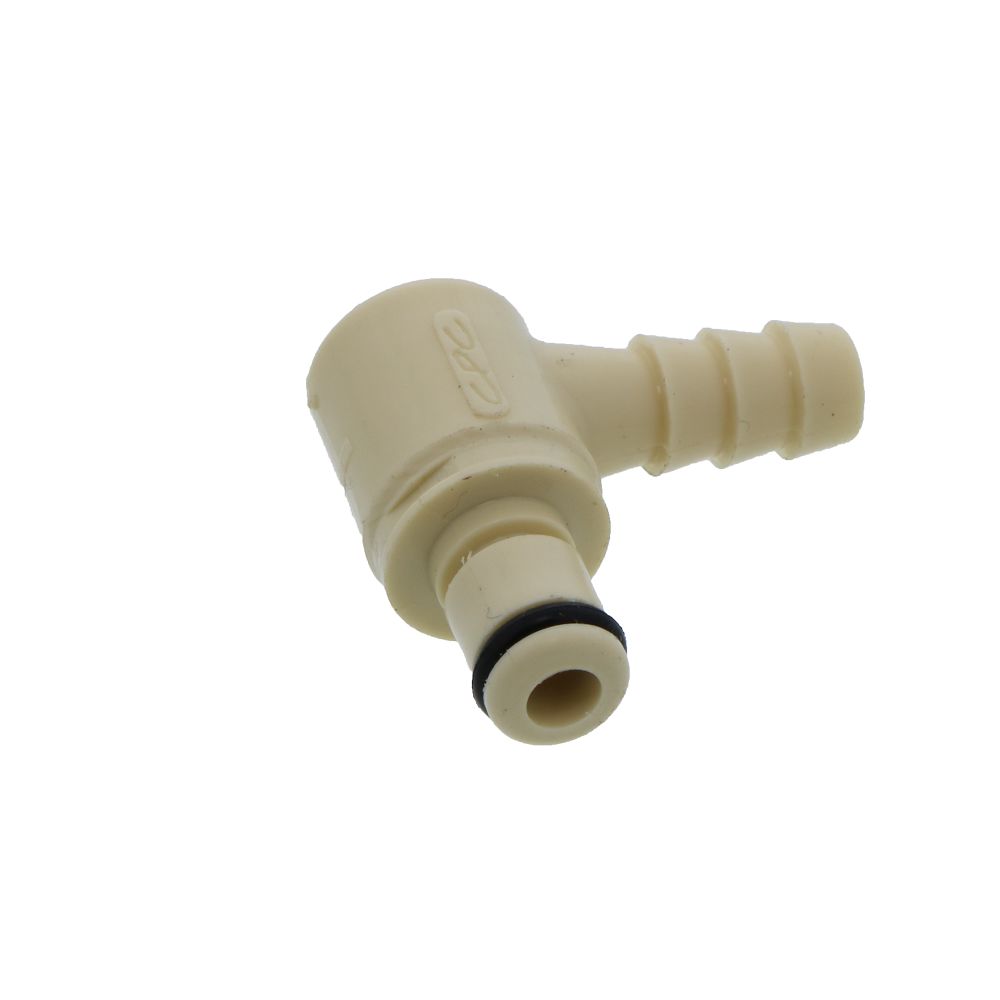

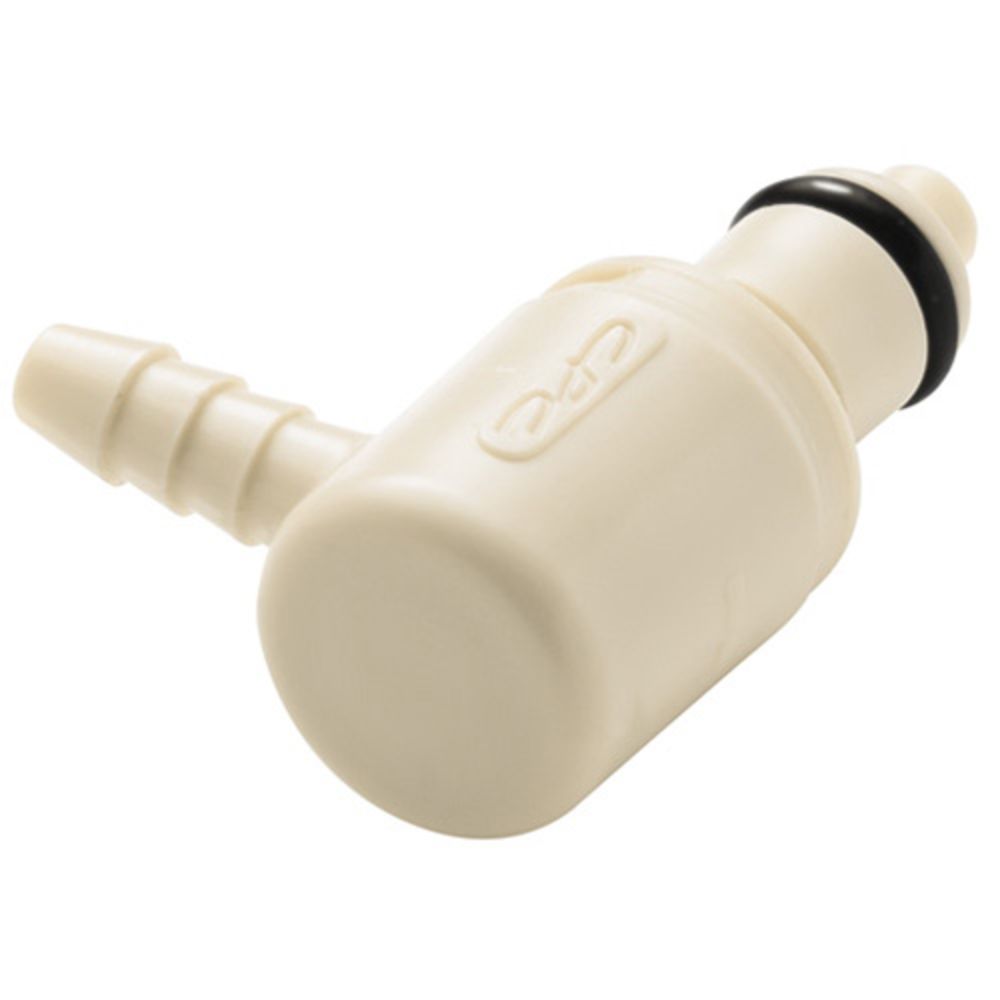

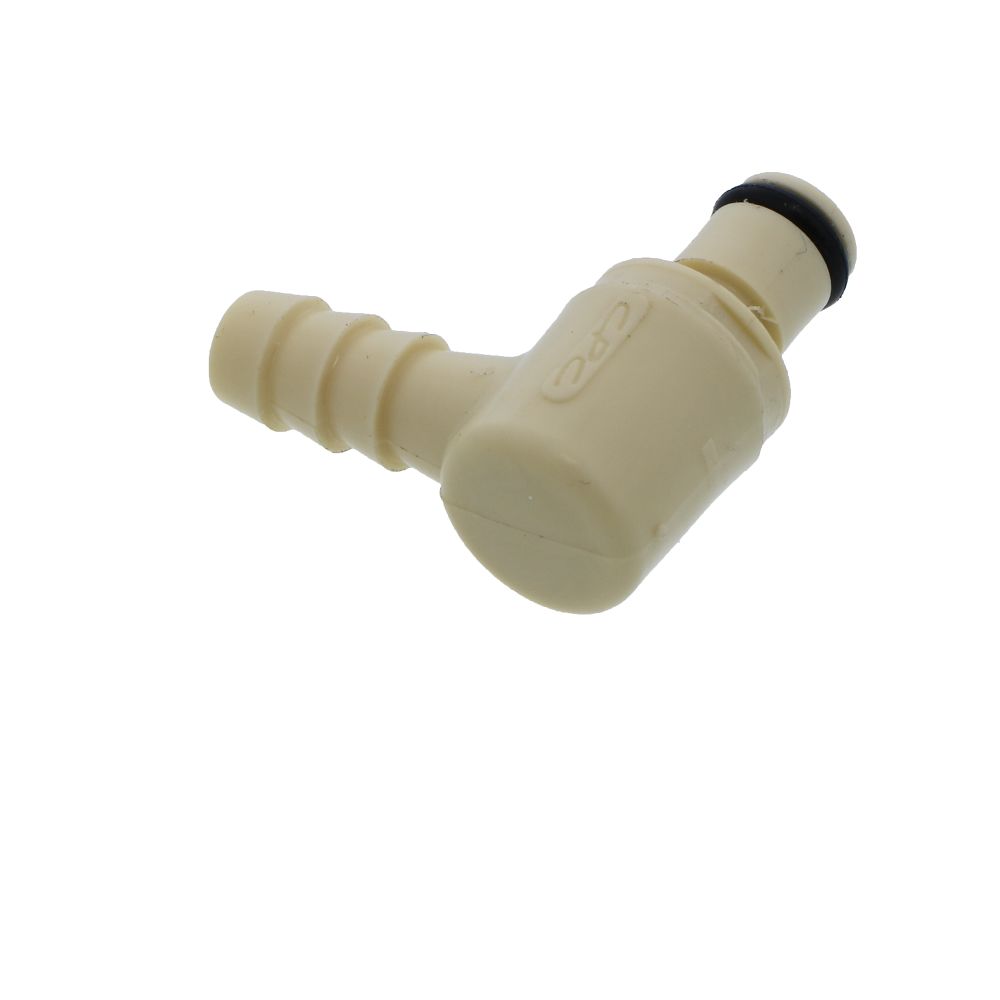

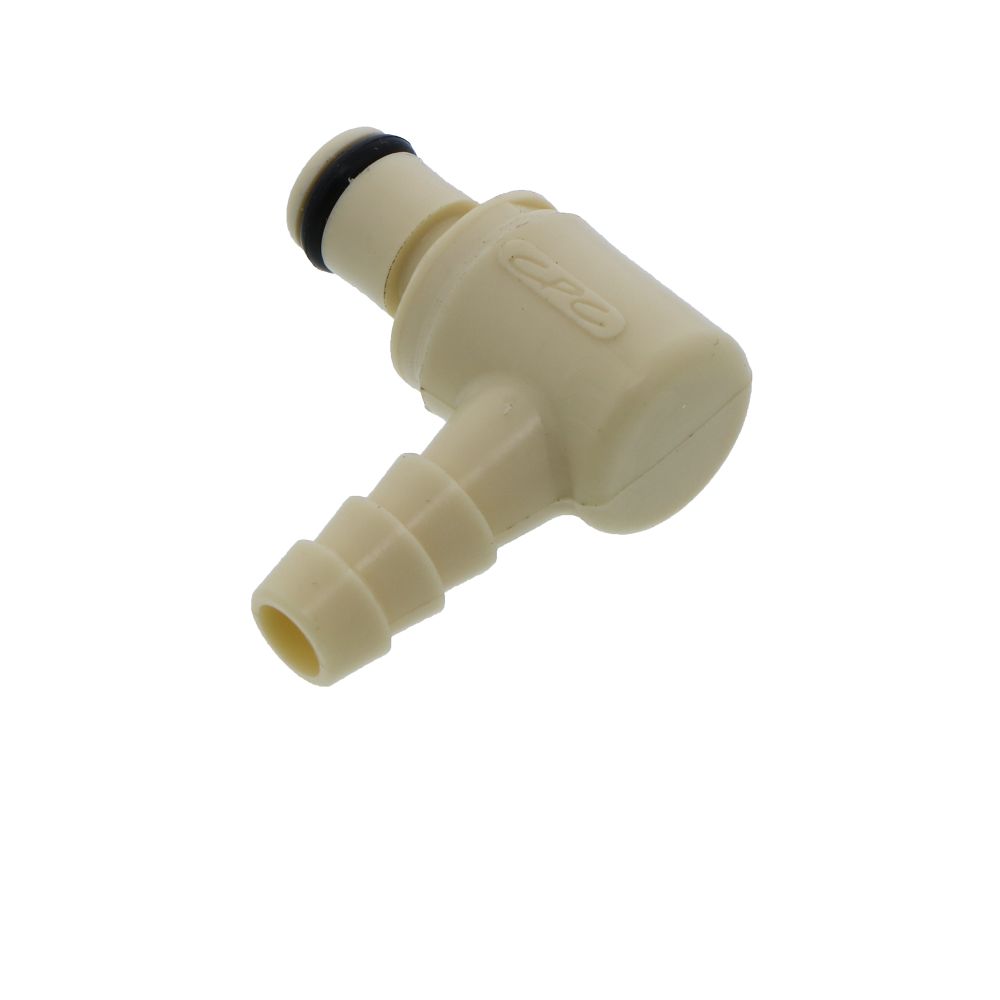

PMC230412 Elbow Hose Barb Coupling Insert 1/4 ID Barb

Part Number: PMC230412

In Stock

out of stock

In Stock

$5.50

The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units




Weight & Dimensions

Weight (lbs)

0.004

Details

Application

Water

Barb Size

1/4" ID

Body Material

Polypropylene

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Free Floating

Seal Material

EPDM

Series

PMC12

Spring

316 stainless steel

Valve Type

Non-Valved

Color / Finish

Almond

Origin

USA

Type

Coupling Insert


PMC230412




The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units



Weight & Dimensions

Weight (lbs)

0.004

Details

Application

Water

Barb Size

1/4" ID

Body Material

Polypropylene

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

Vacuum

Min Temp (°F)

32

Mounting Options

Free Floating

Seal Material

EPDM

Series

PMC12

Spring

316 stainless steel

Valve Type

Non-Valved

Color / Finish

Almond

Origin

USA

Type

Coupling Insert
