Colder Products

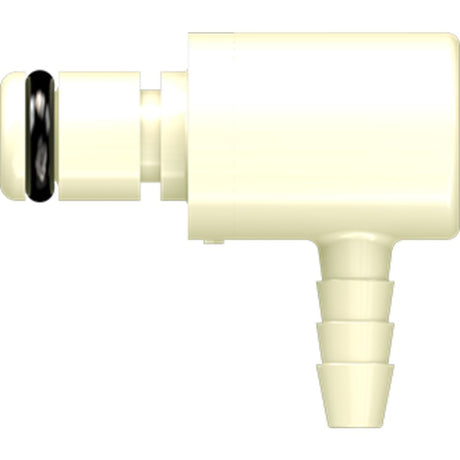

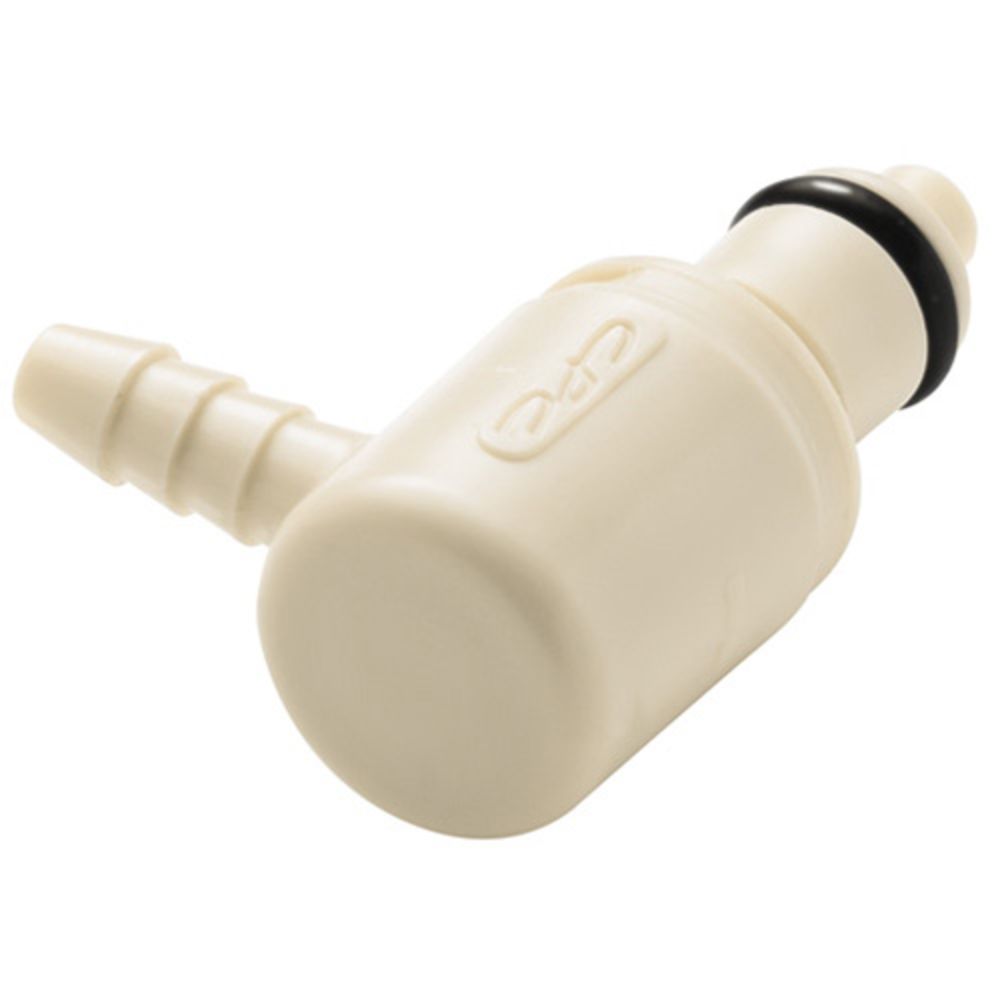

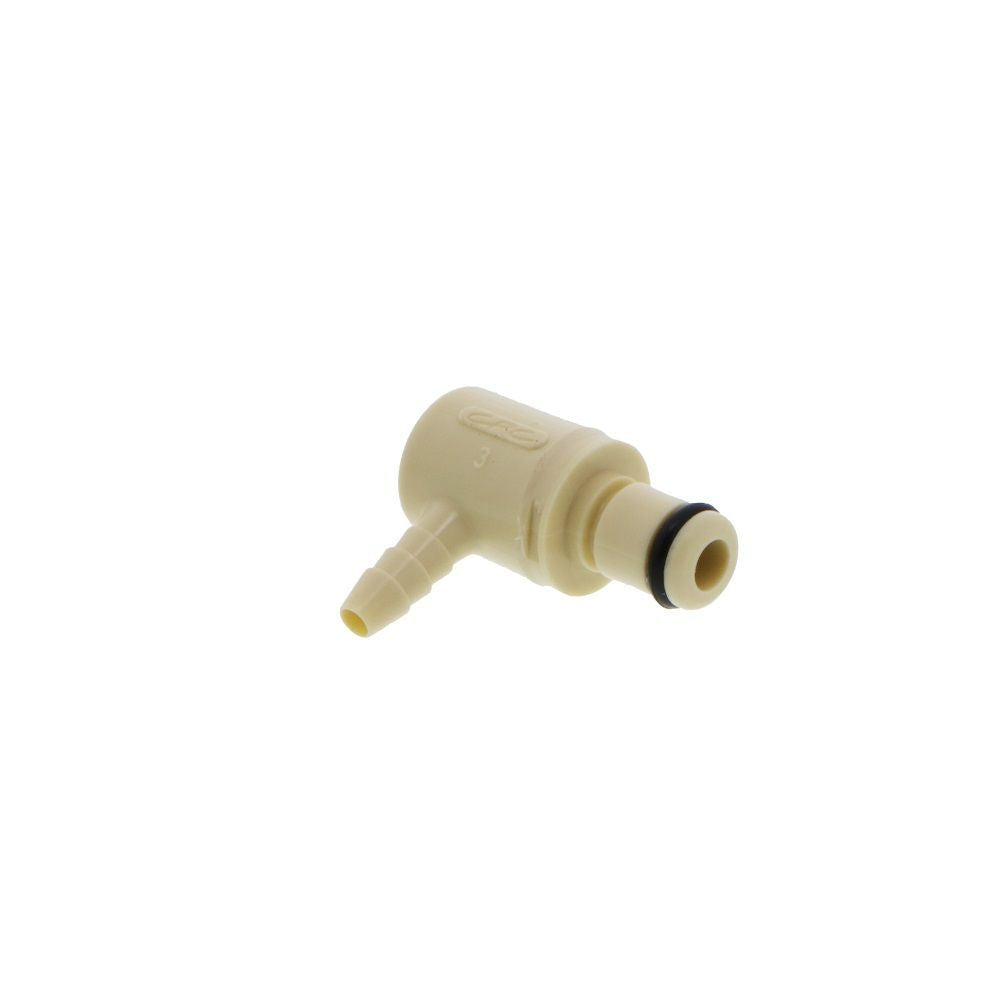

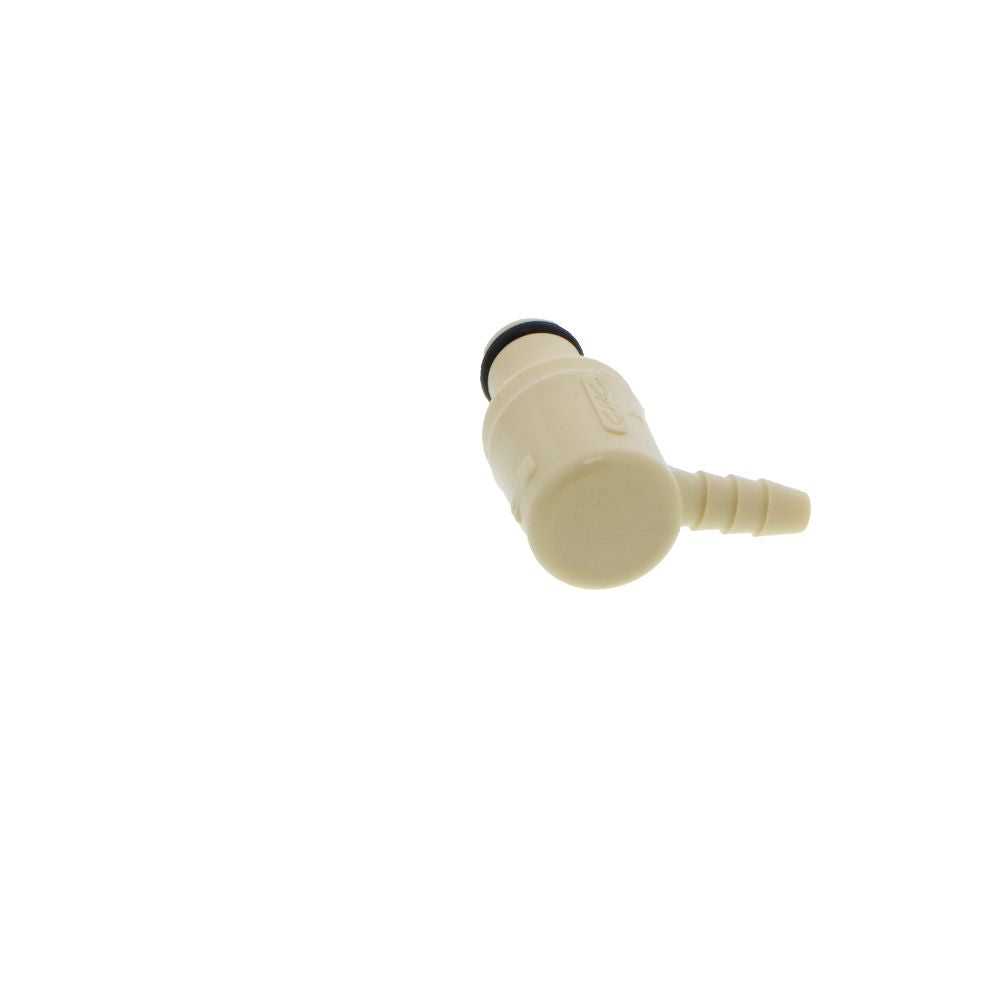

PMC230212 Elbow Hose Barb Coupling Insert 1/8 ID Barb

Part Number: PMC230212

In Stock

out of stock

In Stock

$5.27

The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units


Details

Series

PMC

Barb Size

1/8" ID

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Max Operating Pressure

120 PSI

O Rings

EPDM

Operating Temperature Range

32-160 °F

Origin

USA

Seal Material

EPDM

Spring

316 stainless steel

Valve Type

Non-Valved


PMC230212




The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units

Details

Series

PMC

Barb Size

1/8" ID

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Max Operating Pressure

120 PSI

O Rings

EPDM

Operating Temperature Range

32-160 °F

Origin

USA

Seal Material

EPDM

Spring

316 stainless steel

Valve Type

Non-Valved
