Colder Products

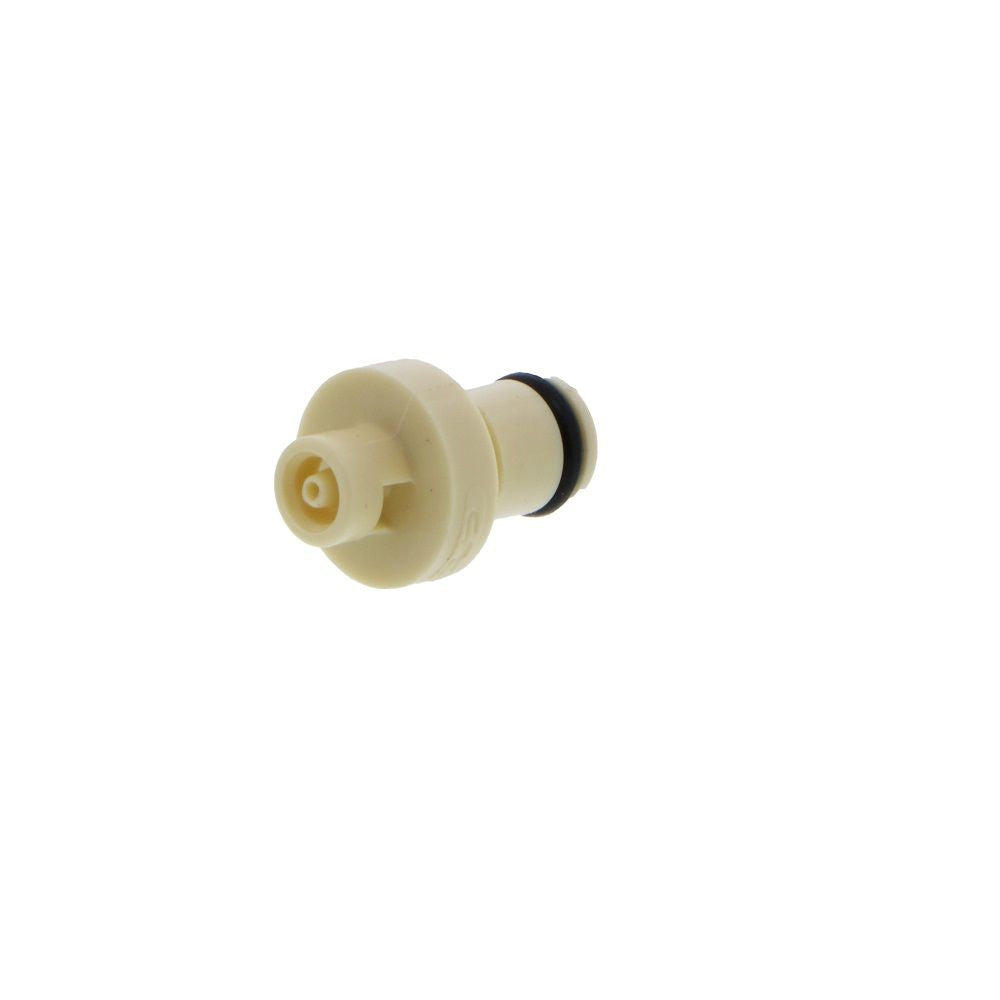

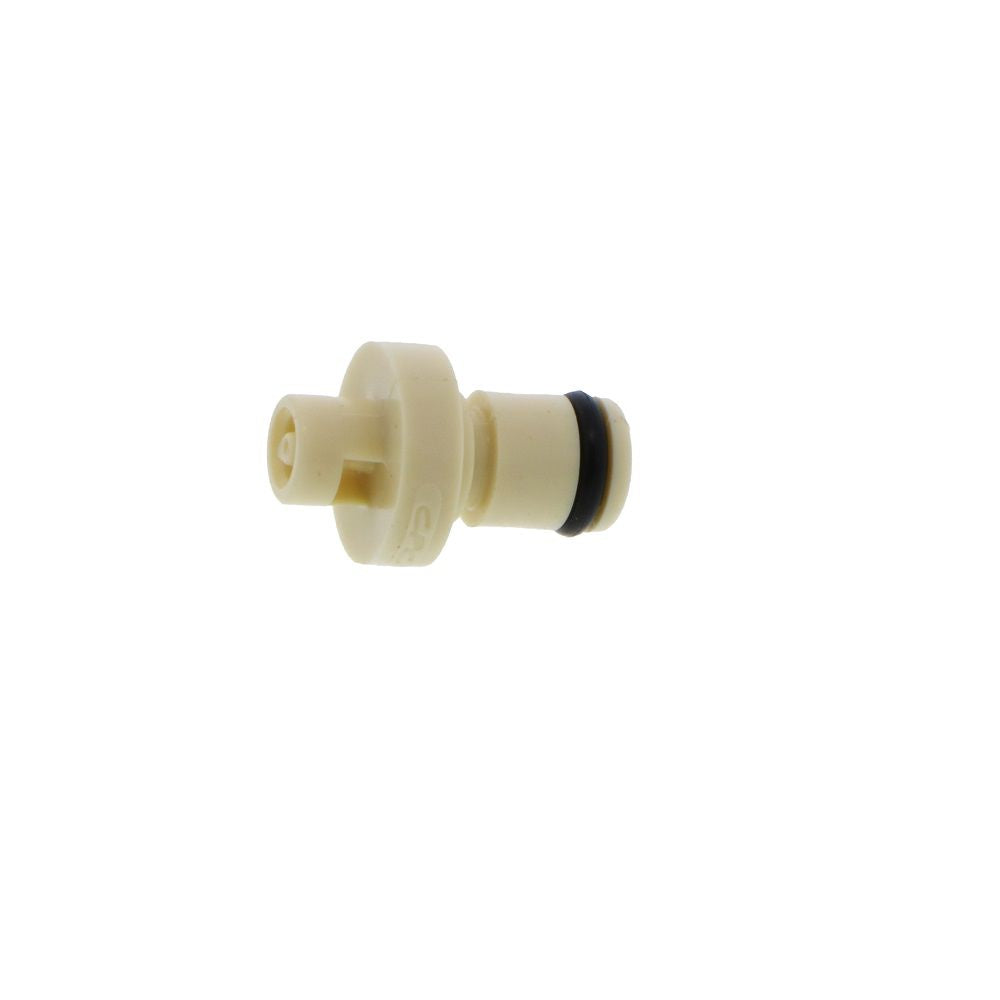

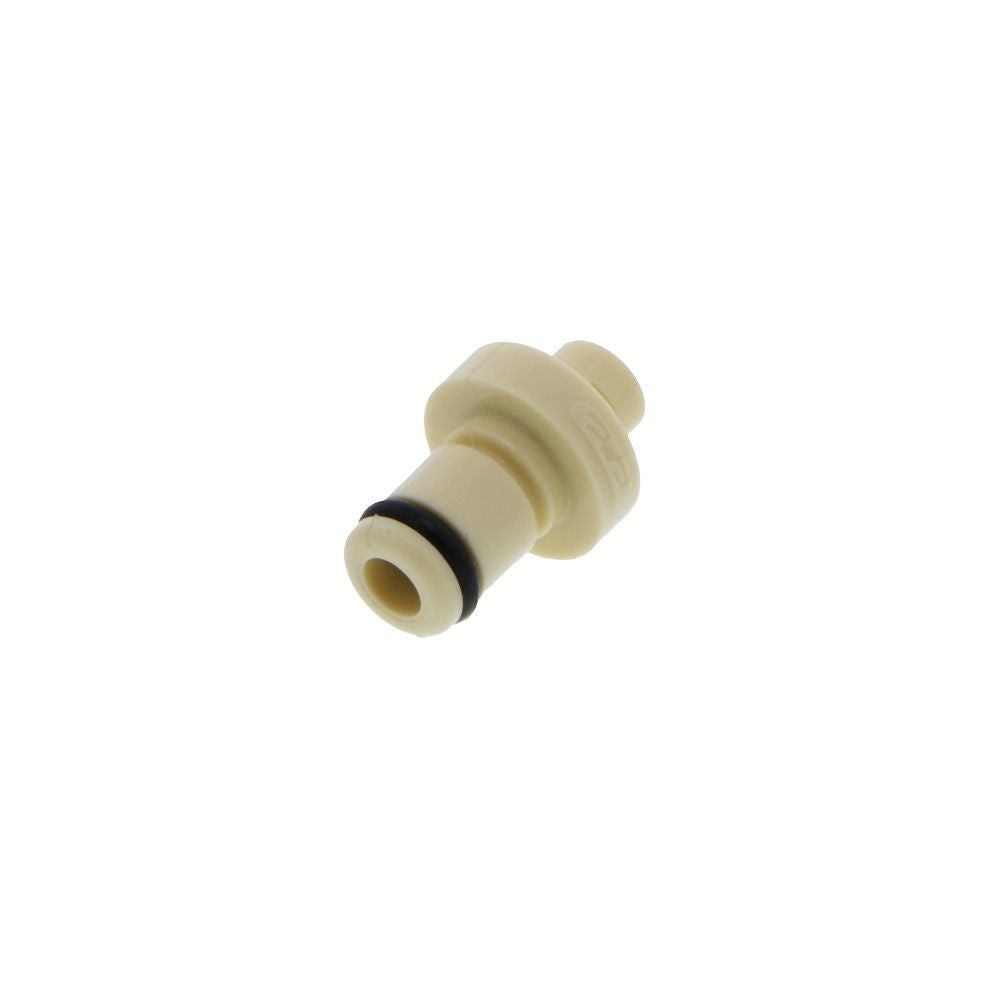

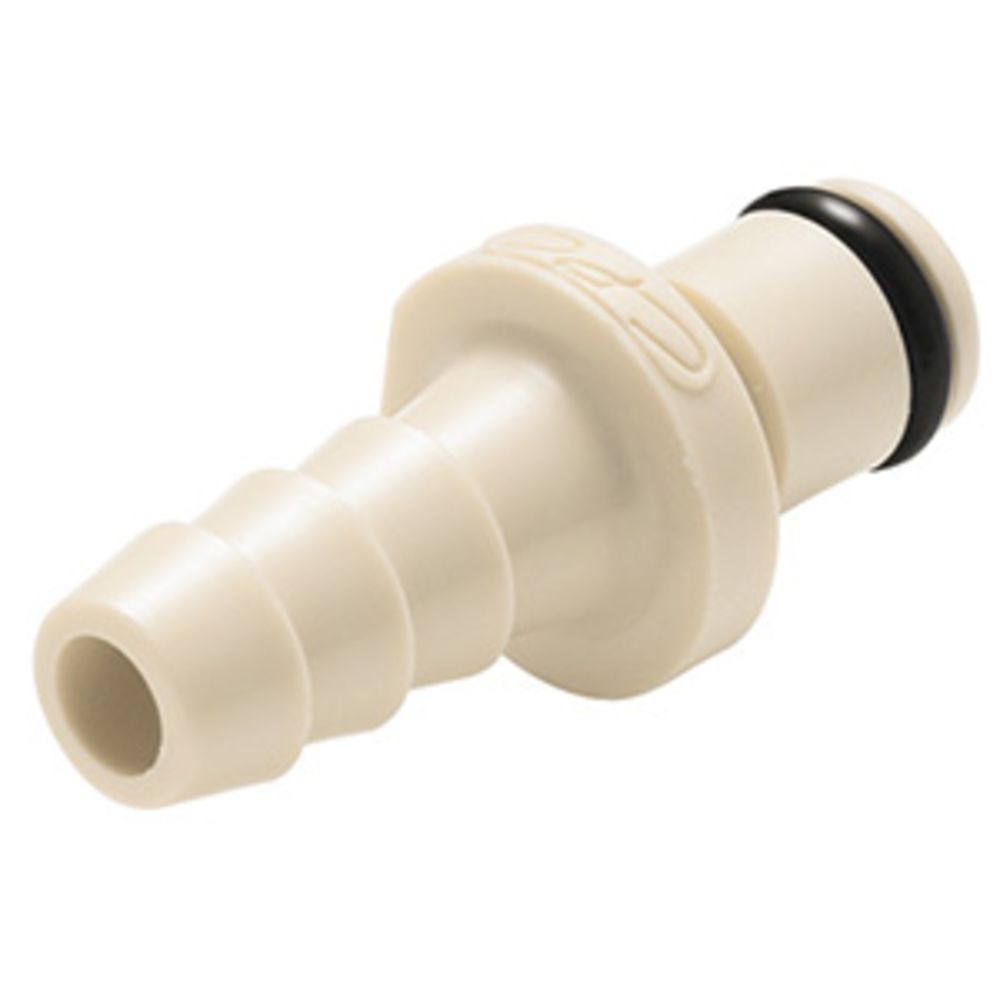

PMC220112 In-Line Hose Barb Coupling Insert 1/16 ID Barb

Part Number: PMC220112

In Stock

out of stock

In Stock

$3.14

The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units




Details

Series

PMC12

Max Temp (°F)

160

Max Pressure (Psi)

120

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Barb Size

1/16" ID

Application

Water

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Free Floating

Origin

USA

Seal Material

EPDM

Spring

316 stainless steel

Valve Type

Non-Valved


PMC220112




The 1/8" flow PMC12 Series offers many of the same configuration options as the PMC Series. The polypropylene material adds greater chemical resistance for more demanding applications and the couplings are gamma sterilizable.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: 32ºF to 160ºF
  • Seal Options: EPDM
  • Sterilization: Gamma (up to 50 kGy irradiation)
  • Available in Bags of 25 units



Details

Series

PMC12

Max Temp (°F)

160

Max Pressure (Psi)

120

Min Temp (°F)

32

Min Pressure (Psi)

Vacuum

Barb Size

1/16" ID

Application

Water

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Free Floating

Origin

USA

Seal Material

EPDM

Spring

316 stainless steel

Valve Type

Non-Valved
