Colder Products

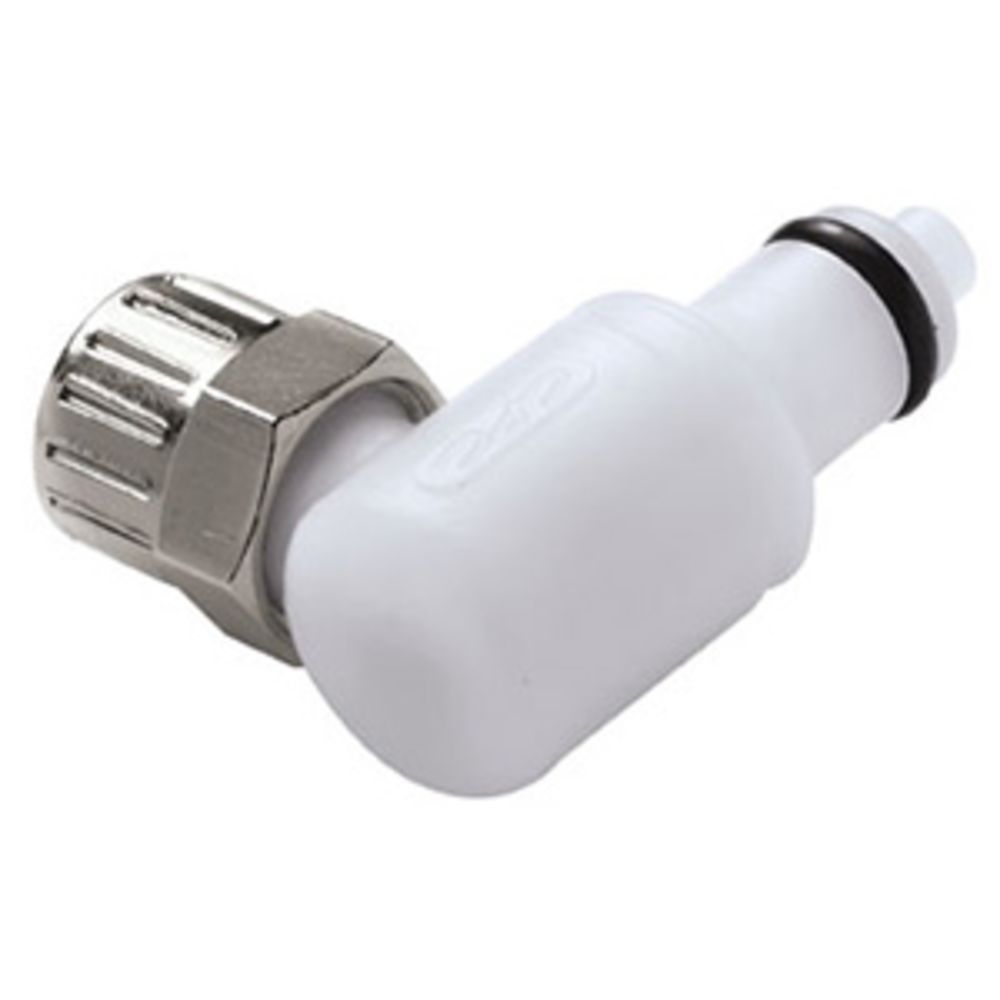

PMC2102512 Elbow PTF Coupling Insert 5/32 PTF

Part Number: PMC2102512

In Stock

out of stock

In Stock

$3.39


PMC Series couplings have a 5/32" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Tubing Size: .17" ID, 5/32" OD
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 10600) Available Upon Request


Details

Series

PMC

Thread Connection

5/32" | NPT

Bag Quantity

25 units

Body Material

Acetal

Color / Finish

White, Almond

O Rings

Buna-N

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40 to 180 Degrees Fahrenheit

Seal Material

Buna-N

Valve Type

Non-Valved


PMC2102512





PMC Series couplings have a 5/32" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Tubing Size: .17" ID, 5/32" OD
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 10600) Available Upon Request

Details

Series

PMC

Thread Connection

5/32" | NPT

Bag Quantity

25 units

Body Material

Acetal

Color / Finish

White, Almond

O Rings

Buna-N

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40 to 180 Degrees Fahrenheit

Seal Material

Buna-N

Valve Type

Non-Valved
