Colder Products

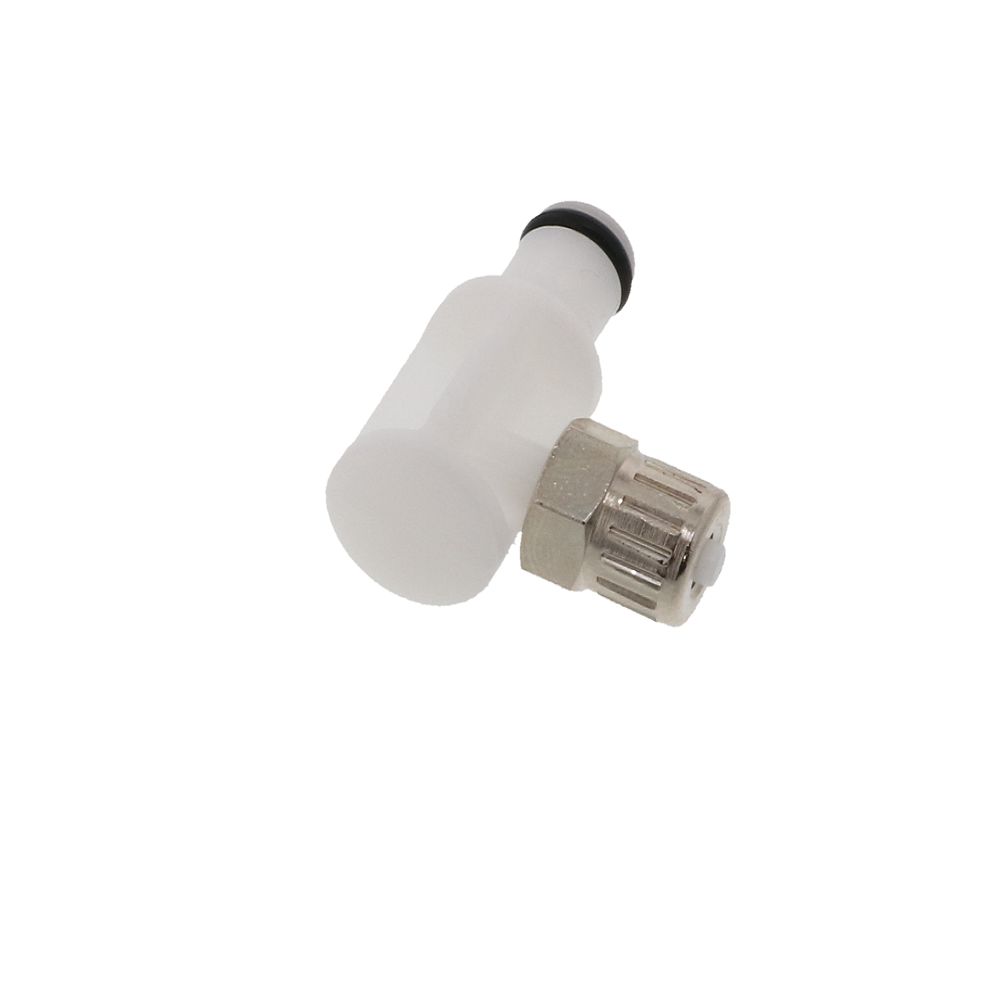

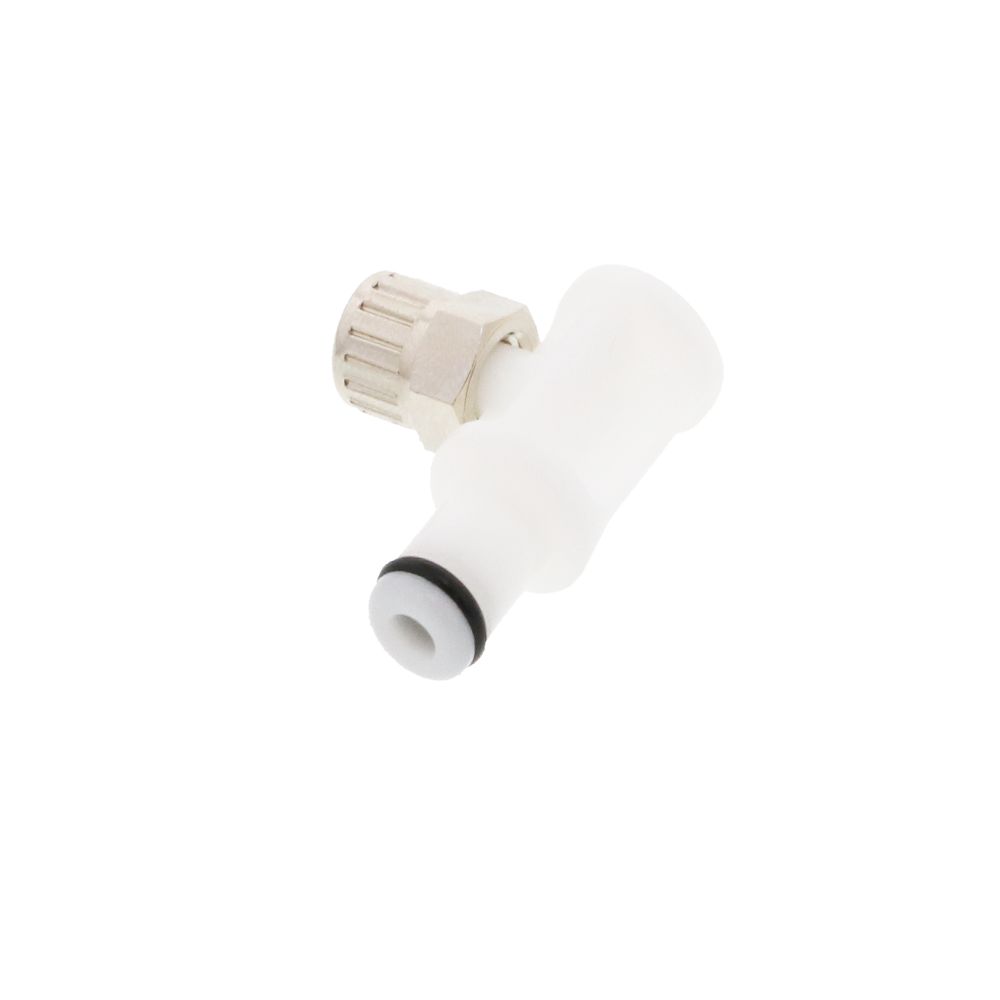

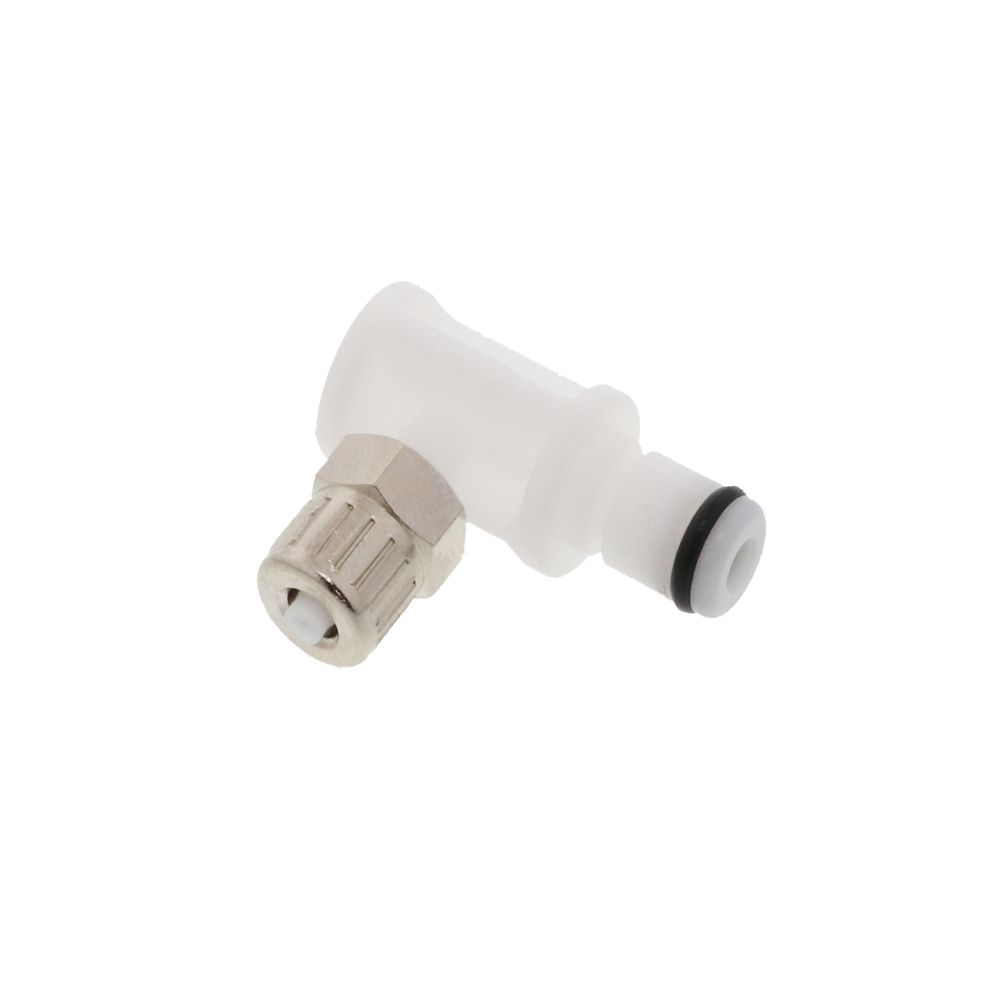

PMC21025 Elbow PTF Coupling Insert 5/32 PTF

Part Number: PMC21025

In Stock

out of stock

In Stock

$3.12

PMC Series couplings have a 5/32" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Tubing Size: .17" ID, 5/32" OD
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 10600) Available Upon Request




Weight & Dimensions

Weight (lbs)

0.004

Details

Application

Water

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

5/32" FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Push-In Size

5/32" OD

Seal Material

Buna-N

Series

PMC

Size

5/32"

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

White, Natural

Connection Type

Female (FPT)

Type

Coupling Insert


PMC21025




PMC Series couplings have a 5/32" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Tubing Size: .17" ID, 5/32" OD
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 10600) Available Upon Request



Weight & Dimensions

Weight (lbs)

0.004

Details

Application

Water

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

5/32" FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Push-In Size

5/32" OD

Seal Material

Buna-N

Series

PMC

Size

5/32"

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

White, Natural

Connection Type

Female (FPT)

Type

Coupling Insert

Documentation
PMC21025
