Colder Products

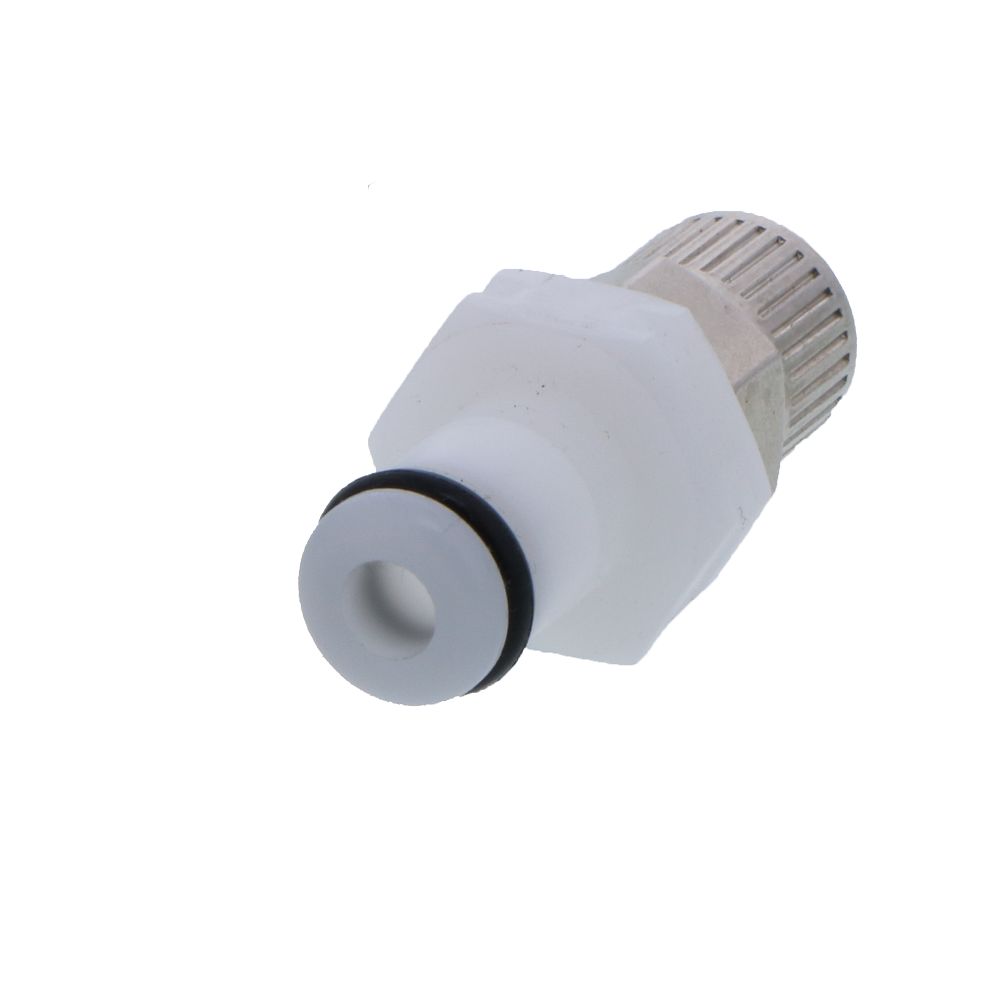

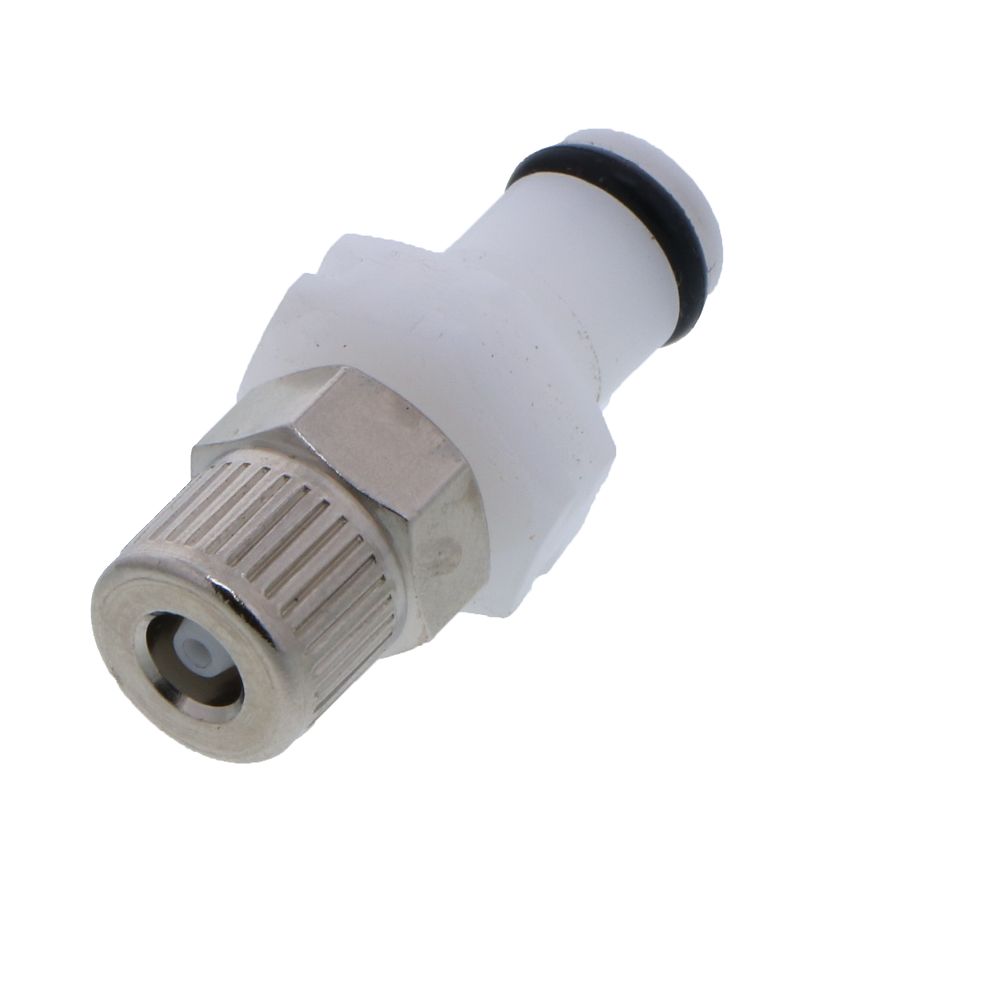

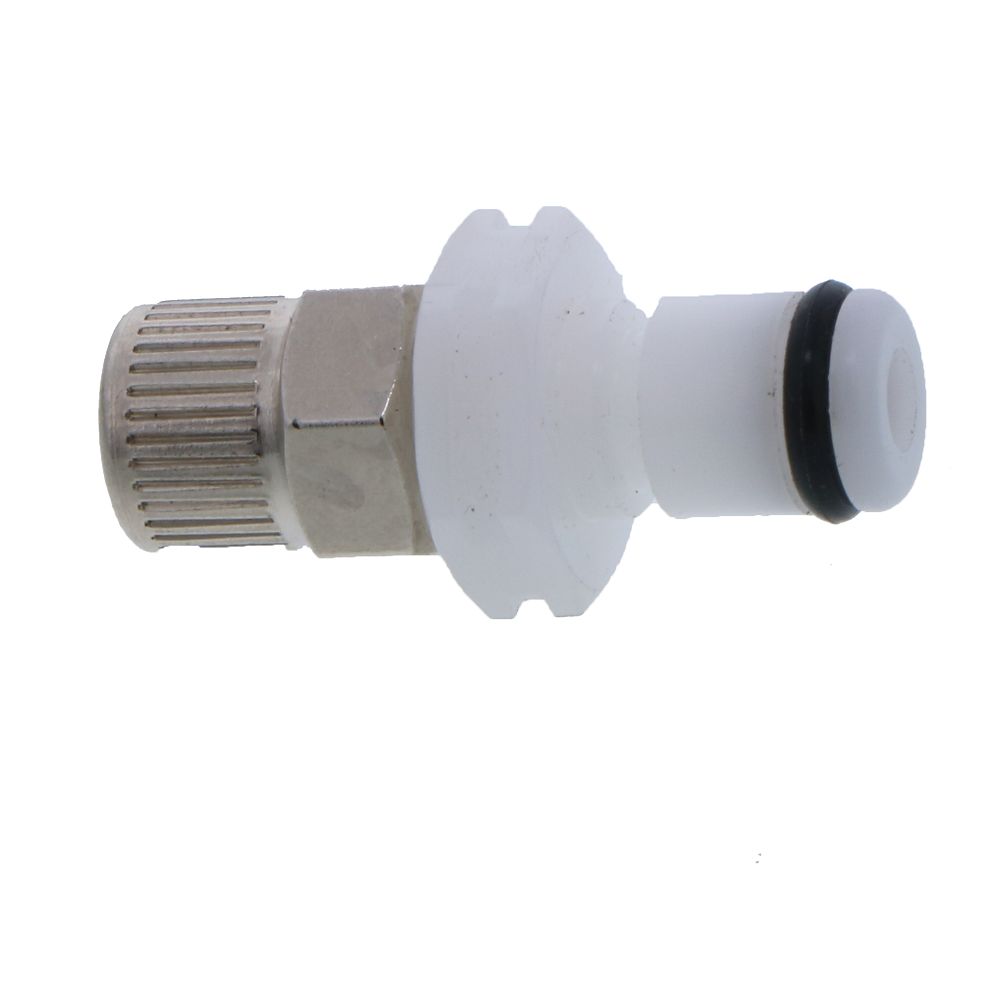

PMC20M42 In-Line PTF Coupling Insert 4mm PTF

Part Number: PMC20M42

In Stock

out of stock

In Stock

$3.71

PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Tubing Size: 2mm ID, 4mm OD
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units




Weight & Dimensions

Weight (lbs)

0.004

Details

Application

Water

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

4mm FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Push-In Size

4mm OD

Seal Material

Buna-N

Series

PMC

Size

4mm

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

White, Natural

Connection Type

Female (FPT)

Origin

USA

Type

Coupling Insert
