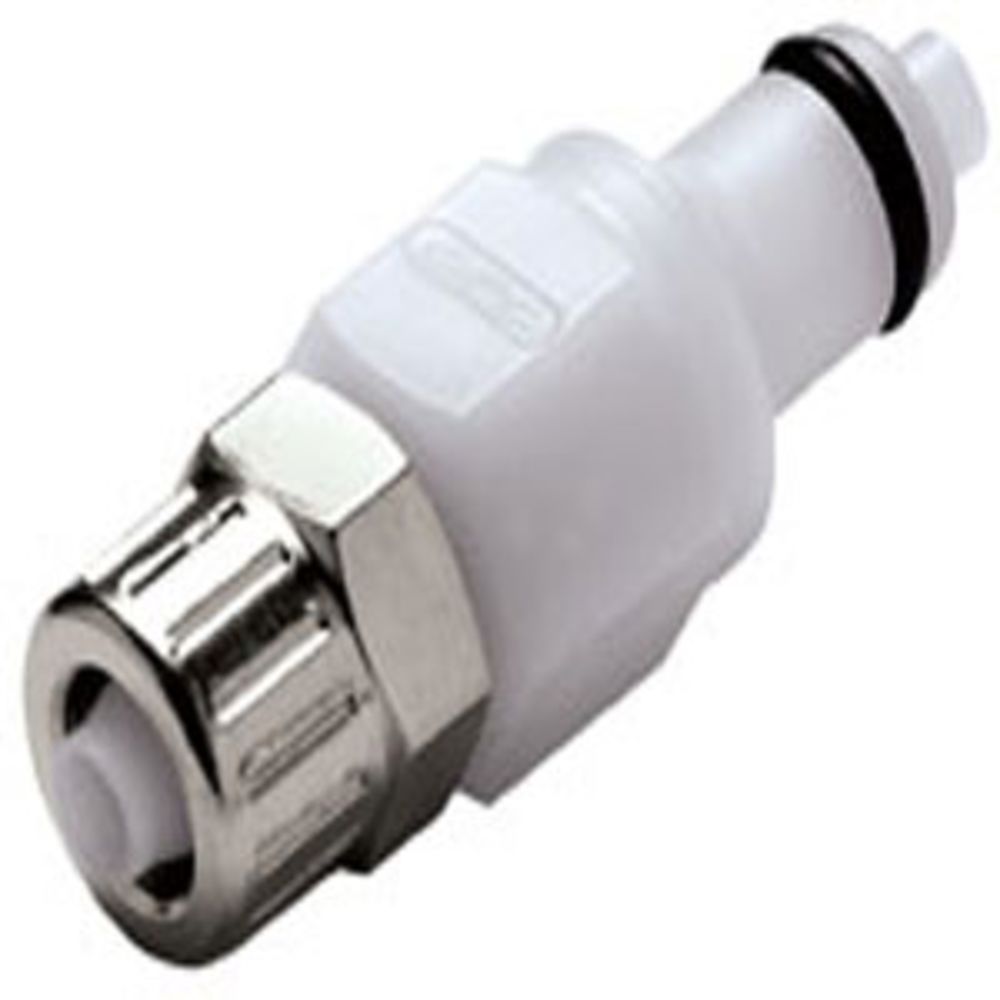

PMC2006 Non-Valved Coupling Insert 3/8 PTF

Colder PMC Series Couplings are injection molded from acetal thermoplastic. This makes them resistant to most mild chemicals and durable enough to give many years of trouble free service. The PMC Series features the Colder thumb latch making them easier to use than ball-and-sleeve connector designs.

Specifications:

Material: Acetal
Material Finish: Natural
Color: White
Valve Option: Non-Valved
Mounting Option: Free Floating
Temperature Range: -40°F to 180°F
Seal Options: BUNA-N

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Acetal Copolymer
External Springs And Pin	Stainless Steel
Inlet Connection	3/8" FPT
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	3/8" FPT
Push-In Size	3/8" OD
Seal Material	Buna-N
Series	PMC
Shape	Straight
Size	3/8"
Spring	316 Stainless steel
Thumb Latch	Stainless steel
Valve Type	Non-Valved
Color / Finish	White Natural
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Coupling Insert

Product Details
Application	Water
Body Material	Acetal Copolymer
External Springs And Pin	Stainless Steel
Inlet Connection	3/8" FPT
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	3/8" FPT
Push-In Size	3/8" OD
Seal Material	Buna-N
Series	PMC
Shape	Straight
Size	3/8"
Spring	316 Stainless steel
Thumb Latch	Stainless steel
Valve Type	Non-Valved
Color / Finish	White Natural
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Coupling Insert
