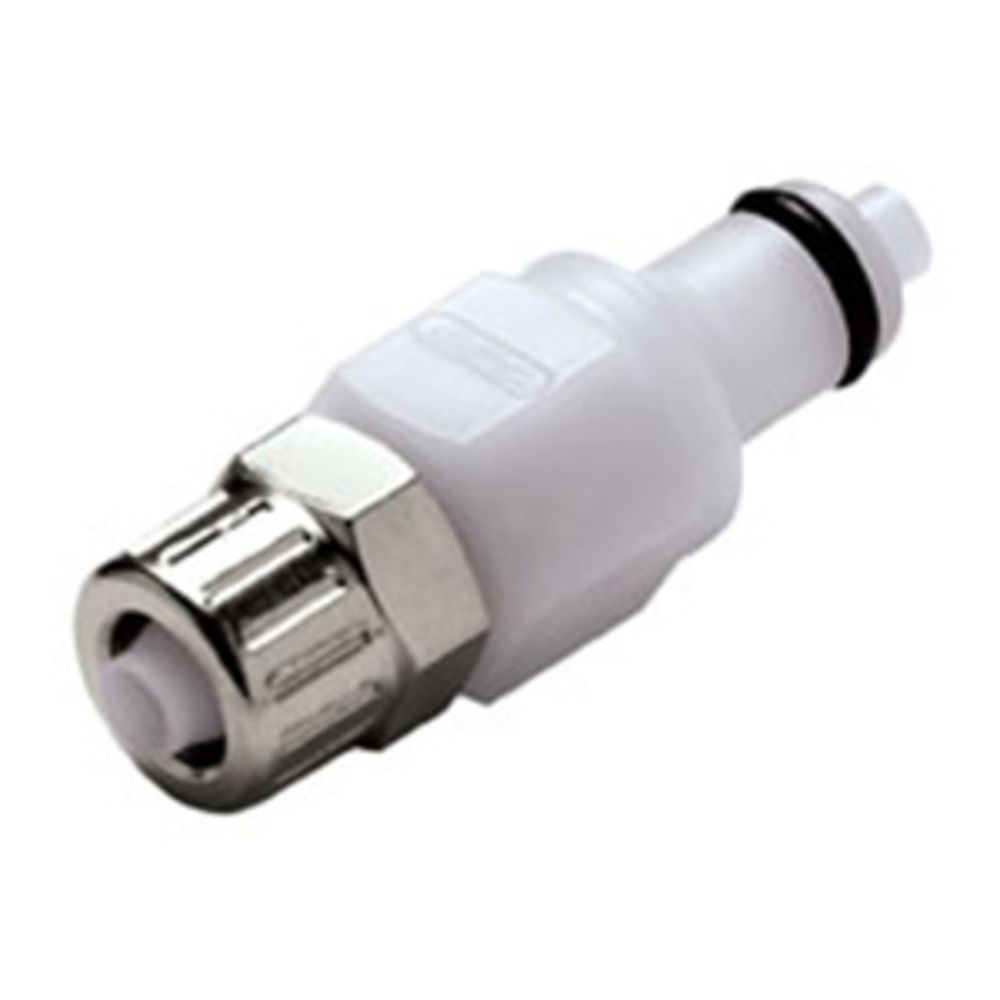

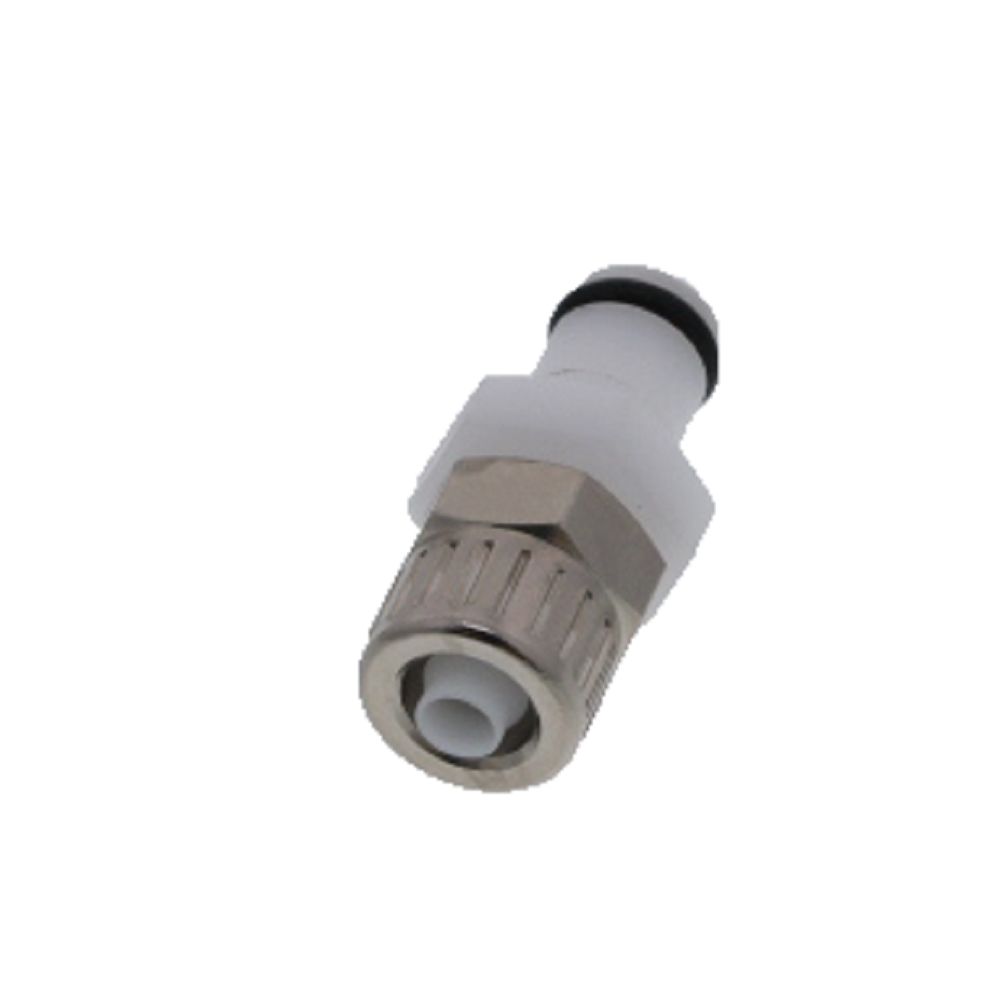

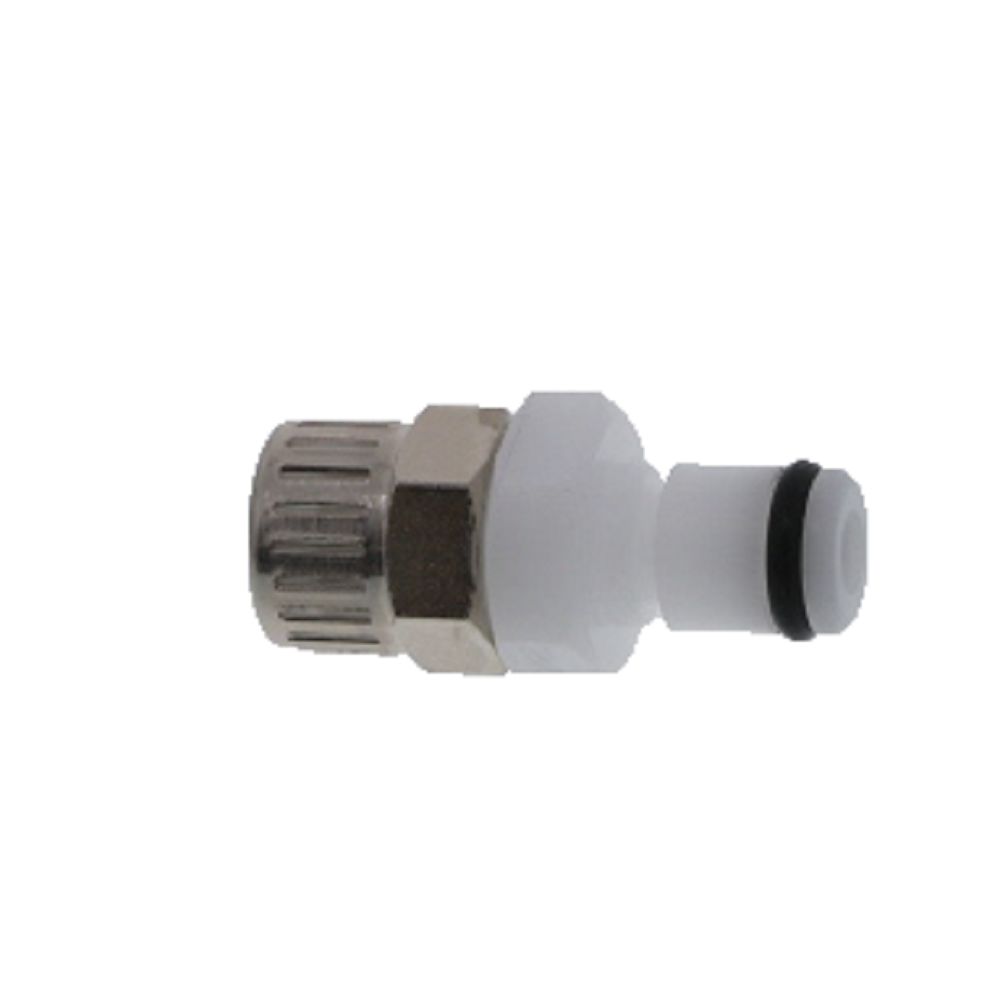

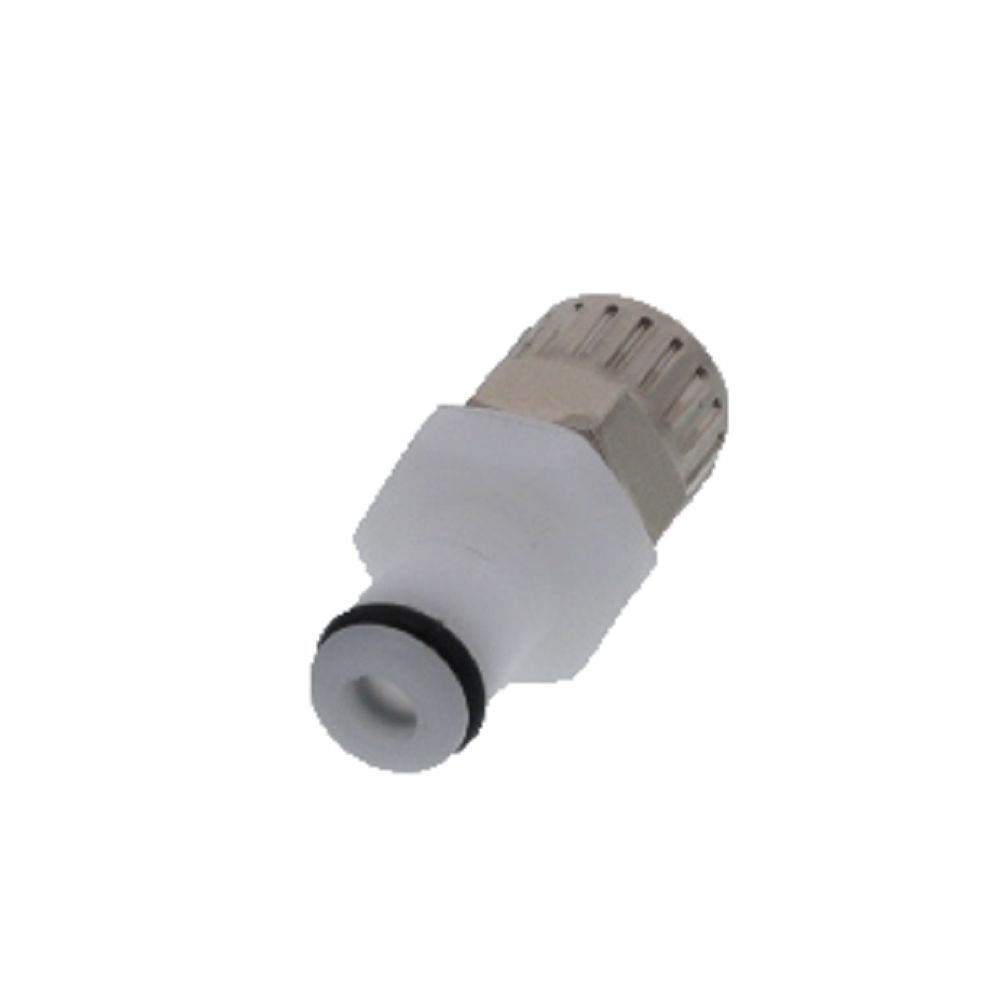

PMC2004 In-Line PTF Coupling Insert 1/4 PTF

PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:

Material: Acetal
Color: White
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Free Floating
Tubing Size: .17" ID, 1/4" OD
Valve Option: Non-Valved
Temperature Range: -40ºF to 180ºF
Seal Options: Buna-N
Available in Bags of 25 units
NSF Listed Version (part # 14500) Available Upon Request

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Acetal Copolymer
Inlet Connection	1/4" FPT
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Seal Material	Buna-N
Series	PMC
Shape	Straight
Size	1/4"
Spring	316 stainless steel
Valve Type	Non-Valved
Color / Finish	WHITE
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Coupling Insert

Product Details
Application	Water
Body Material	Acetal Copolymer
Inlet Connection	1/4" FPT
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	No
Outlet Connection	1/4" FPT
Push-In Size	1/4" OD
Seal Material	Buna-N
Series	PMC
Shape	Straight
Size	1/4"
Spring	316 stainless steel
Valve Type	Non-Valved
Color / Finish	WHITE
Connection Type	Female (FPT)
Origin	U.S.A.
Type	Coupling Insert
