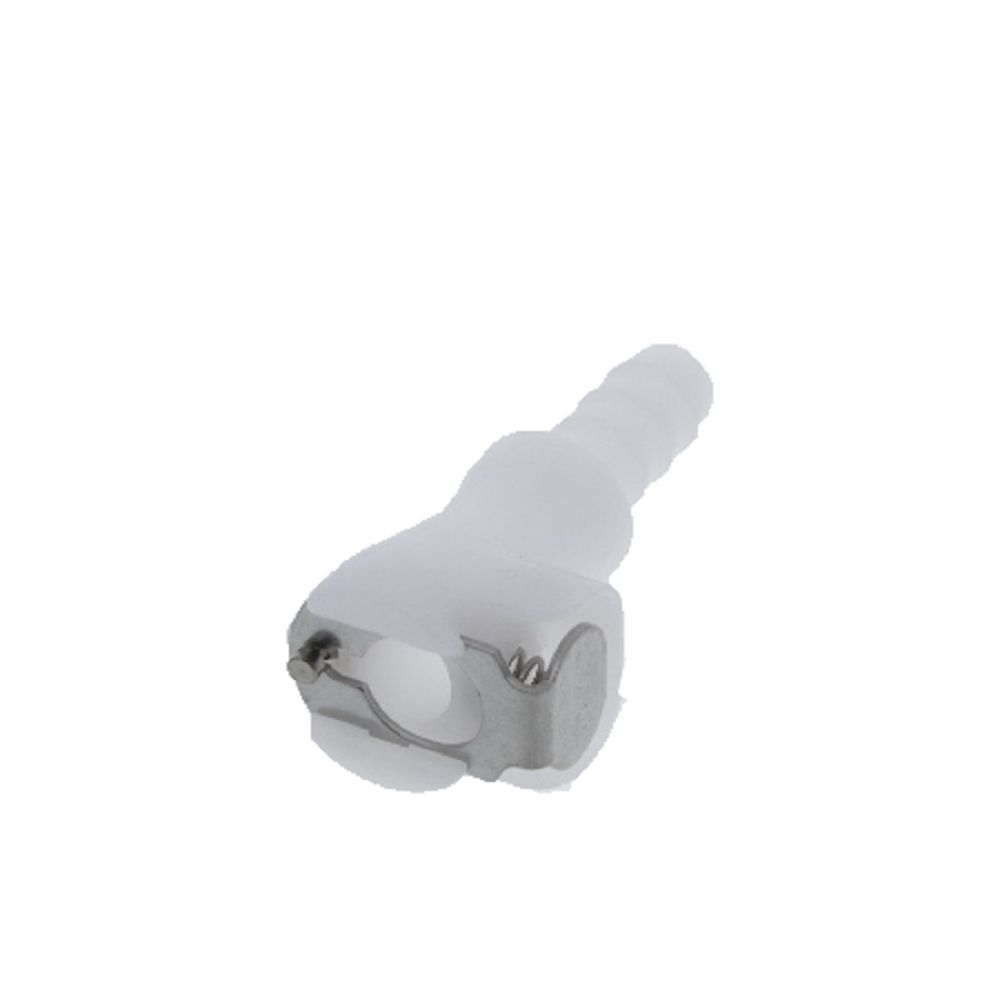

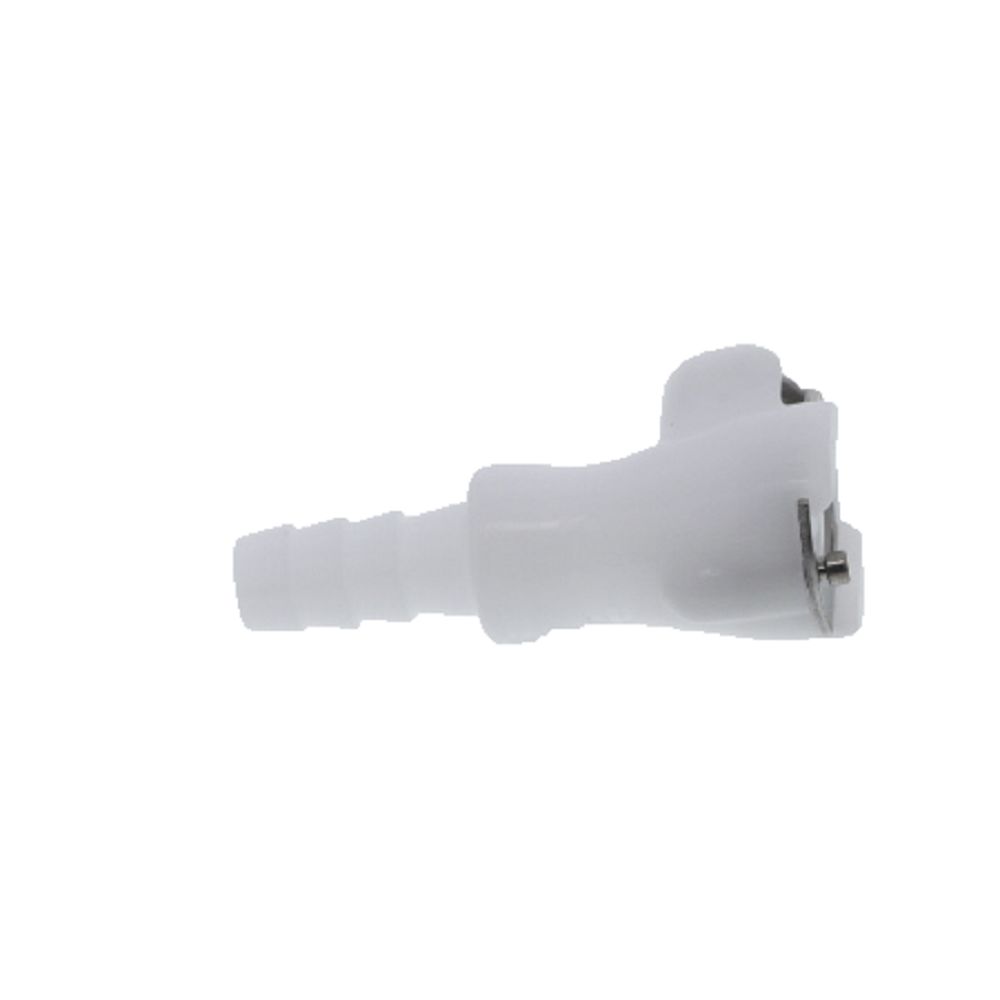

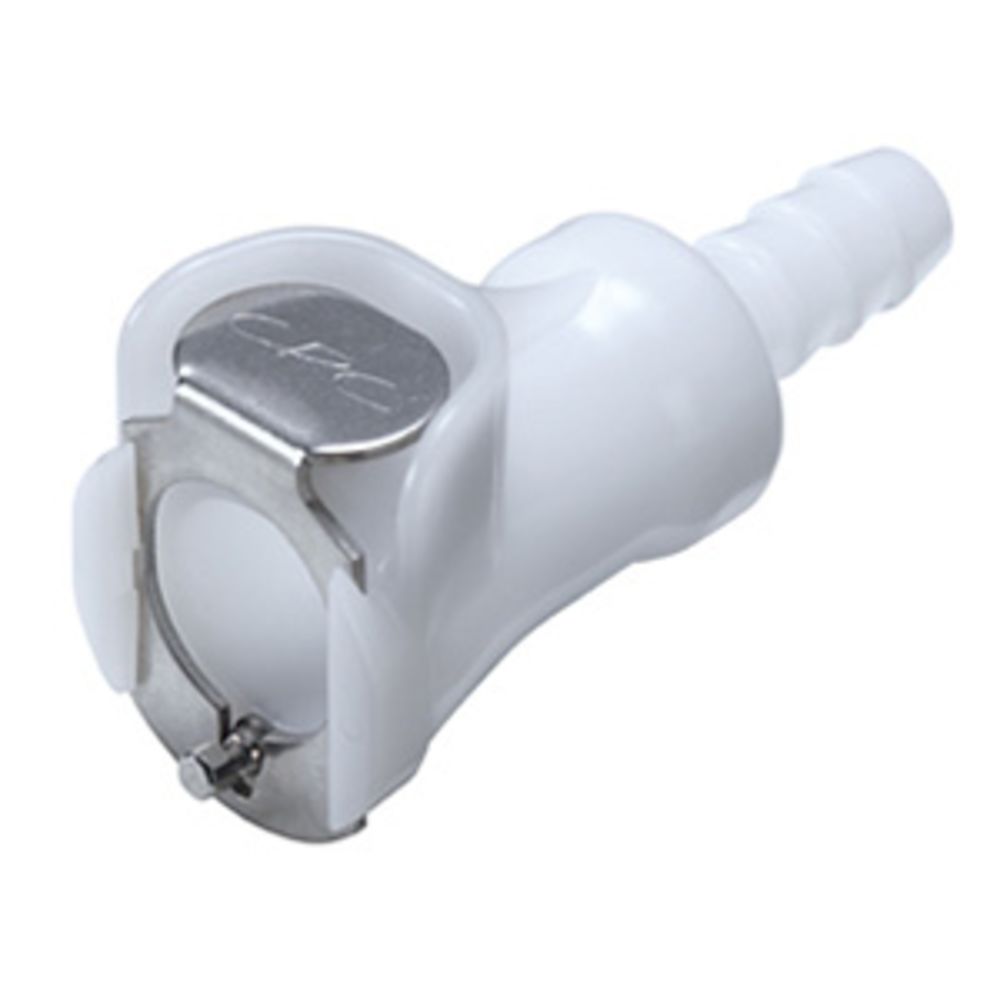

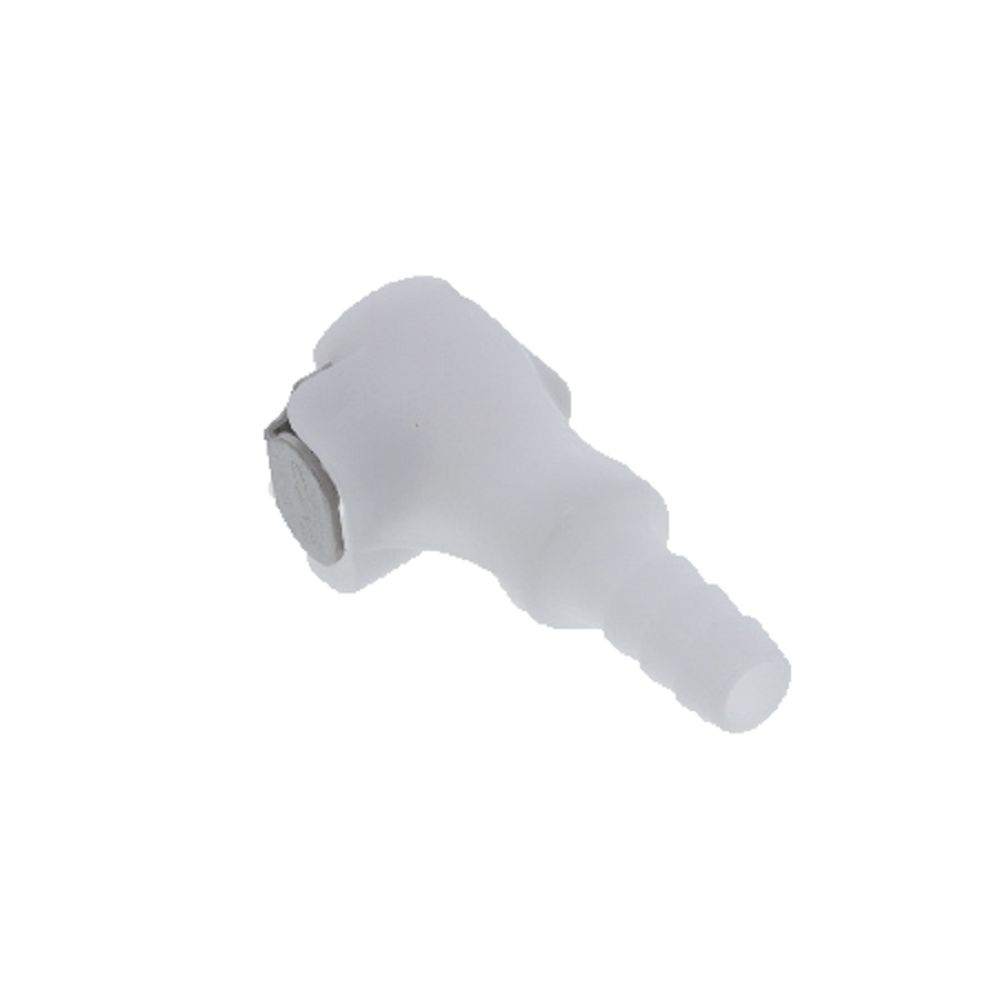

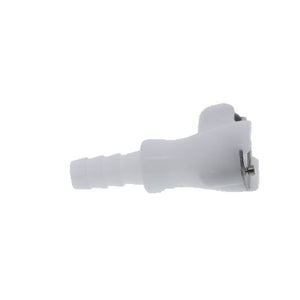

PMC1704 In-Line Hose Barb Coupling Body 1/4 ID Barb

Part Number: PMC1704

In Stock

out of stock

In Stock

$4.47

PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 10900) Available Upon Request




Weight & Dimensions

Height (inches)

0.5

Length (inches)

1.125

Weight (lbs)

0.009

Width (inches)

0.75

Details

Application

Water

Barb Size

1/4" ID

Body Material

Acetal Copolymer

External Springs And Pin

Stainless Steel

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Series

PMC

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Non-Valved

Color / Finish

White, Natural

Origin

USA

Type

Coupling Body
