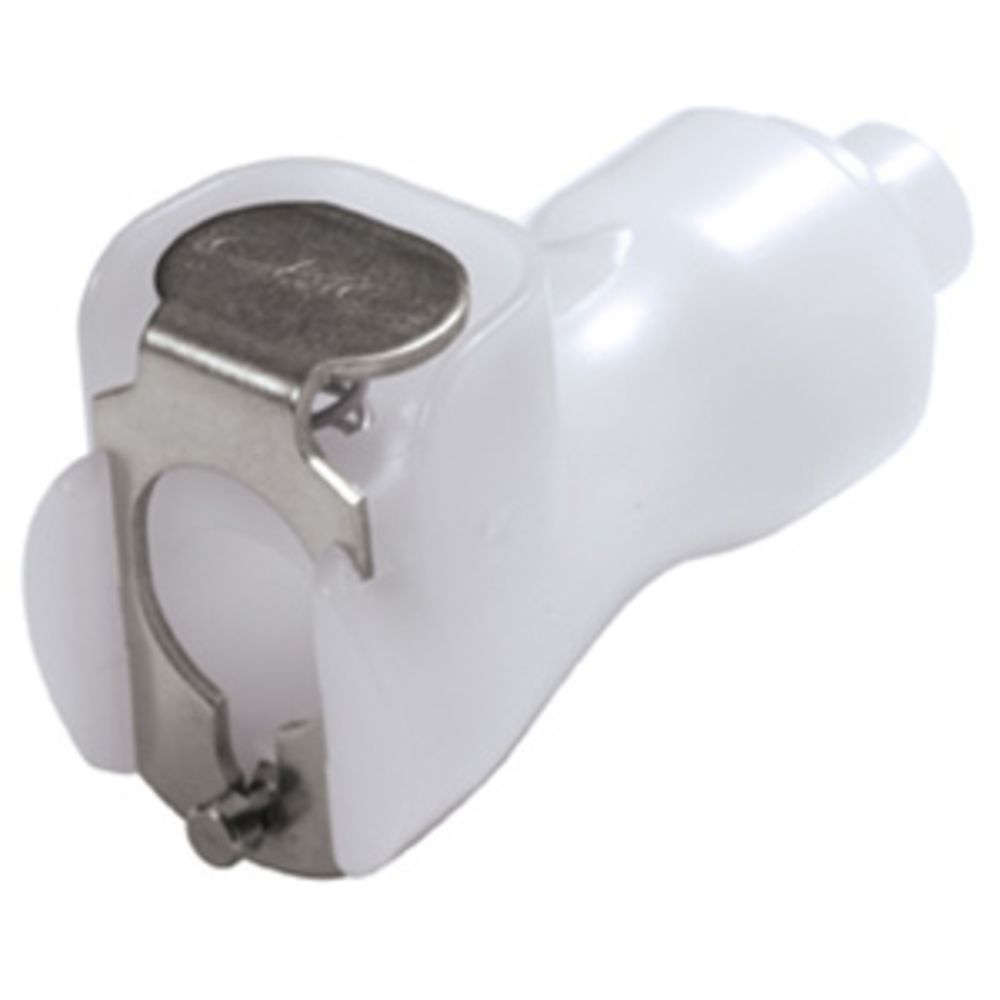

PMC170112 In-Line Hose Barb Coupling Body 1/16 ID Barb

PMC Series couplings have a 1/16" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:

Material: Polypropylene
Color: Almond
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Free Floating
Valve Option: Non-Valved
Temperature Range: -40ºF to 180ºF
Seal Options: EPDM
Sterilization:Gamma: Up to 50 kGy irradiation
Available in Bags of 25 units

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Barb Size	1/16" ID
Body Material	Polypropylene
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Series	PMC12
Shape	Straight
Spring	316 Stainless steel
Valve Type	Non-Valved
Color / Finish	Almond
Type	Coupling Body

Product Details
Application	Water
Barb Size	1/16" ID
Body Material	Polypropylene
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Series	PMC12
Shape	Straight
Spring	316 Stainless steel
Valve Type	Non-Valved
Color / Finish	Almond
Type	Coupling Body

Product Details
Application	Water
Barb Size	1/16" ID
Body Material	Polypropylene
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Pressure (Psi)	Vacuum
Min Temp (°F)	32
Mounting Options	Free Floating
Nsf Version	No
Series	PMC12
Shape	Straight
Spring	316 Stainless steel
Valve Type	Non-Valved
Color / Finish	Almond
Type	Coupling Body
