Colder Products

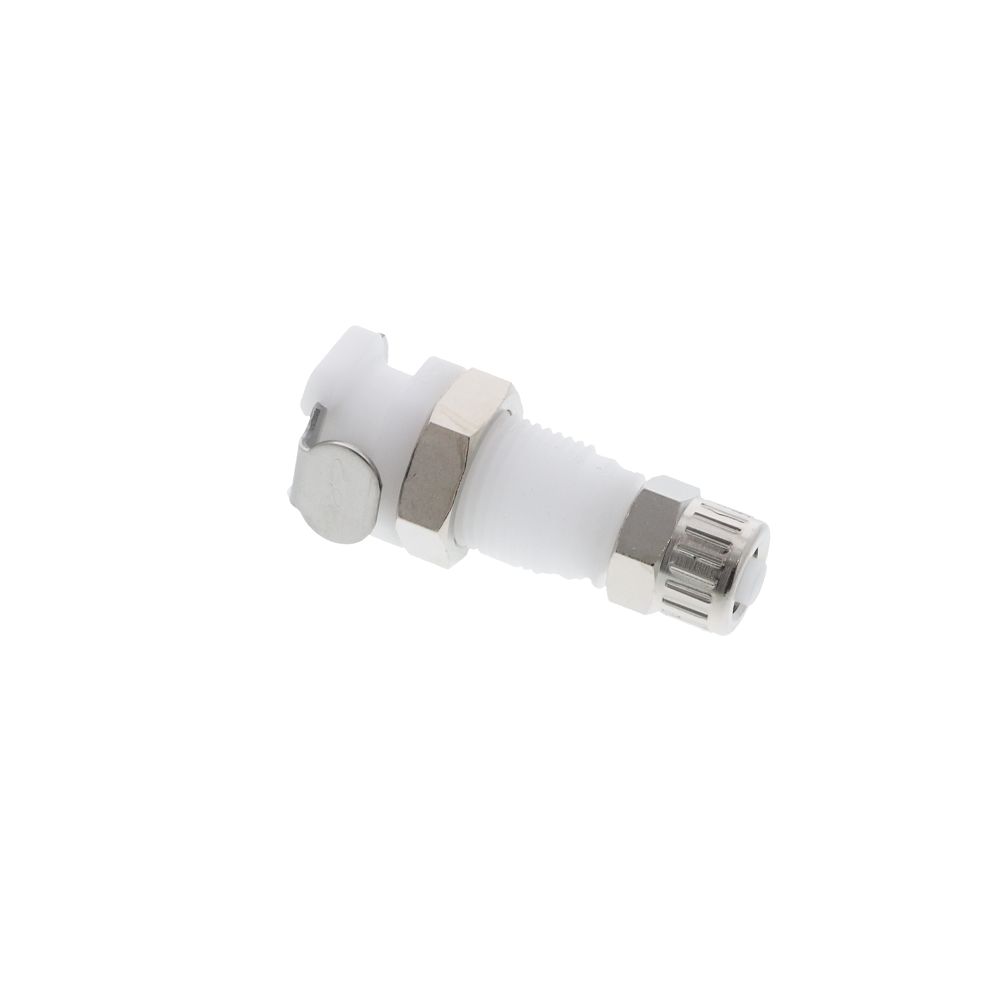

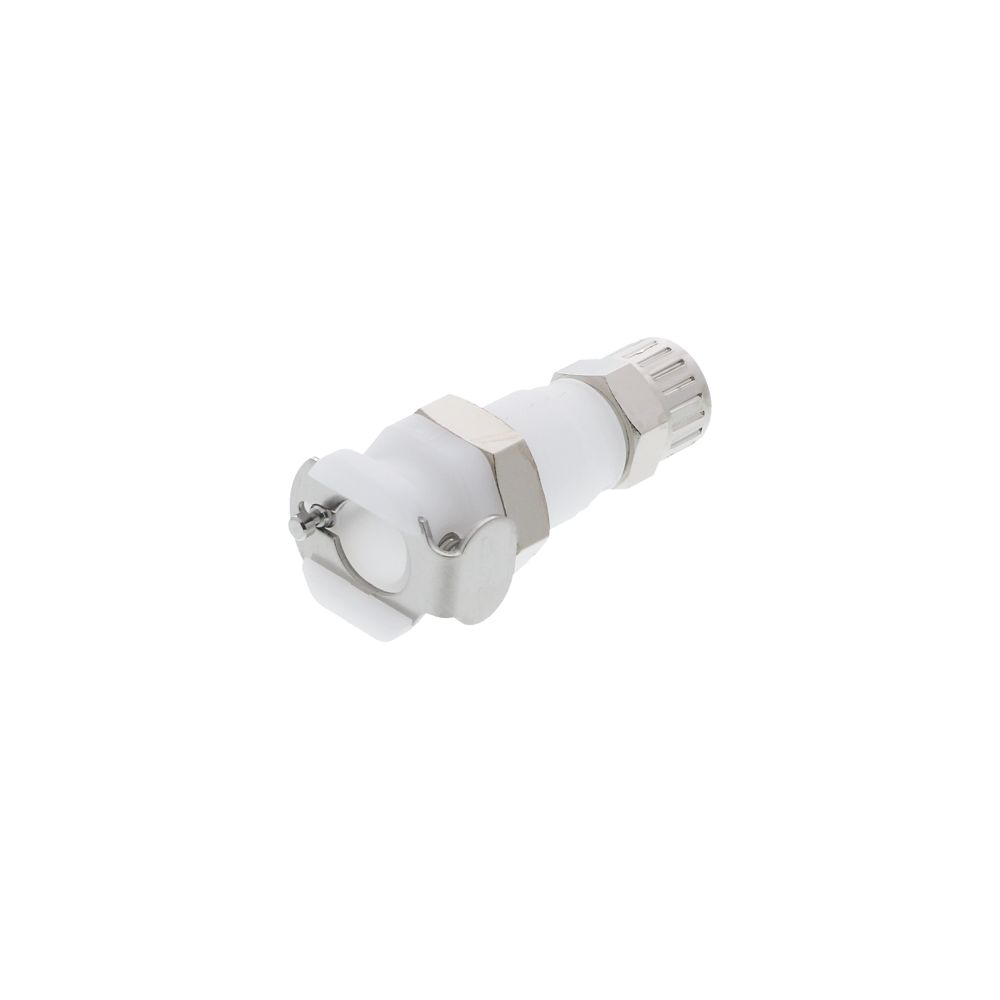

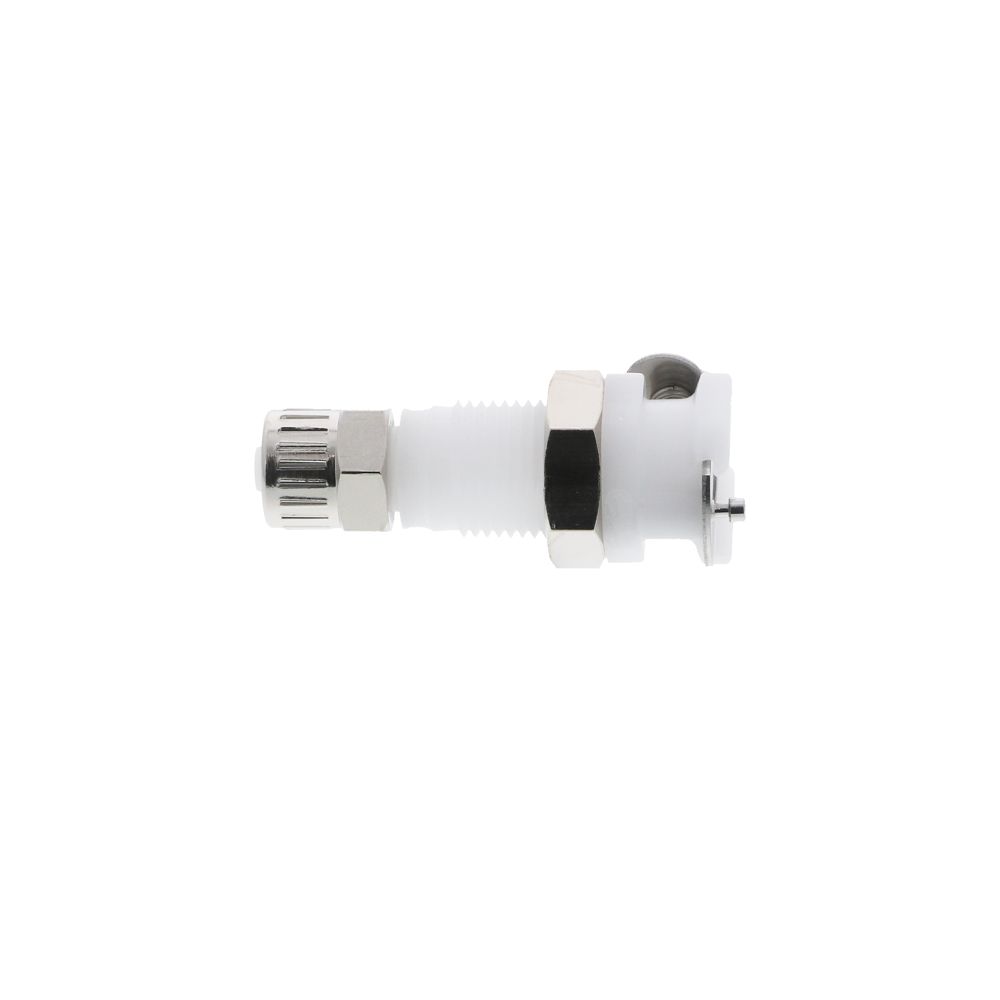

PMC1204 Panel Mount PTF Coupling Body 1/4 PTF

Part Number: PMC1204

In Stock

out of stock

In Stock

$7.79

PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Tubing Size: .17" ID, 1/4" OD
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units




Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

1/4" FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Push-In Size

1/4" OD

Series

PMC

Size

1/4"

Spring

316 stainless steel

Valve Type

Non-Valved

Color / Finish

White

Connection Type

Female (FPT)

Origin

USA

Type

Coupling Body


PMC1204




PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Tubing Size: .17" ID, 1/4" OD
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units



Details

Application

Water

Body Material

Acetal Copolymer

Inlet/Outlet Connection

1/4" FPT

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Panel Mount

Push-In Size

1/4" OD

Series

PMC

Size

1/4"

Spring

316 stainless steel

Valve Type

Non-Valved

Color / Finish

White

Connection Type

Female (FPT)

Origin

USA

Type

Coupling Body
