Colder Products

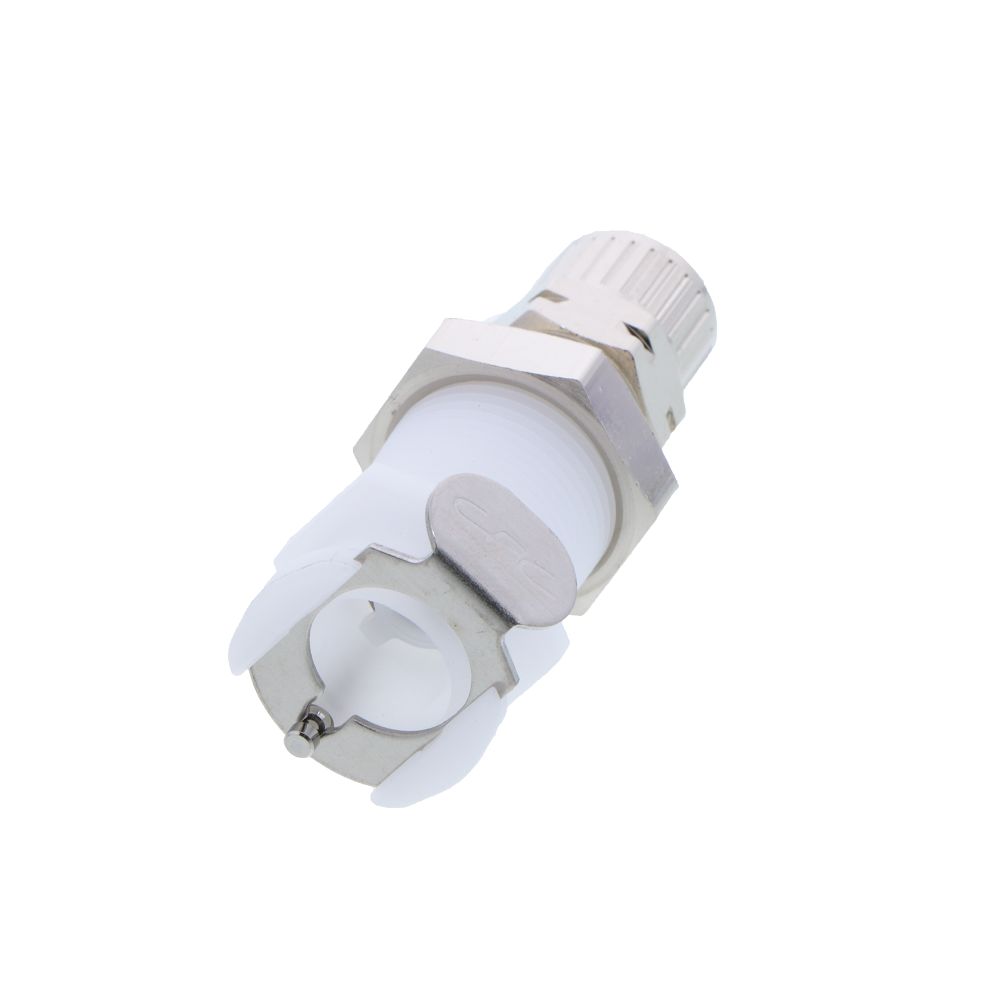

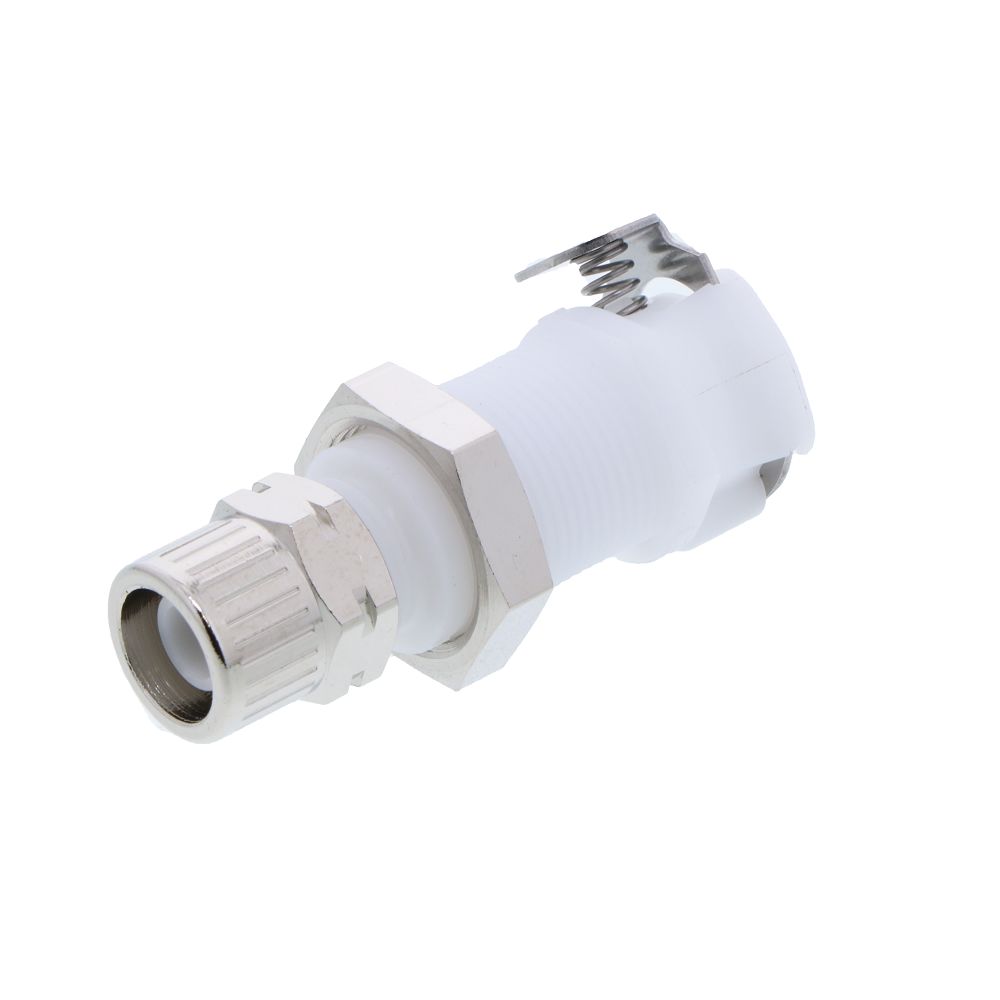

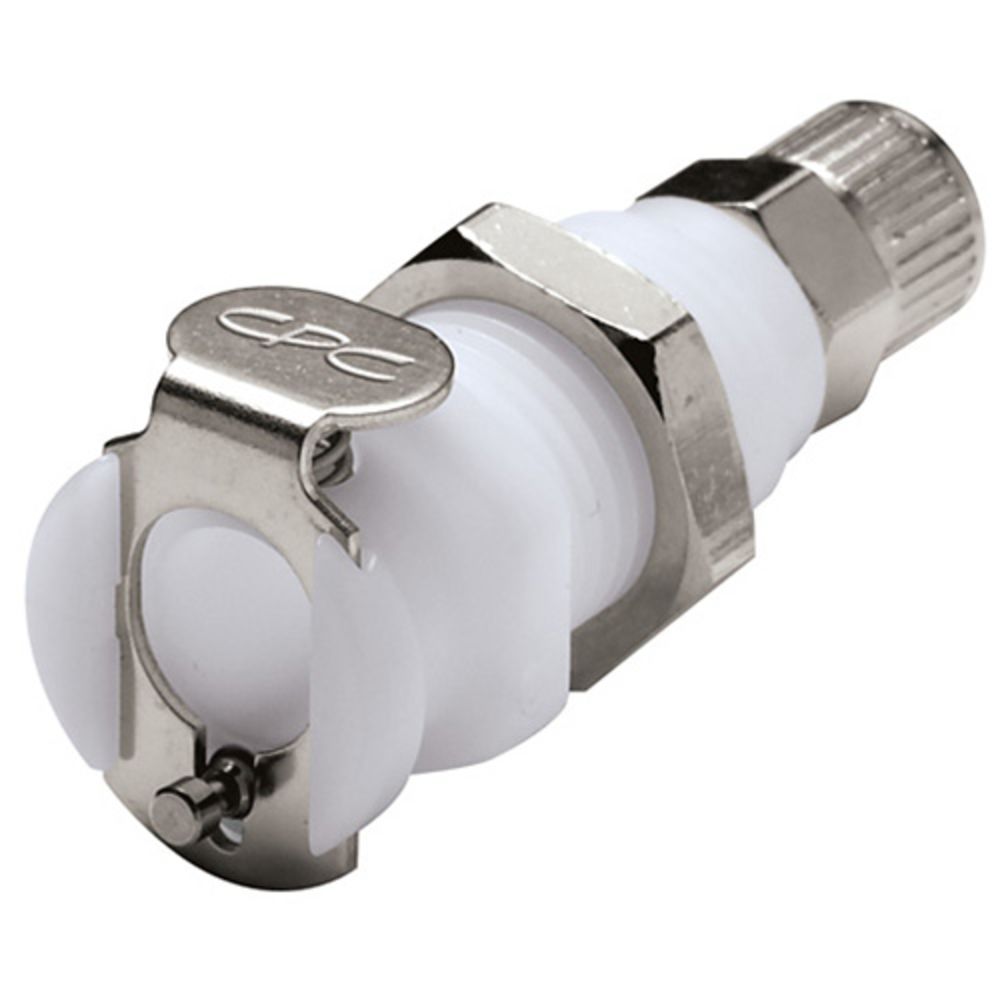

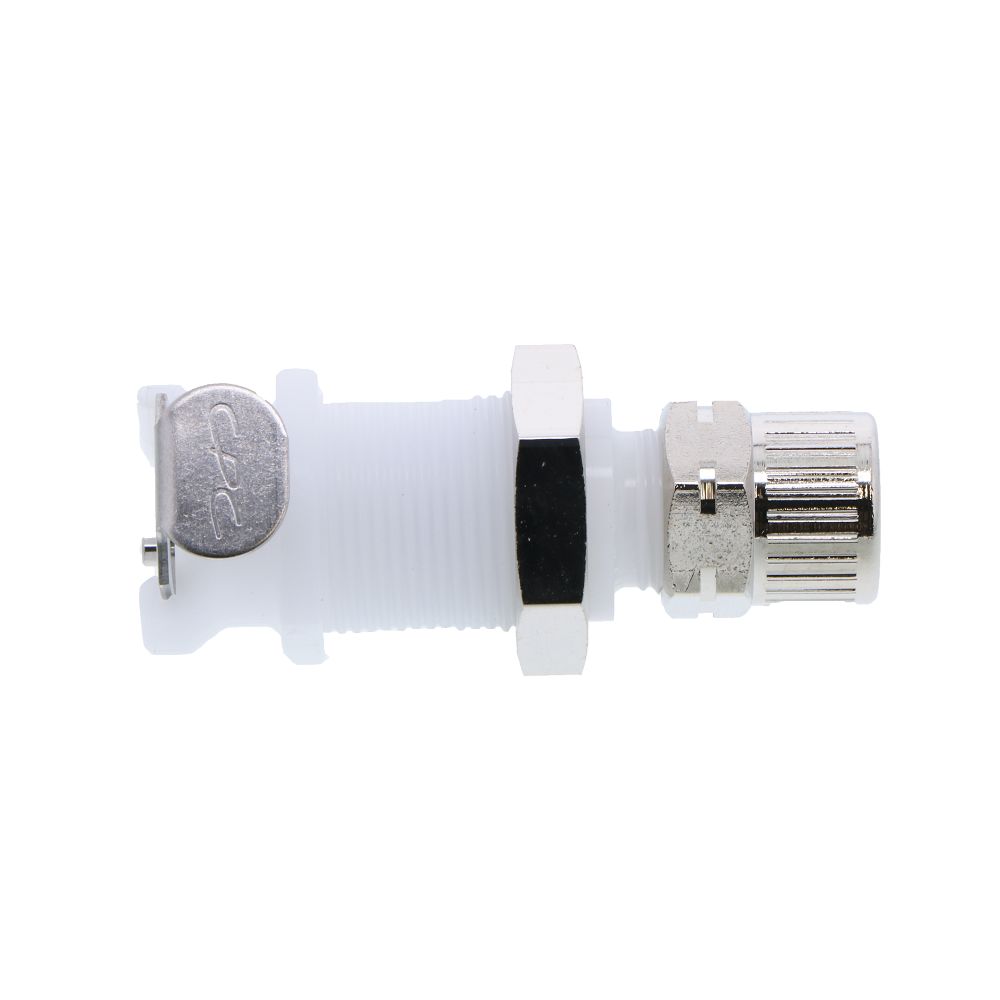

PMC12025 Panel Mount PTF Coupling Body 5/32 PTF

Part Number: PMC12025

In Stock

out of stock

In Stock

$8.59

PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Tubing Size: .10" ID, 5/32" OD
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units




Details

Series

PMC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Push-In Size

5/32" OD

Application

Water

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White

Mounting Options

Panel Mount

Origin

USA

Size

5/32"

Spring

316 stainless steel

Valve Type

Non-Valved

Inlet/Outlet Connection

5/32" FPT


PMC12025




PMC Series couplings have a 1/8" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Tubing Size: .10" ID, 5/32" OD
  • Valve Option: Non-Valved
  • Temperature Range: -40ºF to 180ºF
  • Seal Options: Buna-N
  • Available in Bags of 25 units



Details

Series

PMC

Max Temp (°F)

180

Max Pressure (Psi)

120

Min Temp (°F)

-40

Min Pressure (Psi)

Vacuum

Push-In Size

5/32" OD

Application

Water

Bag Quantity

25

Body Material

Acetal Copolymer

Color / Finish

White

Mounting Options

Panel Mount

Origin

USA

Size

5/32"

Spring

316 stainless steel

Valve Type

Non-Valved

Inlet/Outlet Connection

5/32" FPT

Documentation
PMC12025
Reviews
