Colder Products

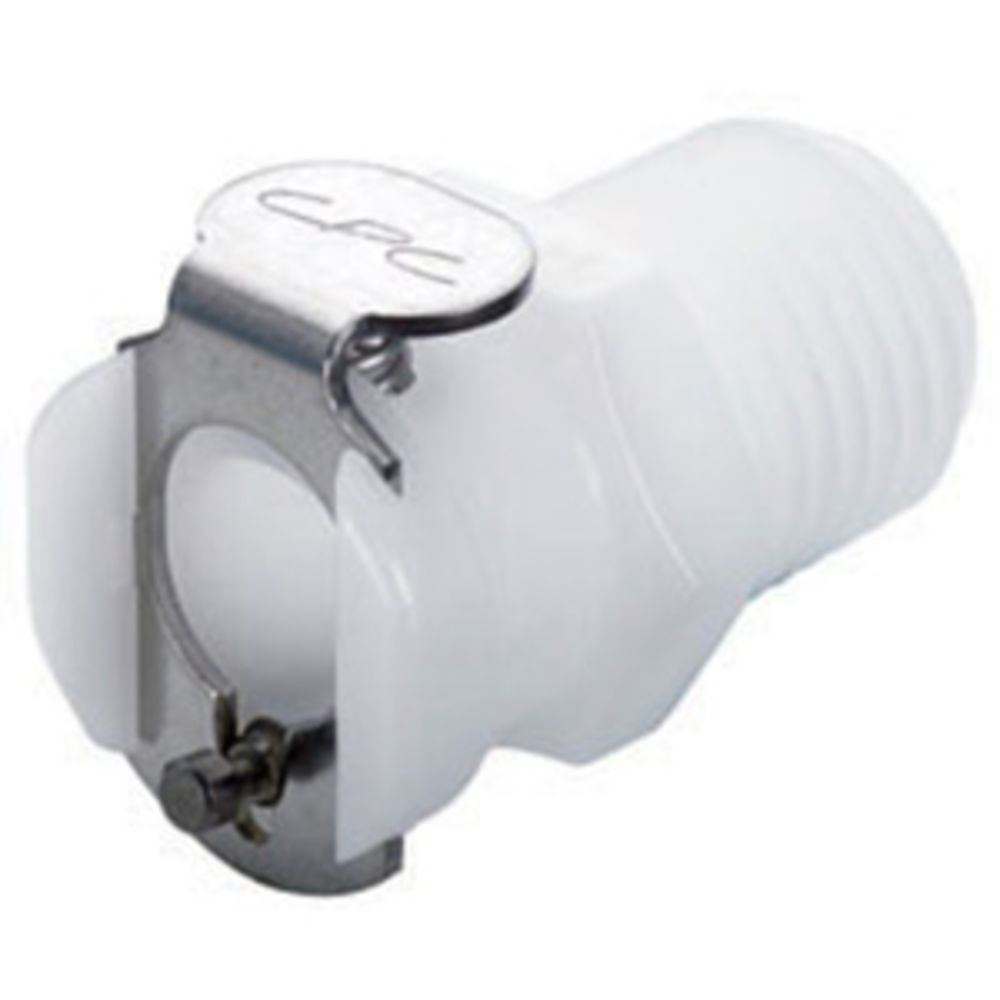

PMC100412BSPT Male Thread Coupling Body 1/4 BSPT

Part Number: PMC100412BSPT

In Stock

out of stock

In Stock

$5.59

PMC Series couplings have a 1/4" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material:Polypropylene
  • Material Finish:Almond
  • Color:Almond
  • Temp. Range:32°F to 160°F (0°C to 71°C)
  • Mounting Option:Thread
  • Sterilization:Gamma: Up to 50 kGy irradiation
  • Seal Options:EPDM
  • Valve Option:Non-Valved
  • Available in Bags of 25 units


Details

Bag Quantity

25 units

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Thread

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Seal Material

EPDM

Spring

316 stainless steel

Type

Coupler

Valve Type

Non-Valved


PMC100412BSPT




PMC Series couplings have a 1/4" flow are used in a wide variety of general-purpose applications. Featuring the Colder thumb latch, the PMC is easier to use than ball-and-sleeve connector designs. One-hand connection and disconnection and integral terminations make the PMC the choice for ease of use and manufacture.

Specifications:
  • Material:Polypropylene
  • Material Finish:Almond
  • Color:Almond
  • Temp. Range:32°F to 160°F (0°C to 71°C)
  • Mounting Option:Thread
  • Sterilization:Gamma: Up to 50 kGy irradiation
  • Seal Options:EPDM
  • Valve Option:Non-Valved
  • Available in Bags of 25 units

Details

Bag Quantity

25 units

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Thread

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

32 to 160 Degrees Fahrenheit

Seal Material

EPDM

Spring

316 stainless steel

Type

Coupler

Valve Type

Non-Valved
