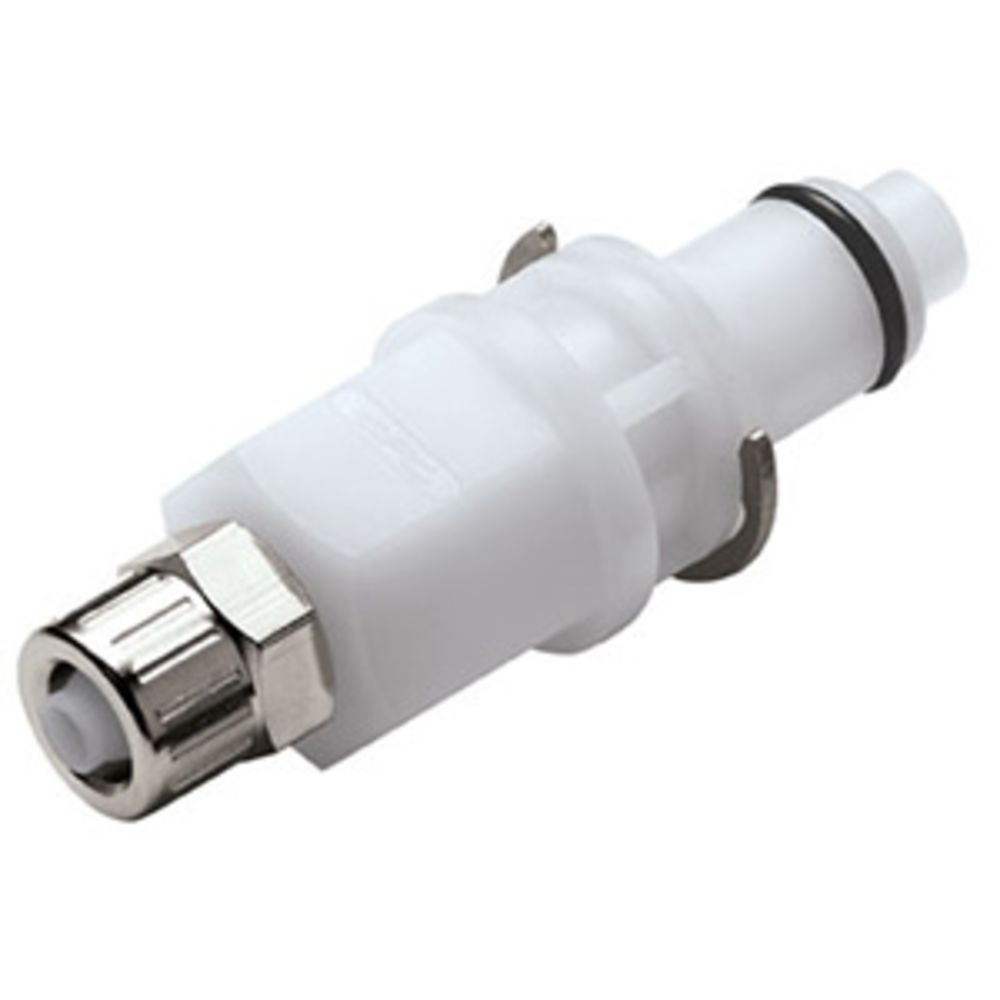

PLM20006 Multi-Mount Non-Valved Coupling Insert - 3/8" PTF Acetal
Part Number: PLM20006
in stock
only a few left!
out of stock
Expected ship date
Please note: This item is not available for same day shipping.
Use the chat feature or give us a call at 864-284-1801 for
further information.
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
More expected soon
Please note: This item is not available for same day shipping. Use
the chat feature or give us a call at 864-284-1801 for further
information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Please note: This item is not available for same day shipping. Use the chat feature or give us a call at 864-284-1801 for further information.
Specifications:
- Material: Acetal
- Color: White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Multi-Mount
- Tubing Size: .25" ID, 3/8" OD
- Valve Option: Non-Valved
- Temperature Range: -40ºF to 180ºF
- Seal Options: Buna-N
- Available in Bags of 10 units
WARNING!
| Product Details | |
|---|---|
Application | Water |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Inlet Connection | 3/8" PTF |
Max Pressure (Psi) | 240 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Nsf Version | No |
Number Of Seals | 1 |
Outlet Connection | 3/8" PTF |
Push-In Size | 3/8" OD |
Seal Material | Buna-N |
Series | Multi-Mount PLM |
Shape | Straight |
Size | 3/8" |
Spring | 316 stainless steel |
Valve Type | Non-Valved |
Color / Finish | White Natural |
Connection Type | PTF |
Type | Coupling Insert |
| Product Details | |
|---|---|
Application | Water |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Inlet Connection | 3/8" PTF |
Max Pressure (Psi) | 240 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Nsf Version | No |
Number Of Seals | 1 |
Outlet Connection | 3/8" PTF |
Push-In Size | 3/8" OD |
Seal Material | Buna-N |
Series | Multi-Mount PLM |
Shape | Straight |
Size | 3/8" |
Spring | 316 stainless steel |
Valve Type | Non-Valved |
Color / Finish | White Natural |
Connection Type | PTF |
Type | Coupling Insert |
| Product Details | |
|---|---|
Application | Water |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Inlet Connection | 3/8" PTF |
Max Pressure (Psi) | 240 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Nsf Version | No |
Outlet Connection | 3/8" PTF |
Push-In Size | 3/8" OD |
Seal Material | Buna-N |
Series | Multi-Mount PLM |
Shape | Straight |
Size | 3/8" |
Spring | 316 stainless steel |
Valve Type | Non-Valved |
Color / Finish | White Natural |
Connection Type | PTF |
Type | Coupling Insert |
Specifications:
- Material: Acetal
- Color: White
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Multi-Mount
- Tubing Size: .25" ID, 3/8" OD
- Valve Option: Non-Valved
- Temperature Range: -40ºF to 180ºF
- Seal Options: Buna-N
- Available in Bags of 10 units
WARNING!
| Product Details | |
|---|---|
Application | Water |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Inlet Connection | 3/8" PTF |
Max Pressure (Psi) | 240 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Nsf Version | No |
Number Of Seals | 1 |
Outlet Connection | 3/8" PTF |
Push-In Size | 3/8" OD |
Seal Material | Buna-N |
Series | Multi-Mount PLM |
Shape | Straight |
Size | 3/8" |
Spring | 316 stainless steel |
Valve Type | Non-Valved |
Color / Finish | White Natural |
Connection Type | PTF |
Type | Coupling Insert |
| Product Details | |
|---|---|
Application | Water |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Inlet Connection | 3/8" PTF |
Max Pressure (Psi) | 240 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Nsf Version | No |
Number Of Seals | 1 |
Outlet Connection | 3/8" PTF |
Push-In Size | 3/8" OD |
Seal Material | Buna-N |
Series | Multi-Mount PLM |
Shape | Straight |
Size | 3/8" |
Spring | 316 stainless steel |
Valve Type | Non-Valved |
Color / Finish | White Natural |
Connection Type | PTF |
Type | Coupling Insert |
| Product Details | |
|---|---|
Application | Water |
Body Material | Acetal Copolymer |
External Springs And Pin | Stainless Steel |
Inlet Connection | 3/8" PTF |
Max Pressure (Psi) | 240 |
Max Temp (°F) | 180 |
Min Pressure (Psi) | Vacuum |
Min Temp (°F) | -40 |
Mounting Options | Panel Mount |
Nsf Version | No |
Outlet Connection | 3/8" PTF |
Push-In Size | 3/8" OD |
Seal Material | Buna-N |
Series | Multi-Mount PLM |
Shape | Straight |
Size | 3/8" |
Spring | 316 stainless steel |
Valve Type | Non-Valved |
Color / Finish | White Natural |
Connection Type | PTF |
Type | Coupling Insert |
