Colder Products

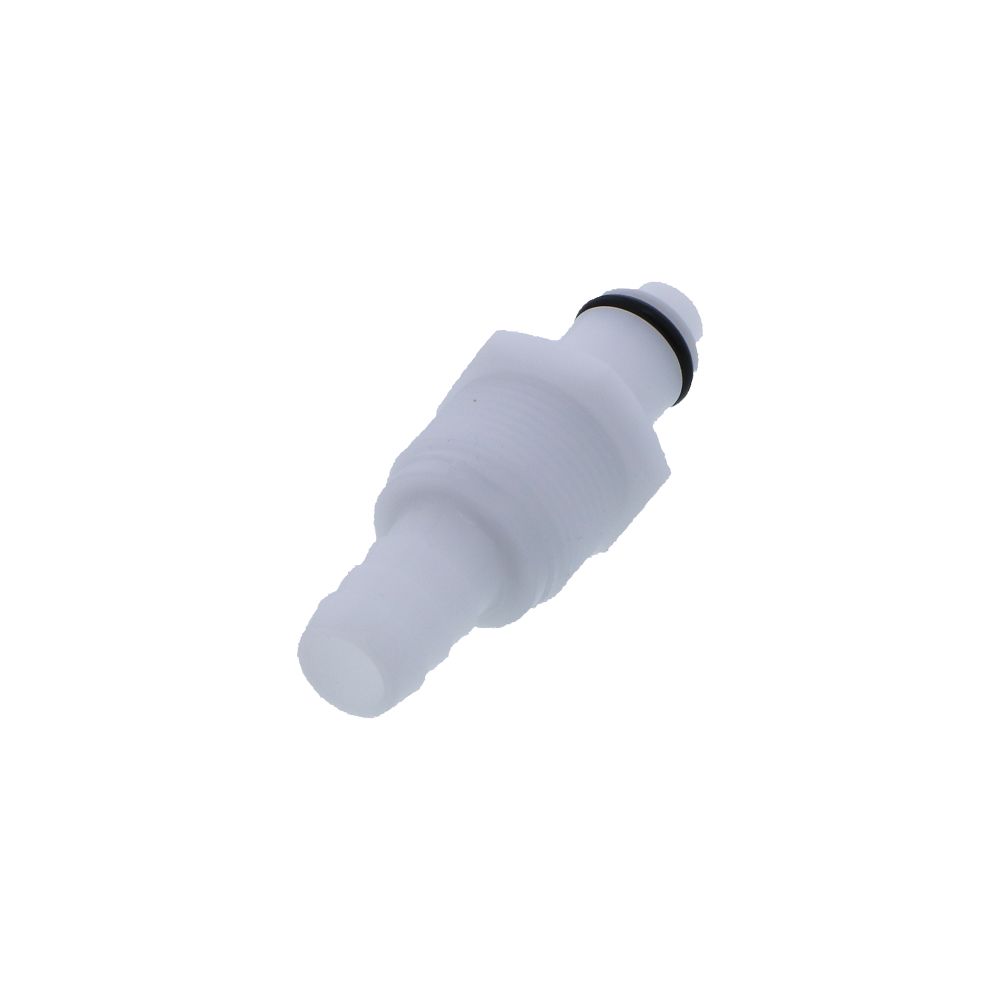

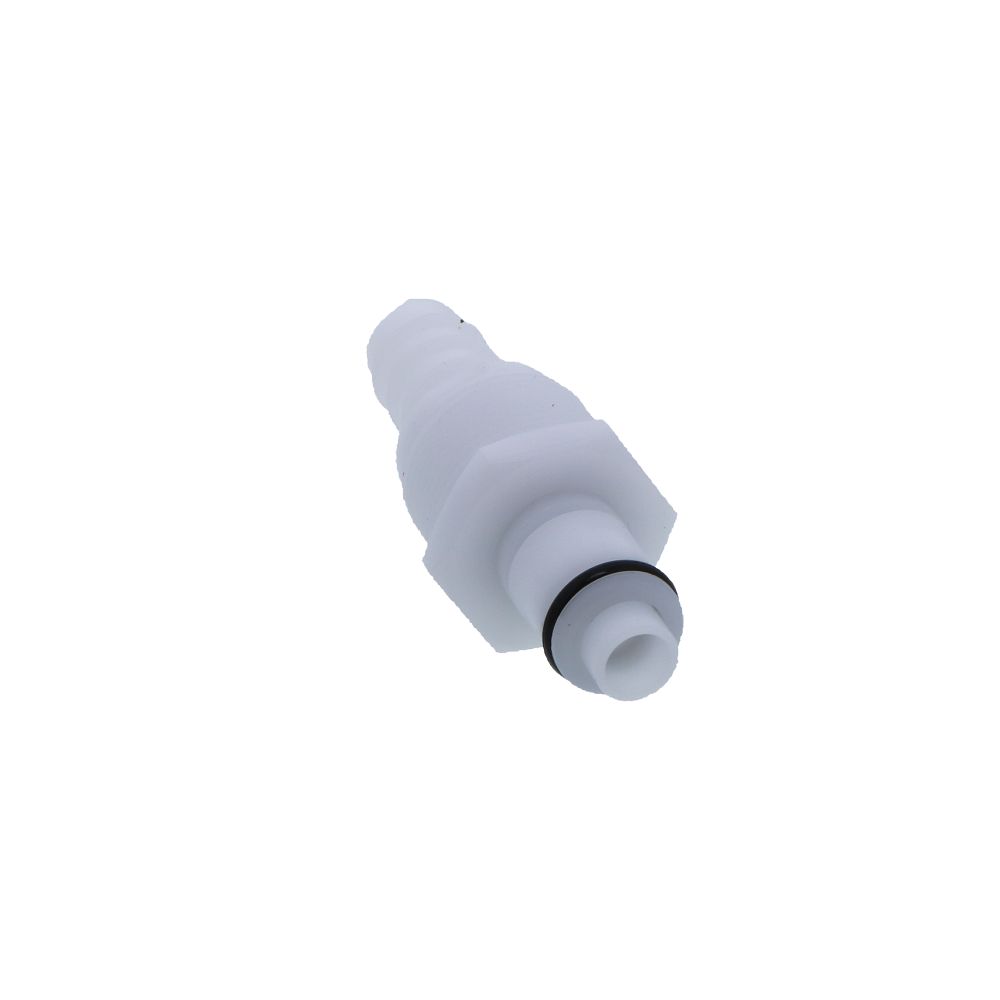

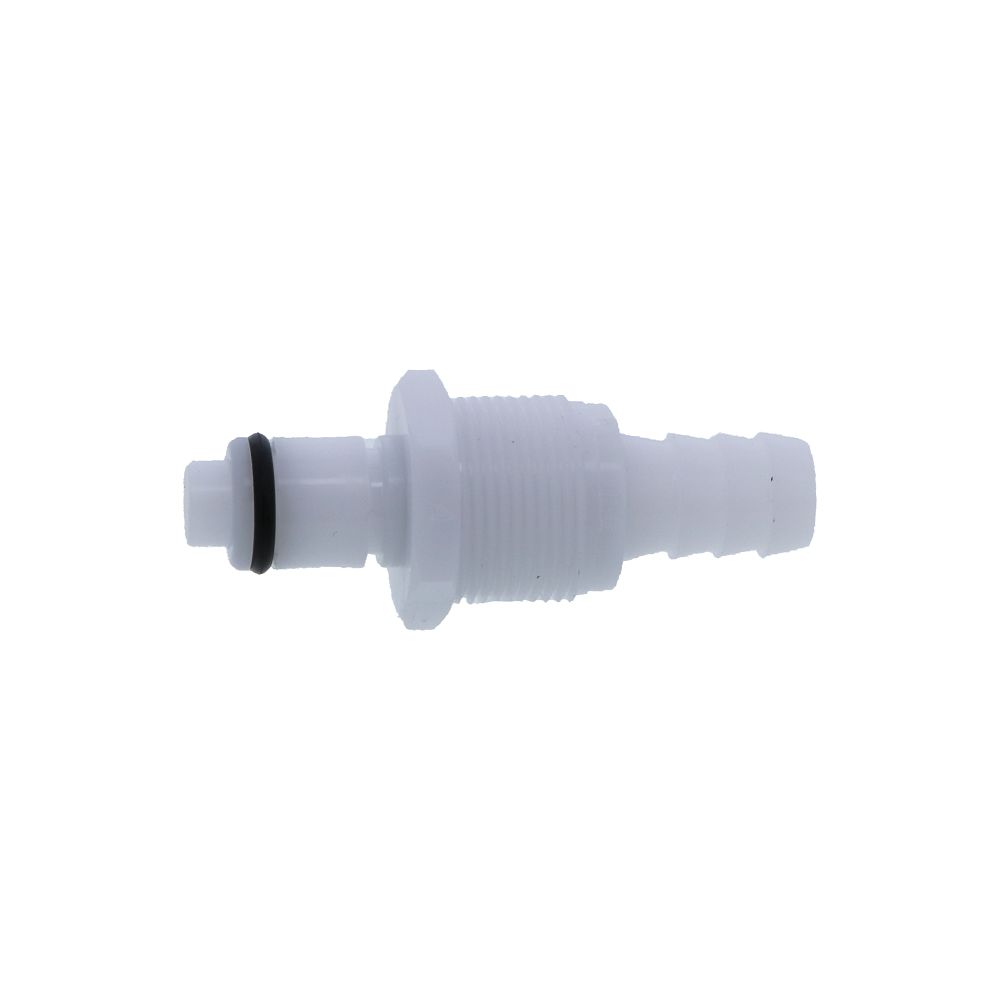

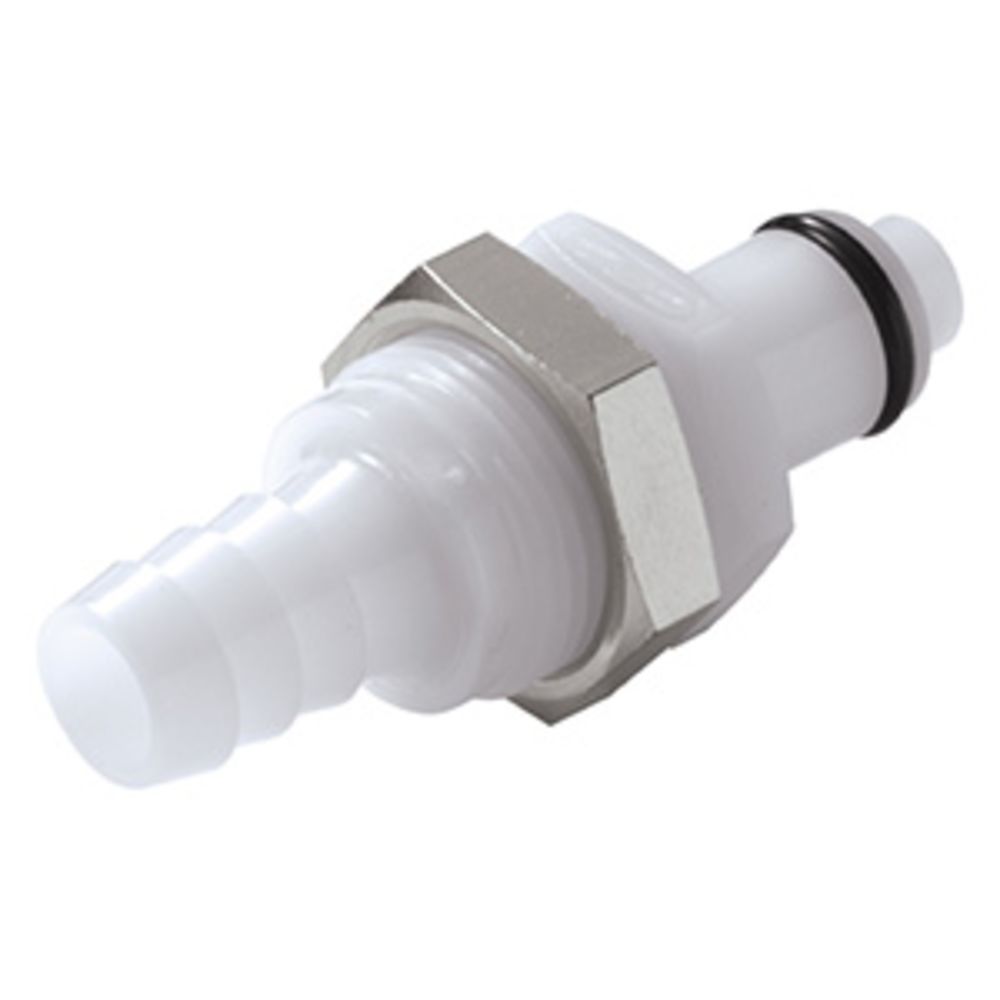

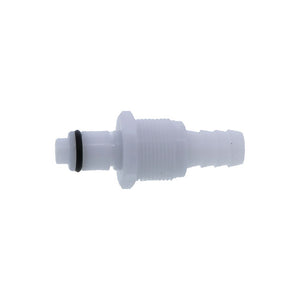

PLCD42006 Valved Panel Mount Hose Barb Coupling Insert 3/8 ID Barb

Part Number: PLCD42006

In Stock

out of stock

In Stock

$7.76

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units


Details

Bag Quantity

25

Body Material

Acetal

Color / Finish

White

Mounting Options

Panel Mount

O Rings

Buna-N

Operating Pressure Range

120 psi; Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40ºF to 180ºF

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved


PLCD42006




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units

Details

Bag Quantity

25

Body Material

Acetal

Color / Finish

White

Mounting Options

Panel Mount

O Rings

Buna-N

Operating Pressure Range

120 psi; Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40ºF to 180ºF

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved
