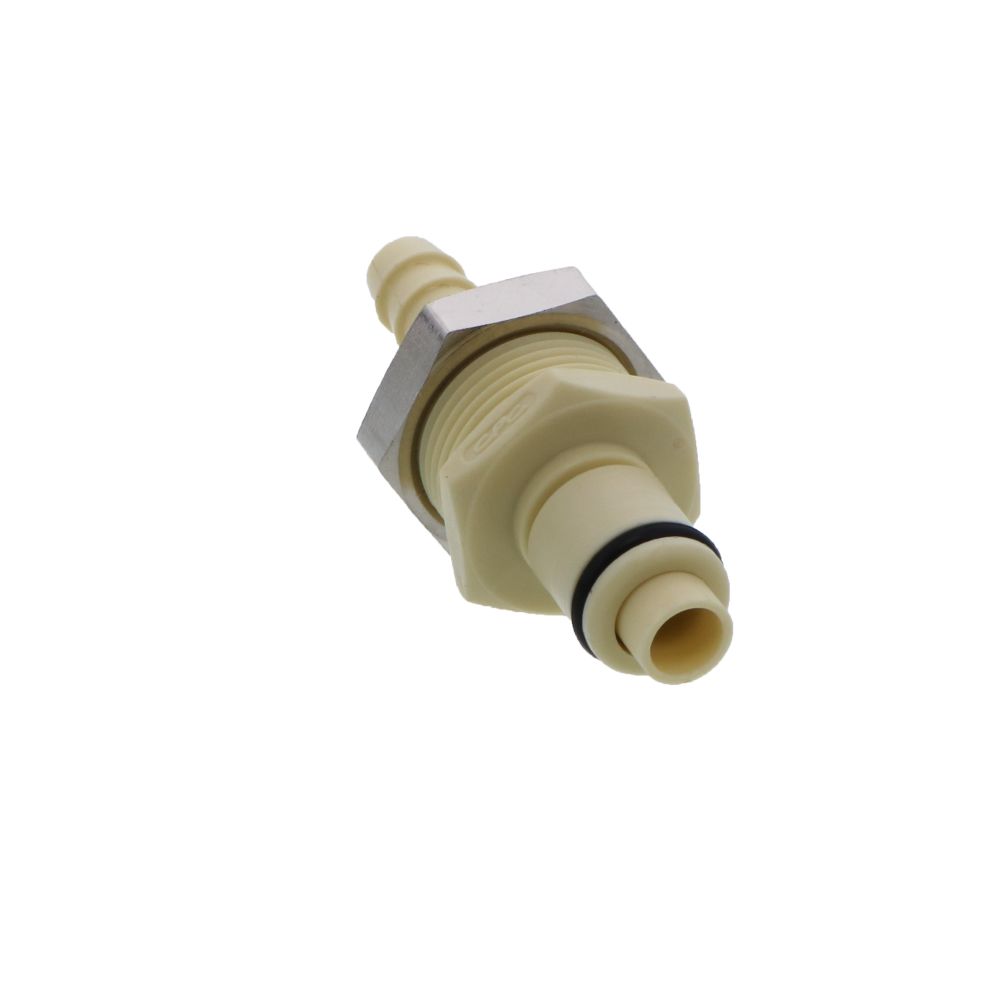

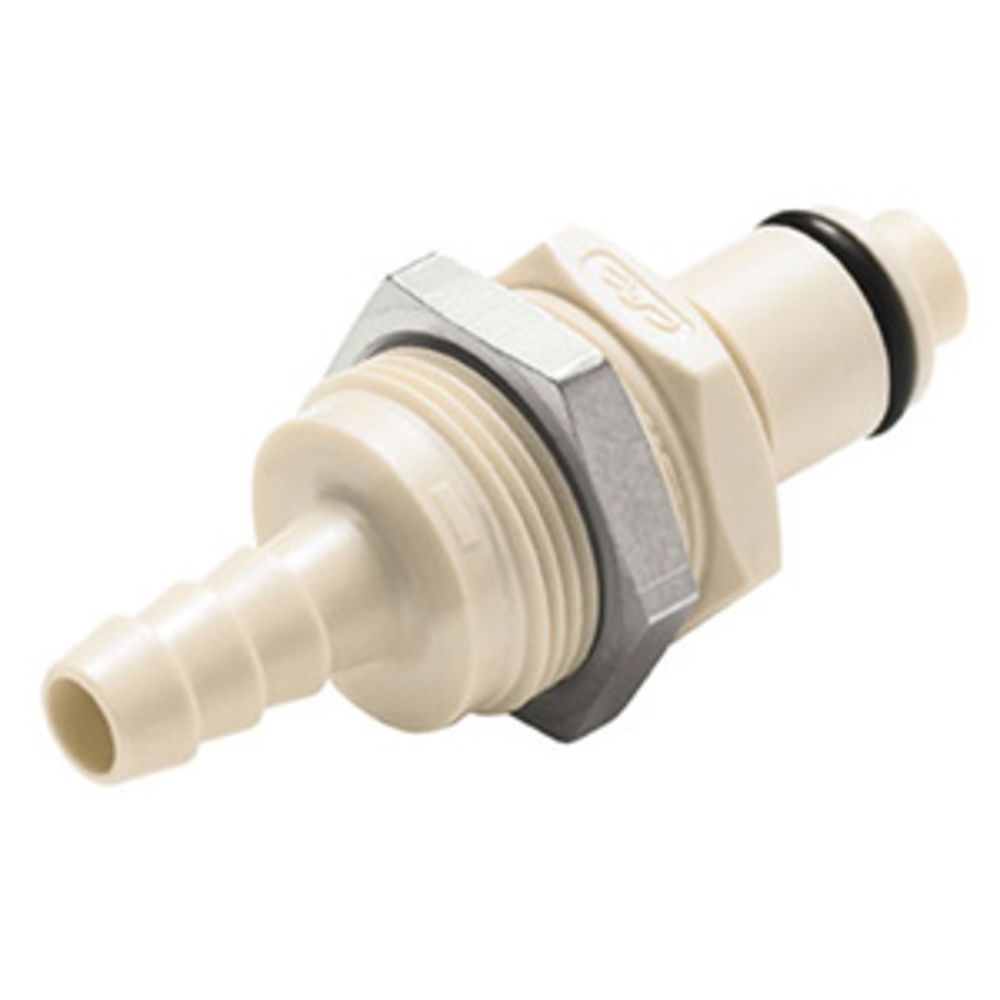

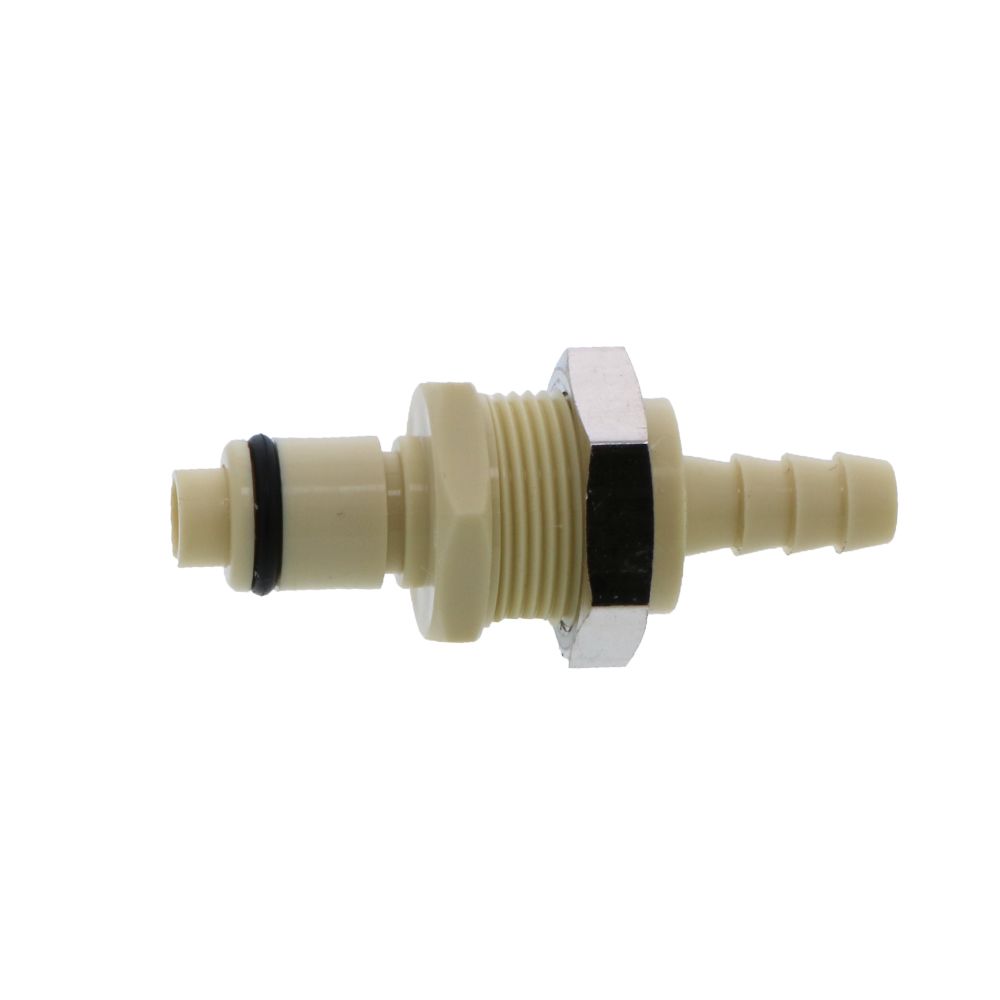

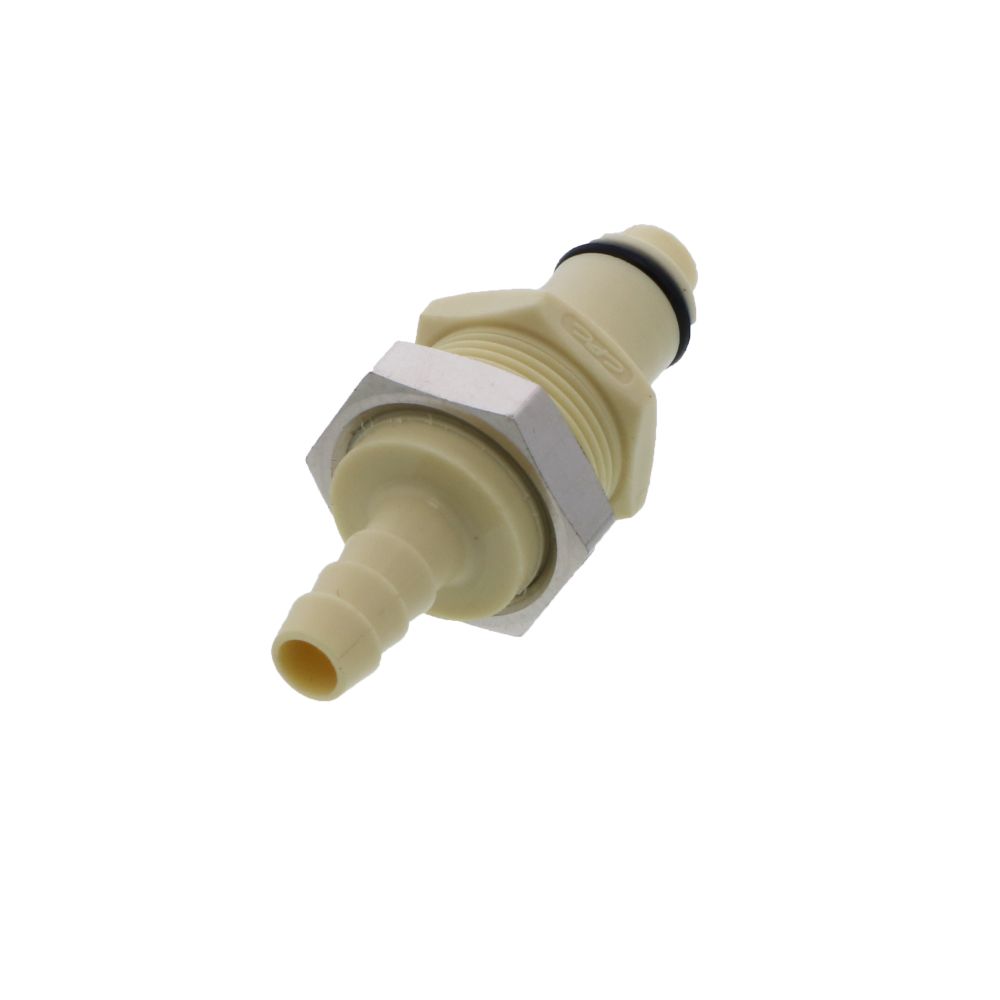

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.
Specifications:
Specifications:
- Material: Polypropylene
- Color: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Panel Mount
- Valve Option: Valved
- Temperature Range: 32ºF to 160ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: EPDM
- Available in Bags of 25 units
Weight & Dimensions
Weight (lbs) | 0.05 |
Details
Application | Water |
Barb Size | 1/4" ID |
Body Material | Polypropylene |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | vacuum |
Min Temp (°F) | 32 |
Mounting Options | Panel Mount |
Seal Material | EPDM |
Series | PLC12 |
Spring | 316 stainless steel |
Valve Type | Valved |
Color / Finish | Almond |
Origin | USA |
Type | Coupling Insert |
The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.
Specifications:
- Material: Polypropylene
- Color: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Panel Mount
- Valve Option: Valved
- Temperature Range: 32ºF to 160ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: EPDM
- Available in Bags of 25 units
Weight & Dimensions
Weight (lbs) | 0.05 |
Details
Application | Water |
Barb Size | 1/4" ID |
Body Material | Polypropylene |
Max Pressure (Psi) | 120 |
Max Temp (°F) | 160 |
Min Pressure (Psi) | vacuum |
Min Temp (°F) | 32 |
Mounting Options | Panel Mount |
Seal Material | EPDM |
Series | PLC12 |
Spring | 316 stainless steel |
Valve Type | Valved |
Color / Finish | Almond |
Origin | USA |
Type | Coupling Insert |
