Colder Products

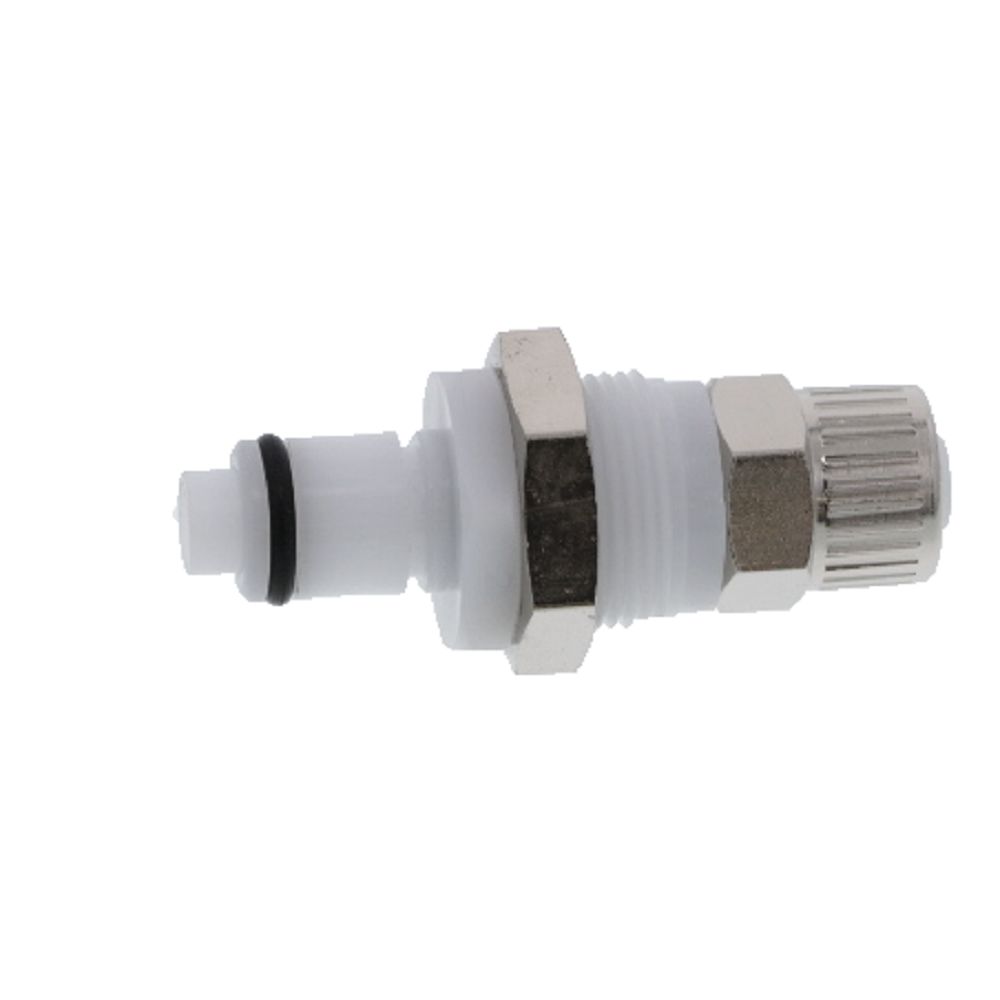

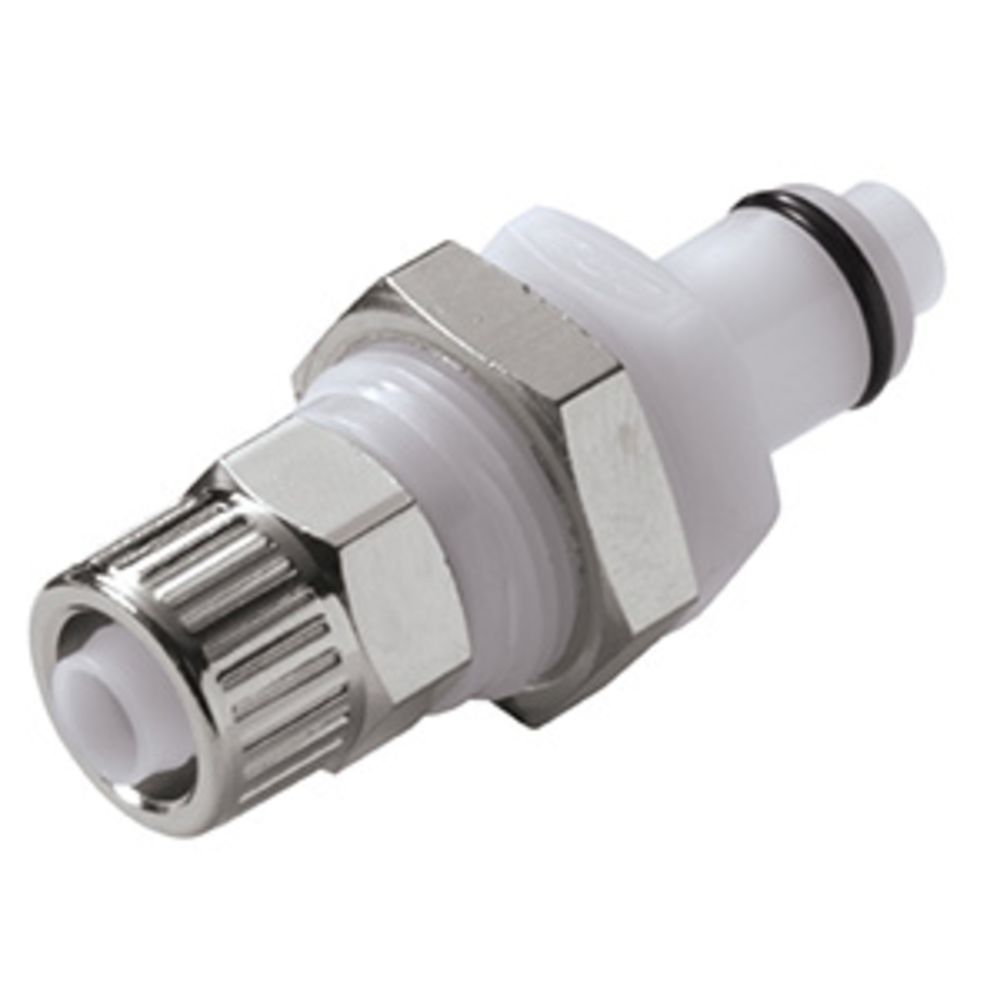

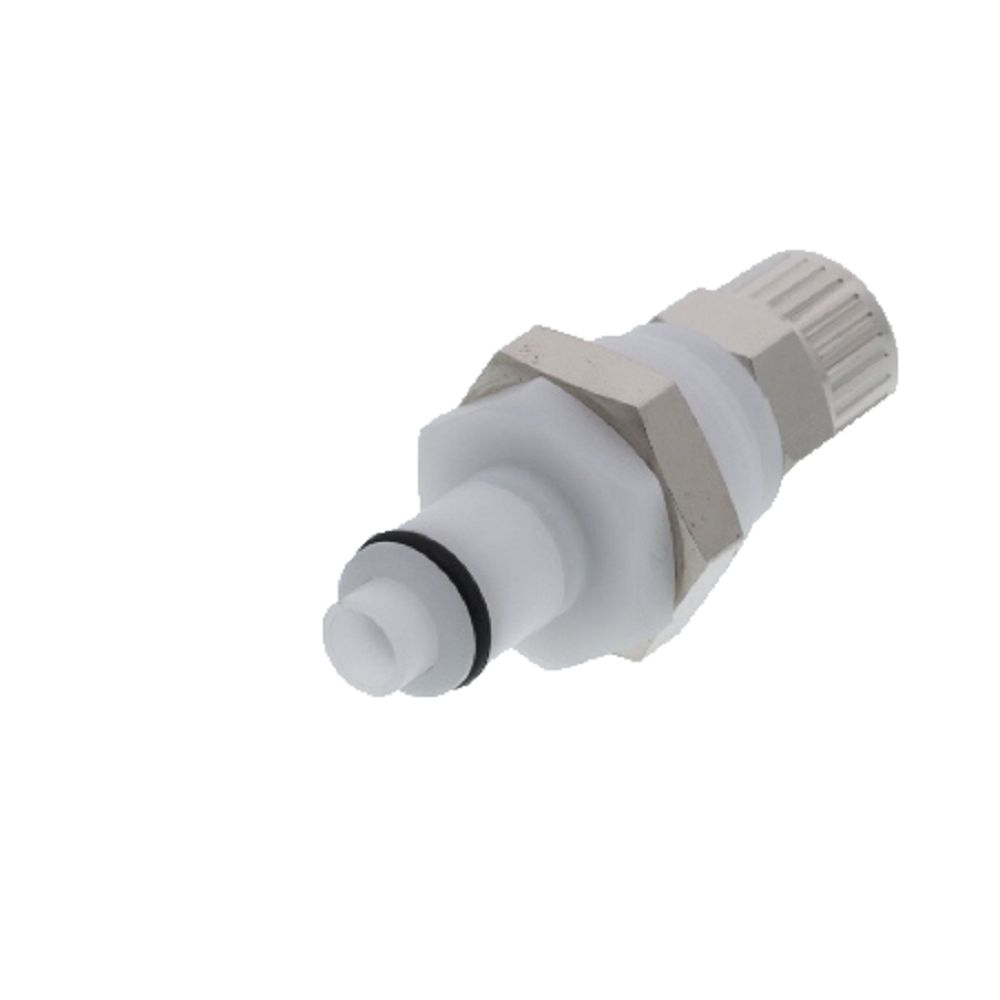

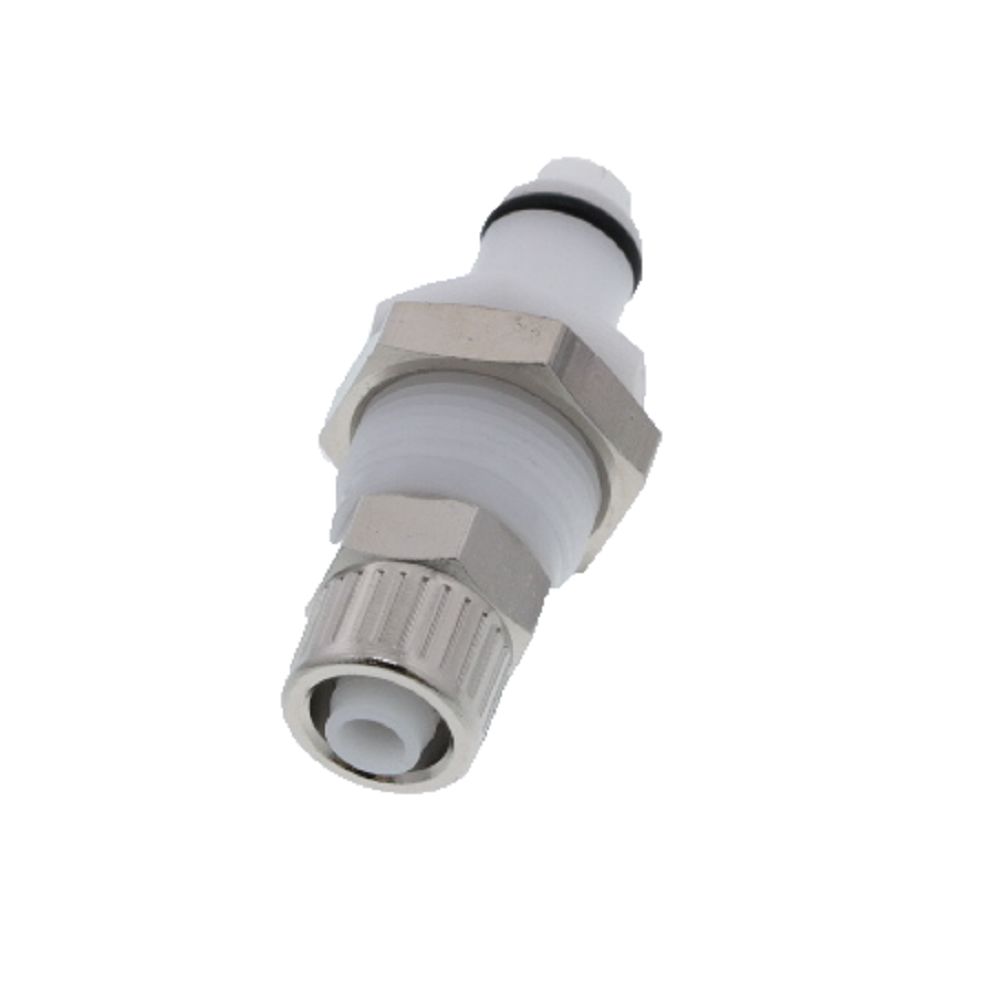

PLCD40006 Valved Panel Mount PTF Coupling Insert 3/8 PTF

Part Number: PLCD40006

In Stock

out of stock

In Stock

$8.71


The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Tubing Size: .25" ID, 3/8" OD
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units


Details

Bag Quantity

25

Body Material

Acetal

Color / Finish

White

Mounting Options

Panel Mount

O Rings

Buna-N

Operating Pressure Range

120 PSI

Operating Temperature Range

-40-180 Degrees Fahrenheit

Origin

USA

Seal Material

Buna-N

Size

3/8"

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Valved; Acetal

External Springs And Pin

Stainless steel

Thumb Latch

Stainless steel


PLCD40006





The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Panel Mount
  • Valve Option: Valved
  • Tubing Size: .25" ID, 3/8" OD
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units

Details

Bag Quantity

25

Body Material

Acetal

Color / Finish

White

Mounting Options

Panel Mount

O Rings

Buna-N

Operating Pressure Range

120 PSI

Operating Temperature Range

-40-180 Degrees Fahrenheit

Origin

USA

Seal Material

Buna-N

Size

3/8"

Spring

316 Stainless Steel

Type

Coupler

Valve Type

Valved; Acetal

External Springs And Pin

Stainless steel

Thumb Latch

Stainless steel
