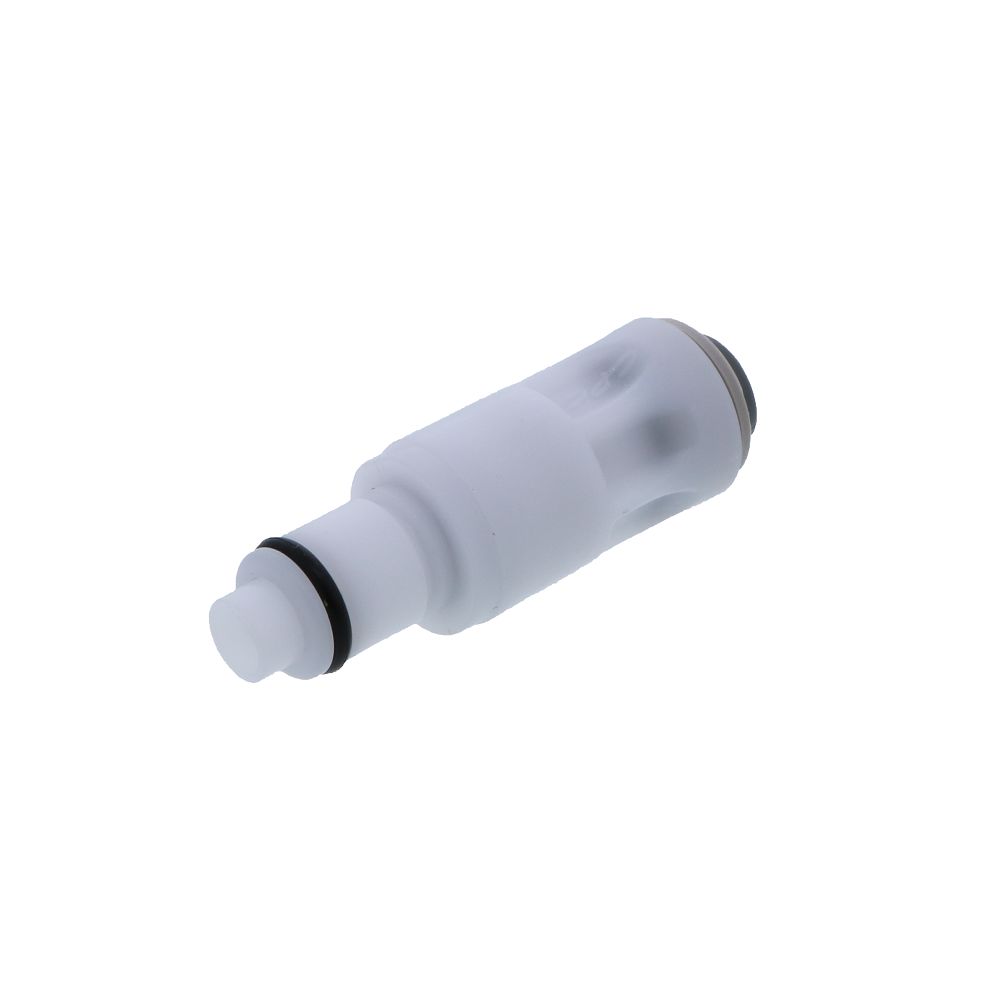

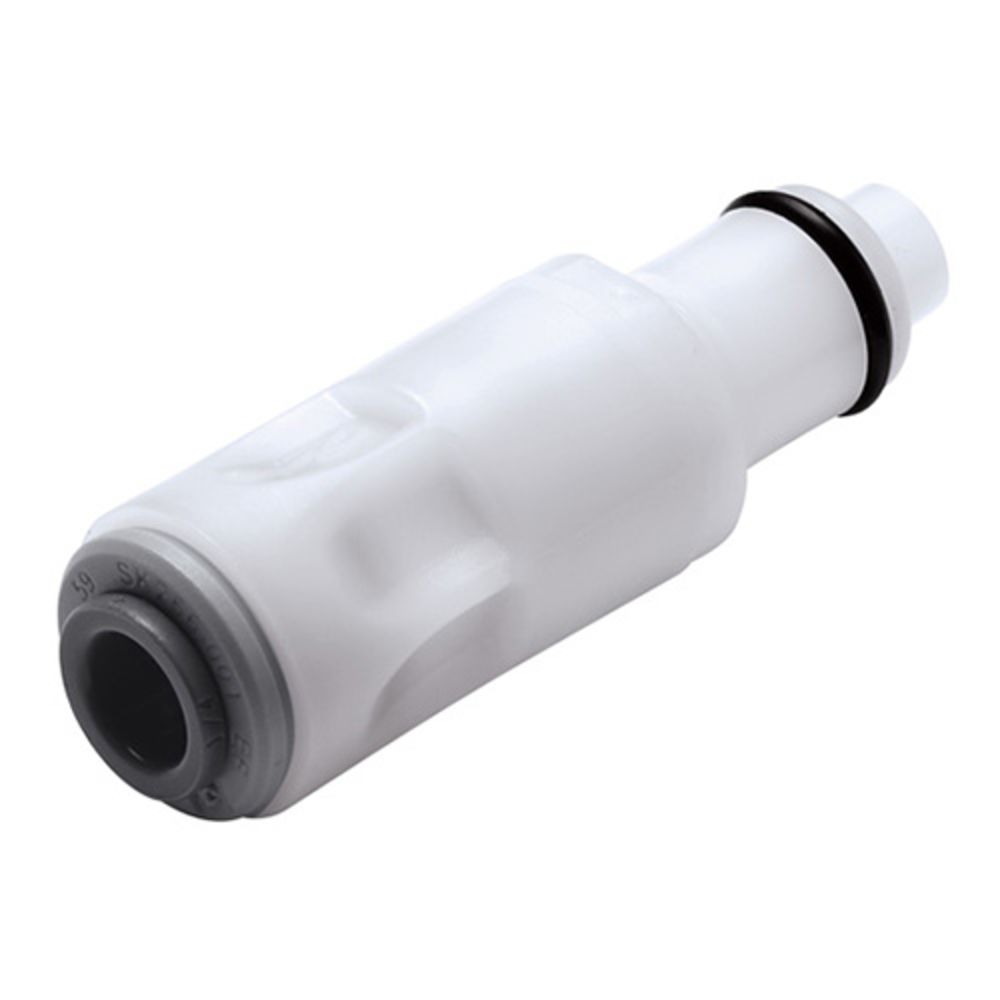

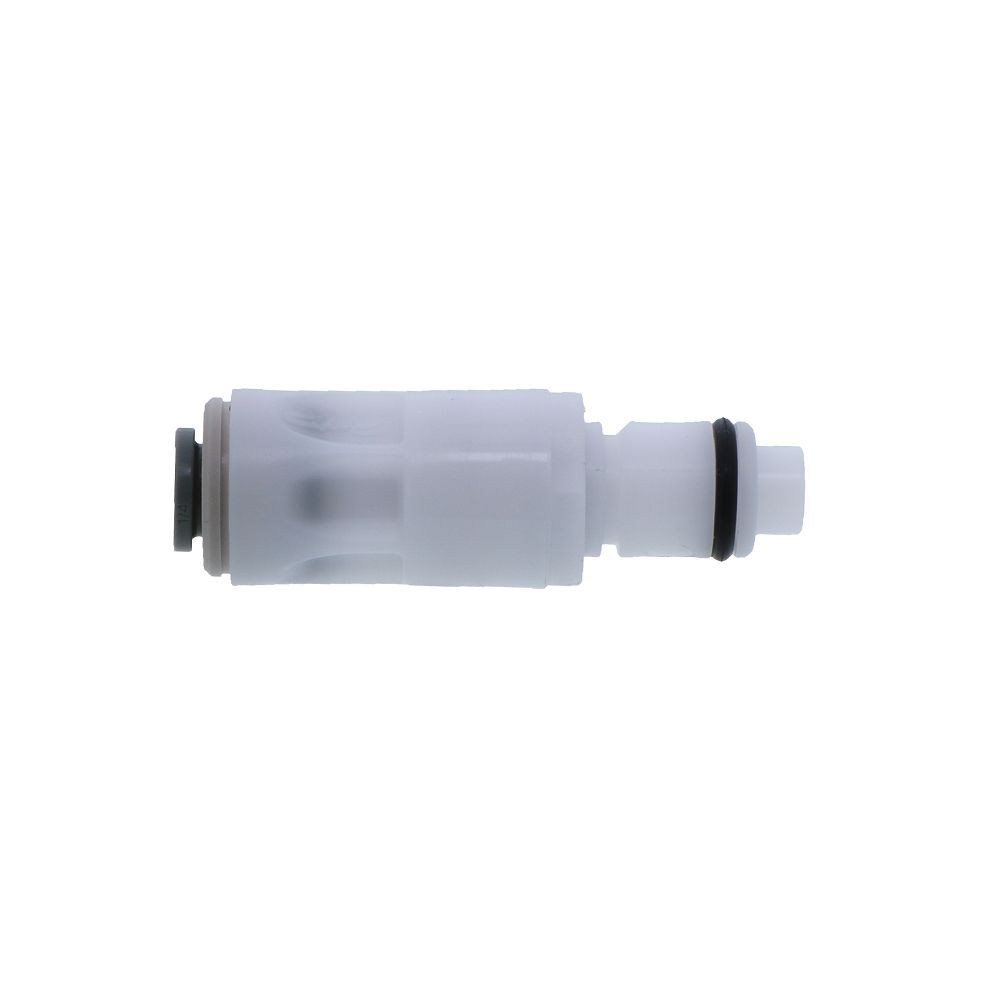

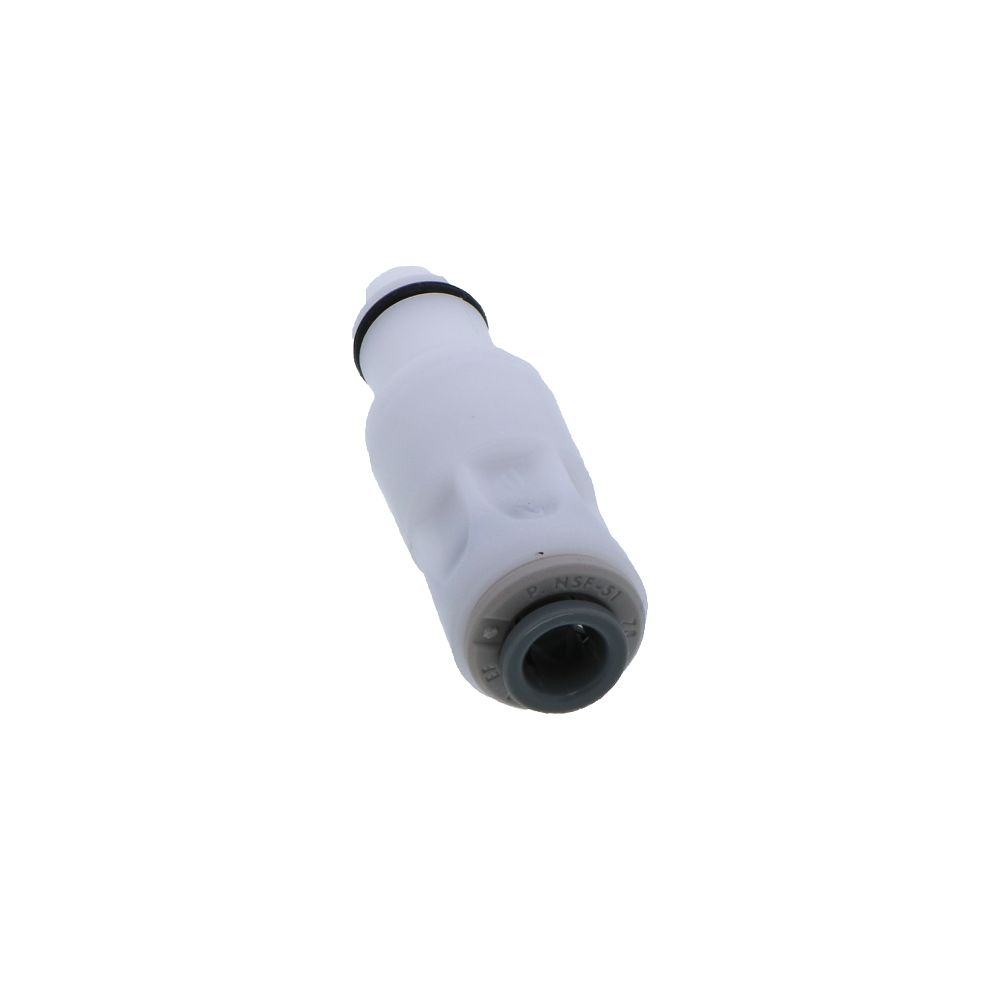

PLCD29004 NSF Valved In-Line Quick Connect Coupling Insert 1/4 JG

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:

NSF Listed
Material: Acetal
Color: White
Pressure Range:Vacuum to 120 psi, 8.3 bar
Mounting Option: Free Floating
Tubing Size: .17" ID, 1/4" OD
Valve Option: Valved
Temperature Range: -40ºF to 180ºF
Valve Spring: 316 Stainless Steel
Seal Options: FDA Buna-N
Available in Bags of 25 units

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Body Material	Acetal Copolymer
External Springs And Pin	Stainless Steel
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	Yes
Number Of Seals	2
Push-In Size	1/4" OD
Seal Material	FDA Buna-N
Series	PLC
Shape	Straight
Spring	316 Stainless Steel
Thumb Latch	Stainless steel
Valve Type	Valved
Color / Finish	White
Type	Coupling Insert
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169

Product Details
Application	Water
Body Material	Acetal Copolymer
External Springs And Pin	Stainless Steel
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Pressure (Psi)	Vacuum
Min Temp (°F)	-40
Mounting Options	Free Floating
Nsf Version	Yes
Number Of Seals	2
Push-In Size	1/4" OD
Seal Material	FDA Buna-N
Series	PLC
Shape	Straight
Spring	316 Stainless Steel
Thumb Latch	Stainless steel
Valve Type	Valved
Color / Finish	White
Type	Coupling Insert
Warranty & Certifications
Product Certification Standard	NSF/ANSI 169
