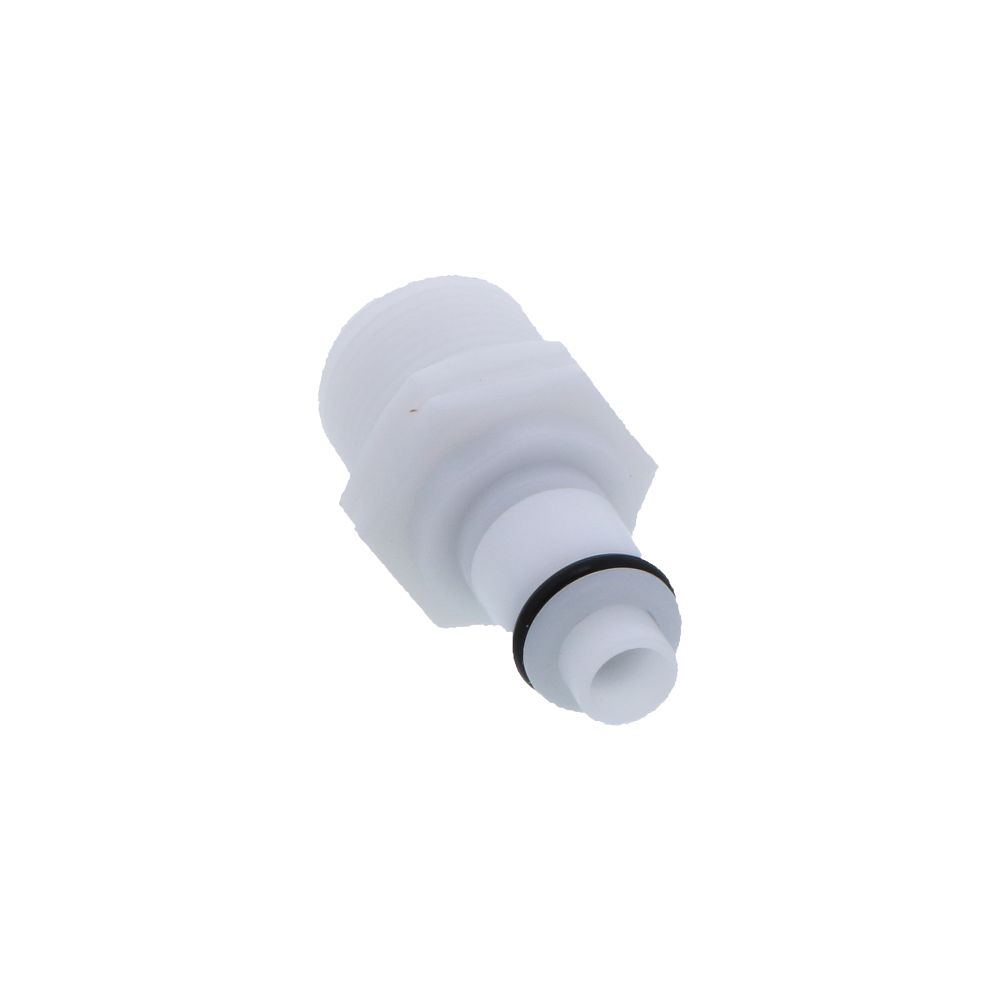

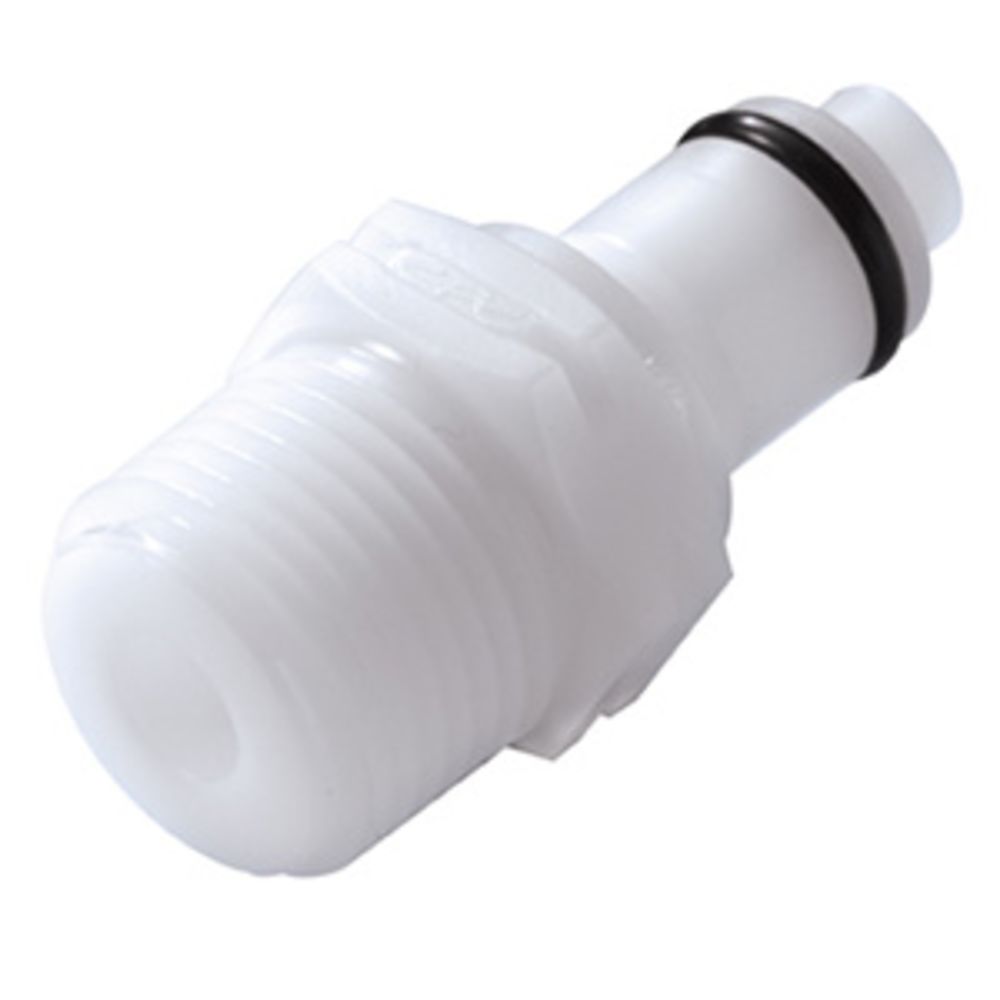

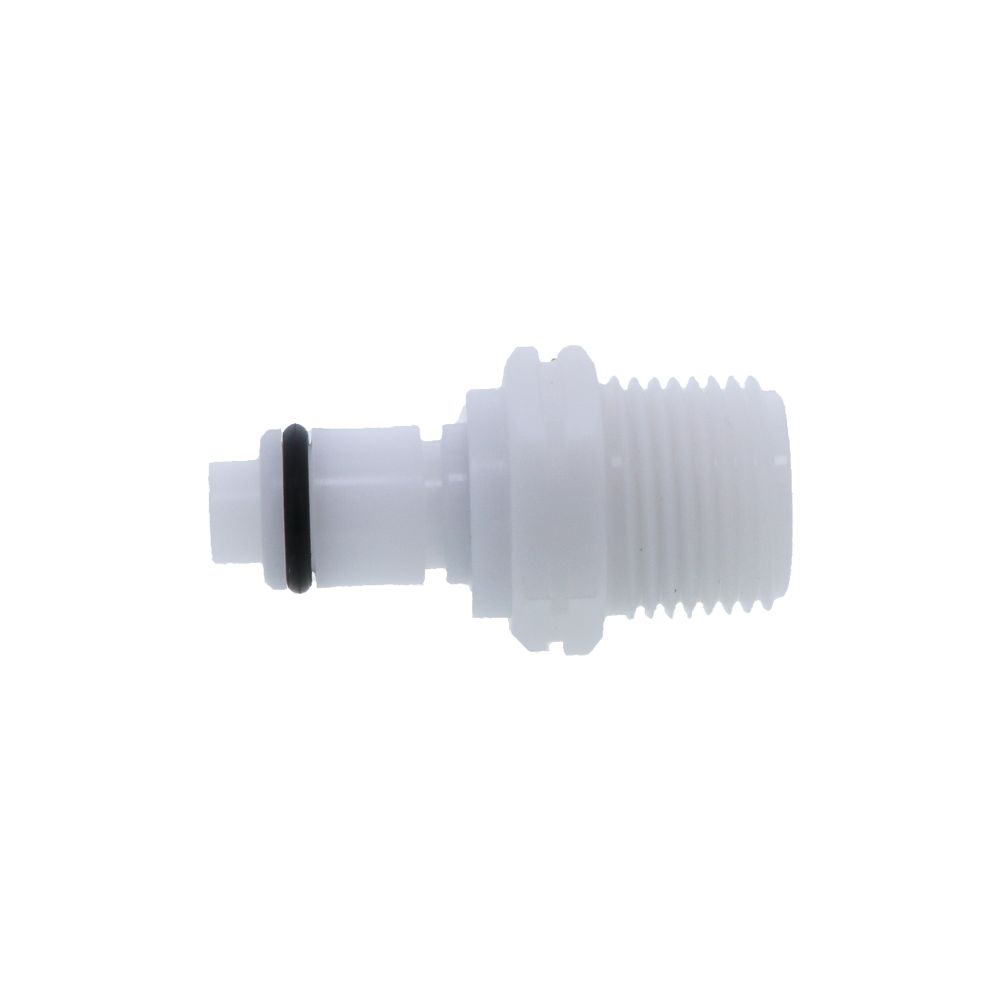

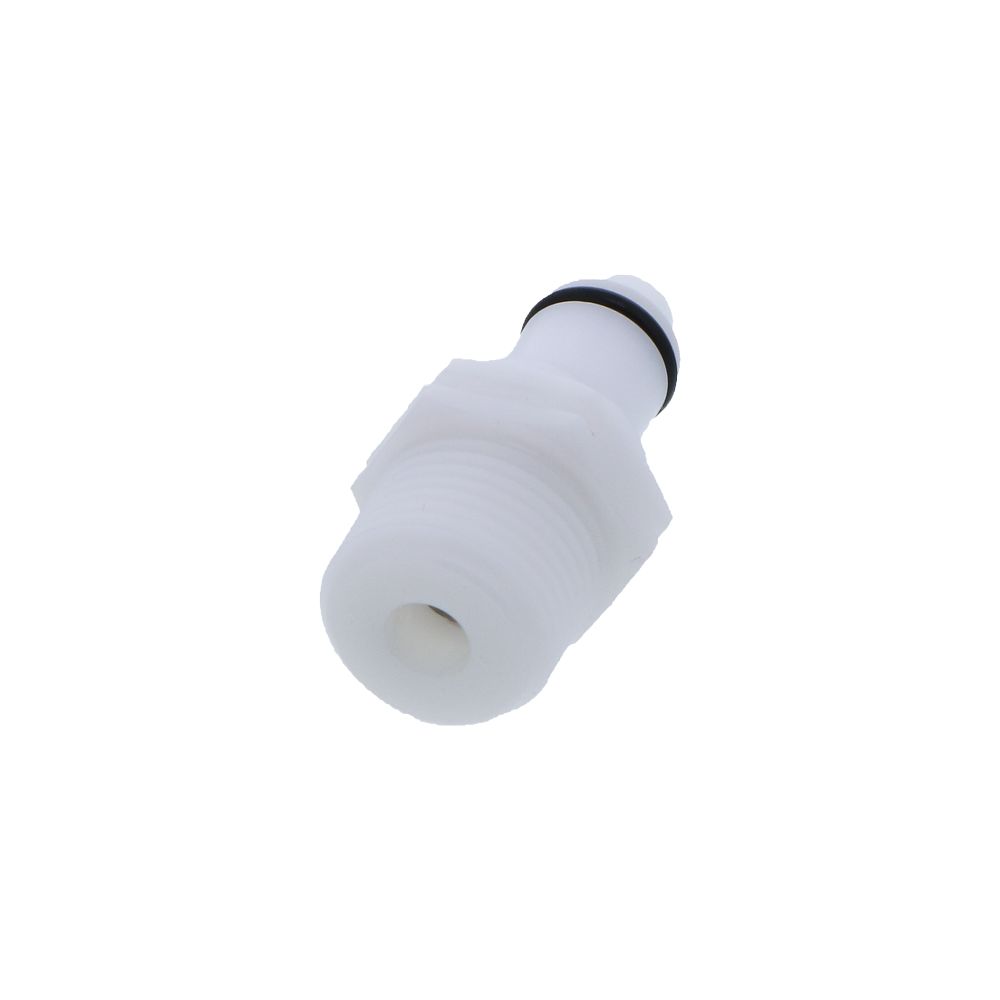

PLCD24006BSPT Valved Male Thread Coupling Insert 3/8 BSPT

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:

Material: Acetal
Color: White
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Thread
Valve Option: Valved
Temperature Range: -40ºF to 180ºF
Valve Spring: 316 Stainless Steel
Seal Options: Buna-N
Available in Bags of 25 units

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Inlet Connection	3/8" BSP
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Temp (°F)	-40
Nsf Version	No
Outlet Connection	3/8" BSP
Series	PLC
Shape	Straight
Size	3/8"
Valve Type	Valved
Color / Finish	White
Connection Type	BSP
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	0.375 in.
Shipping Width	0.5 in.
Shipping Height	0.5 in.
Product Weight & Dimensions
Product Height	0.5
Product Length	0.375
Product Width	0.5
Product Weight (lbs)	0.027

Product Details
Inlet Connection	3/8" BSP
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Temp (°F)	-40
Nsf Version	No
Outlet Connection	3/8" BSP
Series	PLC
Shape	Straight
Size	3/8"
Valve Type	Valved
Color / Finish	White
Connection Type	BSP
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	10 in.
Shipping Width	10 in.
Shipping Height	10 in.
Product Weight & Dimensions
Product Weight (lbs)	0.4

Product Details
Inlet Connection	3/8" BSP
Max Pressure (Psi)	120
Max Temp (°F)	180
Min Temp (°F)	-40
Nsf Version	No
Outlet Connection	3/8" BSP
Series	PLC
Shape	Straight
Size	3/8"
Valve Type	Valved
Color / Finish	White
Connection Type	BSP
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	15
