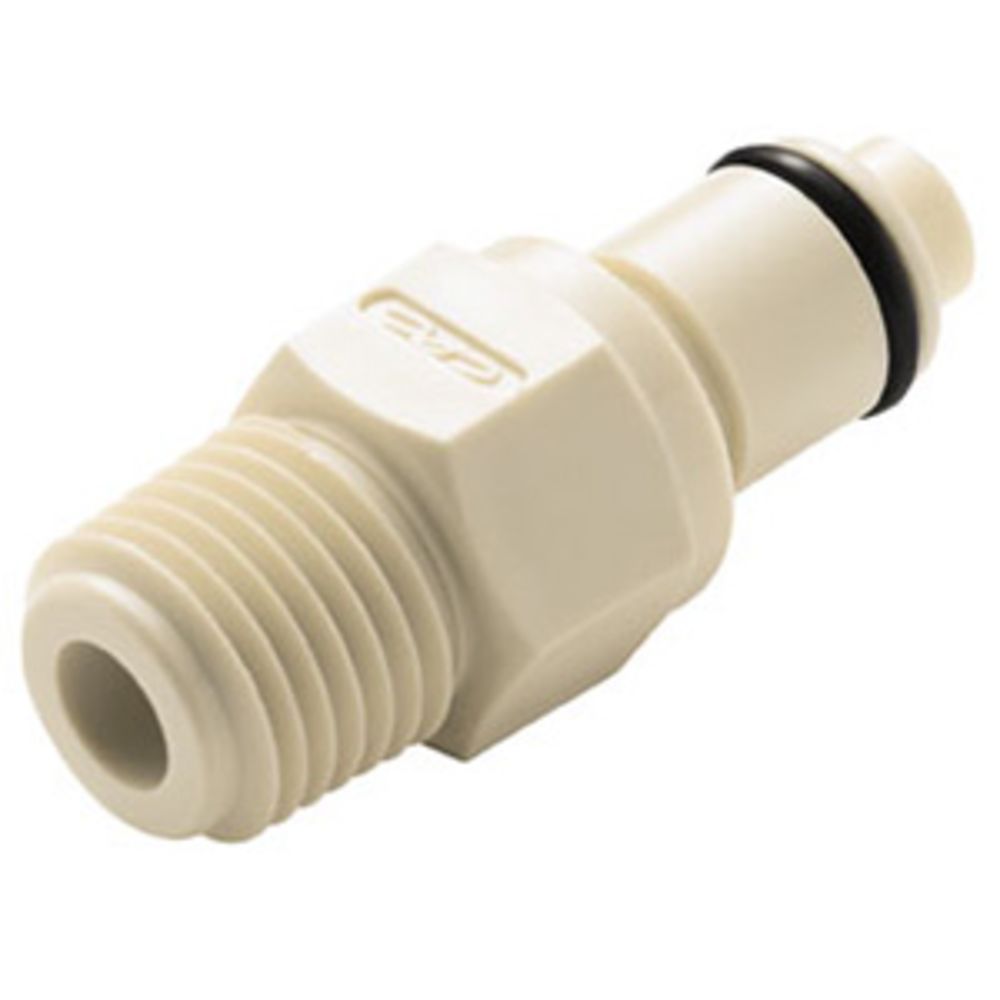

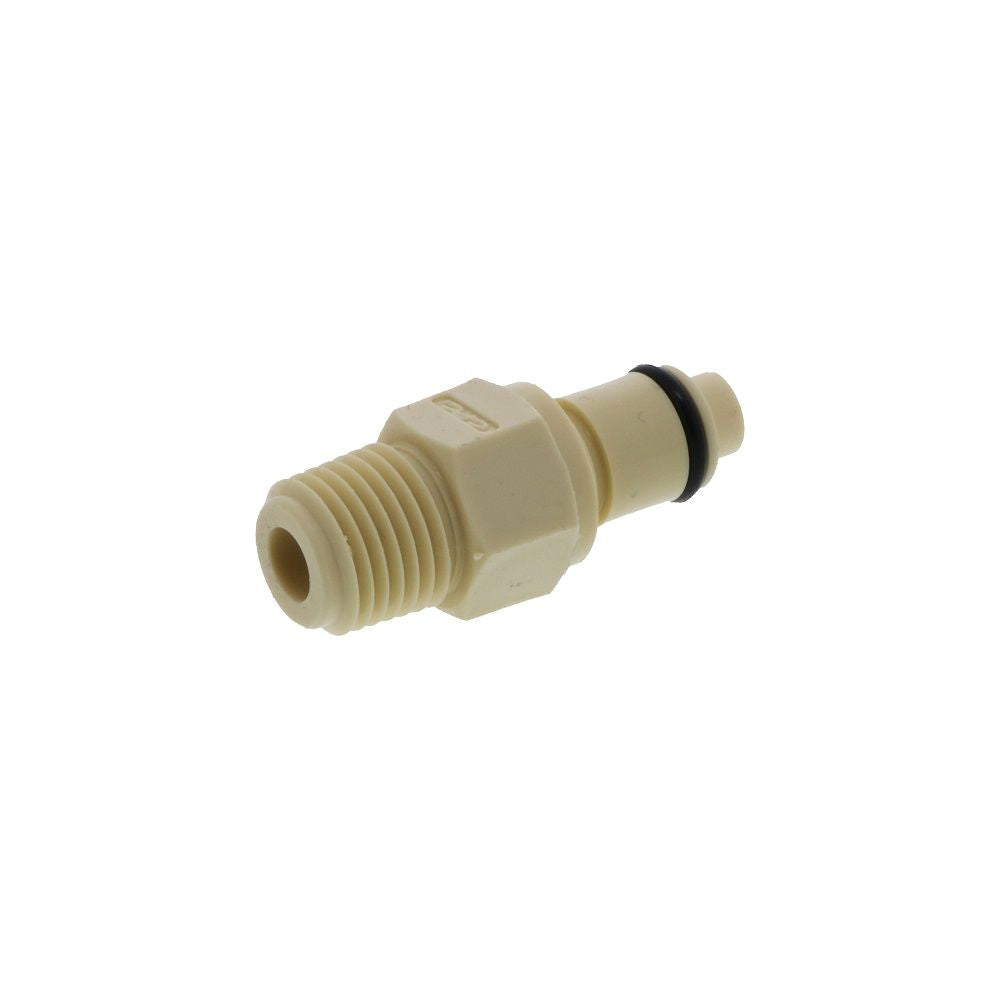

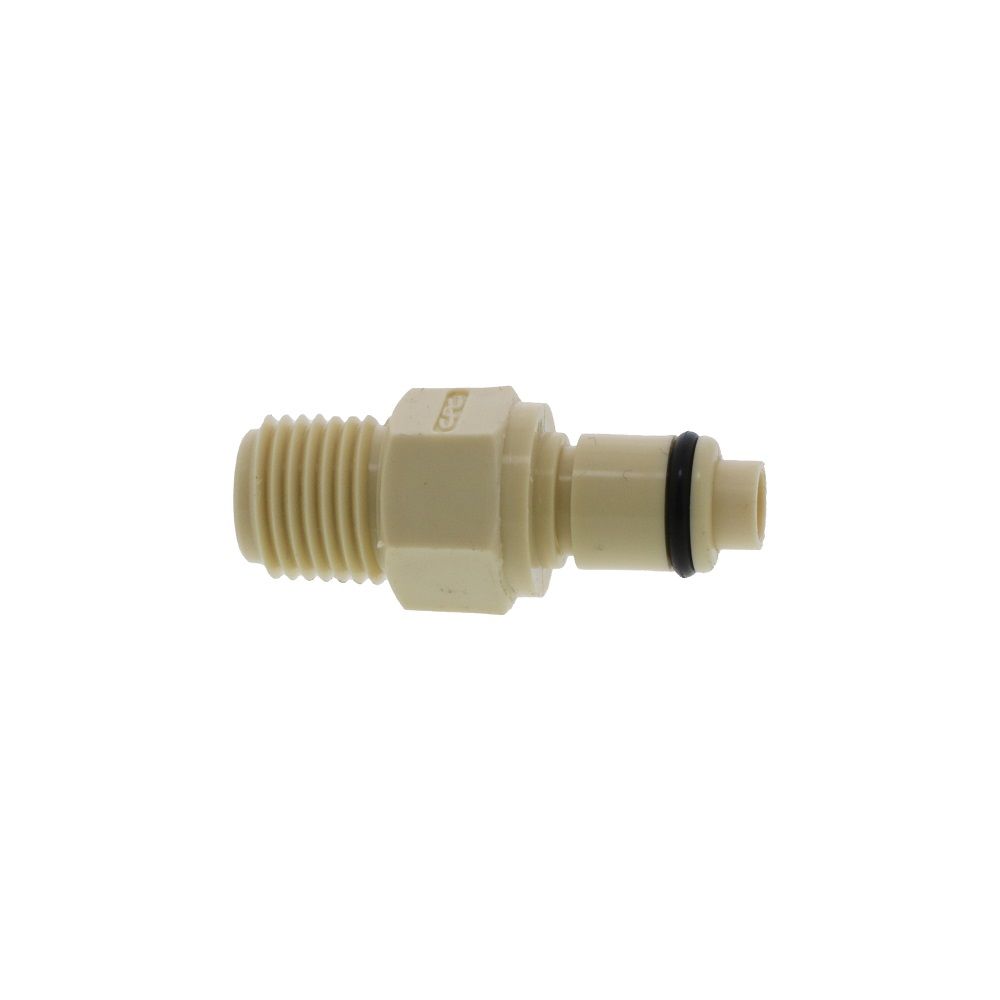

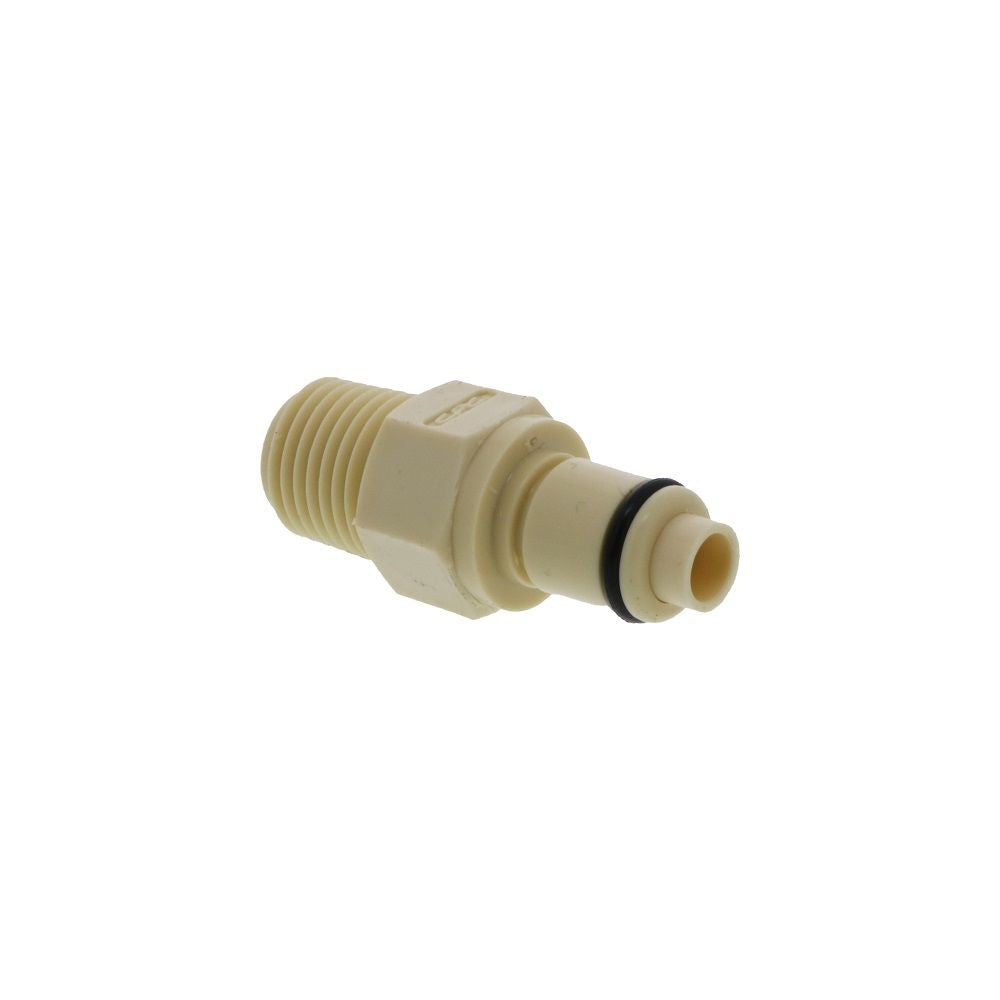

PLCD2400412 Valved Male Thread Coupling Insert 1/4 MPT

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:

Material: Polypropylene
Color: Almond
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Thread
Valve Option: Valved
Temperature Range: 32ºF to 160ºF
Valve Spring: 316 Stainless Steel
Seal Options: EPDM
Available in Bags of 25 units

California residents Prop 65 Warning

WARNING!

This product contains materials known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov

Product Details
Application	Water
Inlet Connection	1/4" MPT
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Temp (°F)	32
Nsf Version	No
Outlet Connection	1/4" MPT
Series	PLC12
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	Almond
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	0.05

Product Details
Application	Water
Inlet Connection	1/4" MPT
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Temp (°F)	32
Nsf Version	No
Outlet Connection	1/4" MPT
Series	PLC12
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	Almond
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Shipping Dimensions
Shipping Length	9 in.
Shipping Width	9 in.
Shipping Height	9 in.
Product Weight & Dimensions
Product Weight (lbs)	0.3

Product Details
Application	Water
Inlet Connection	1/4" MPT
Max Pressure (Psi)	120
Max Temp (°F)	160
Min Temp (°F)	32
Nsf Version	No
Outlet Connection	1/4" MPT
Series	PLC12
Shape	Straight
Size	1/4"
Valve Type	Valved
Color / Finish	Almond
Connection Type	Male (MPT)
Origin	U.S.A.
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	15
