Colder Products

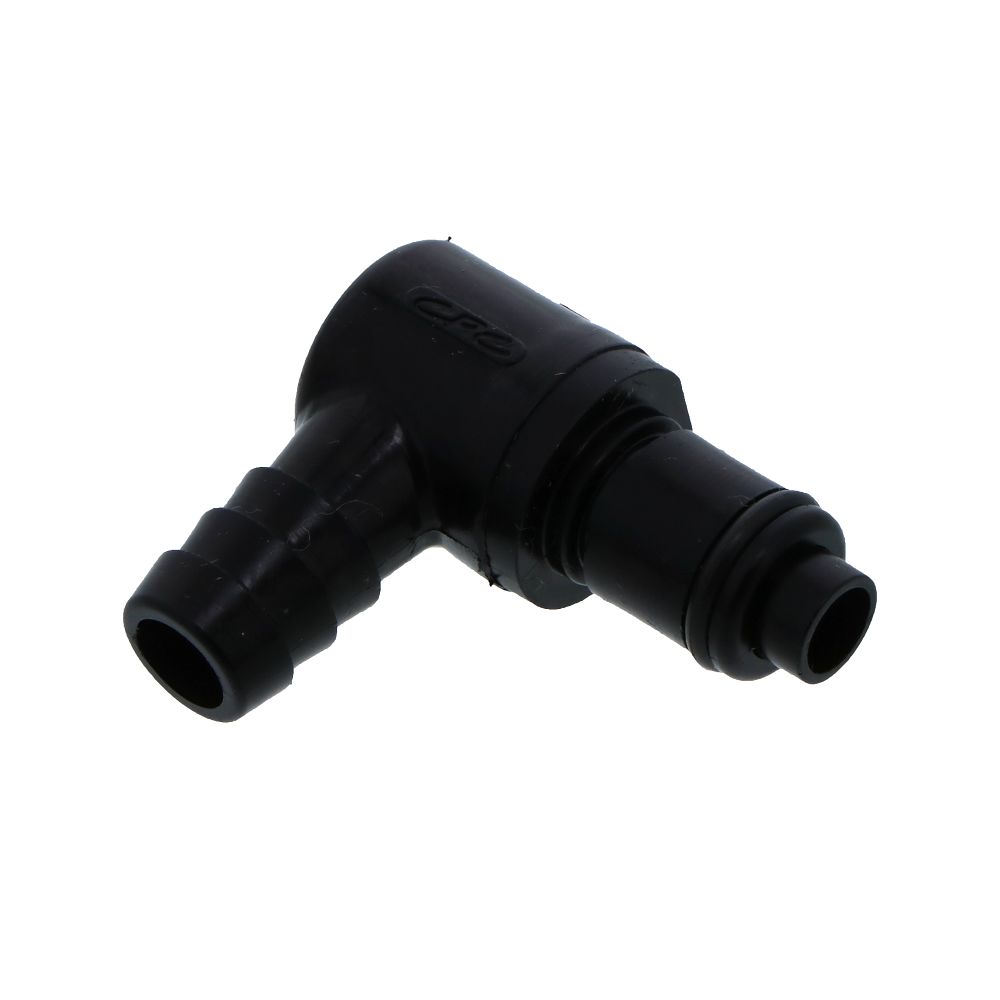

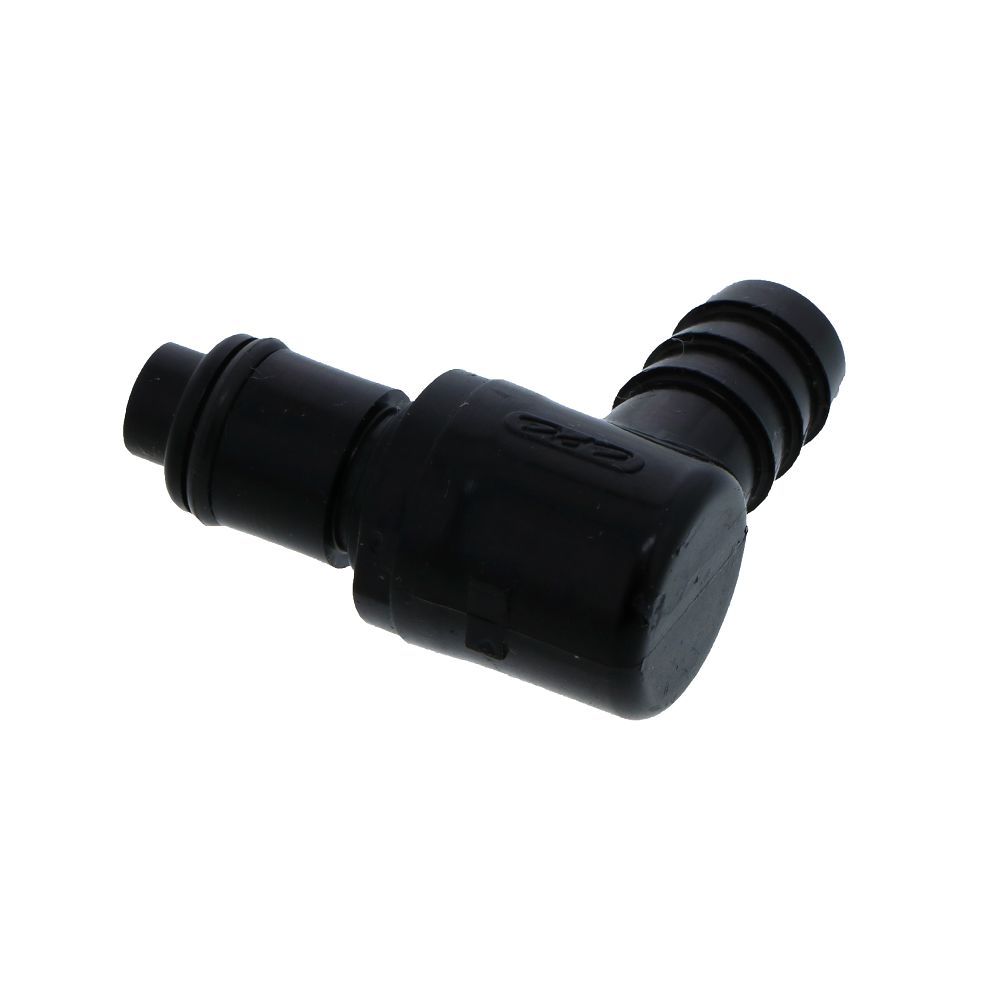

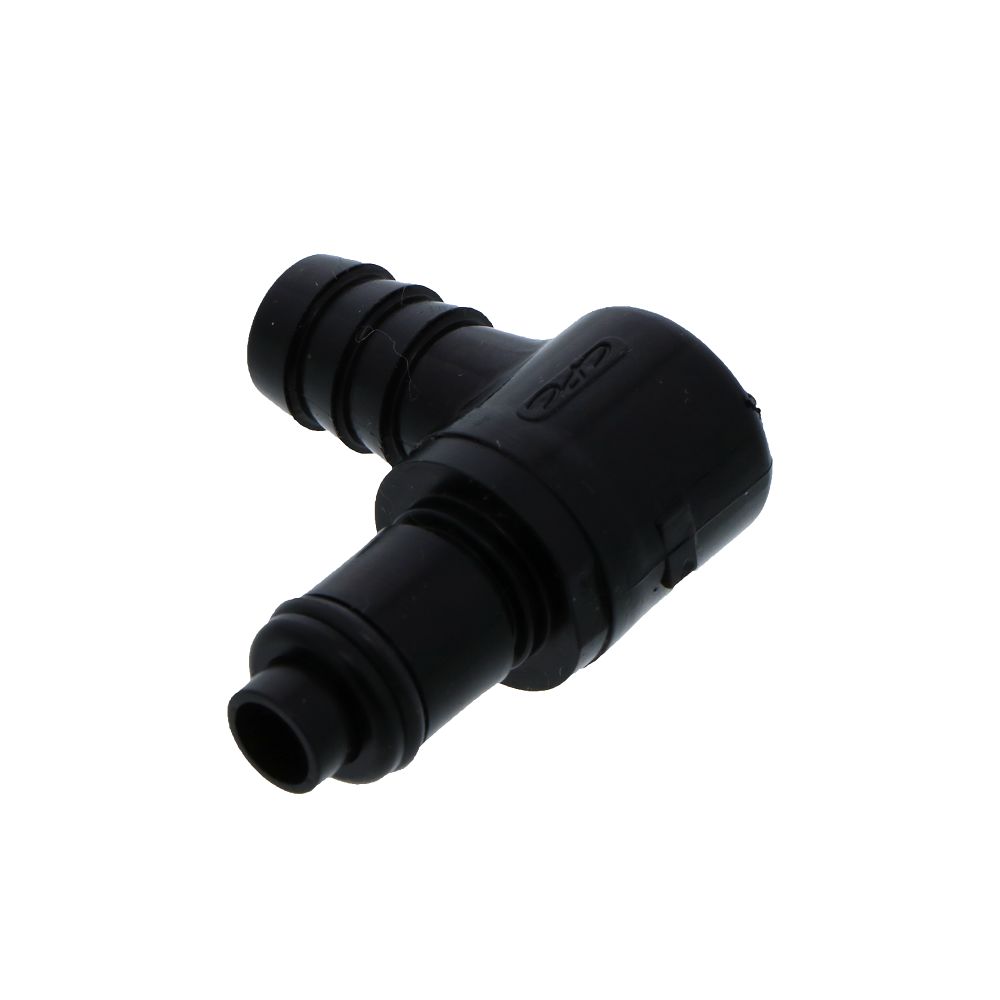

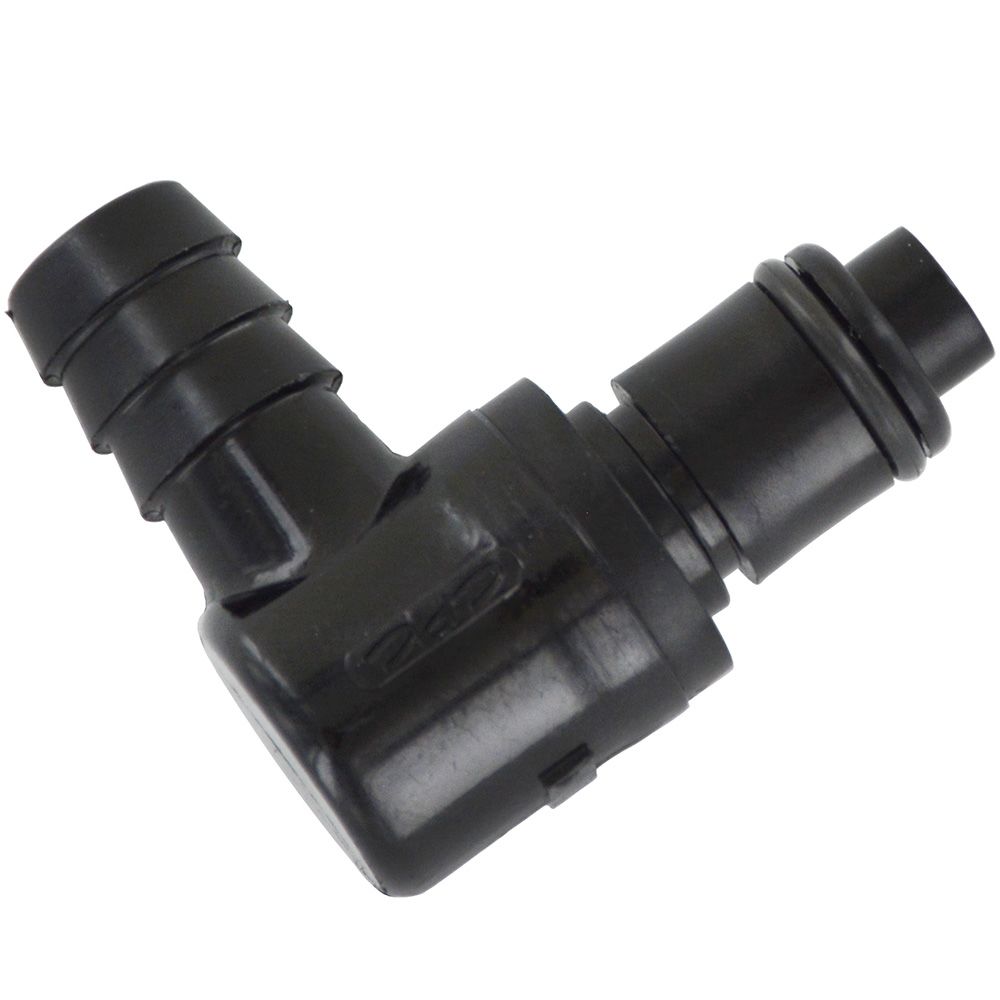

PLCD23006VBLK Valved Black Elbow Hose Barb Coupling Insert 3/8 ID Barb FKM (Viton) O-rings
![PLCD23006VBLK Valved Black Elbow Hose Barb Coupling Insert 3/8 ID Barb FKM [Viton] O-rings](http://cdn.shopify.com/s/files/1/2723/8896/products/hjhbohbk02bidwdspznw_1500x.jpg?v=1543622861)
![PLCD23006VBLK Valved Black Elbow Hose Barb Coupling Insert 3/8 ID Barb FKM [Viton] O-rings](http://cdn.shopify.com/s/files/1/2723/8896/products/w8lm6zobfwyduol35qal_1500x.jpg?v=1543622861)
![PLCD23006VBLK Valved Black Elbow Hose Barb Coupling Insert 3/8 ID Barb FKM [Viton] O-rings](http://cdn.shopify.com/s/files/1/2723/8896/products/bzqi7l2q4cvulazixj3x_1500x.jpg?v=1543622861)
![PLCD23006VBLK Valved Black Elbow Hose Barb Coupling Insert 3/8 ID Barb FKM [Viton] O-rings](http://cdn.shopify.com/s/files/1/2723/8896/products/sqrxa3vwnis6noiqtbqm_1500x.jpg?v=1543622861)
The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.
Specifications:
NOTE: These fittings are dye colored, so they are NOT suitable for use in medical applications as there is a remote possibility that color could leach out.
Specifications:
- Material: Acetal
- Color: Black
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: -40ºF to 180ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: FKM (Viton)
- Available in Bags of 25 units
NOTE: These fittings are dye colored, so they are NOT suitable for use in medical applications as there is a remote possibility that color could leach out.
Weight & Dimensions
Length (inches) | 2.25 |
Height (inches) | 0.5 |
Width (inches) | 1.63 |
Weight (lbs) | 0.000625 |
Details
Series | PLC |
Max Temp (°F) | 180 |
Max Pressure (Psi) | 120 |
Min Temp (°F) | -40 |
Min Pressure (Psi) | Vacuum |
Barb Size | 3/8" ID |
Application | Water |
Bag Quantity | 25 |
Body Material | Acetal Copolymer |
Color / Finish | Black |
Mounting Options | Free Floating |
Seal Material | FKM (Viton) |
Spring | 316 Stainless Steel |
Valve Type | Valved |
The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.
Specifications:
- Material: Acetal
- Color: Black
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: -40ºF to 180ºF
- Valve Spring: 316 Stainless Steel
- Seal Options: FKM (Viton)
- Available in Bags of 25 units
NOTE: These fittings are dye colored, so they are NOT suitable for use in medical applications as there is a remote possibility that color could leach out.
Weight & Dimensions
Length (inches) | 2.25 |
Height (inches) | 0.5 |
Width (inches) | 1.63 |
Weight (lbs) | 0.000625 |
Details
Series | PLC |
Max Temp (°F) | 180 |
Max Pressure (Psi) | 120 |
Min Temp (°F) | -40 |
Min Pressure (Psi) | Vacuum |
Barb Size | 3/8" ID |
Application | Water |
Bag Quantity | 25 |
Body Material | Acetal Copolymer |
Color / Finish | Black |
Mounting Options | Free Floating |
Seal Material | FKM (Viton) |
Spring | 316 Stainless Steel |
Valve Type | Valved |
Documentation
