Colder Products

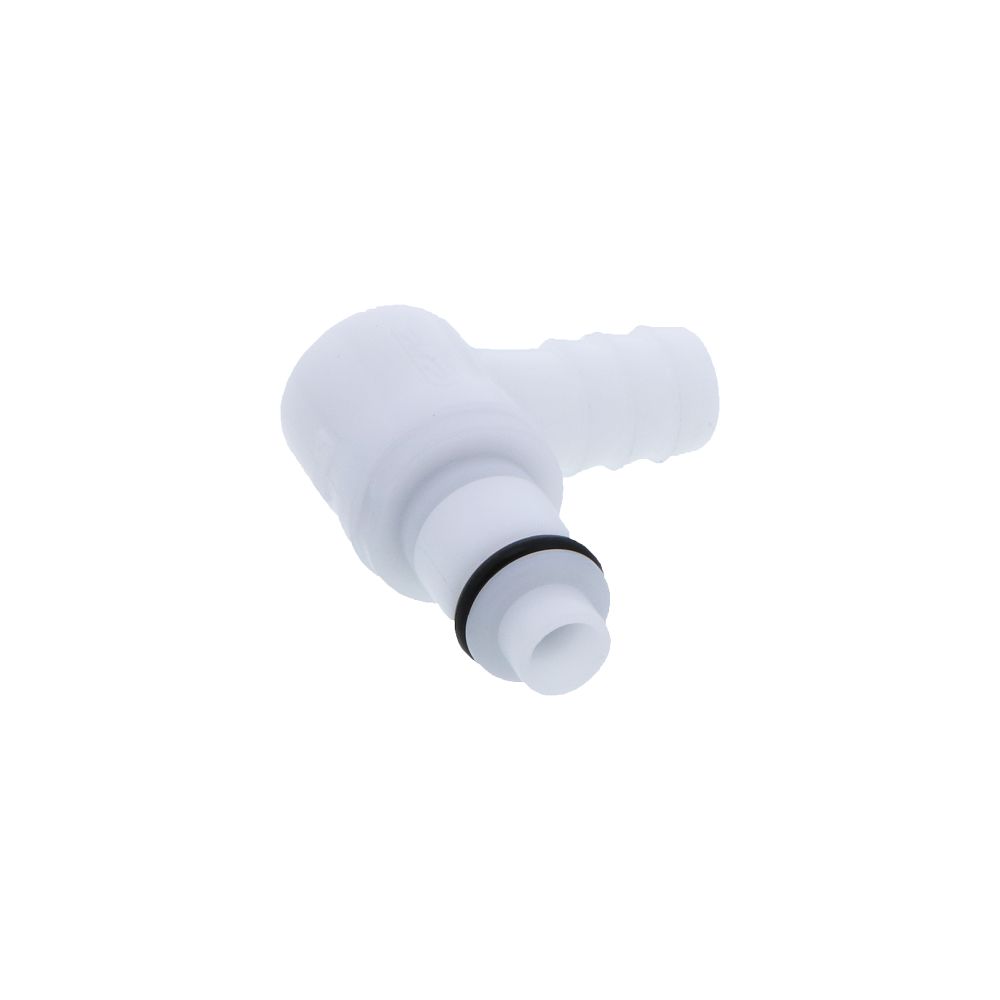

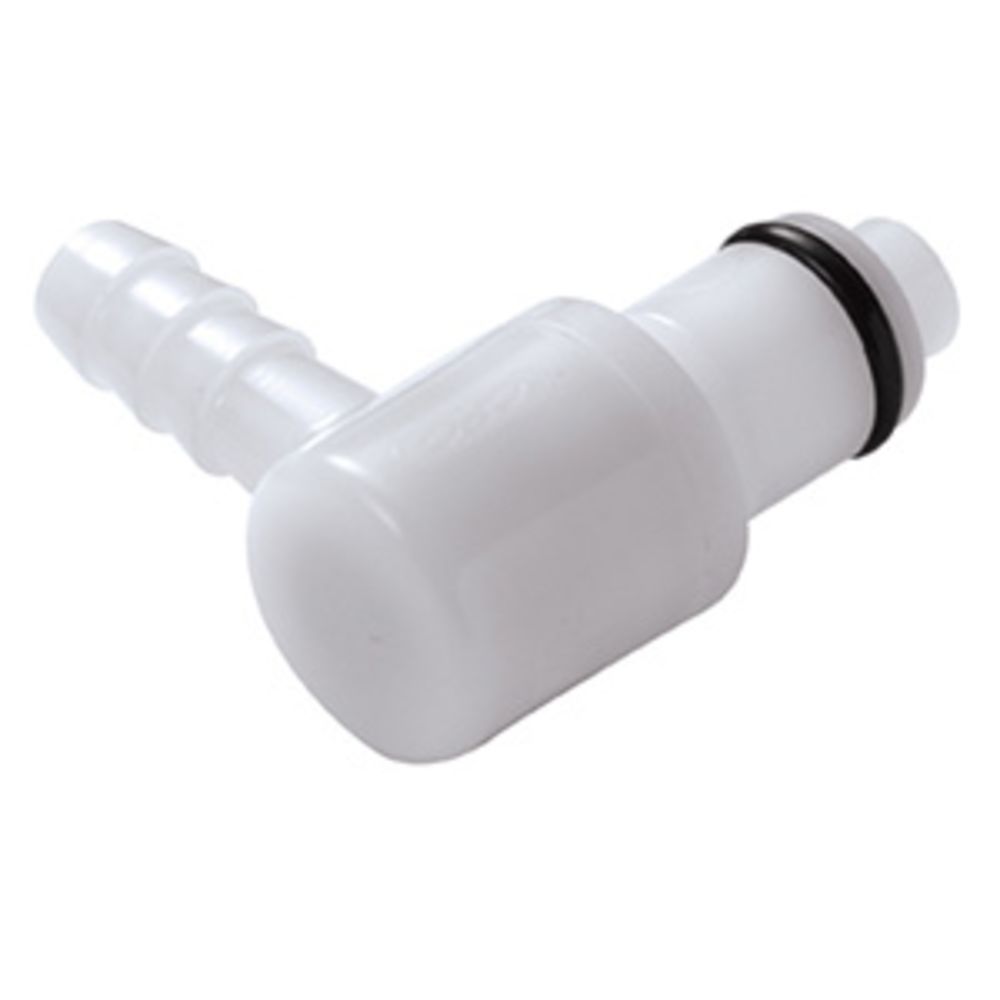

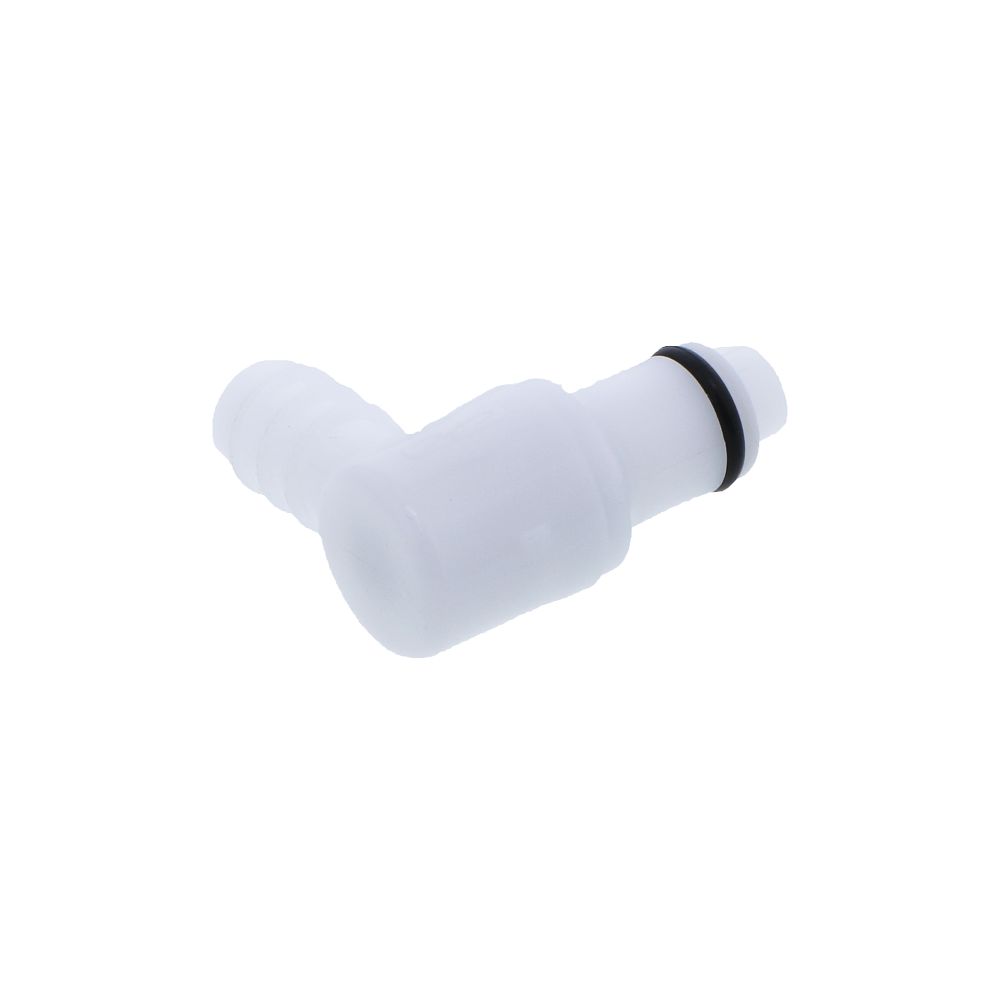

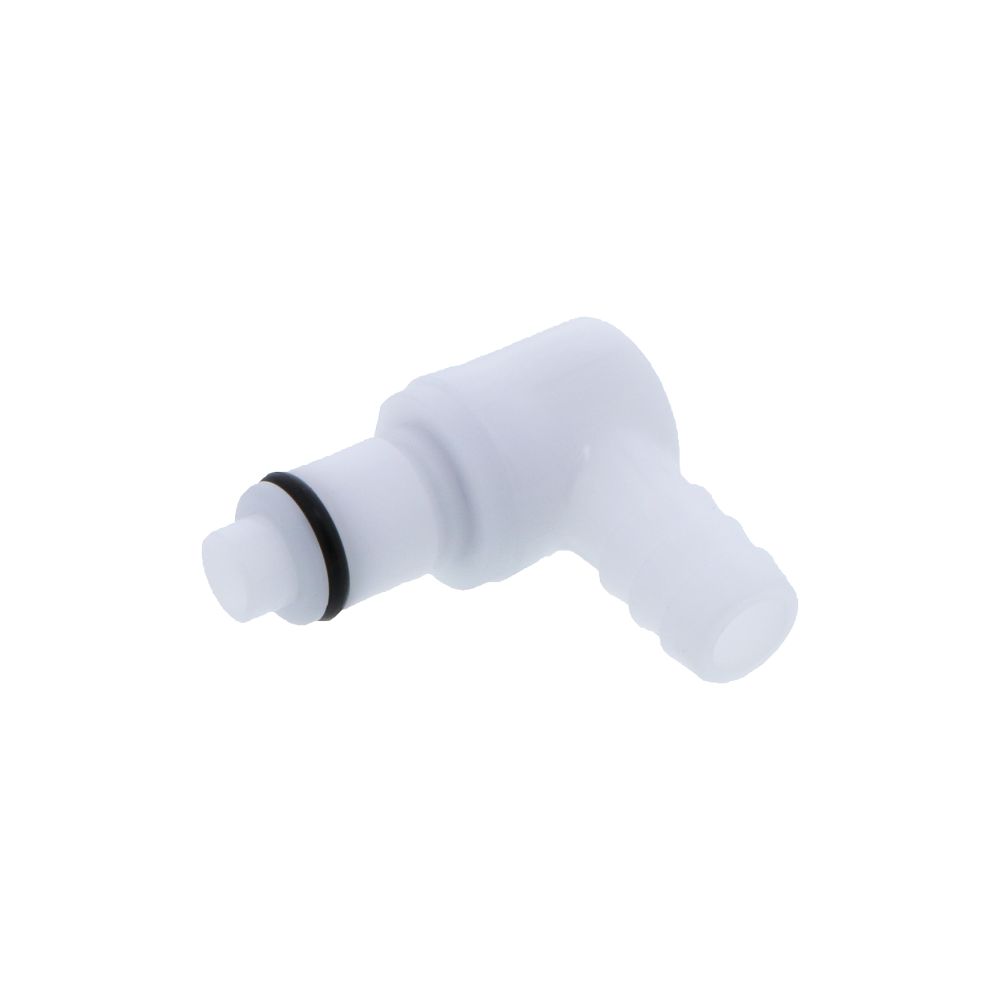

PLCD23006 Valved Elbow Hose Barb Coupling Insert 3/8 ID Barb

Part Number: PLCD23006

In Stock

out of stock

In Stock

$7.02


The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units


Details

Series

PLC

Barb Size

3/8"

Bag Quantity

25

Body Material

Acetal

Color / Finish

White

O Rings

Buna-N

Operating Pressure Range

120 PSI

Operating Temperature Range

-40ºF to 180ºF

Origin

USA

Seal Material

Buna-N

Spring

316 stainless steel

Valve Type

Valved


PLCD23006





The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units

Details

Series

PLC

Barb Size

3/8"

Bag Quantity

25

Body Material

Acetal

Color / Finish

White

O Rings

Buna-N

Operating Pressure Range

120 PSI

Operating Temperature Range

-40ºF to 180ºF

Origin

USA

Seal Material

Buna-N

Spring

316 stainless steel

Valve Type

Valved
