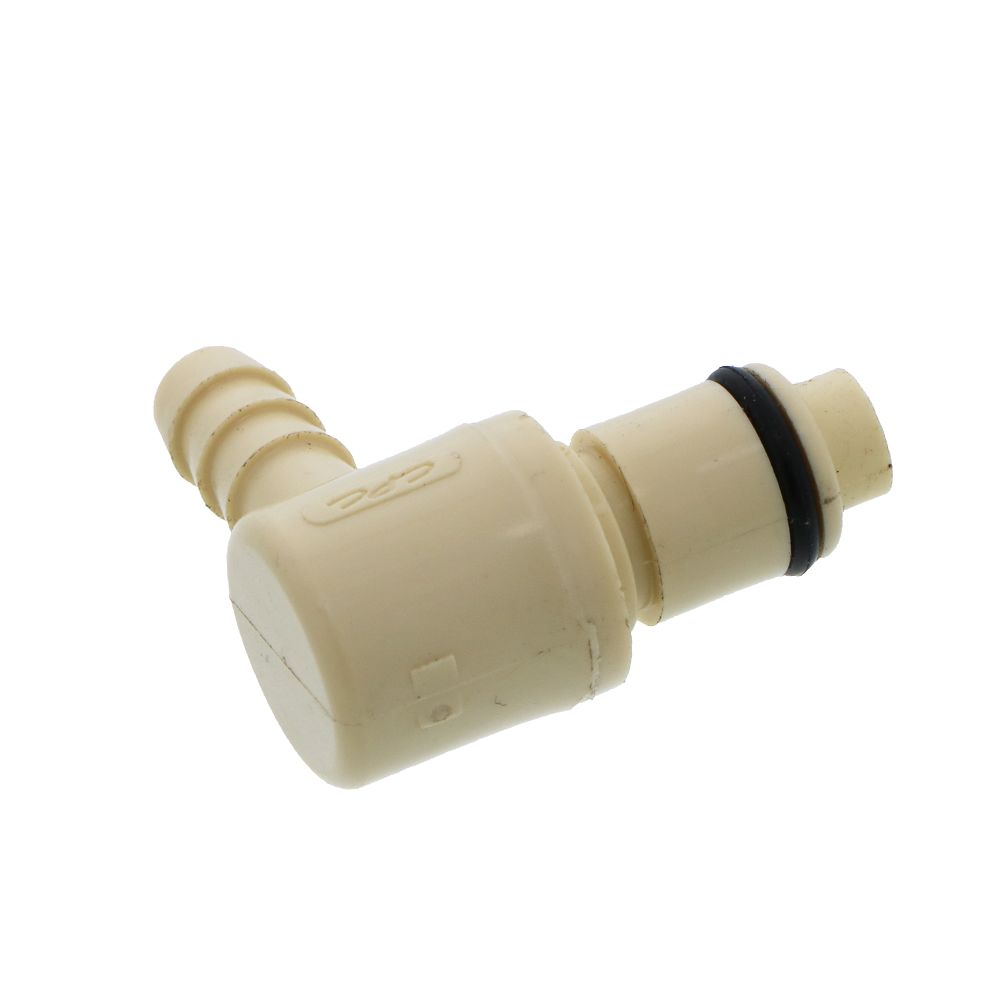

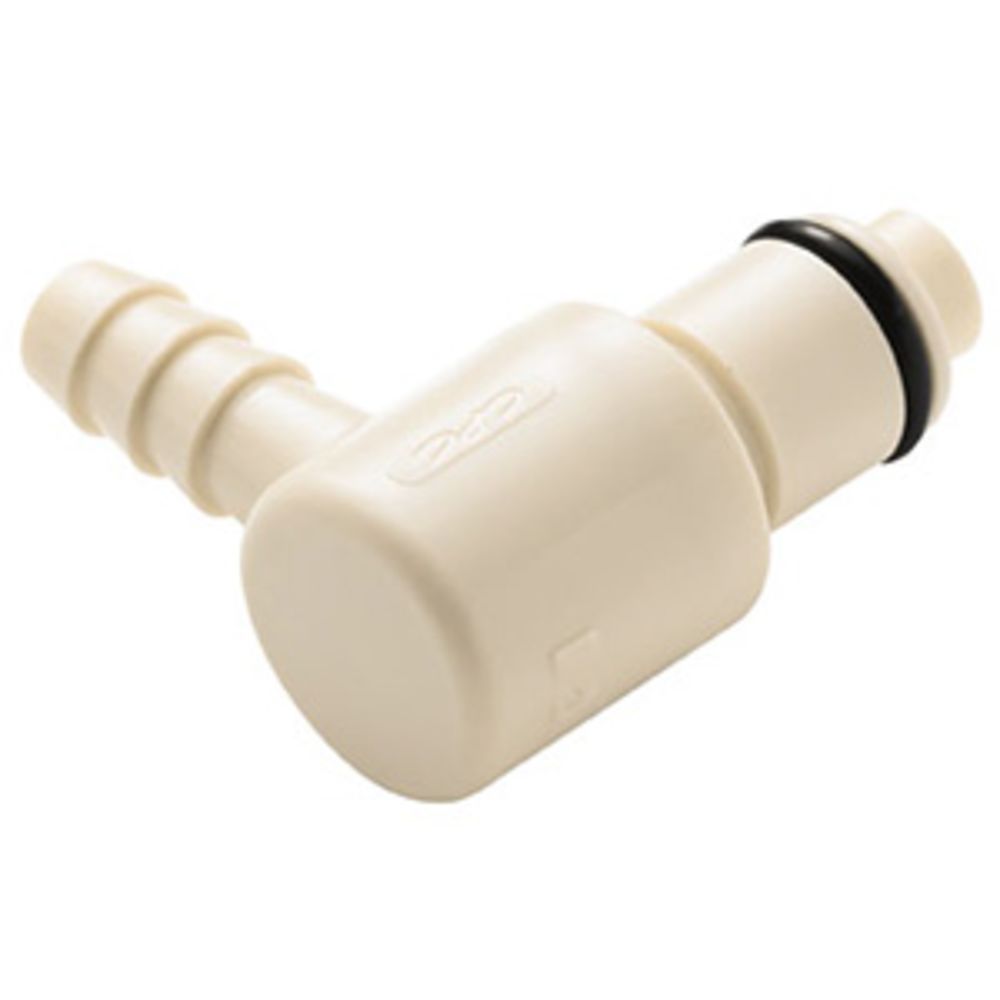

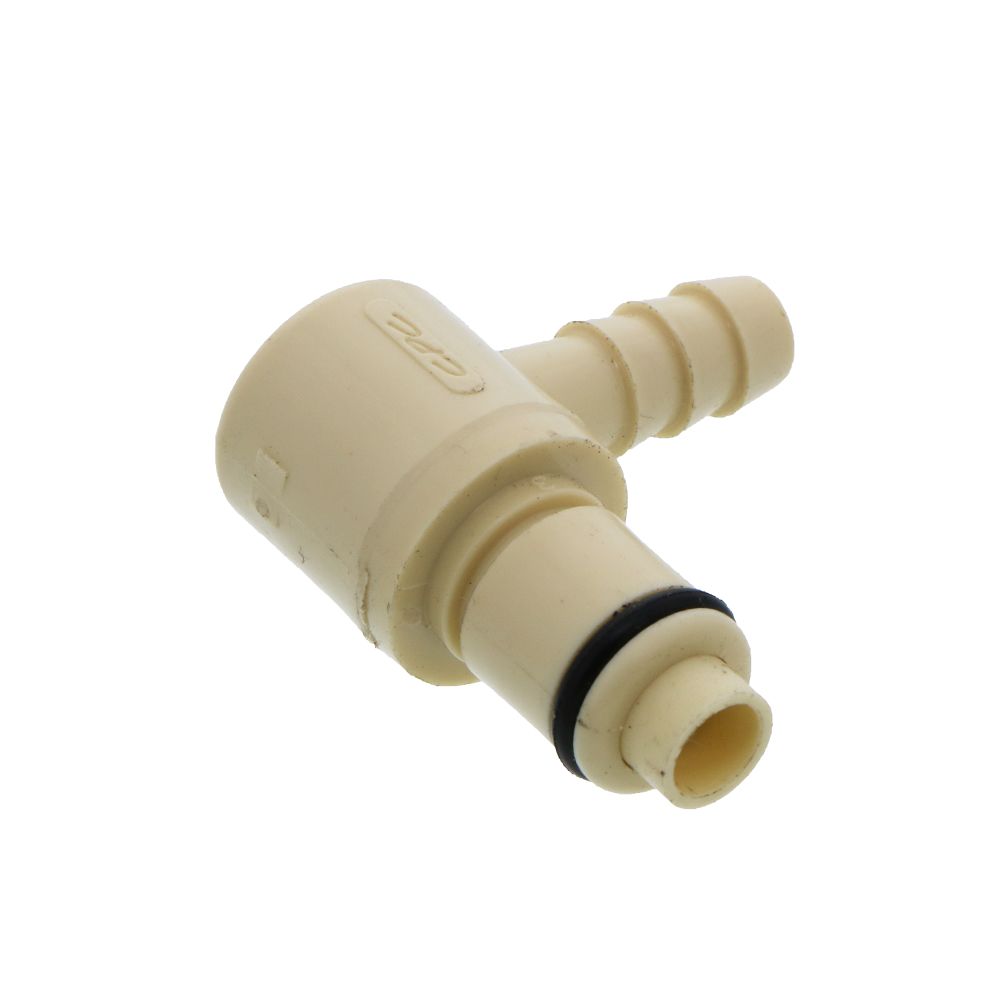

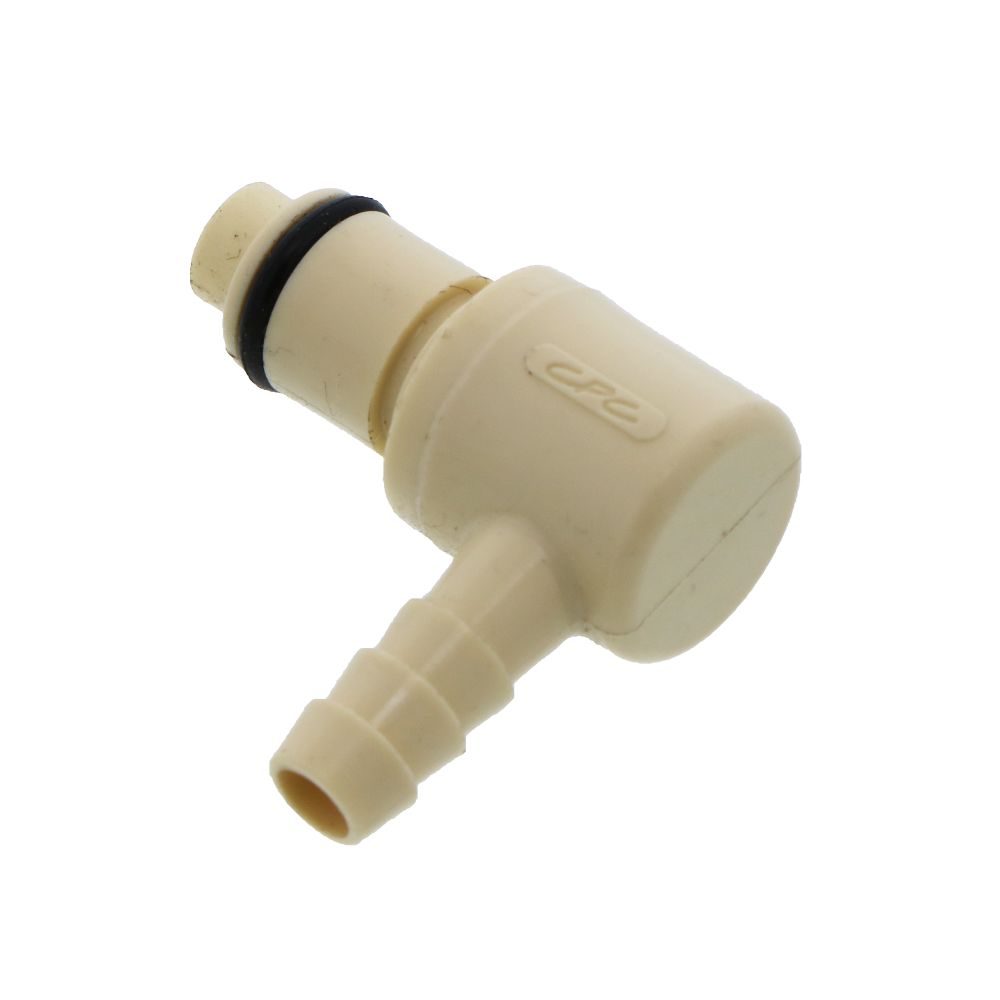

PLCD2300412 Valved Elbow Hose Barb Coupling Insert 1/4 ID Barb

Part Number: PLCD2300412

In Stock

out of stock

In Stock

$9.63

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Available in Bags of 25 units




Details

Series

PLC12

Max Temp (°F)

160

Max Pressure (Psi)

120

Min Temp (°F)

32

Min Pressure (Psi)

vacuum

Barb Size

1/4" ID

Application

Water

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Free Floating

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel


PLCD2300412




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Available in Bags of 25 units



Details

Series

PLC12

Max Temp (°F)

160

Max Pressure (Psi)

120

Min Temp (°F)

32

Min Pressure (Psi)

vacuum

Barb Size

1/4" ID

Application

Water

Bag Quantity

25

Body Material

Polypropylene

Color / Finish

Almond

Mounting Options

Free Floating

Seal Material

EPDM

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless Steel

Thumb Latch

Stainless Steel
