Colder Products

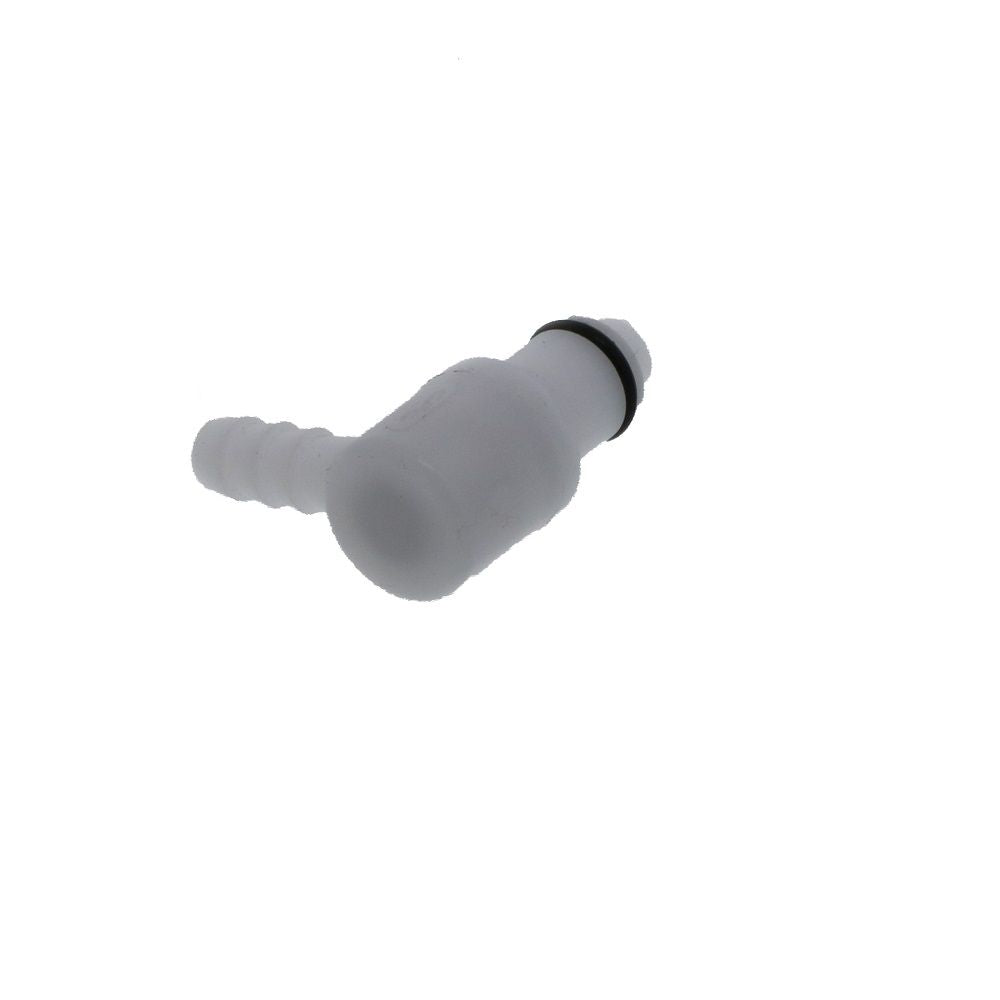

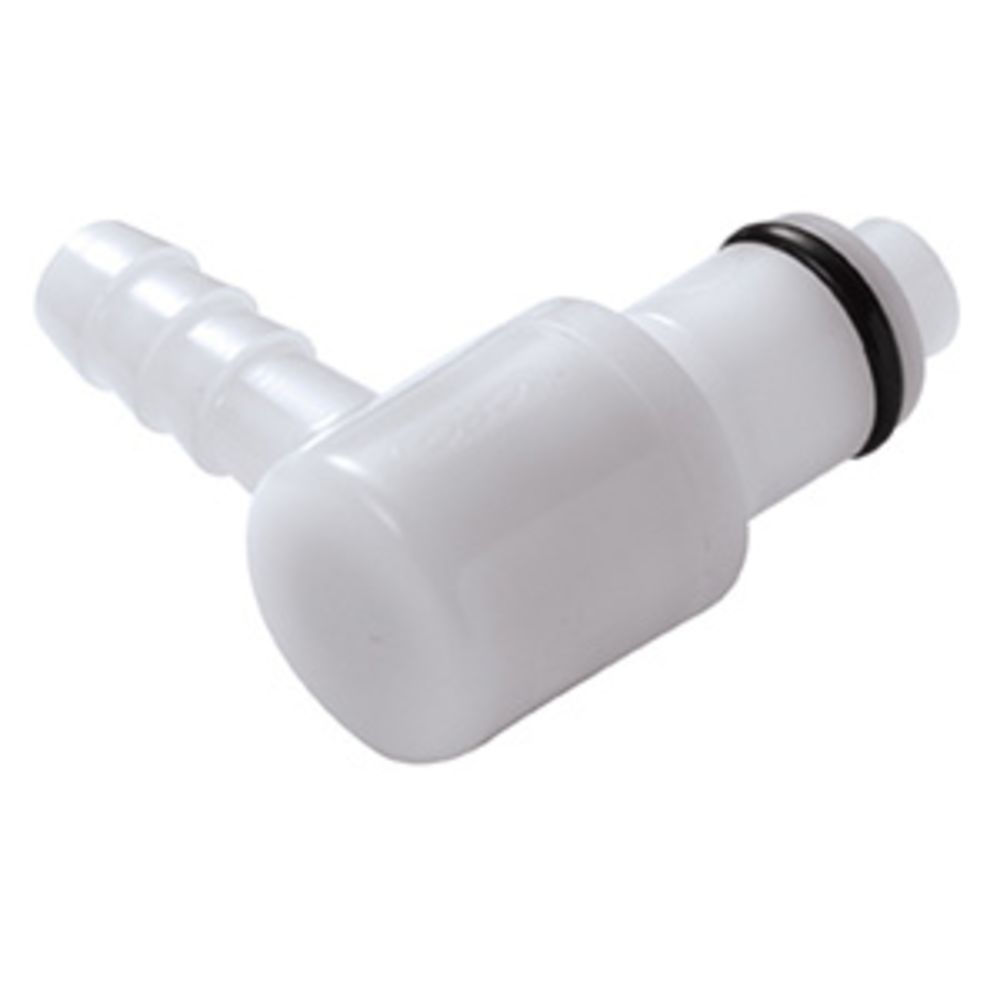

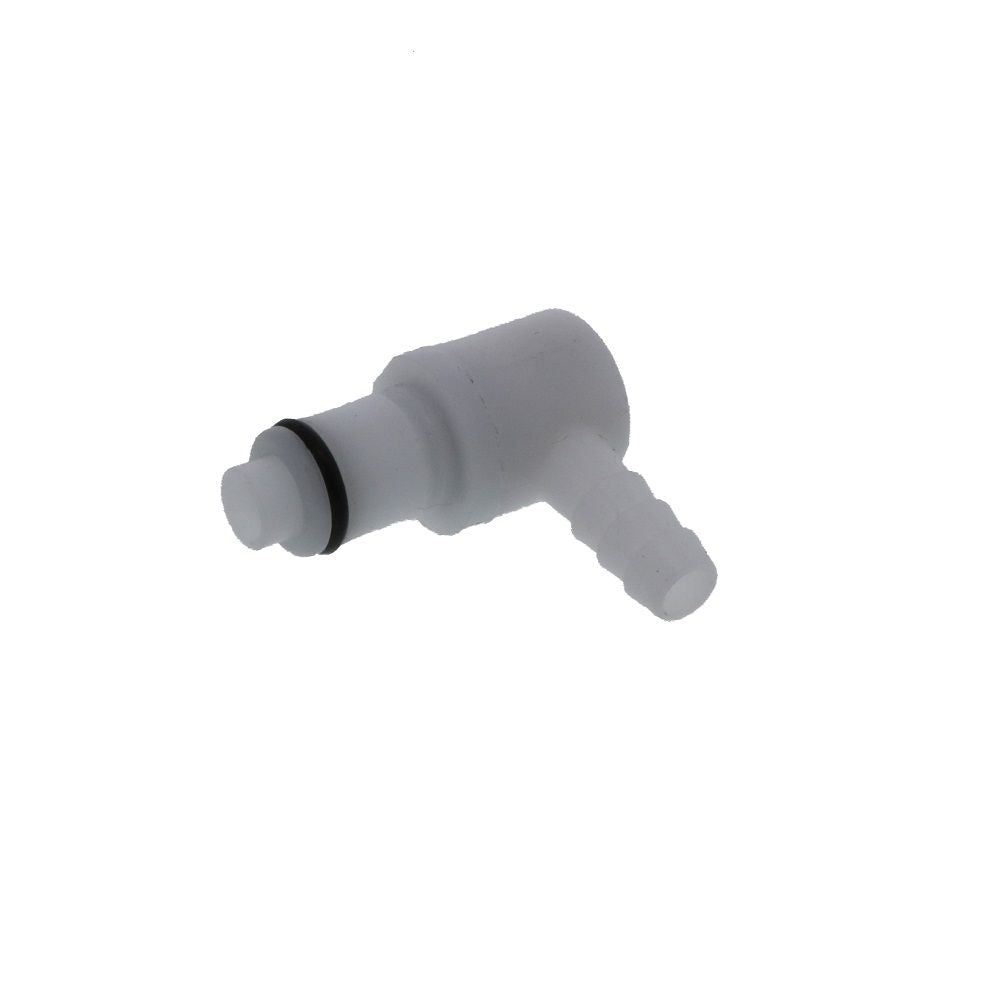

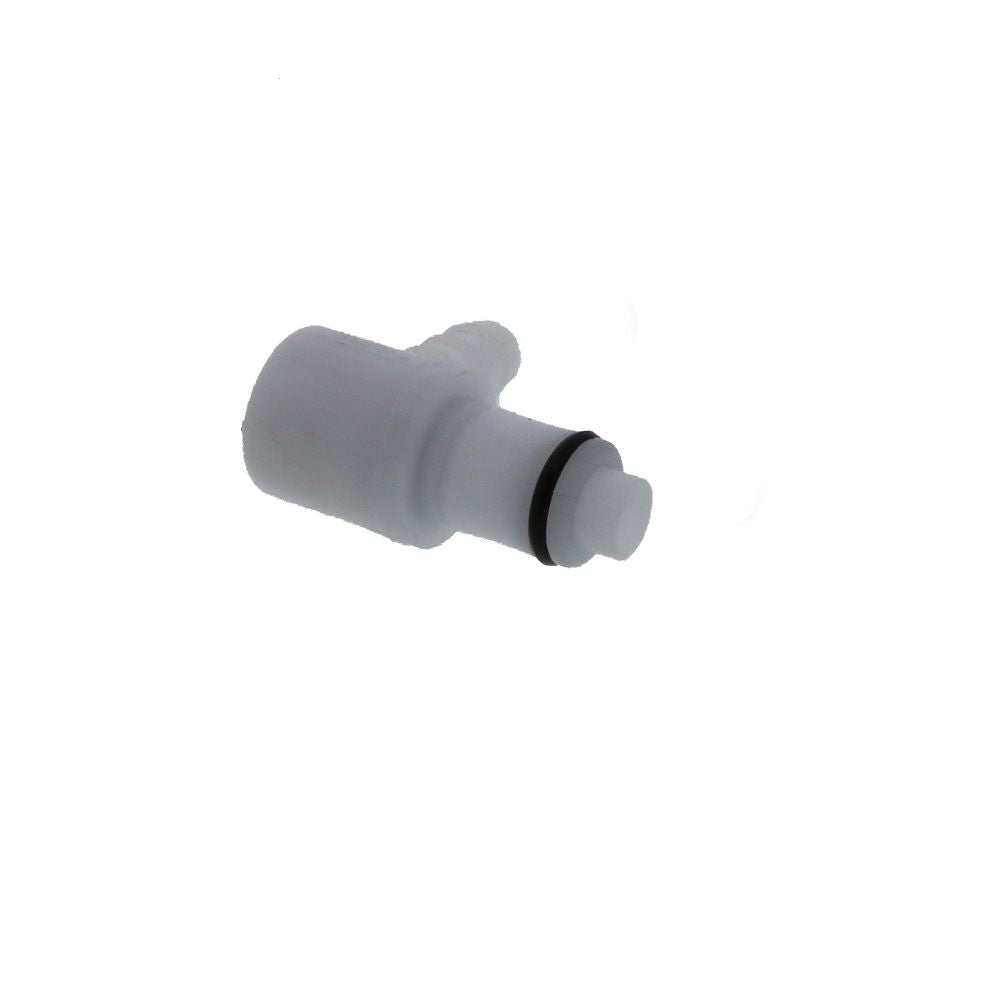

PLCD23004 Valved Elbow Hose Barb Coupling Insert 1/4 ID Barb

Part Number: PLCD23004

In Stock

out of stock

In Stock

$7.92

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF version 21600 available




Weight & Dimensions

Height (inches)

0.5

Length (inches)

1.5

Weight (lbs)

0.0625

Width (inches)

1.5

Details

Application

Water

Barb Size

1/4" ID

Body Material

Acetal Copolymer

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

Buna-N

Series

PLC

Spring

316 stainless steel

Valve Type

Valved

Color / Finish

White

Origin

USA

Type

Coupling Insert


PLCD23004
