Colder Products

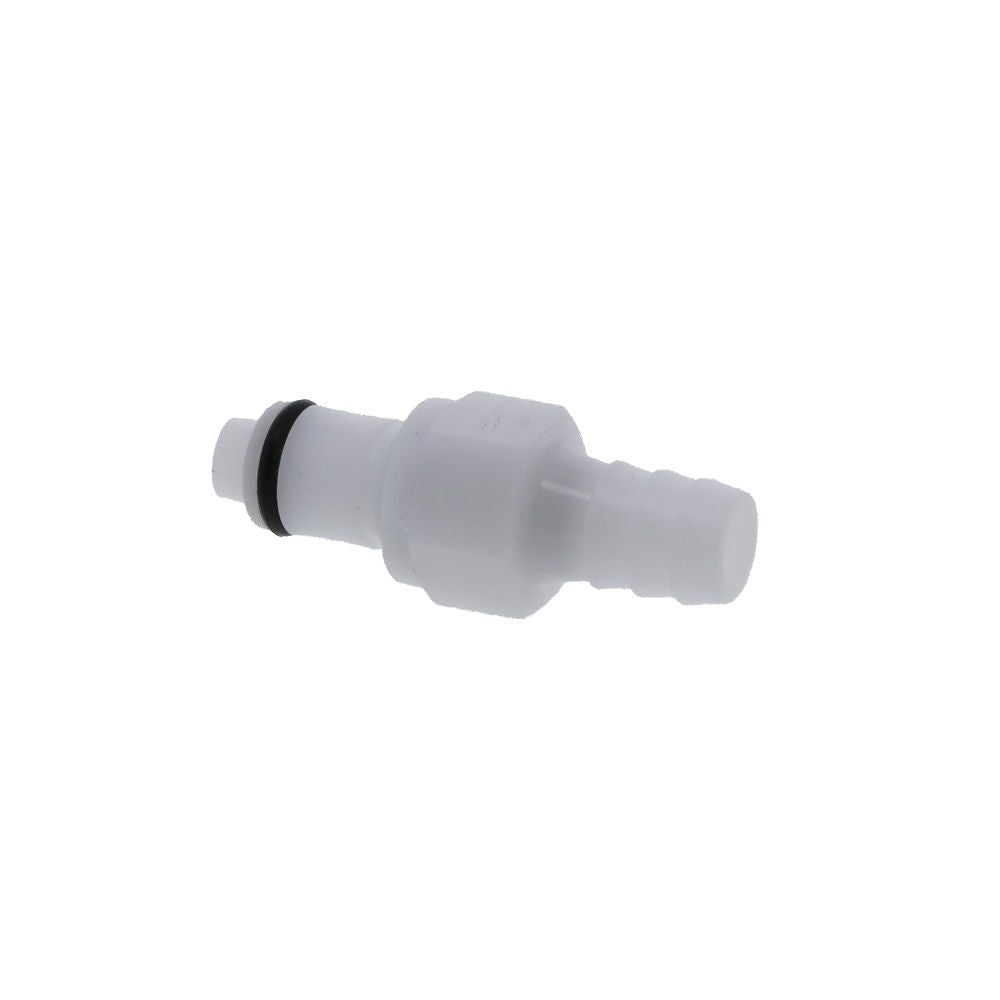

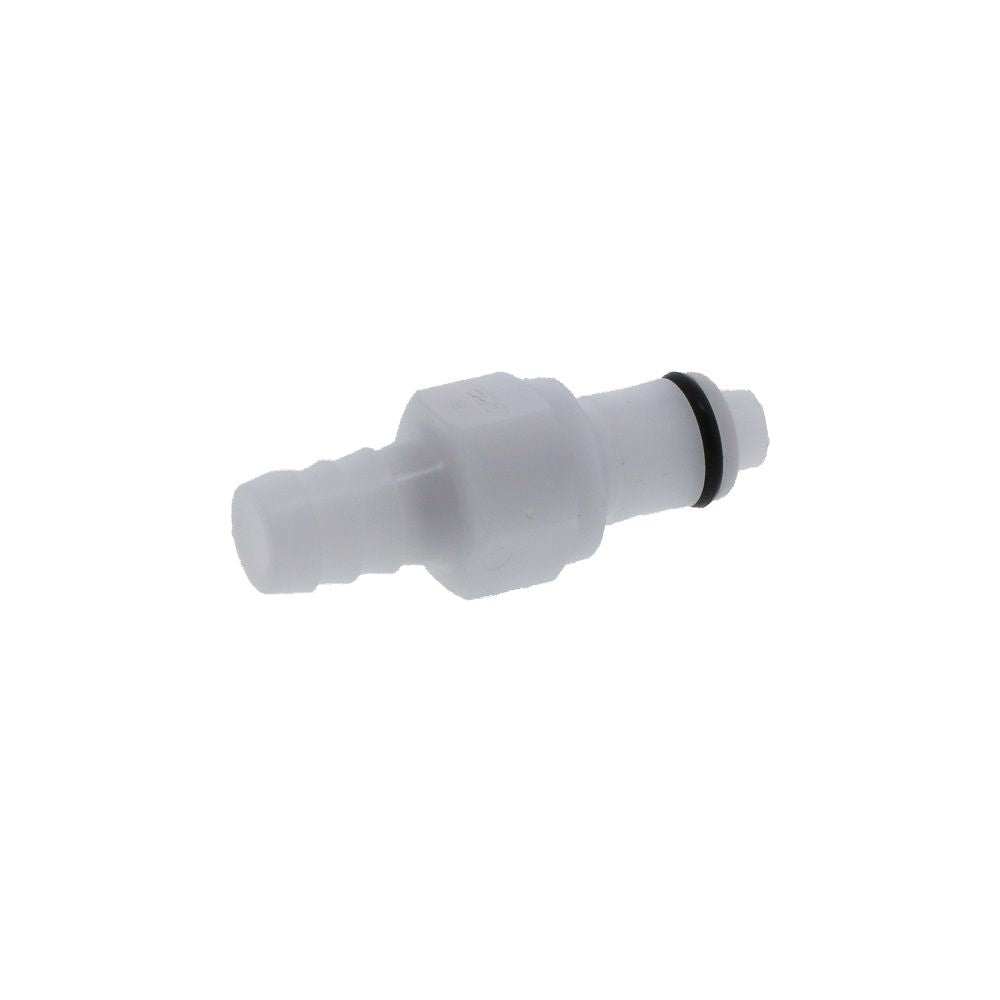

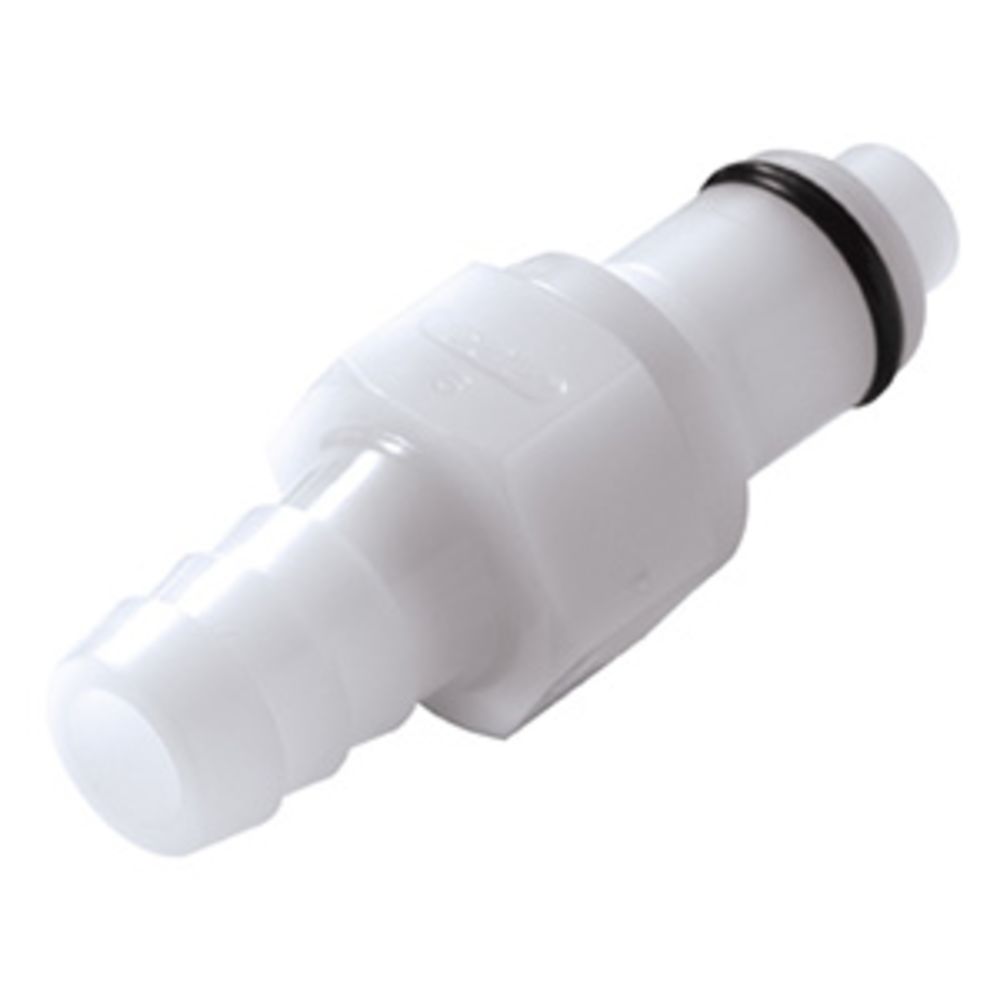

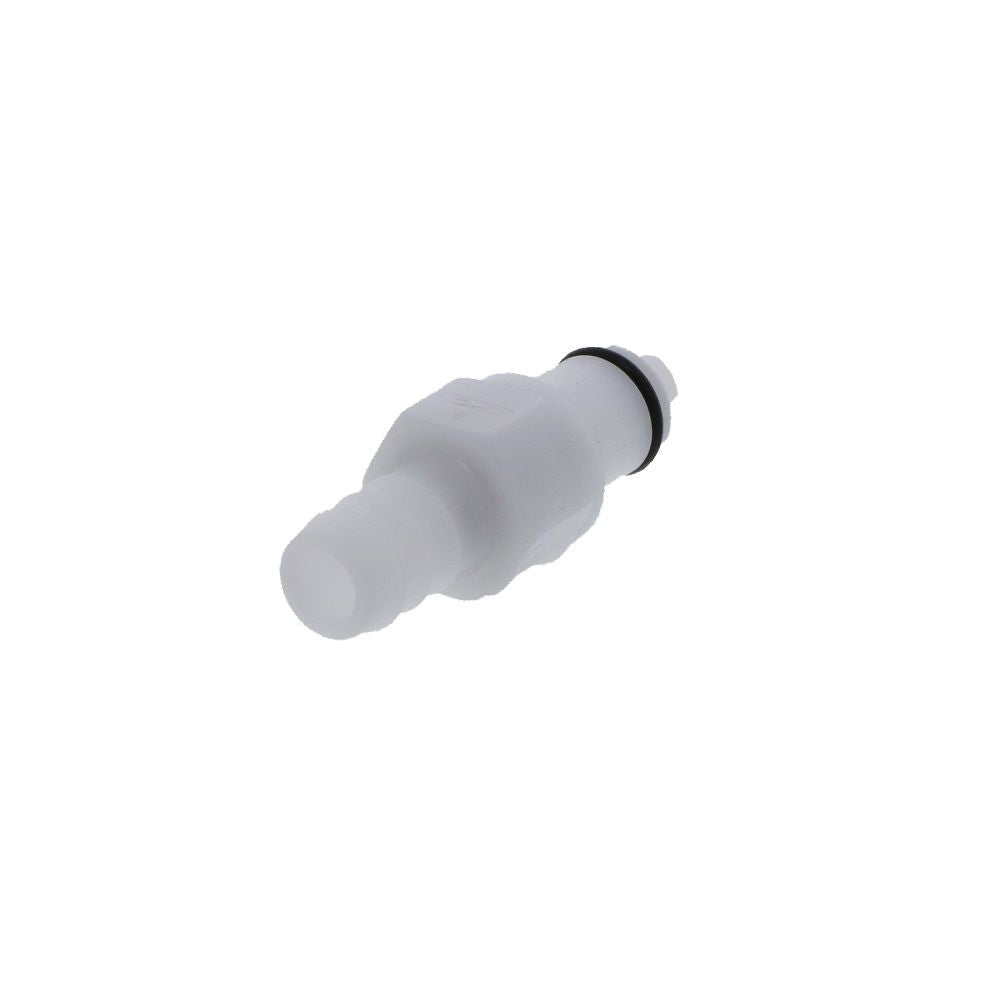

PLCD22006V Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb Viton O-ring

Part Number: PLCD22006V

In Stock

out of stock

In Stock

$7.29

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Viton
  • Available in Bags of 25 units




Weight & Dimensions

Height (inches)

1

Length (inches)

2

Weight (lbs)

0.0625

Width (inches)

1

Details

Application

Water

Barb Size

3/8" ID

Body Material

Acetal Copolymer

Color / Finish

White

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

FKM (Viton)

Series

PLC

Spring

316 Stainless Steel

Valve Type

Valved


PLCD22006V




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Viton
  • Available in Bags of 25 units



Weight & Dimensions

Height (inches)

1

Length (inches)

2

Weight (lbs)

0.0625

Width (inches)

1

Details

Application

Water

Barb Size

3/8" ID

Body Material

Acetal Copolymer

Color / Finish

White

Max Pressure (Psi)

120

Max Temp (°F)

180

Min Pressure (Psi)

Vacuum

Min Temp (°F)

-40

Mounting Options

Free Floating

Seal Material

FKM (Viton)

Series

PLC

Spring

316 Stainless Steel

Valve Type

Valved
