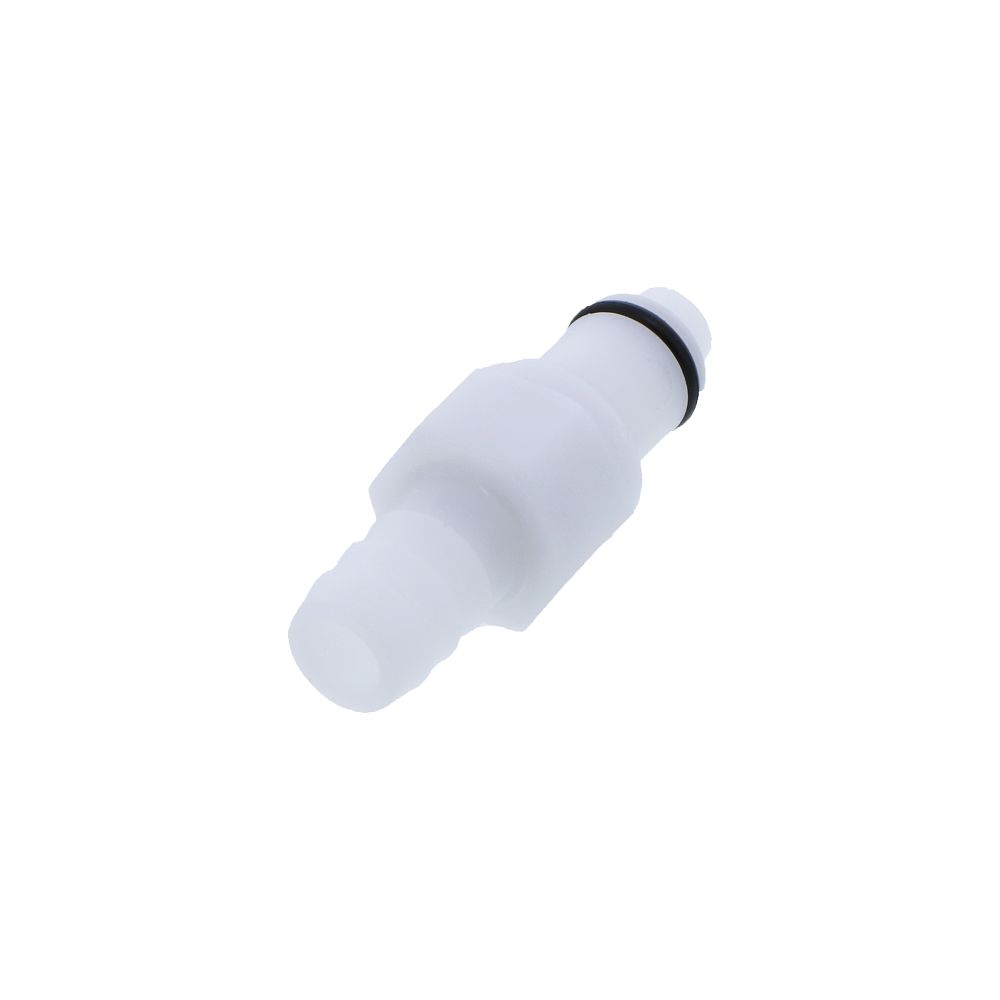

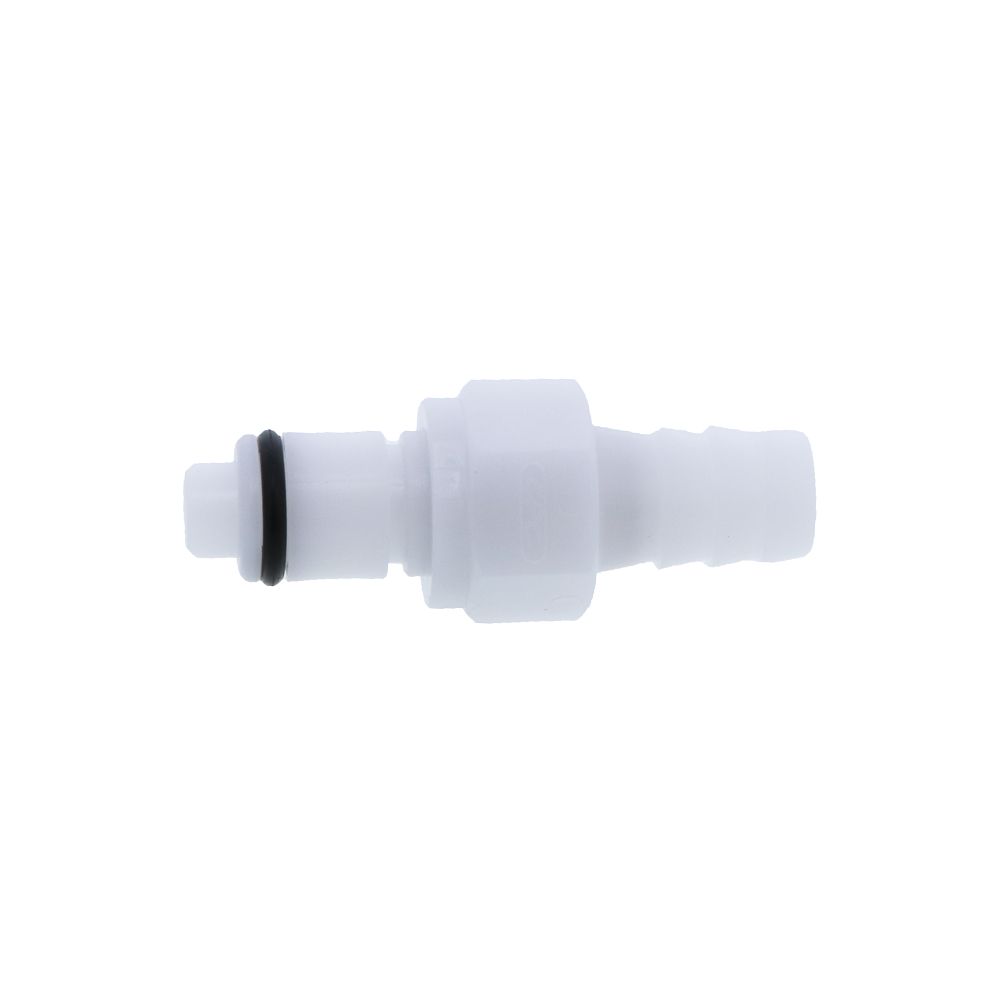

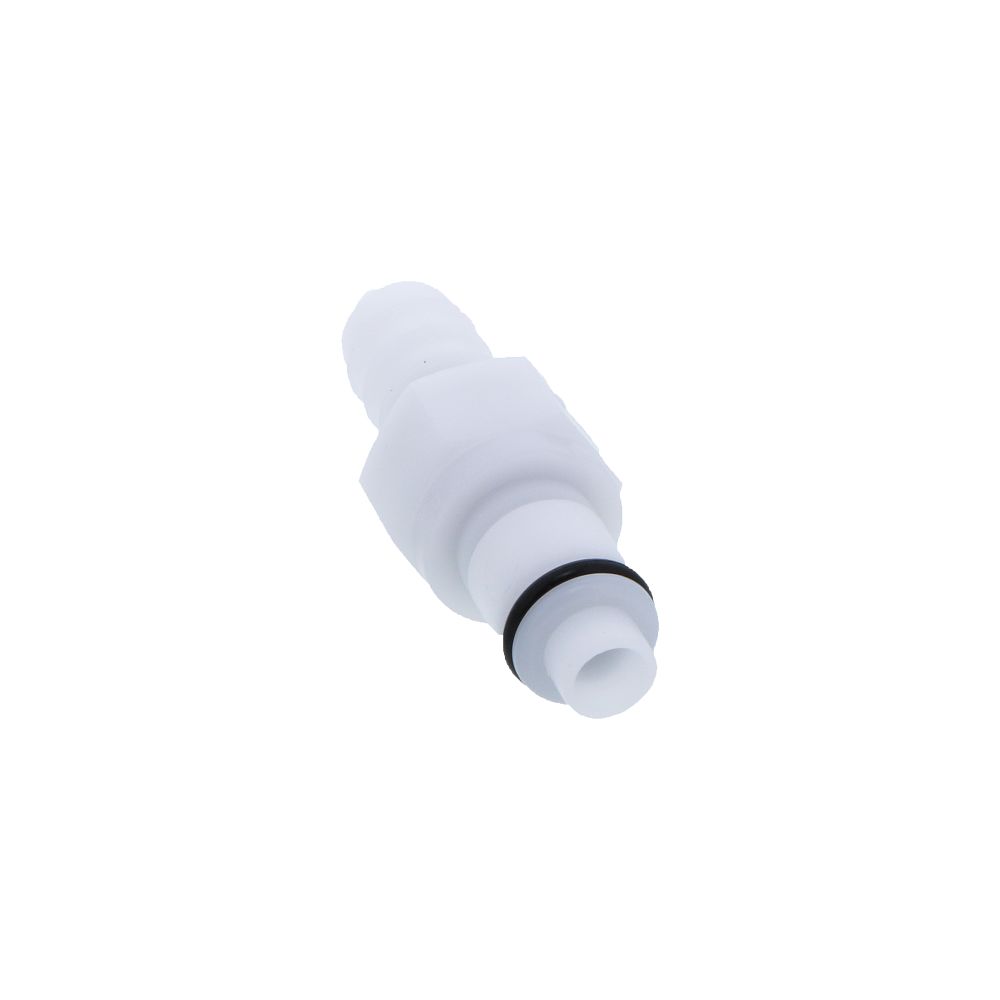

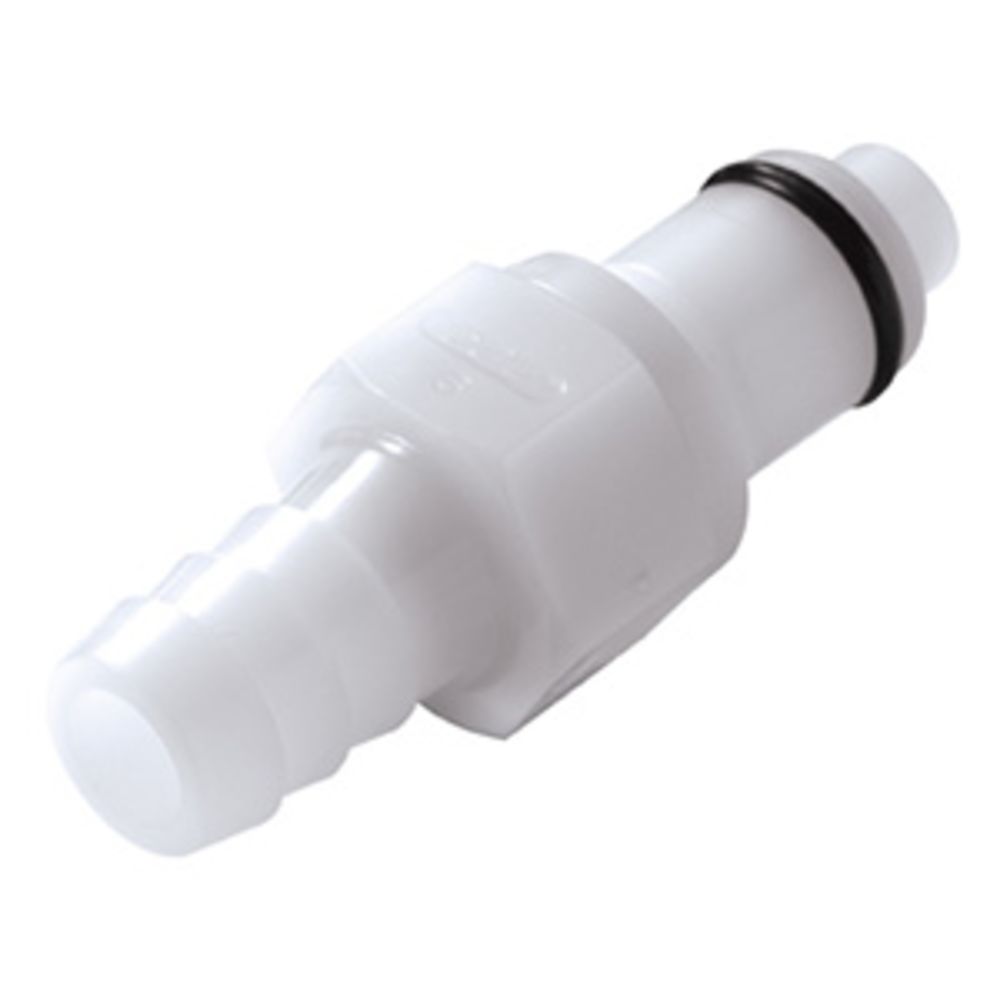

PLCD22006 Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb

5.0

(3 reviews)

Part Number: PLCD22006 Alt. Part Number: 40ACV-PB2-06

1 4

Colder Products

PLCD22006 Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb

5.0

(3 reviews)

Part Number: PLCD22006 Alt. Part Number: 40ACV-PB2-06

MSRP: $5.78

$5.78

Quantity

Unit Price

Price

Savings

$5.78

—

$5.63

$140.89

250

$5.49

$1,372.75

Product variants

Due to supply chain issues at the start , If the non-NSF version is not in stock, an identical Colder part with NSF testing (Auto-upgrade) will be sent to fulfill the order instead of the original part.

Request A Quote

Placing a large bulk order? Contact us for a quote.

Shipping Information

Shipping costs are based on your order’s weight, location, and selected shipping option. We strive to ship orders quickly, with expedited orders (Next Day Air or 2 Day) going out the same business day if placed before 4:30PM EST.

Description

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:

Material: Acetal
Color: White
Pressure Range: Vacuum to 120 psi, 8.3 bar
Mounting Option: Free Floating
Valve Option: Valved
Temperature Range: -40ºF to 180ºF
Valve Spring: 316 Stainless Steel
Seal Options: Buna-N
Available in Bags of 25 units
NSF Listed Version (part # 21400) Available Upon Request

Specifications

Product Details
Barb Size	3/8"
Max Pressure (Psi)	120
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Seal / O-Ring Material	Buna-N (Nitrile)
Series	PLC
Shape	Straight
Valve Type	Valved
Color / Finish	White
Type	Coupling
Shipping Dimensions
Shipping Length	2 in.
Shipping Width	1 in.
Shipping Height	1 in.
Product Weight & Dimensions
Product Height	1 in.
Product Length	2 in.
Product Width	1 in.
Product Weight (lbs)	0.0625

Product Details
Barb Size	3/8"
Max Pressure (Psi)	120
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Seal / O-Ring Material	Buna-N (Nitrile)
Series	PLC
Shape	Straight
Valve Type	Valved
Color / Finish	White
Type	Coupling
Shipping Dimensions
Shipping Length	6 in.
Shipping Width	6 in.
Shipping Height	6 in.
Product Weight & Dimensions
Product Weight (lbs)	0.5

Product Details
Barb Size	3/8"
Max Pressure (Psi)	120
Max Temp (°F)	180°F
Min Temp (°F)	-40°F
Nsf Version	No
Seal / O-Ring Material	Buna-N (Nitrile)
Series	PLC
Shape	Straight
Valve Type	Valved
Color / Finish	White
Type	Coupling
Product Weight & Dimensions
Product Weight (lbs)	15

Downloads

PLCD22006 Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb Manual

Reviews (3)

Safe & Secure Checkout

Enjoy a Safe & Secure Checkout with advanced encryption and trusted payment gateways, ensuring your information stays protected every step of the way.

Compare Similar Products

A table comparing the facets of 4 products

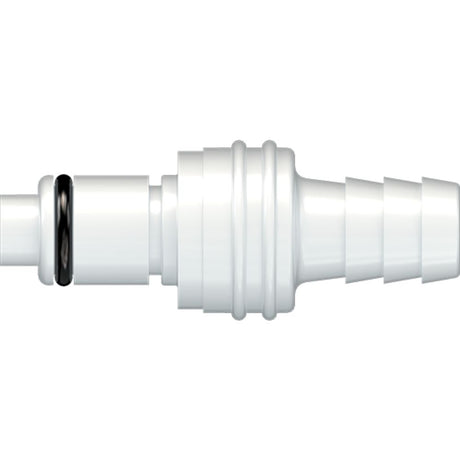

Facet	Colder Products PLCD22006 Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb 5.0 Regular price From $5.78 Part #: PLCD22006 Save up to 5% with bulk pricing Current Product	Colder Products 21400 NSF Valved In-Line Hose Barb Coupling Insert 3/8 ID Barb Regular price From $6.24 Part #: 21400 Save up to 5% with bulk pricing View details	Linktech LinkTech 40AC InLine Plug, Valved, 3/8" HB Regular price From $5.01 Part #: 40ACV-PB2-06 Save up to 15% with bulk pricing View details
