Colder Products

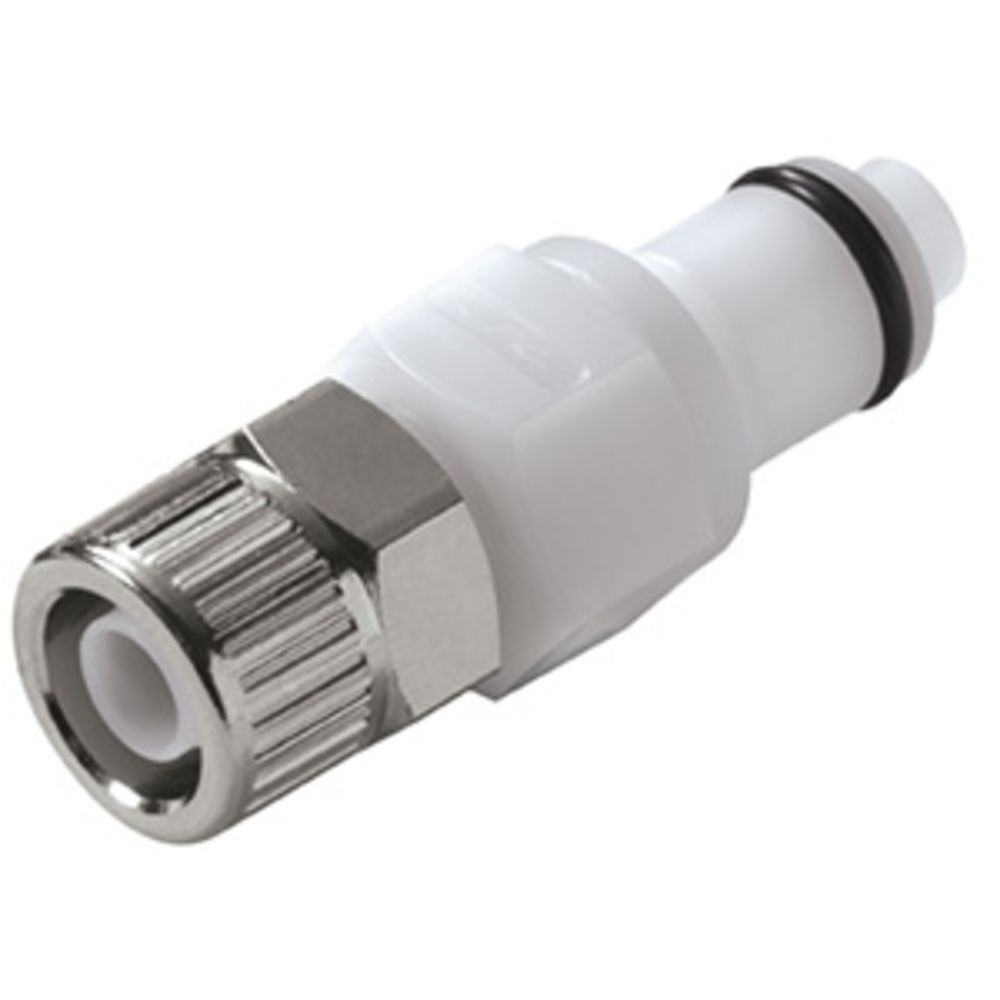

PLCD200M10 Valved In-Line 10 MM PTF Coupling Insert 3/8 PTF

Part Number: PLCD200M10

In Stock

out of stock

In Stock

$10.36


The 3/8" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Tubing Size: .17" ID, 3/8" OD
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units


Details

Series

PLC

Thread Connection

3/8" | NPT

Bag Quantity

25

Body Material

Acetal

Color / Finish

White, Natural

O Rings

Buna-N

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40 to 180 Degrees Fahrenheit

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless steel

Thumb Latch

Stainless steel


PLCD200M10





The 3/8" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Tubing Size: .17" ID, 3/8" OD
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units

Details

Series

PLC

Thread Connection

3/8" | NPT

Bag Quantity

25

Body Material

Acetal

Color / Finish

White, Natural

O Rings

Buna-N

Operating Pressure Range

Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40 to 180 Degrees Fahrenheit

Seal Material

Buna-N

Spring

316 Stainless Steel

Valve Type

Valved

External Springs And Pin

Stainless steel

Thumb Latch

Stainless steel
