Colder Products

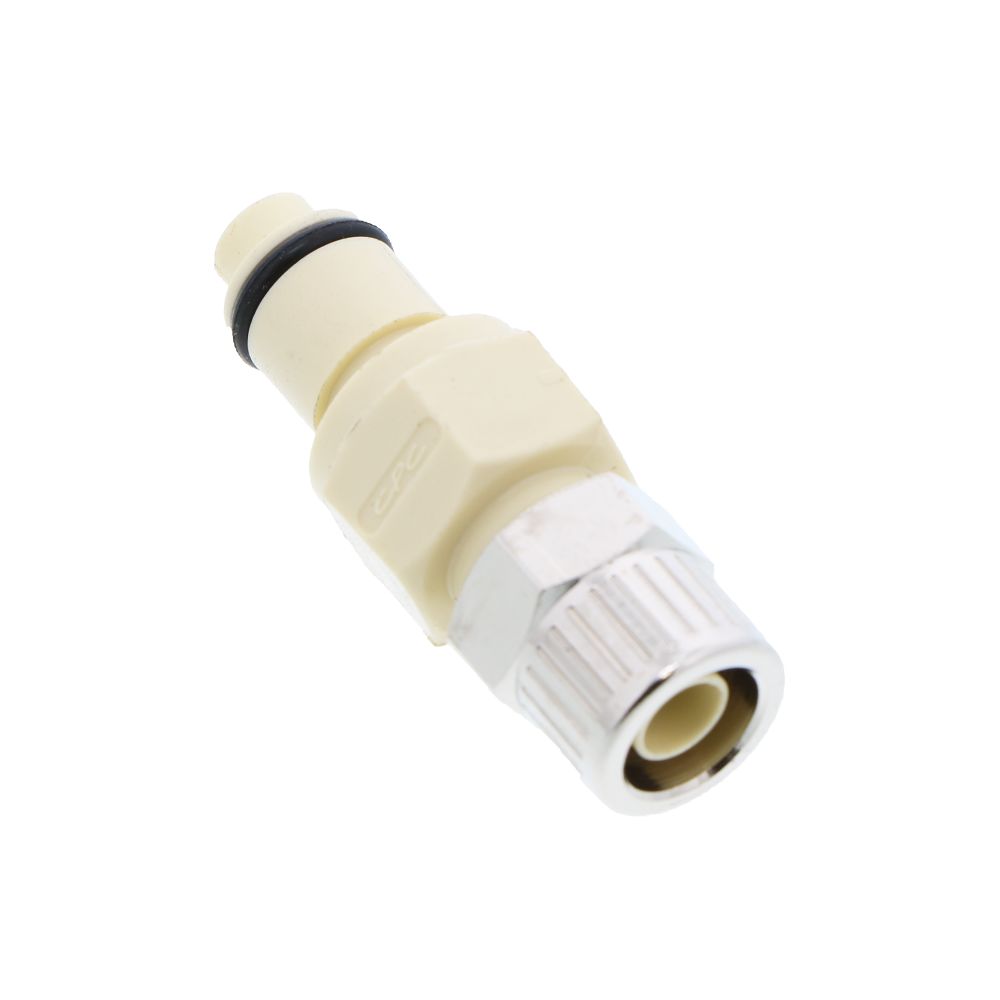

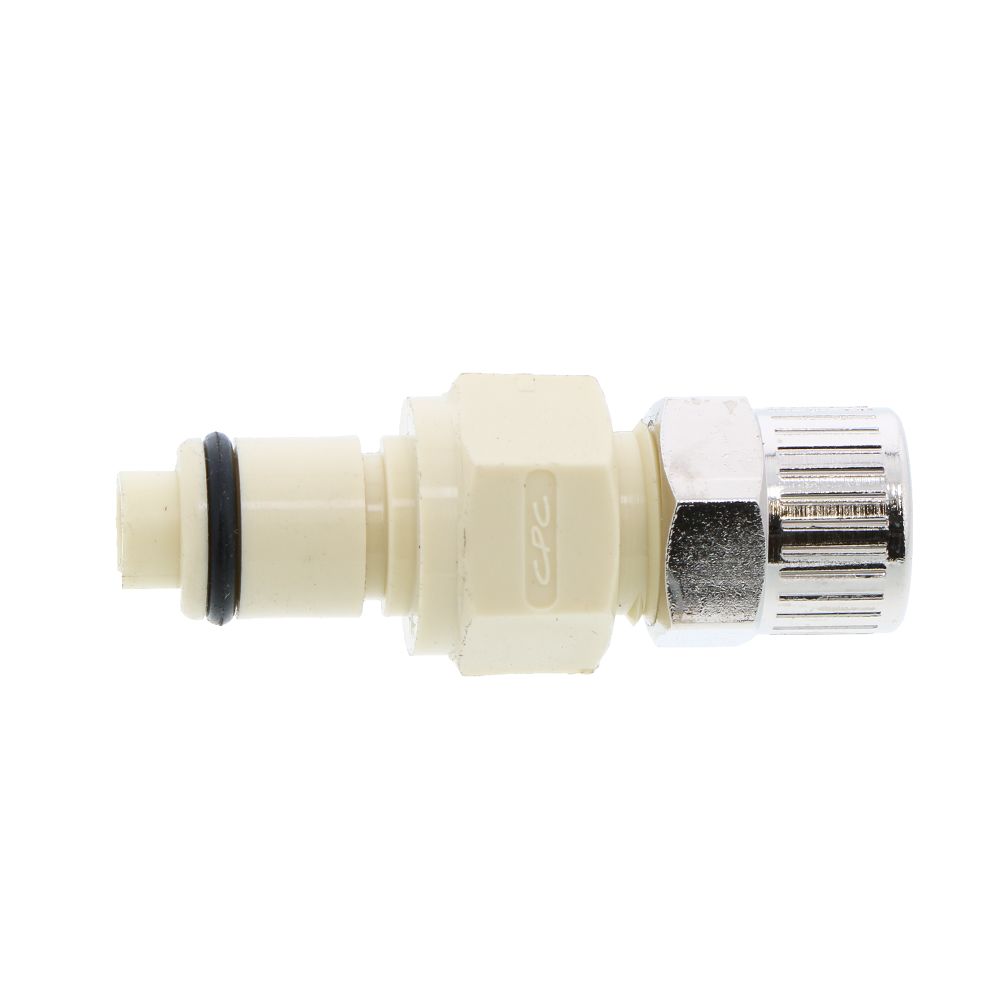

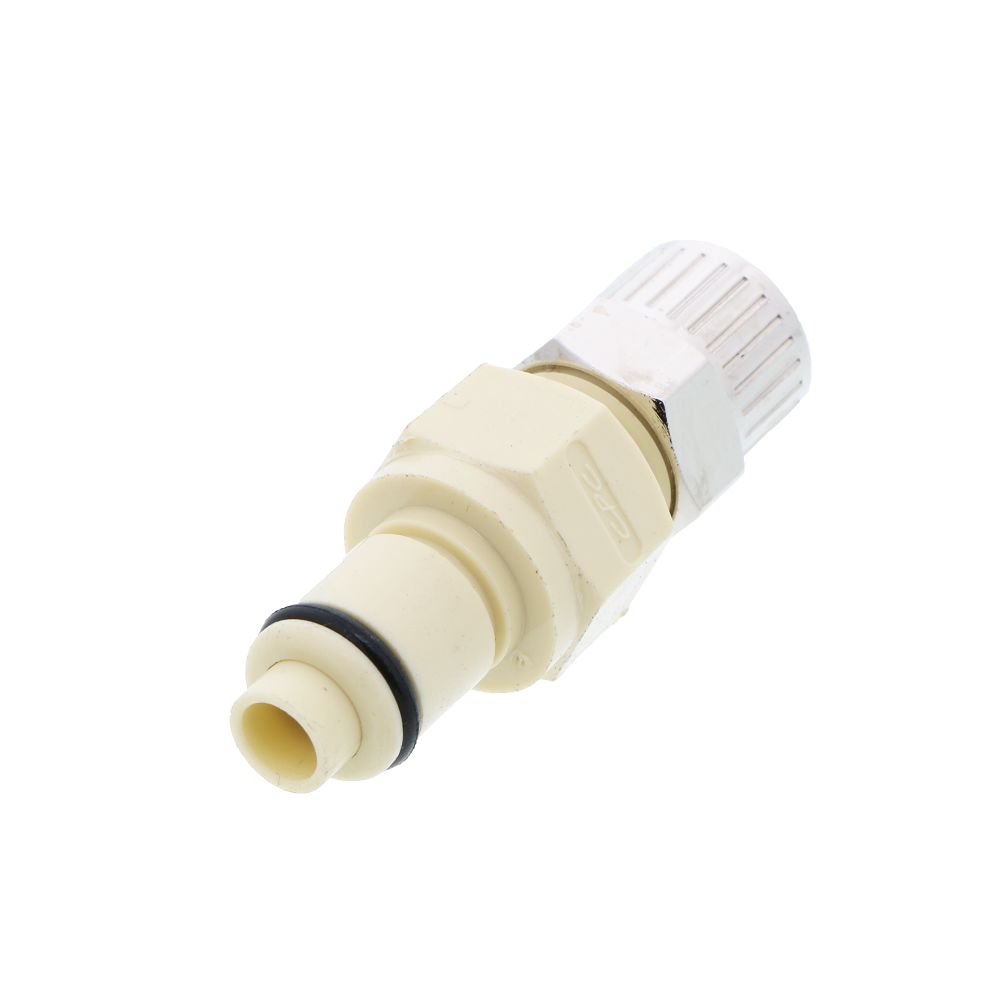

PLCD2000612 Valved In-Line PTF Coupling Insert 3/8 PTF

Part Number: PLCD2000612

In Stock

out of stock

In Stock

$10.77

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Tubing Size: .25" ID, 3/8" OD
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Available in Bags of 25 units




Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Polypropylene

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

vacuum

Min Temp (°F)

32

Mounting Options

Free Floating

Push-In Size

3/8" OD

Seal Material

EPDM

Series

PLC12

Size

3/8"

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Valved

Color / Finish

Almond

Connection Type

Female (FPT)

Origin

USA

Type

Coupling Insert


PLCD2000612




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

Specifications:
  • Material: Polypropylene
  • Color: Almond
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Tubing Size: .25" ID, 3/8" OD
  • Temperature Range: 32ºF to 160ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: EPDM
  • Available in Bags of 25 units



Weight & Dimensions

Weight (lbs)

0.05

Details

Application

Water

Body Material

Polypropylene

External Springs And Pin

Stainless Steel

Inlet/Outlet Connection

3/8" FPT

Max Pressure (Psi)

120

Max Temp (°F)

160

Min Pressure (Psi)

vacuum

Min Temp (°F)

32

Mounting Options

Free Floating

Push-In Size

3/8" OD

Seal Material

EPDM

Series

PLC12

Size

3/8"

Spring

316 stainless steel

Thumb Latch

Stainless steel

Valve Type

Valved

Color / Finish

Almond

Connection Type

Female (FPT)

Origin

USA

Type

Coupling Insert

Documentation
PLCD2000612
Reviews
