Colder Products

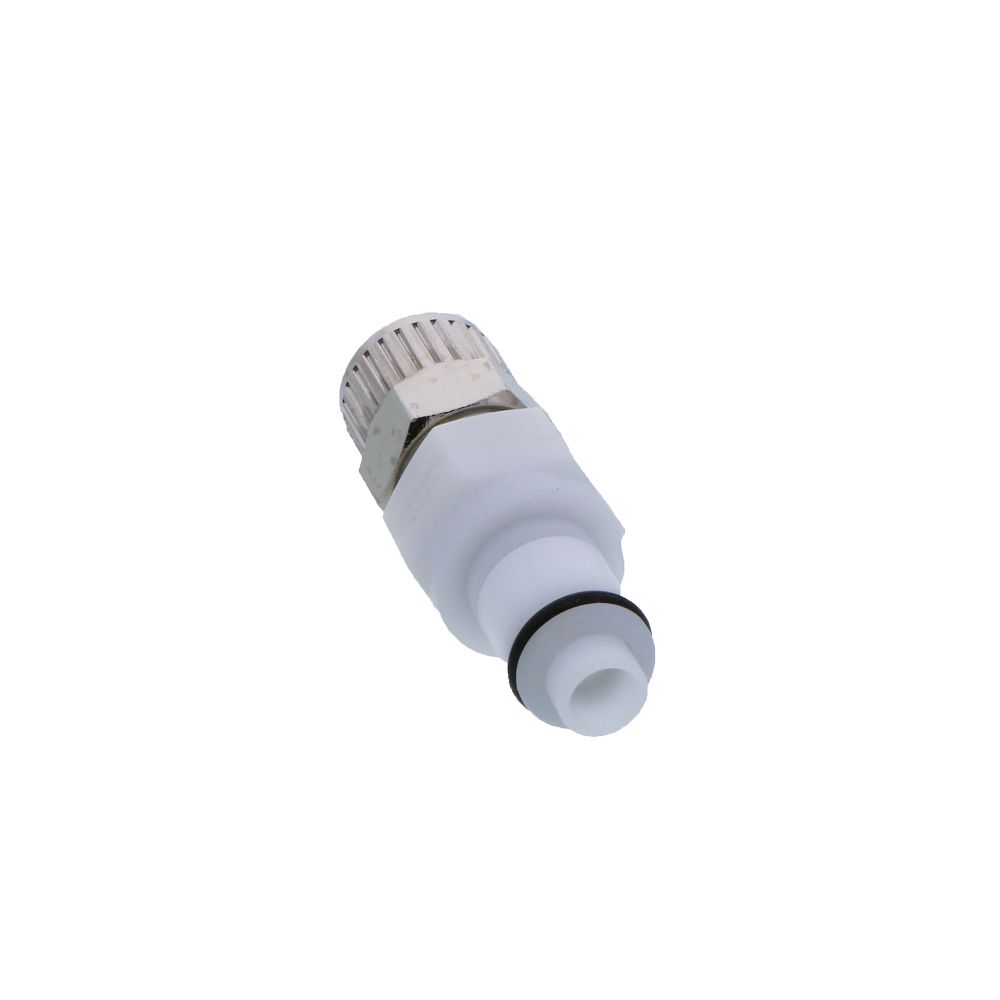

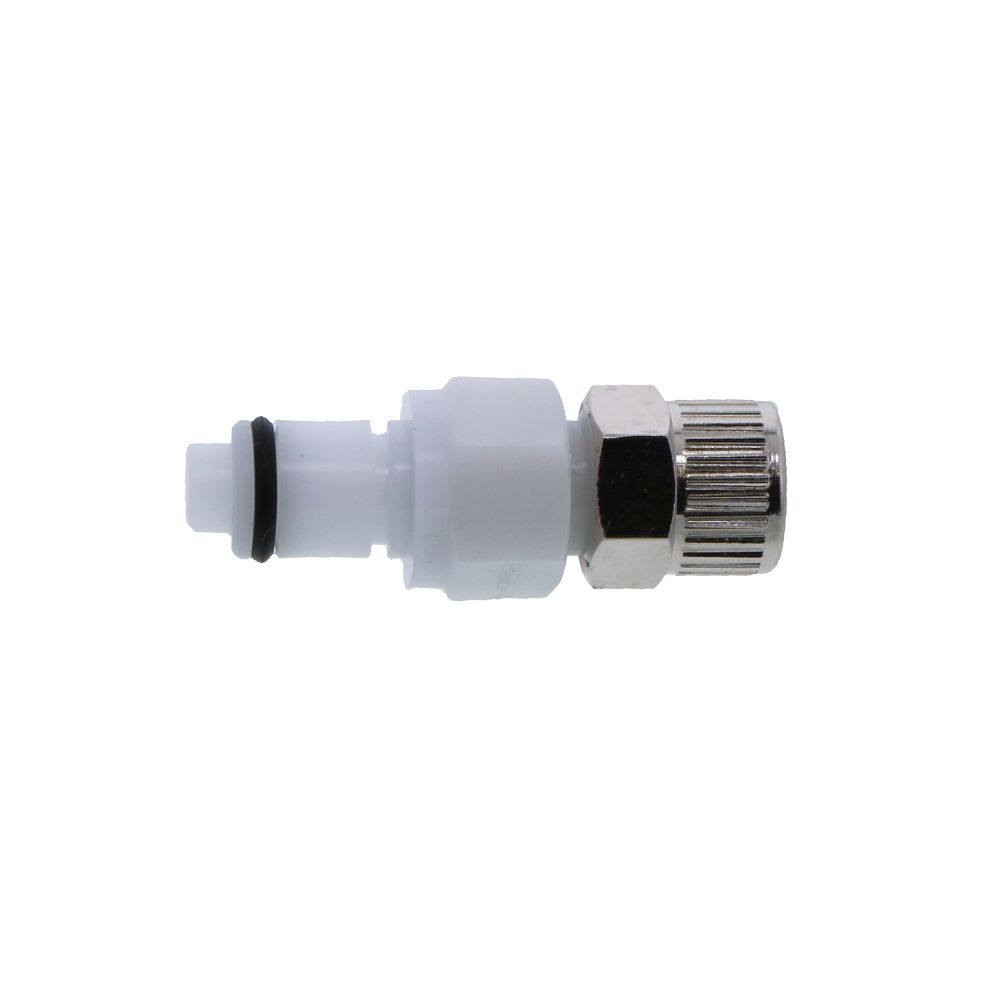

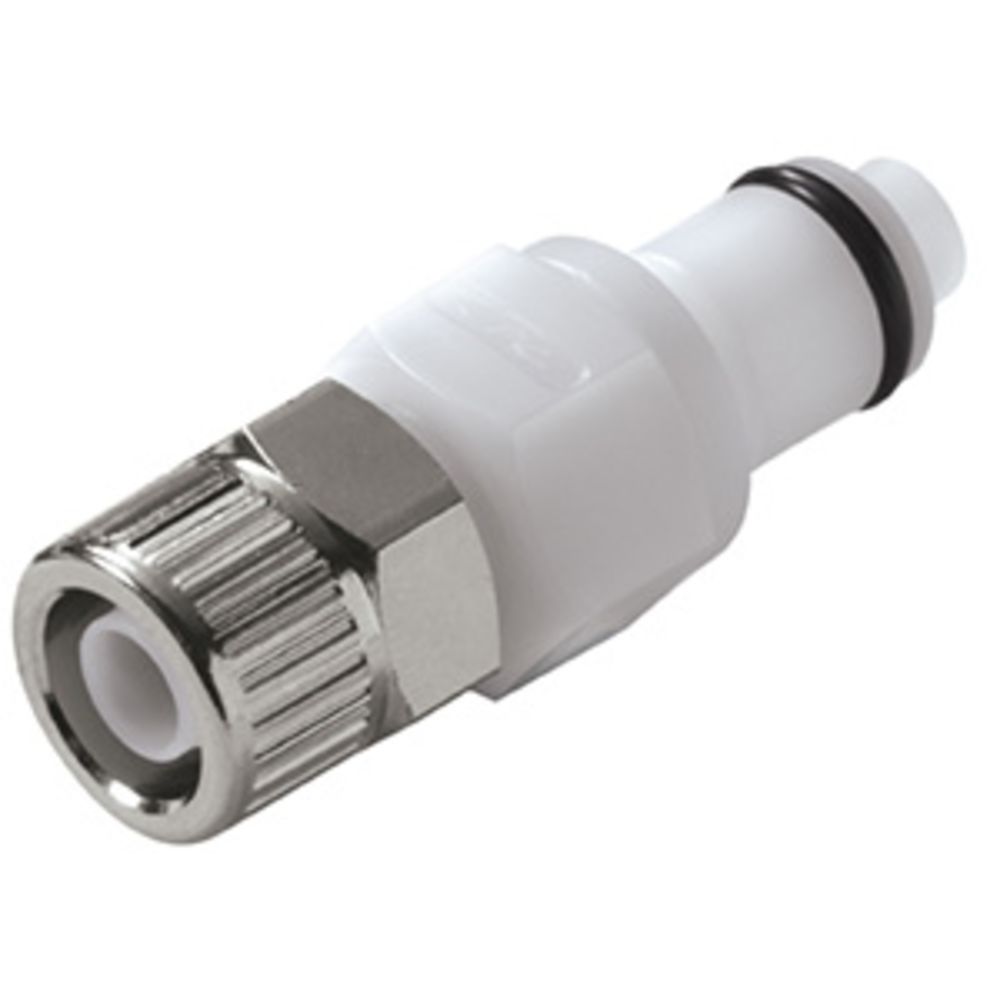

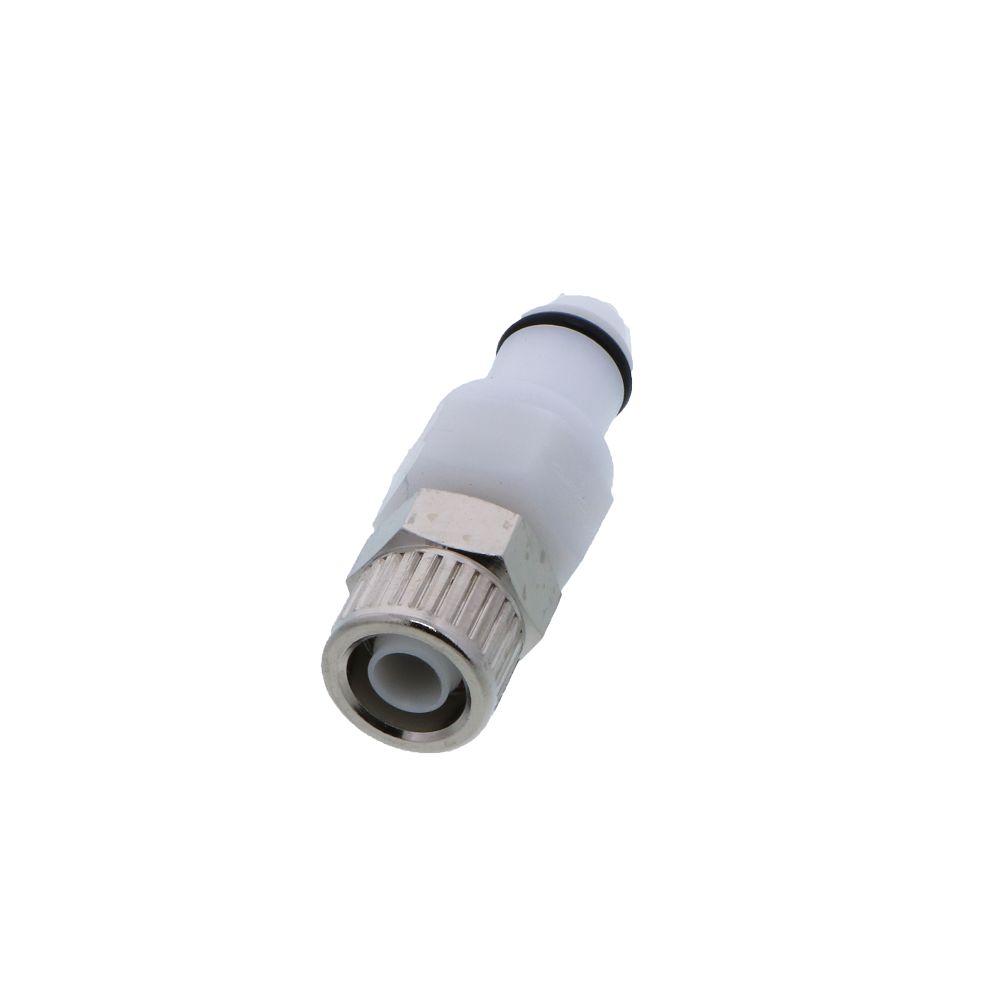

PLCD20006 Valved In-Line PTF Coupling Insert 3/8 PTF

Part Number: PLCD20006

In Stock

out of stock

In Stock

$6.18

The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

 Specifications
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Tubing Size: .25" ID, 3/8" OD
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 25200) Available Upon Request


Details

Bag Quantity

25

Body Material

Acetal

Color / Finish

White

Mounting Options

Free Floating

O Rings

Buna-N

Operating Pressure Range

120 psi; Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40ºF to 180ºF

Seal Material

Buna-N

Size

25" ID, 3/8" OD

Spring

316 Stainless Steel

Valve Type

Valved


PLCD20006




The 1/4" flow PLC Series is proven worldwide in thousands of applications and offers the widest selection of sizes and configurations. PLC quick disconnect couplings are injection molded from acetal thermoplastic and are resistant to most mild chemical solutions.

 Specifications
  • Material: Acetal
  • Color: White
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Mounting Option: Free Floating
  • Valve Option: Valved
  • Tubing Size: .25" ID, 3/8" OD
  • Temperature Range: -40ºF to 180ºF
  • Valve Spring: 316 Stainless Steel
  • Seal Options: Buna-N
  • Available in Bags of 25 units
  • NSF Listed Version (part # 25200) Available Upon Request

Details

Bag Quantity

25

Body Material

Acetal

Color / Finish

White

Mounting Options

Free Floating

O Rings

Buna-N

Operating Pressure Range

120 psi; Vacuum to 120 psi, 8.3 bar

Operating Temperature Range

-40ºF to 180ºF

Seal Material

Buna-N

Size

25" ID, 3/8" OD

Spring

316 Stainless Steel

Valve Type

Valved

Documentation
PLCD20006
